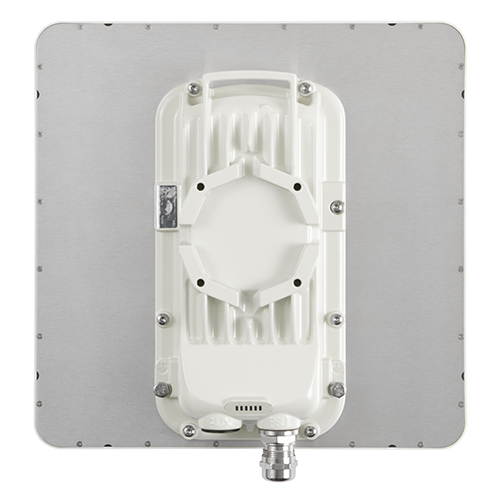

Cambium Networks - C030045C002A - PMP450i 3GHz SM, Integrated High Gain Antenna Subscriber Module. CBRS and Part 96

Cambium Networks 3 GHz connectorized access point is part of the industry leading PMP 450i product line. It is the most scalable industrial-grade wireless broadband solution available. This model has an integrated dual slant 19 dBi antenna. Cambium Networks 3 GHz connectorized access point is part of the industry leading PMP 450i product line. It is the most scalable industrial-grade wireless broadband solution available. This model has an integrated dual slant 19 dBi antenna. Product Features •
Ultra-Wide Band: Radios support the entire band, advanced radio design improves transmit power and increases receive sensitivity.
• Rugged Metal Enclosure: Designed to meet IP-66 and IP-67 standards to withstand harsh environments.
• Dynamic Interference Filtering: Provides industry leading noise isolation for improved performance. • Updated FPGA and SoC architecture triples the processing power compared to PMP 450.
• Multi-function AUX Power: Allows for greater flexibility for deployment by adding a camera or other PoE directly. Product Specifications •
Channel Spacing: Configurable on 2.5 MHz increments, 3 GHz customizable to 50 KHz •
Frequency Range: 3300 to 3900 MHz •
Channel Width: 5 / 7 / 10 / 15 / 20 / 30 MHz • MAC (Media Access Control)
Layer: Cambium Networks proprietary •
Physical Layer: 2x2 MiMO OFDM •
Ethernet Interface: 100/1000BaseT, full duplex, rate auto negotiated ( 802.3 compliant) •
Protocols Used: IPv4, UDP, TCP, IP, ICMP, Telnet, SNMP,, FTP 1ad (DVLAN Q-inQ), 802.1Q with 802.1 p priority, dynamic port VID •
ARQ: Yes •
Maximum Deployment Range: Up to 40 miles (64 km) •
Latency: 3 - 5 ms, typical •
GPS Synchronization: Yes, via Autosync (CMM3, CMM4) •
Quality of Service: Diffserve QoS •
Antenna Beam Width: 10° azimuth for integrated antenna •
Antenna Gain: 19 dBi dual slant integrated antenna •
Transmit Power Range: 40 dB dynamic range (to EIRP limit by region) (1 dB step) • Maximum
Transmit Power: 25 dBm combined output •
Surge Suppression: EN6100-4- 5:1. 2us, 500 V voltage waveform •
Mean Time Between Failure: > 40
Years • Environmental: IP66, IP67 •
Temperature / Humidity: -40 to 60°C (-40 to 140°F), 0 to 95% non-condensing •
Weight: Approx. 2.5 kg ( 5.5 lbs) •
Wind Survival: 200 km/h (124 mph) •
Dimensions: 31.0 x 31.0 x 6.4 cm (12 x 12 x 2.5 ) •
Power Consumption: 15 W typical, 25 W max, 55 W max with Aux port PoE out enabled •
Input Voltage: 48 - 59 VDC, 802.3 at compliant •
Mounting: Wall or Pole mountable •
Encryption: 56-bit DES, FIPS-197 128-bit AES •
CE: EN 302 326-2 v 1.2. 2 / EN 302 326-3 v 1.3. 1 Product Documentation C030045C002A Datasheet Specifications C030045C002A Channel Spacing Configurable on 2.5 MHz increments, 3 GHz customizable to 50 KHz Frequency Range 3300 to 3900 MHz Channel Width 5 / 7 / 10 / 15 / 20 / 30 MHz MAC (Media Access Control) Layer Cambium Networks proprietary Physical Layer 2x2 MiMO OFDM Ethernet Interface 100/1000BaseT, full duplex, rate auto negotiated ( 802.3 compliant) Protocols Used IPv4, UDP, TCP, IP, ICMP, Telnet, SNMP,, FTP 1ad (DVLAN Q-inQ), 802.1Q with 802.1 p priority, dynamic port VID ARQ Yes Maximum Deployment Range Up to 40 miles (64 km) Latency 3 - 5 ms, typical GPS Synchronization Yes, via Autosync (CMM3, CMM4) Quality of Service Diffserve QoS Antenna Beam Width 10° azimuth for integrated antenna Antenna Gain 19 dBi dual slant integrated antenna Transmit Power Range 40 dB dynamic range (to EIRP limit by region) (1 dB step) Maximum Transmit Power 25 dBm combined output Surge Suppression EN6100-4- 5:1. 2us, 500 V voltage waveform Mean Time Between Failure > 40 Years Environmental IP66, IP67 Temperature / Humidity -40 to 60°C (-40 to 140°F), 0 to 95% non-condensing Weight Approx.

2.5 kg ( 5.5 lbs) Wind Survival 200 km/h (124 mph) Dimensions 31.0 x 31.0 x 6.4 cm (12 x 12 x 2.5 ) Power Consumption 15 W typical, 25 W max, 55 W max with Aux port PoE out enabled Input Voltage 48 - 59 VDC, 802.3 at compliant Mounting Wall or Pole mountable Encryption
