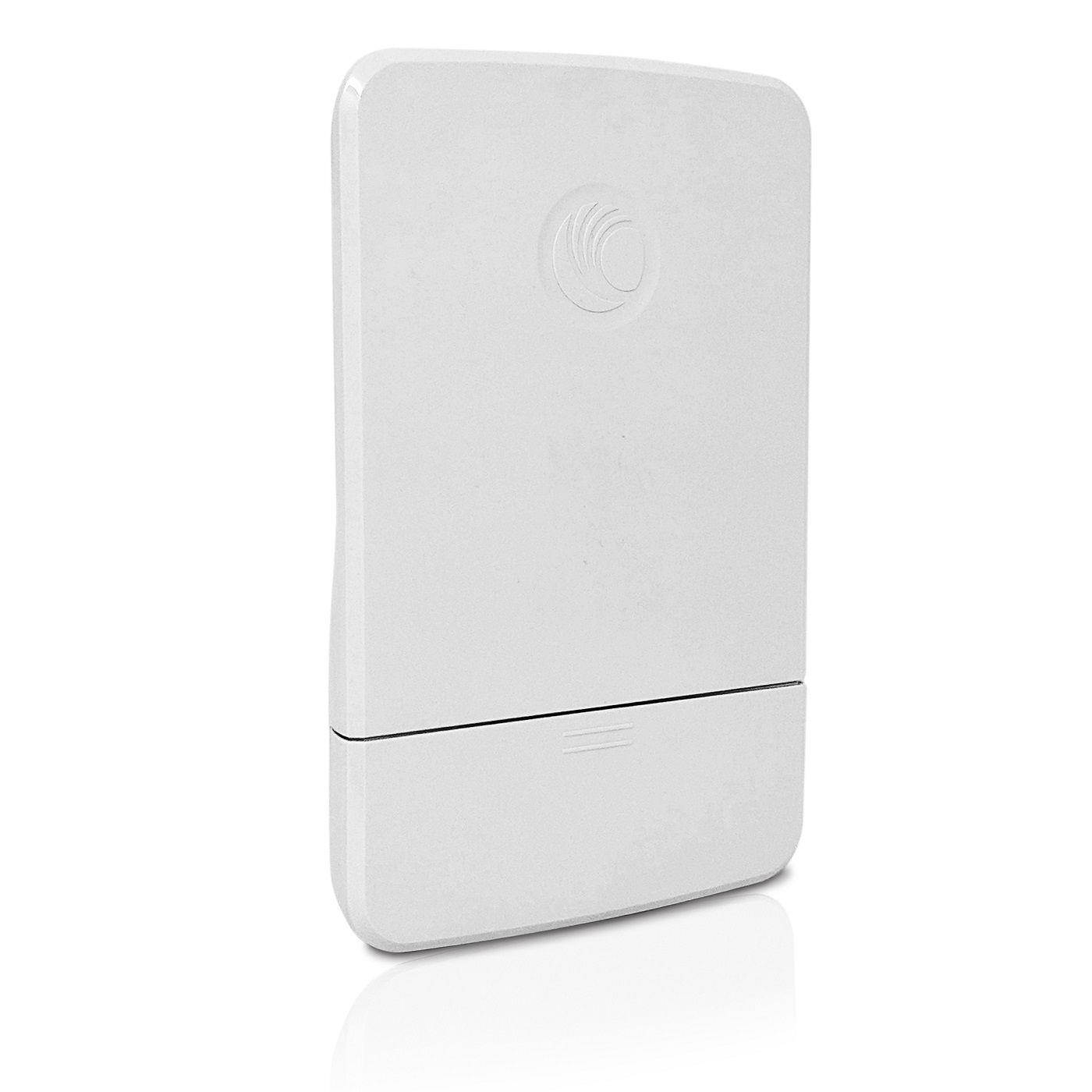

Cambium Networks - C058900C701A - ePMP Force 300-13, 5GHz Subscriber Module with 13 dBi Integrated Antenna, FCC. US

Cambium Networks C058900C701A (US Version) ePMP Force 300-13, 5GHz Subscriber Module with 13 dBi Integrated Antenna, FCC. US power cord Wireless service providers and enterprises around the globe are challenged to deliver reliable connectivity in overcrowded RF environments. As spectrum increasingly becomes a scarce commodity, finding the right broadband connectivity solution is vital for all low and high-density deployments. Cambium Networks resolves this challenge with a breakthrough technology solution that delivers superior performance, resiliency and reach in the most congested environments. Combining the latest 802. llac Wave 2 technology and the field proven scalable performance of ePMP, the Force 300-13 delivers up to 600 Mbps of capacity.

The Force 300-13 is a powerful yet affordable subscriber module compatible with the ePMP 3000 Access Point and using the forward compatibility features also interoperates with the ePMP 2000 to ease the migration into the 802. llac Wave 2 technology. The Force 300-13 has a 13 dBi integrated antenna with a narrow beamwidth.
FEATURES: Cambium Networks' ePMP Force 300-13 is designed to operate in high interference environments and provides superior throughput up to 600 Mbps of real user data. The ePMP Force 300-13 supports channel sizes from 20 MHz up to 80 MHz and modulations up to 256QAM. The ePMP Force 300-13 supports real time spectrum monitoring without degradation in throughput. Configurable modes of operation ensure robust adaptivity to both symmetrical and asymmetrical traffic while providing high performance and round-trip latency as low as 3-5 ms. QoS management offers outstanding quality for triple play services - VoIP, video, and data - and provides three levels of traffic priority. The integrated 13 dBi panel antenna has a small form factor and provides excellent range. Refer to Cambium Networks LINKPlanner[tm] for estimating capacity and availability. Installations are quick and reliable supporting both pole and wall mounting. Specifications C058900C701A SPECTRUM Channel Spacing Configurable in 5 MHz increments Frequency Range Wide Band Operation 4910 - 5970
MHz (Note: Allowable frequencies and bands are dictated by individual country regulations. ) Channel Width 20 | 40 | 80 INTERFACE MAC (Media Access Control) Layer Cambium Proprietary Physical Layer 802.11 ac Wave 2 (2x2 MIMO/OFDM) Ethernet Interfaced 10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts Protocols Used IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH 1Q with 802.1 p priority PERFORMANCE ARQ Yes Nominal Receive Sensitivity (w/FEC) @20 MHz Channel MCS0 = -89 dBm to MCS8 (256 QAM-3/4) = -68 dBm (per chain) Nominal Receive Sensitivity (w/FEC) @40 MHz Channel MCS0 = -87 dBm to MCS9 (256 QAM-5/6) = -66 dBm (per chain) Nominal Receive Sensitivity (w/FEC) @80 MHz Channel MCS0 = -84 dBm to MCS9 (256 QAM-5/6) = -61 dBm (per chain) Modulation Levels (Adaptive) MCS0 (BPSK) to MCS9 (256 QAM-5/6) Transmit Power Range 0 to +28 dBm (combined up to the regioanl EIRP limit) (1 dB interval) PHYSICAL Surge Suppression 1 Joule Integrated (C000000L065A - 30V Gigabit surge suppressor is recommended for optimum protection) Environmental IP55 Temperature -30°C to +60°C (-22°F to +140°F) Weight 0.48 kg ( 1.05 lbs. ) (includes integrated mounting bracket) Wind Survival 180 km/hour (112 mi/hour) Dimensions (Dia x Depth) 13.0 x 20.3 x 5.40 cm ( 5.1 x 8.0 x 2.1 inches) Pole Diameter Range 1 – 1.6 in ( 2.5 – 4.1 cm) with included clamp; up to 2.25 in ( 5.7 cm) with larger clamp Power Consumption 12 Watts Input Voltage Passive POE (30 VDC Nominal); 14-30 VDC range SECURITY Encryption 128-bit AES (CCMP mode) CERTIFICATIONS FCCID Z8H89FT0048 Industry Canada Cert 109W-0048 CE EN 301 893 V 2.1.

1 ( 5.4 GHz), EN 302 502 V 2.1. 1 ( 5.8 GHz)**
