Buy Datalogic QD2330-WHK1 Handheld Bar Code Reader - White in United States - Cartnear.com

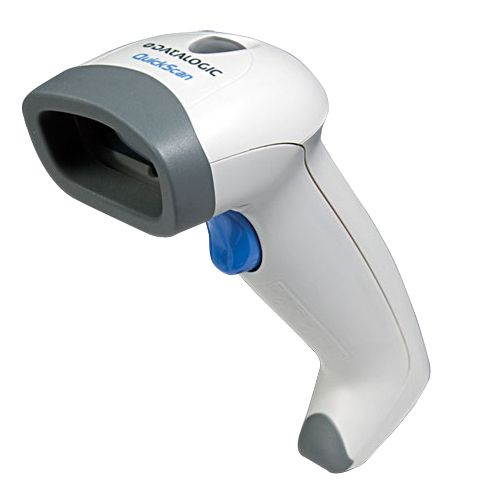

Datalogic QD2330-WHK1 Handheld Bar Code Reader - White
CTNR1763975 CTNR1763975Datalogic
2026-12-31
/itm/datalogic-qd2330-whk1-handheld-bar-code-reader-white-1763975
USD
119.4
$ 119.40 $ 121.84 2% Off
Item Added to Cart
customer
*Product availability is subject to suppliers inventory
SHIPPING ALL OVER UNITED STATES
100% MONEY BACK GUARANTEE
EASY 30 DAYSRETURNS & REFUNDS
24/7 CUSTOMER SUPPORT
TRUSTED AND SAFE WEBSITE
100% SECURE CHECKOUT
| Brand | Datalogic |
|---|---|
| Series | QuickScan L |
| Model | QD2330-WHK1 |
| Form Factor | Handheld |
| Connectivity | Corded |
| Scan Engine | Laser |
| Included Cables | USB Cable Included |
| Interfaces Supported | RS-232 Keyboard Wedge USB Keyboard USB HID |
| Light Source | 650 nm Laser Diode |
| Resolution | MAX. RESOLUTION: 5 mils / 0.10 mm |
| Depth of Scan Field | LABEL DENSITY - READING RANGE 5 mils - 5.5 in / 13.9 cm 7.5 mils - 7.8 in / 19.8 cm 10 mils - 8.6 in / 21.8 cm 13 mils - 9.1 in / 23.1 cm 20 mils - 10.6 in / 26.9 cm |
| Pitch | ± 65° |
| Yaw | ± 60° |
| Scan Speed | 100 scans per second |
| Print Contrast Ratio (Minimum) | 30% minimum reflectance |
| Decoding Capability | Interleaved 2/5, Code 39 (andfull ASCII, TriOptic), Discrete 2/5, UPC/EAN (with supplementals), UCC/EAN128, Code 128, Code 128 full ASCII, Code 93, CODABAR, Code MSI, Code 11, IATA, GS1 DataBar™ (RSS), Chinese 2 of 5 |
| Input Voltage | 5 VDC ± 10% |
| Power Consumption | Operating: 100 mA @ 5 VDC Standby: <35 mA |
| Color | White |
| Dimensions | 6.70" x 2.80" x 2.60" |
| Weight | 0.28 lb. |
| Features | ESD PROTECTION: 20 kV WATER AND DUST RESISTANCE: IP42 INDICATORS: LED and programmable beeper OPTICAL: TILT: ± 30° SCAN ANGLE: 47° ± 3° |
| Drop | DROP RESISTANCE: Withstands drops from 5 ft / 1.5 m to concrete |
