DC 12V Intelligent digital display thermostat Temperature controller With NTC sensor W1401

Product Description :

Condition : New
Application : Alarm
Operating Temperature : Module

Dissipation Power : Module
Supply Voltage : Module
Type : Voltage Regulator
Model Number : Module

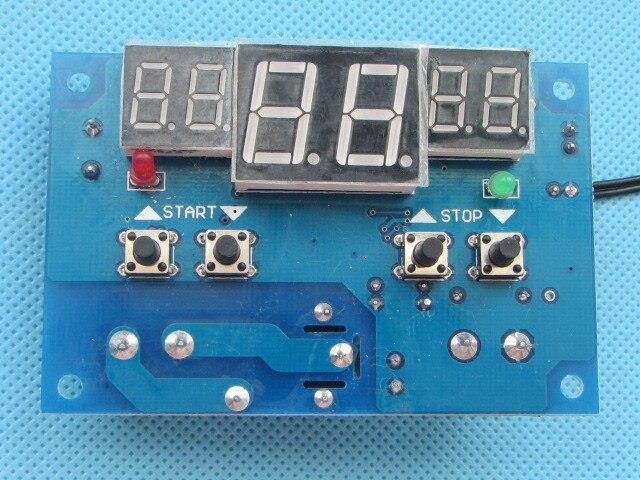

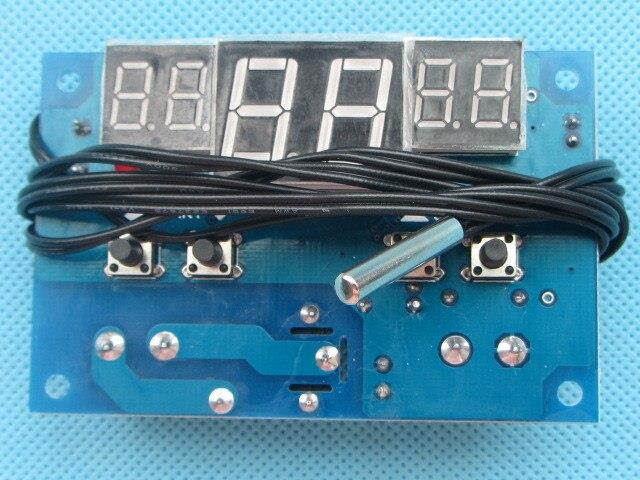

Description 1. Temperature range: -9 ~ 99 centigrade 2. Temperature Accuracy: 1 centigrade 3. Control accuracy: 1 centigrade 4. Setting Range: -9 ~ 99 centigrade 5. Refresh rate: 0.5S 6. Input Power: DC9V ~ DC15V 7. Output: relay output, capacity 220V 10A/12V 10A 8. Environmental requirements: -10 ~ 60 centigrade 9. Humidity: 20% -85% 10. Size: 78x51mm 11. Temperature sensor: NTC(3950-10k 1%) 12. Applicable to Various spatial temperature control,Water temperature control,Incubators, etc. Indicator 1. Red start Indicator: START (red) indicator light, which means that the relay is closed, the device begins to work 2. Green stop light: Stop (green) light is on, which means that the relay is disconnected, the device stops working 3. Digital Tube: Middle red LED display for the current detection temperature, the left green digital display tube as set start temperature, the right side of the green digital display for the set stop temperature. High temperature start: Set the starting temperature value> stop temperature value, When the detected temperature = start temperature, the relay is closed, refrigeration equipment work; When the detected temperature = stop temperature, the relay off, refrigeration equipment stops working. For example Set the starting temperature is 30 centigrade , stop temperature is 25 centigrade , When the detected temperature = 30 centigrade , the relay is closed, the start Indicator (red) lights; When the detected temperature value = 25 centigrade the relay off, stop I
