Brand | GW |
---|---|
Series | H.265 Compression |
Model | 8CH8757MMICX4 |
Type | Kit Solution |
Camera Type | IP Camera |
Camera inputs | 8 Channel |
Video Input | RJ45 x 8 |
Resolution Recording | 4K 2160p/1920p/1520p/1080p |
Recording Frame Rate | 2160P/1920P/1520P/1080P @ real time @ all channels |
Recording Mode | Motion Detective / Continues / Time Schedule / Alarm |
Recording Compression | H.265 (The latest video compression standard which brings extensive possibilities and optimism to the HD-IP Camera by addressing H.264 problems such as shortage of bandwidth, improving transmission efficiency and delivers ultra HD image quality. Compared with current H.264, the H.265 is able to double the data compression ratio, while improve video quality with low bit-rate, this enables IP camera to deliver smooth Superb HD video with low bandwidth, which in turn, reducing the network bandwidth, and video storage size). |
Resolution Display | 4K |
Max Resolution | 4K 8MP (3840 x 2160) |
Display Frame Rate | 1920P @ real time @ all channels |

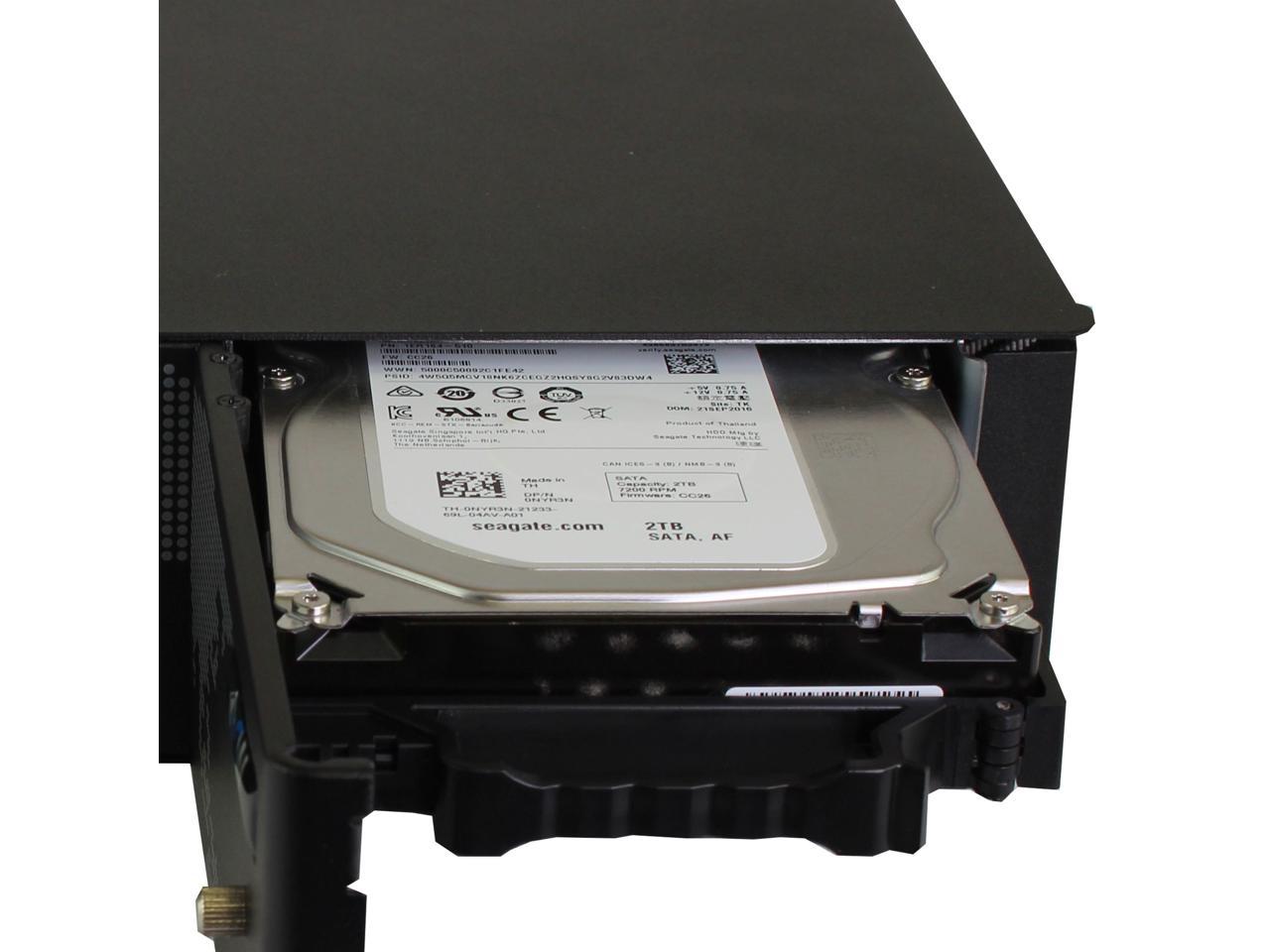

Storage Capacity | 2TB HDD |
Backup Device | USB3.0 (faster video files backup transfer speed) |
Network Protocol | RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/ONVIF |
Network Remote | PC, Mac, iPhone, Android , and Tablets Remotely Access Compatiable (Call Our Free Tech Support if You Need Help to Setup Remote Viewing) |
Operating System | NVR is fully operated on Linux (embedded) system. After connecting the system to internet, you may operate system on your PC, Mac, smartphone, and tablet |
System Requirement | Nothing special required. The NVR system can be fully operated even without hard drive. |

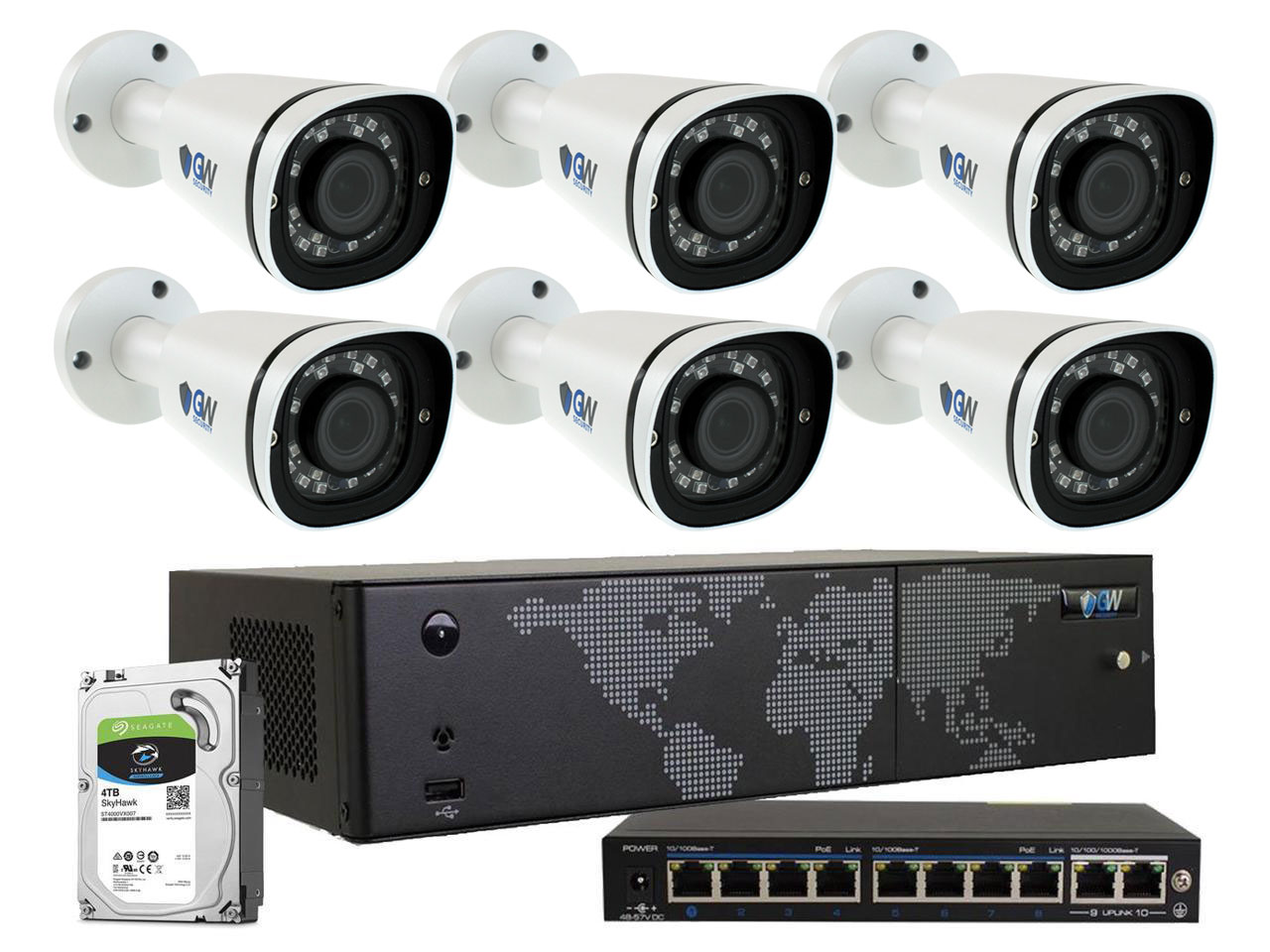

Bundled Camera Number | 6 |

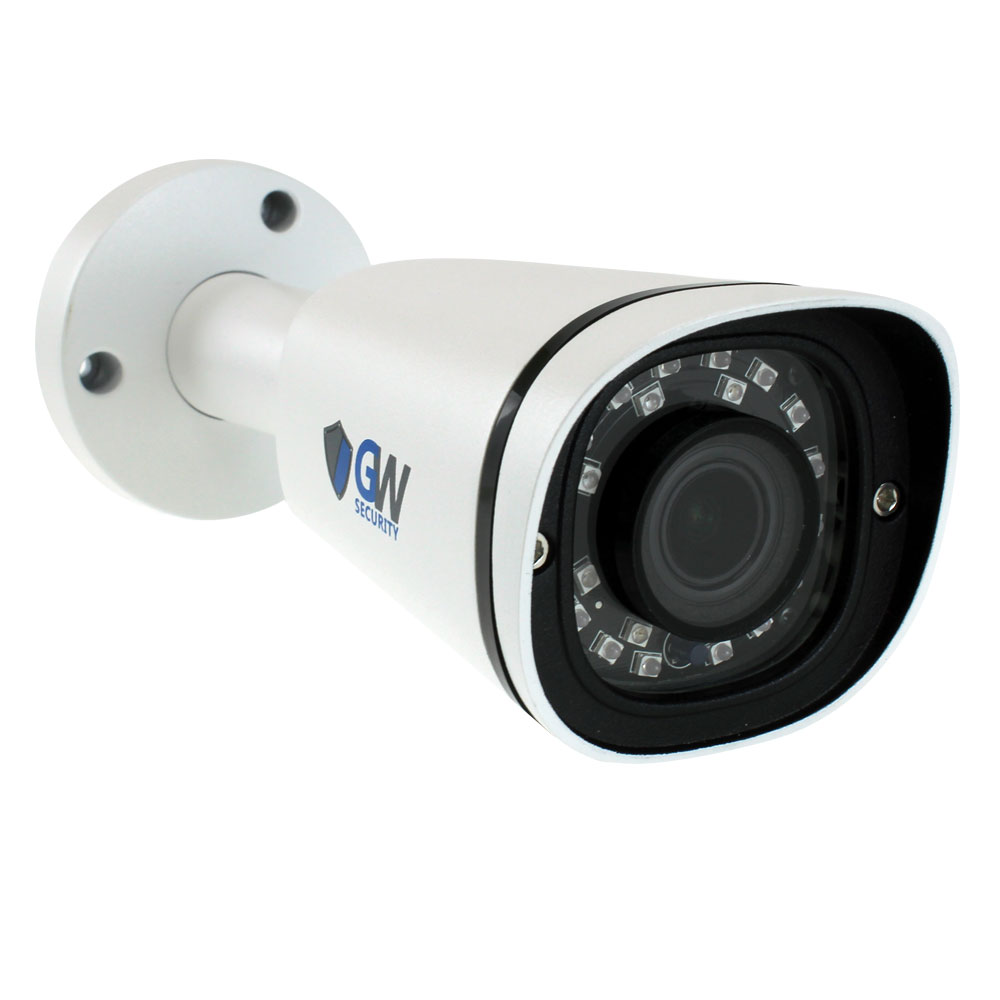

Bundled Camera Spec | 1/2.5” 8 MP CMOS IP Camera, 2.8~8mm motorized lens, 15fps@8MP(3840×2160), 24 pcs IR LEDs, 100 feet IR Distance. Built-in Microphone, H.265/H.264 Video Compression |
Camera Horizontal Resolution | 4K Ultra |

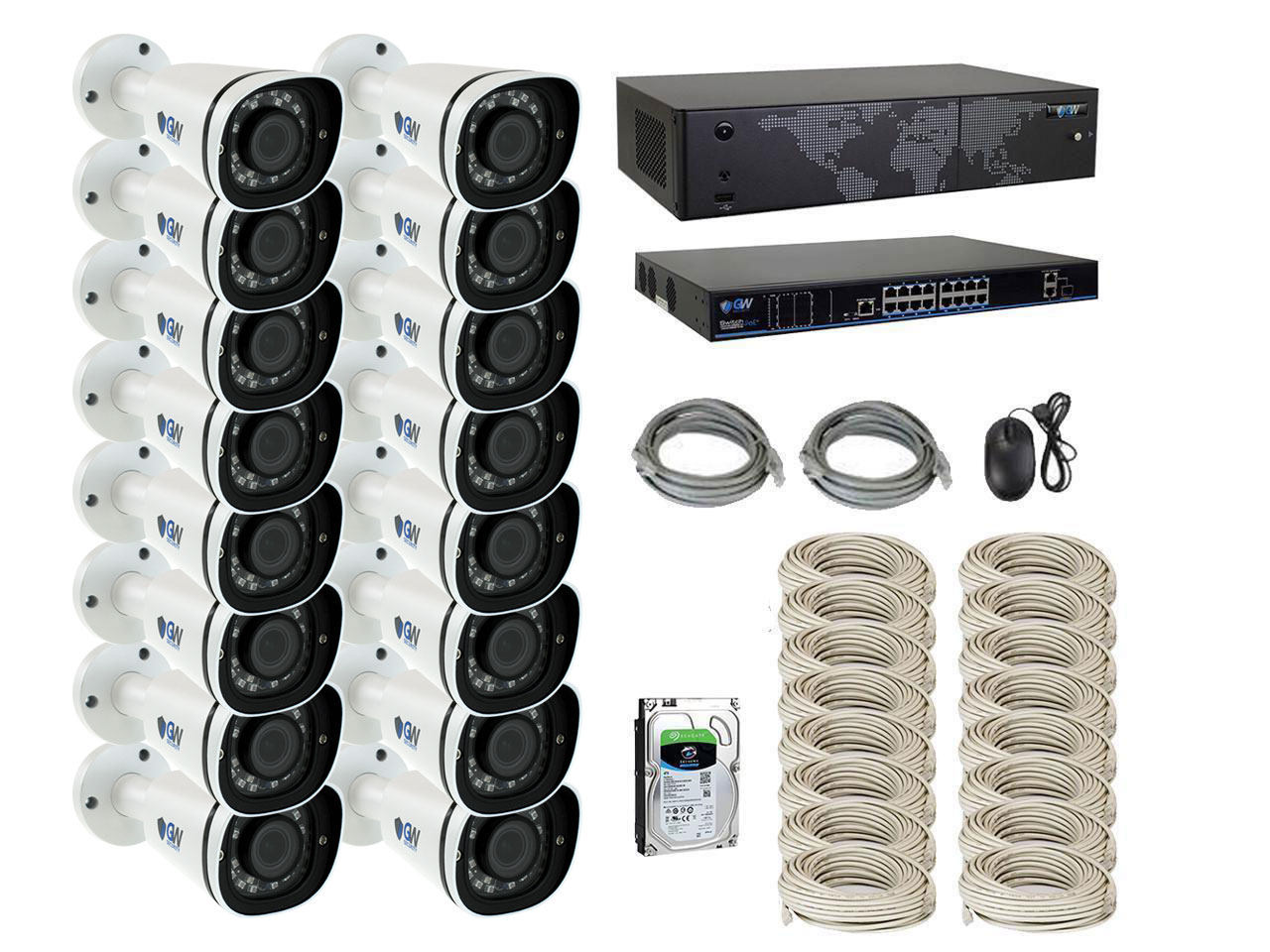

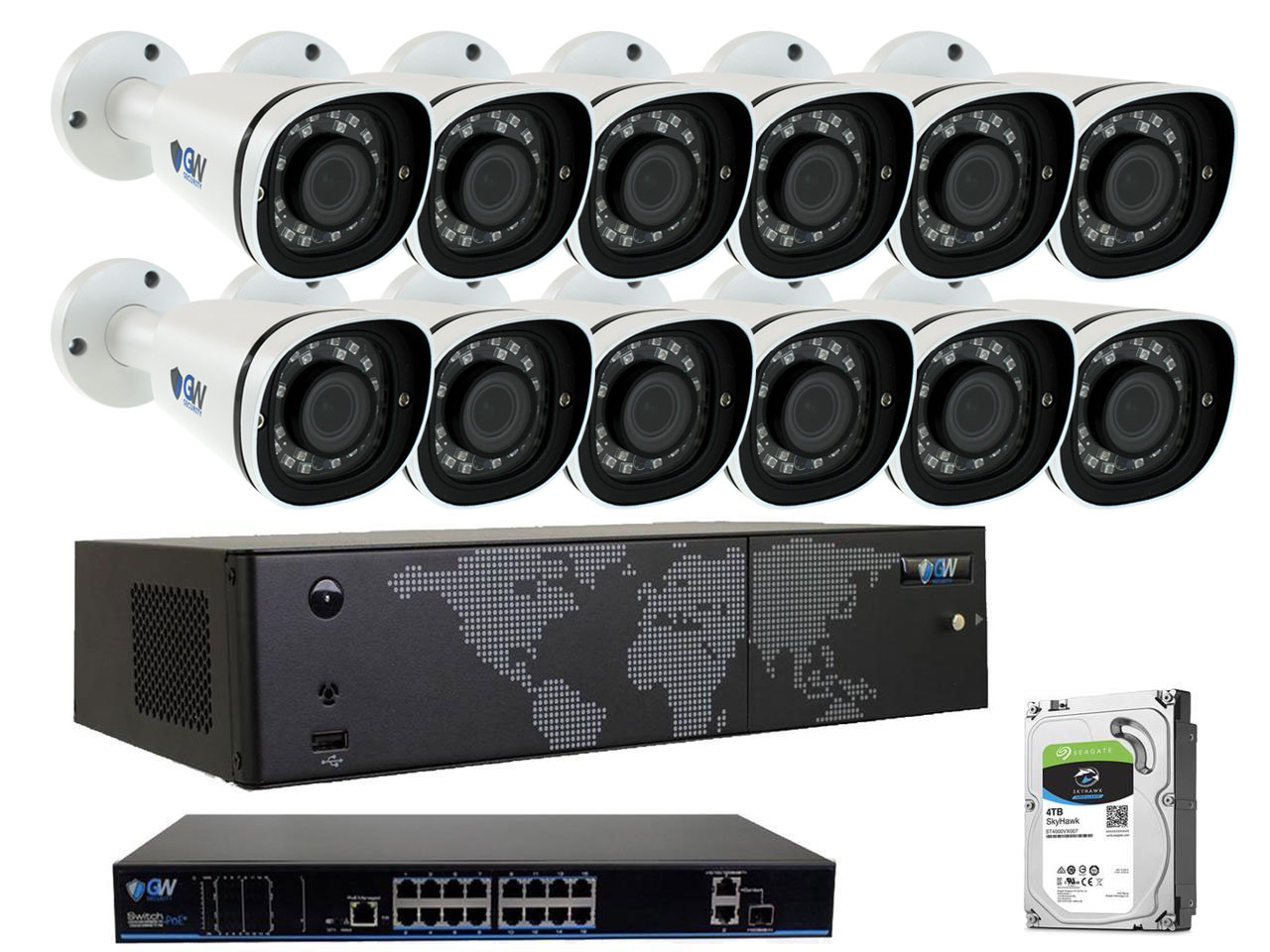

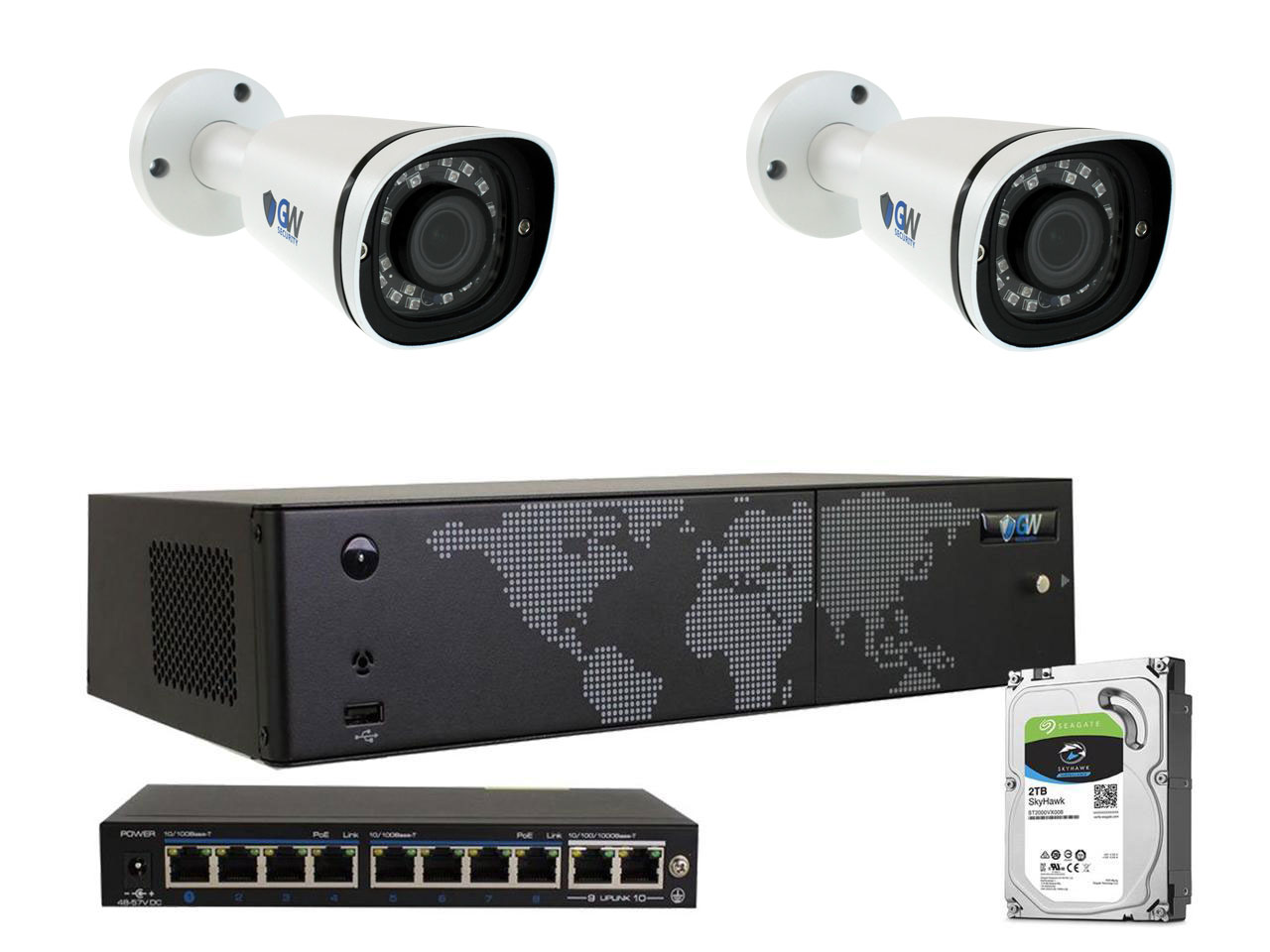

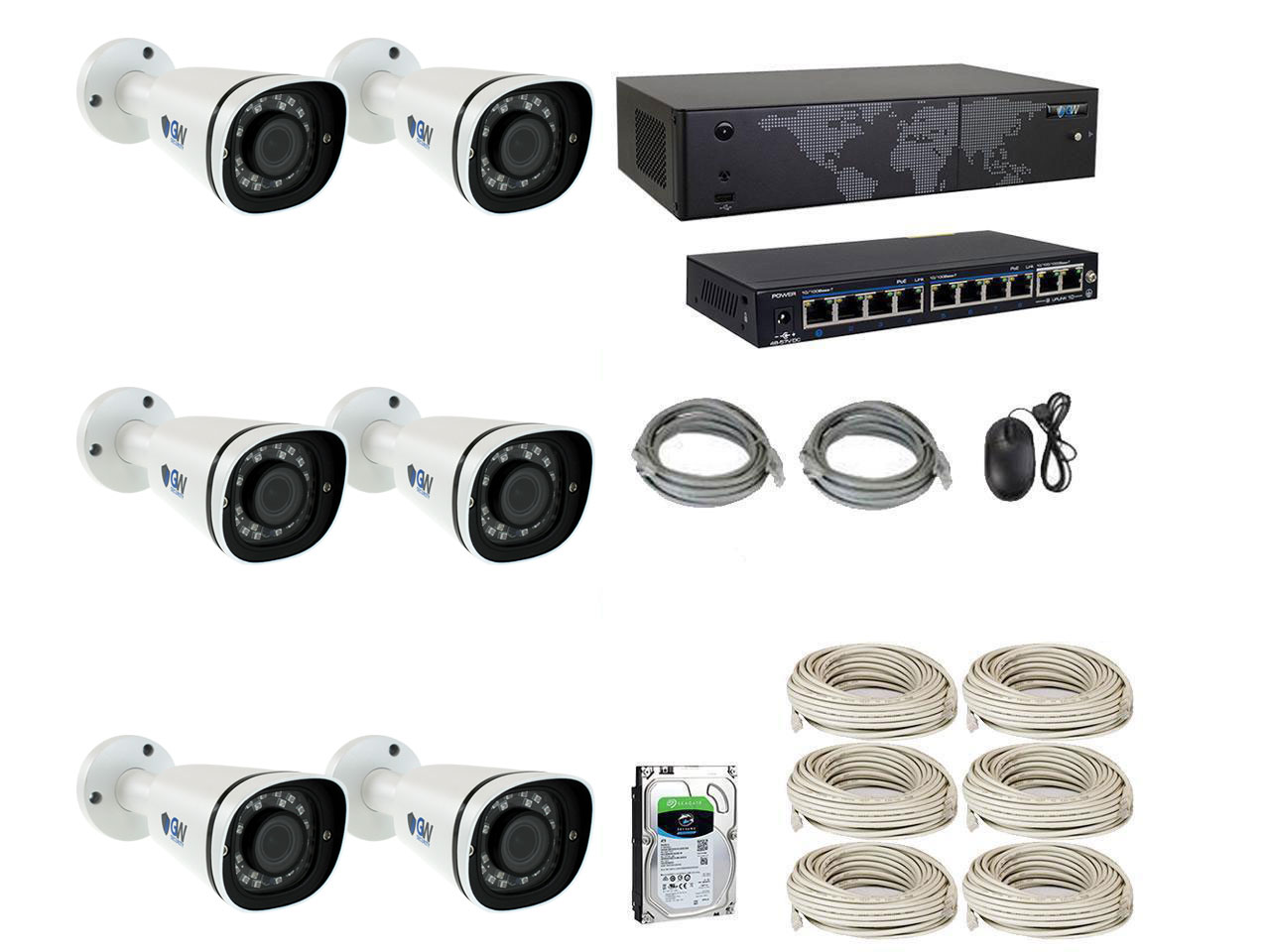

Package Contents | NVR with selected HDD, PoE IP cameras, NVR power adapter, USB mouse, Ethernet cables, Mounting screws, User manual CD, Specification sheet, One year warranty |
Camera Resolution | 4K UltraHD |
