Brand |
GW Security |
Series |
Plug N Play |
Model |
GW4108EP |
Type |
NVR Kit |
Camera Type |
IP Camera |
Camera inputs |
8 Channel |
Video Input |
8 x PoE Ports (RJ45) |
Audio Input |
8CH IPC input |
Resolution Recording |
4K 2160p/1920p/1520p/1080p |
Recording Frame Rate |
4K 2160P/1920P/1520P/1080P @ real time @ all channels |
Recording Mode |
Motion Detective / Continues / Time Schedule / Alarm |
Recording Compression |
New Technology : H.265 HEVC |
Video Output |

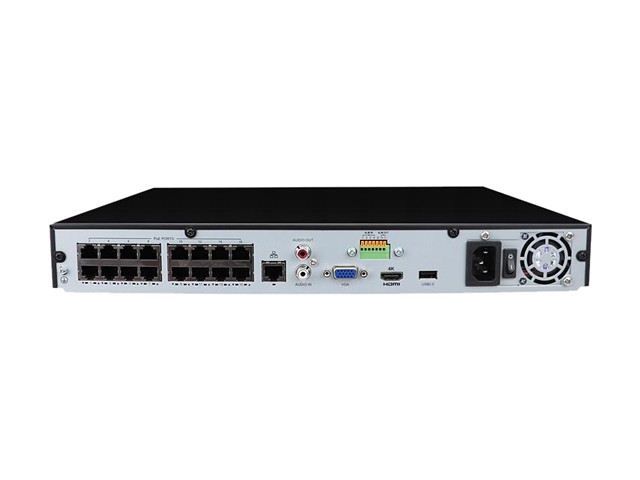

1 x VGA, 1 x HDMI up to 4K |
Audio Output |
RCA x 1 |
ONVIF |
Yes |
Resolution Display |
4K (3840 x 2160P) |
Max Resolution |
4K 8MP (3840 x 2160) |
Display Frame Rate |
4K 2160P/1920P/1520P/1080P @ 30fps @ all channels |
Built-In HDD |
Yes |
Storage Capacity |
1TB HDD |
Backup Device |
Local: USB2.0 (faster video files transfer and backup) / Online: download video through internet |
Network Connection |
RJ45 |
Network Protocol |
RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/P2P/ONVIF |
Network Remote |
Computers (Windows & Mac), Smartphones (iPhone & Android), and Tablets are All Compatiable (Call Our Free Tech Support if You Need Help to Setup Remote Viewing) |
Features |
4K (3840x2160) NVR : Support up to 8MP IP cameras |
Operating System |
Linux (embedded) |
Power Supply |
No Power Adapter for Camera Needed. PoE ports is supporting video signal and power through a single Ethernet cable (Ethernet cables are all included in the package) |
PoE (Power-over-Ethernet) |
Yes |
Bundled Camera Number |
4 |
Bundled Camera Spec |
GW5091IP: 5MP IP Camera, 3.6mm Wide Angle Lens, 18pcs SMD LED, 130 feet IR Distance. H.265/H.264 Video Compression. 5MP@15fps high resolution |
Camera Horizontal Resolution |
5Megapixel |
Kit Feature Other |
H.265 is the latest video compression standard which brings extensive possibilities and optimism to the HD-IP Camera by addressing H.264 problems such as shortage of bandwidth, improving transmission efficiency and delivers ultra HD image quality. • Compared with current H.264, the H.265 is able to double the data compression ratio, while improve video quality with low bit-rate, this enables IP camera to deliver smooth Superb HD video with low bandwidth, which in turn, reducing the network bandwidth, and video storage size. |
Dimensions |
14.9 x 13.4 x 2 inches |
Weight |
8 lb |
Package Contents |
NVR with selected HDD, PoE IP cameras, NVR power adapter, USB mouse, Remote Control, Ethernet cables, Mouting screws, User manual CD, Specification sheet, One year warranty |
Camera Resolution |
5 Megapixel |

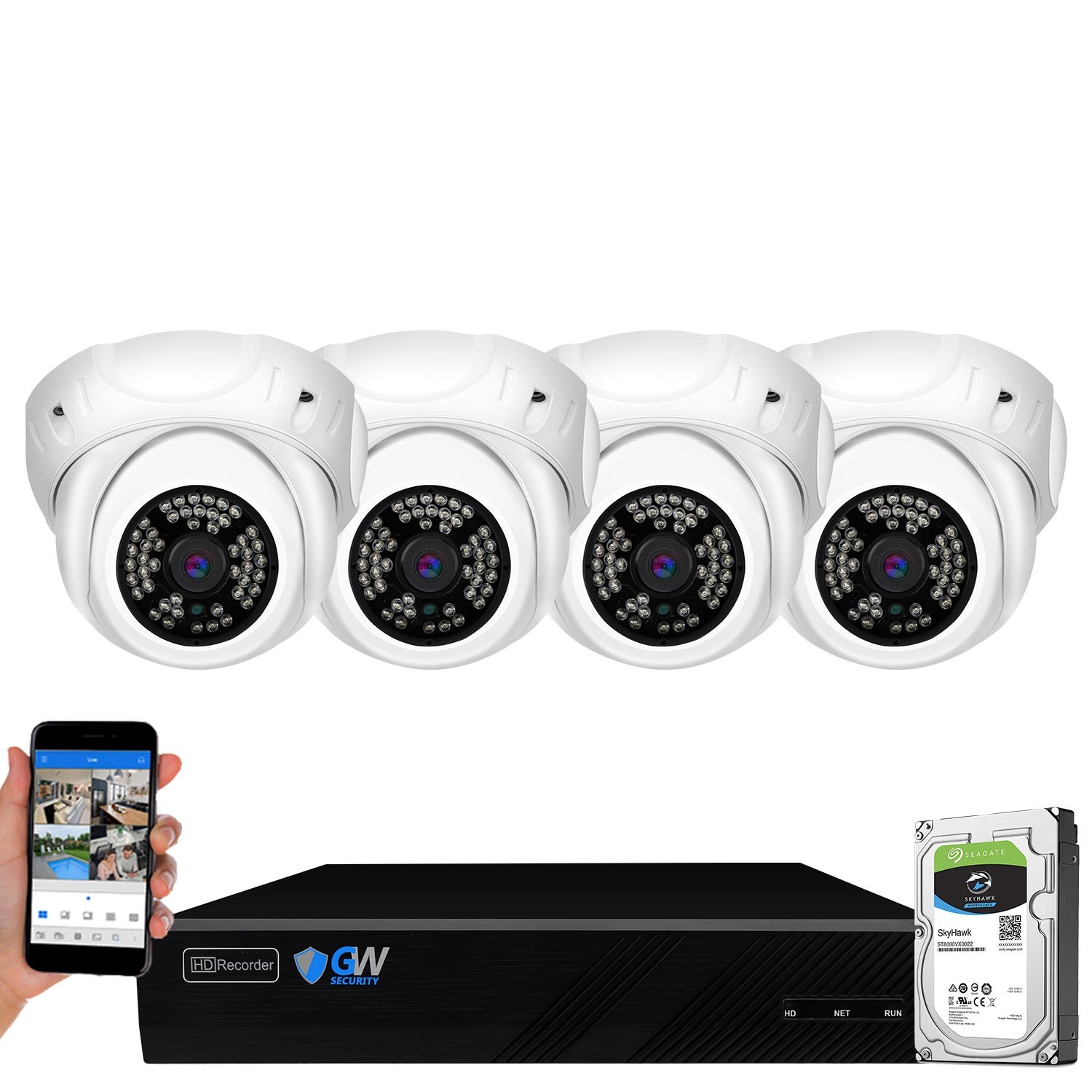

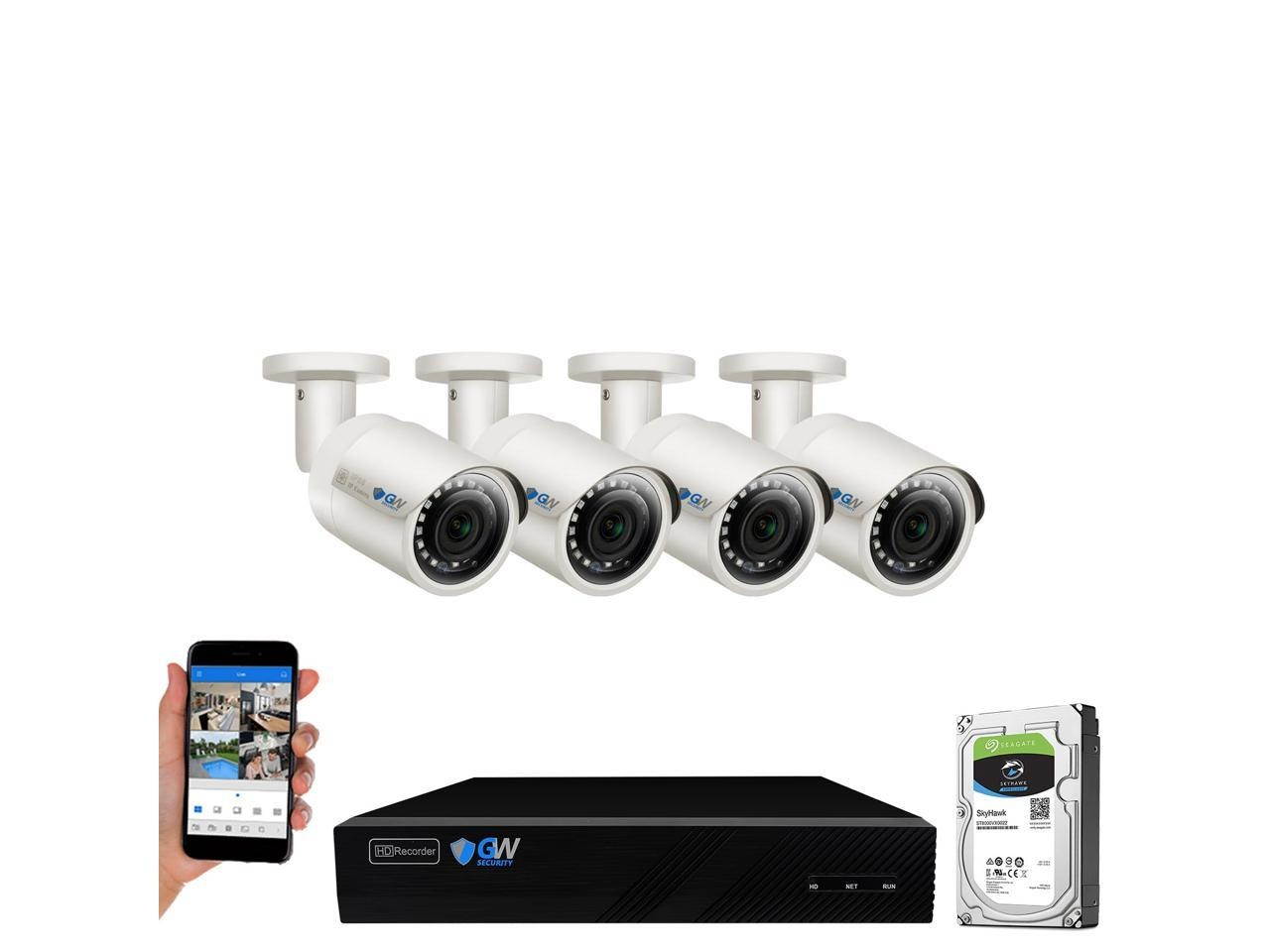

Package Includes:
• 1 x 8 Channel 4K NVR with 1TB Hard Drive (GW4108EP 1TB)
• 4 x 5MP Microphone IP AI Camera (GW5091IP)
• 2 x 100 feet Ethernet cable for Connecting Cameras to PoE Switch (GWCAT100)
• 2 x 60 feet Ethernet cable for Connecting Cameras to PoE Switch (GWCAT60)
• 1 x 10 Feet Ethernet Cable for Connecting Router to PoE Switch (GWCAT10)
• USB mouse and Remote Control for Operating NVR Interface
• Mounting screws for Mount cameras
• Quick Guide & User Manual
The Newest AI Technology:
Smart AI Human Detection
Each GW Security AI camera can be configured as Person detection. You'll instantly know if a person arrives on your property with advanced person motion detection technology. This technology reduces false alerts and only sends relevant person notifications.
Built-in Microphone for Audio Surveillance
Each camera built-in microphone for audio recording, this can provide you with more information (such as voices) should an intrusion ever occur. It will also expand your security coverage beyond the camera's field of view and can help assist with interpreting events (even if they occur off-screen)

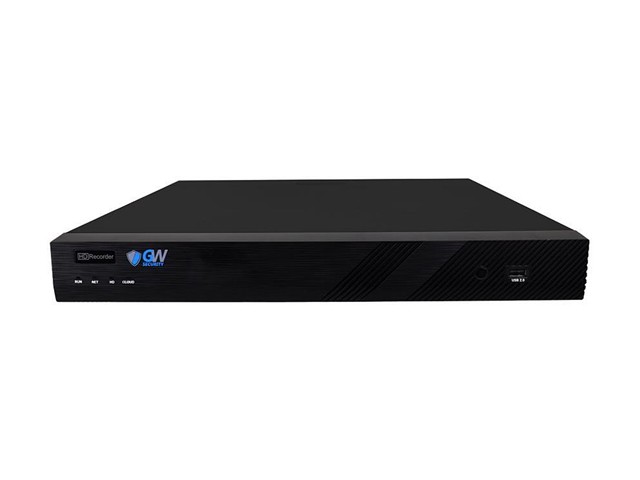

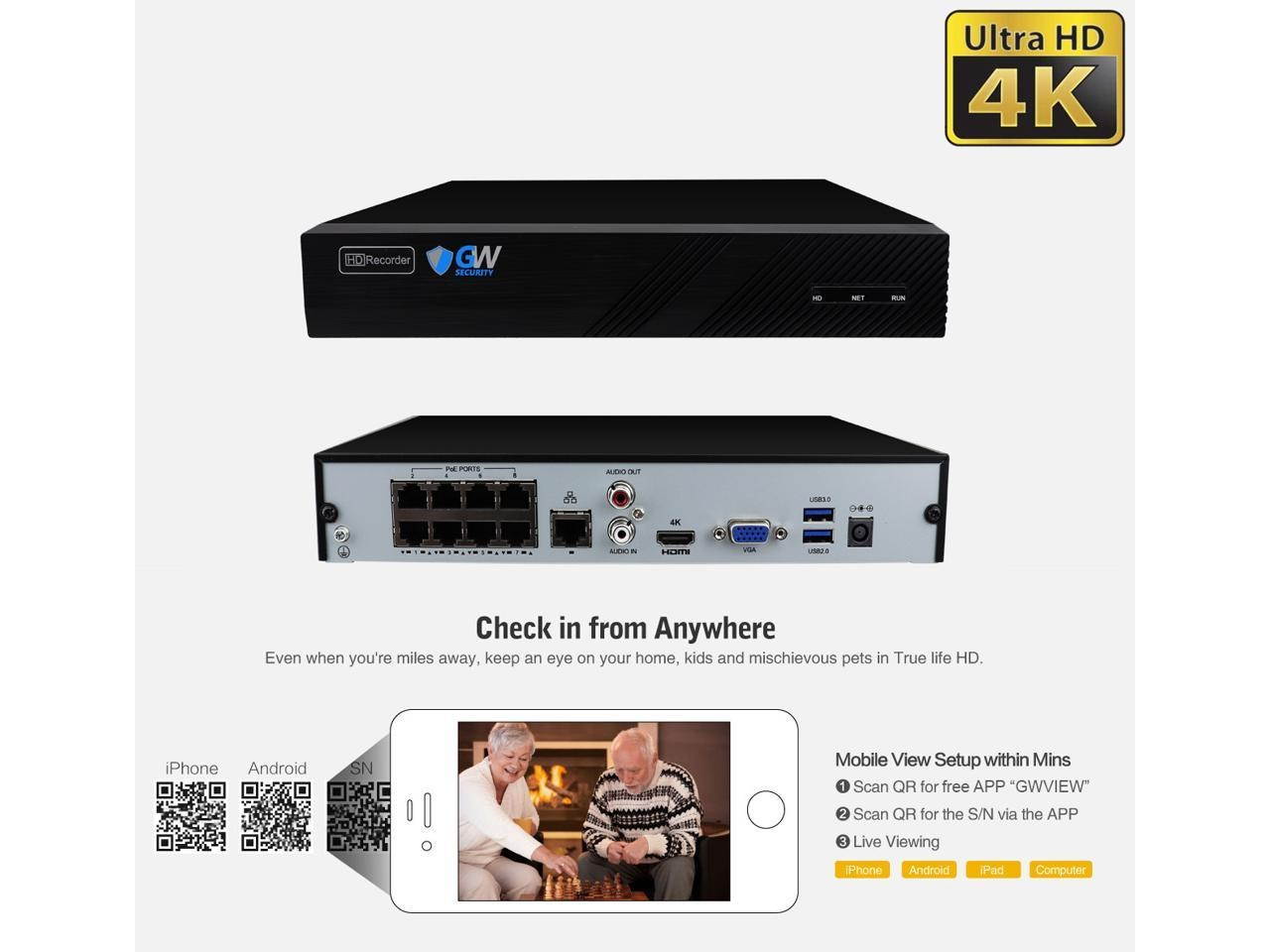

NVR Features:
• 8 Channel 4K NVR with PoE Switch support Power Over Ethernet. (Cables Included)
• Record Resolution Max 8.0 Megapixels (3840x2160), Support Realtime 4K 2160P/1920P/1520P/1080P@30fps preview and playback
• H.265 Video Compression
• Expandable hard drive space. Supports 1 hard drives slots, each HDD supports up to 10TB (total capacity 10TB)

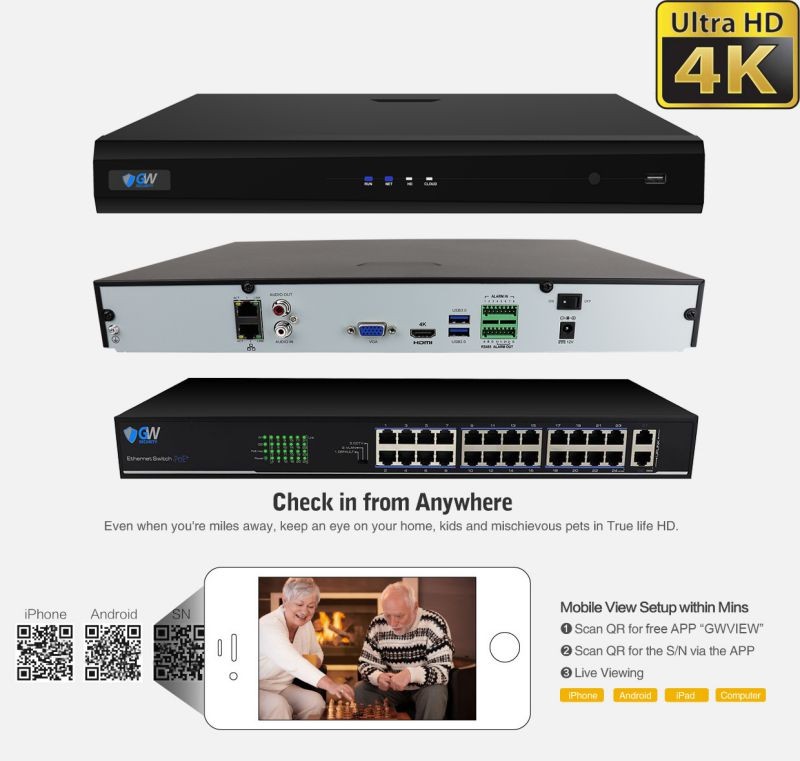

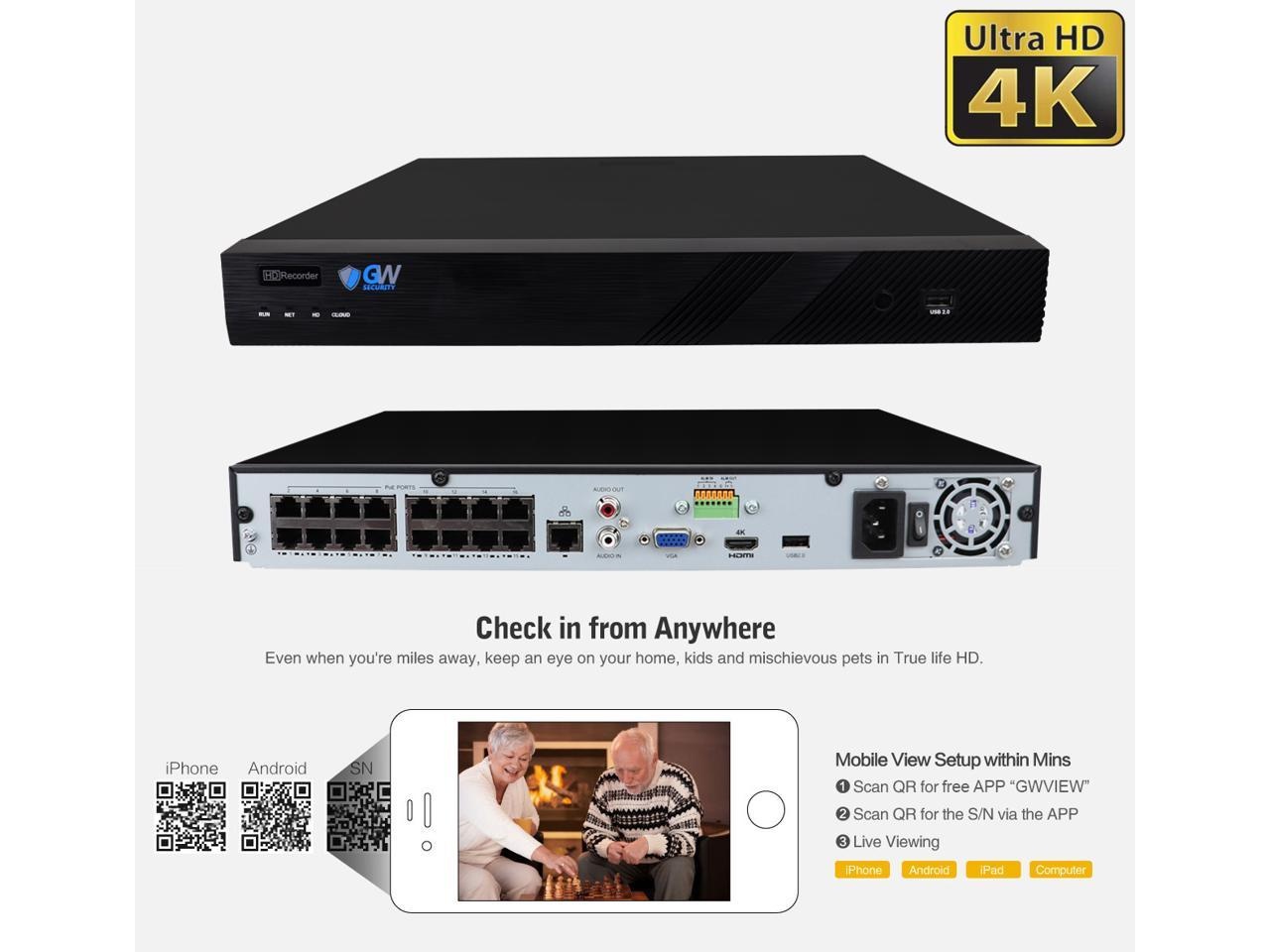

• Easy Steps QR Code Setup - 1) Download & install app "GWView". 2) Go to NVR setting -> Network -> Scan the QR code with your app. 3) Your Cameras are Ready to View.
• Support VGA & HDMI video outputs.
• Real time HD recording and Digital Zoom function can catch people's face and license plate.
• 8 Megapixel (4, 000, 000 more pixels than 4MP, 400% more detailed than 1080P)
• Motion Detective & Email Alert 24 hours a day 7 days a week
• Digital Zoom up to 16x for a larger view of smaller details When Viewing Live or Playing Back Footage
• Supports Remote View via smartphone & 3G/4G Mobile with each of those systems below: Windows XP, 7, 8, 10, Mac, iPad, iPhone, Android, Mac

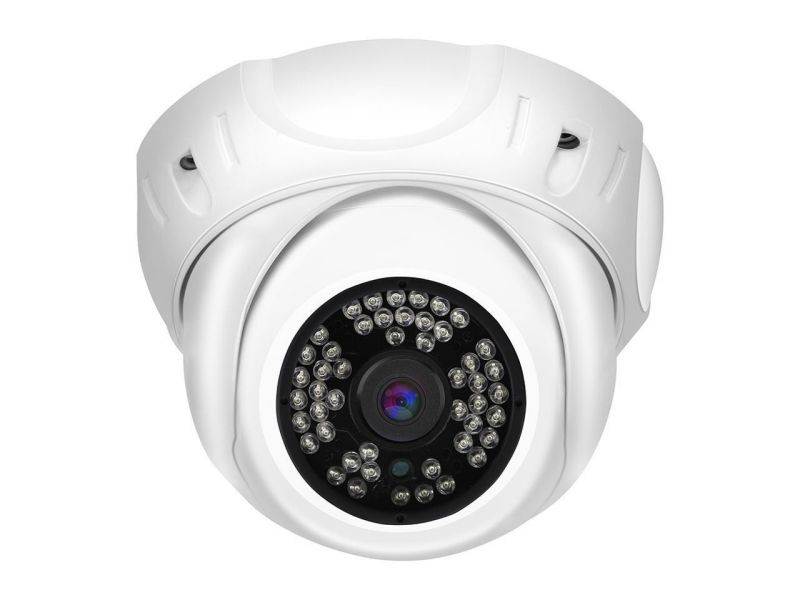

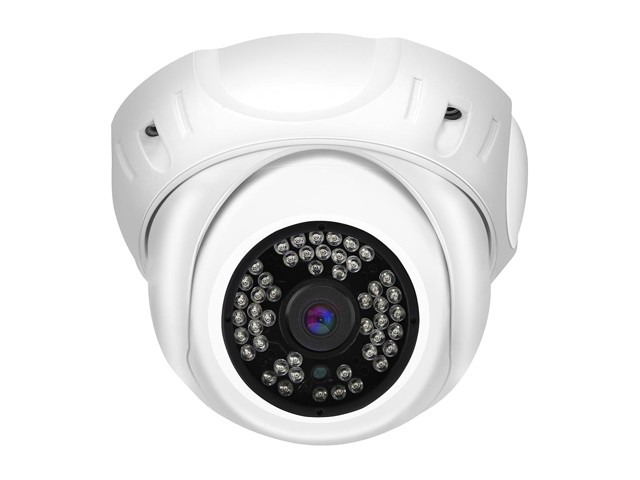

Camera Features:

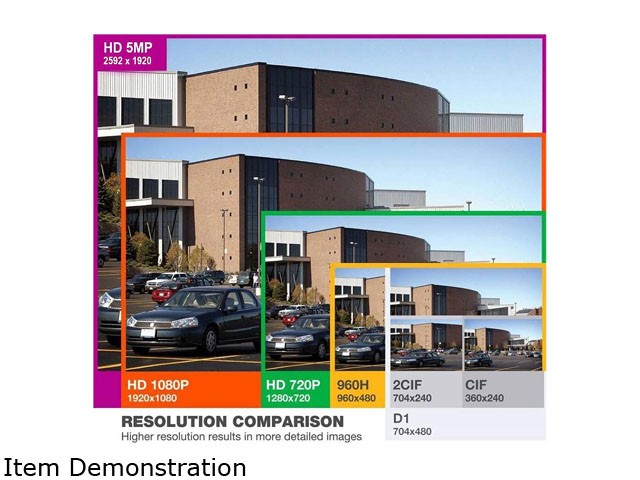

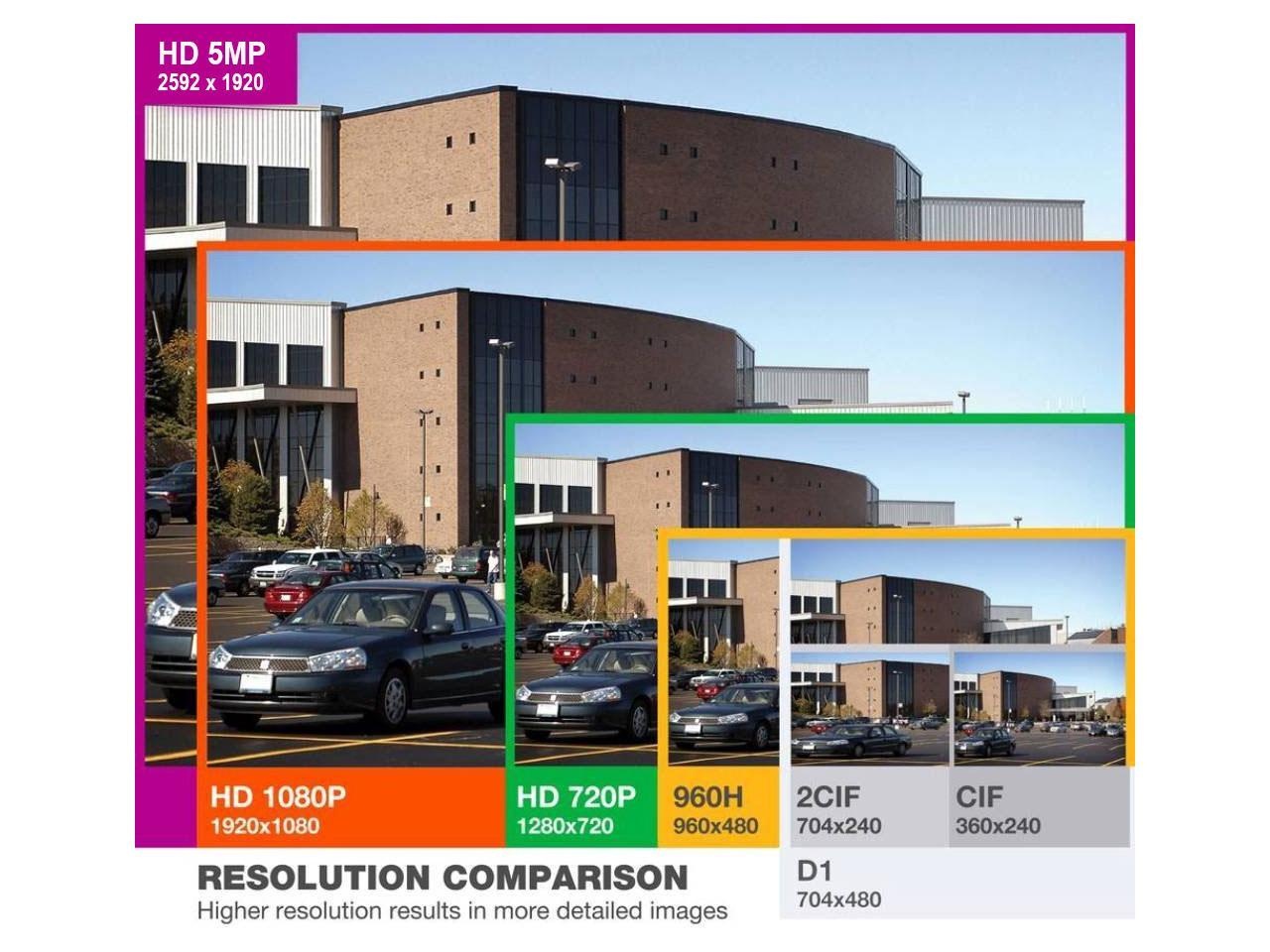

• 5 Megapixel providing Super HD (2592x1920) High Definition
• Built-in Microphone
• 5MP live view at real time, 5MP records at 15fps
• Encased in IP66 rated, Weatherproof Metal housing. Fit in all the situations for indoor and outdoor. Great for Residential and Business uses

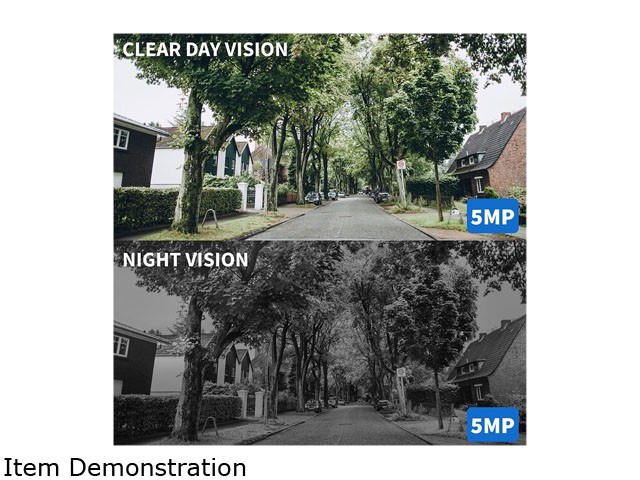

• Camera offers 2.8mm 115°Wide Angle Lens 18 Infrared SMD LED Lights for Up to 100 feet Night Vision Distance in total darkness.
Smartphone APP Info:
• APP name - GWView
• Free to download on APP Store and Google Play
• Latest P2P technology, No need apply DDNS, No need port mapping, No need transfer server, Just 3 Step QR code scan.
• Support 8 Channel on 1 Screen Preview.
• Support Playback on Smartphone.
Services Provide:
• No Hassle 30 Days Returns
• No Restocking Fee
• No Handling Fee
• Free One Year Warranty
• Free US-based Tech Support
