The 3U industrial rack mount chassis D Storm D - 300SEA. Optional BPU series enable hot swappable storage and RAID configuration. D - 300SEA backplane supports 7 full - length add - on cards. Optional Aluminum Body reduces total chassis weight and also provides enhanced thermal cooling solution provide your system with maximum Flexibility and performance.

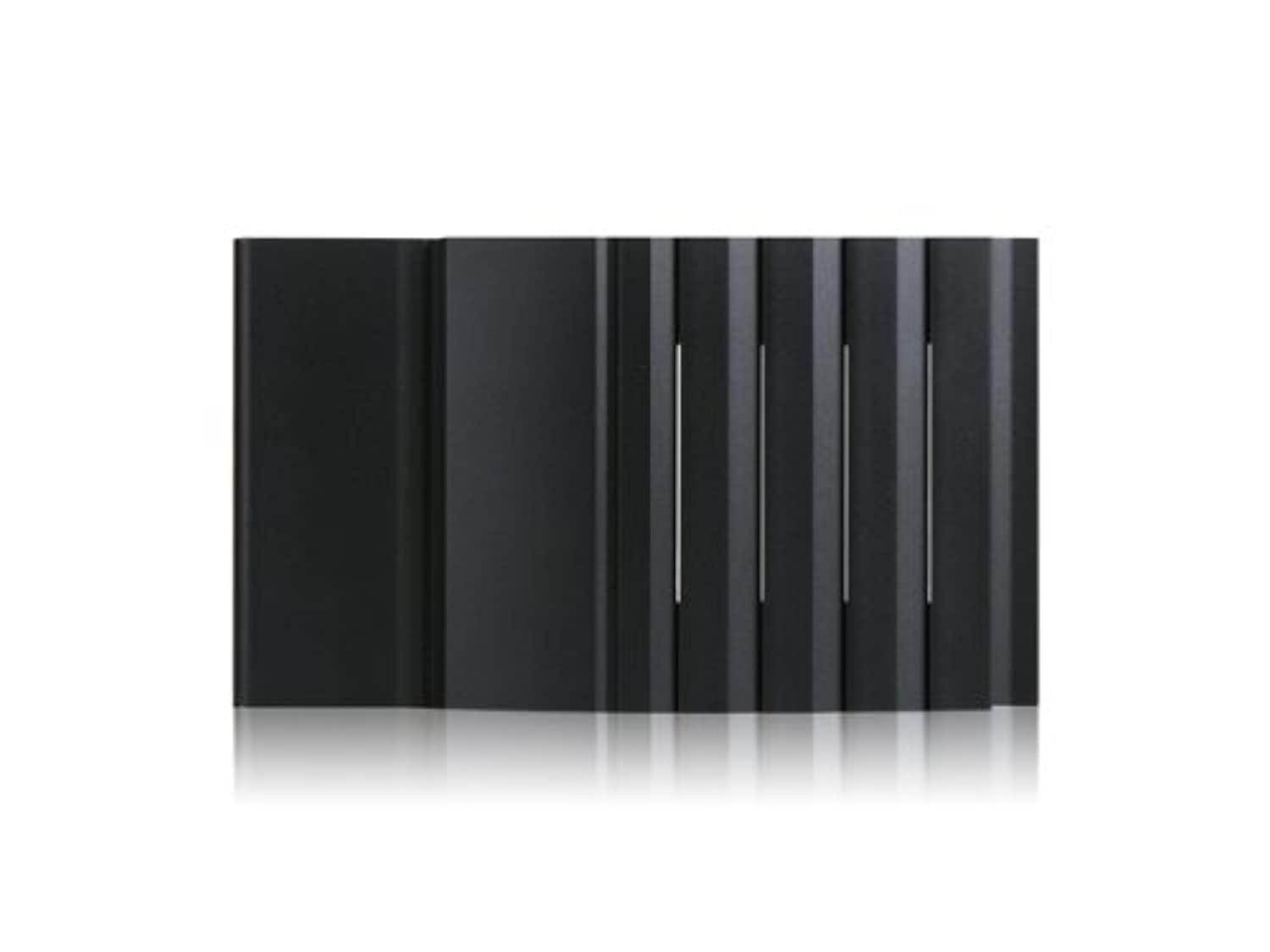

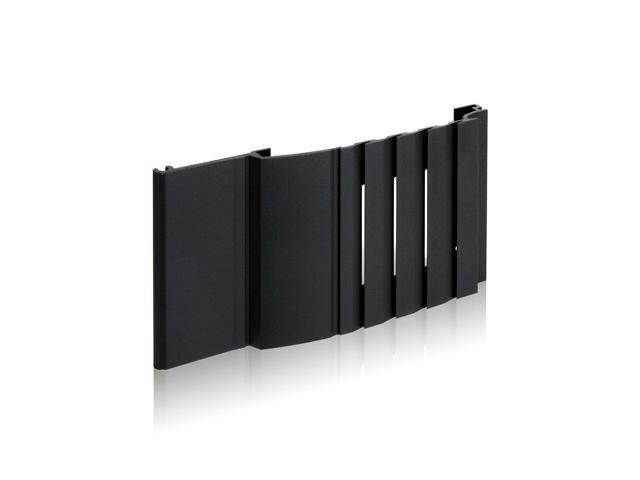

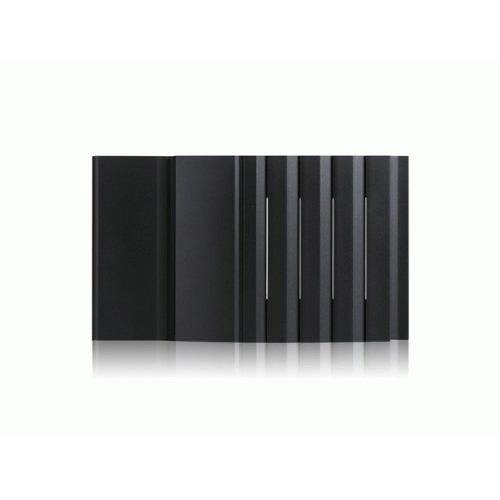

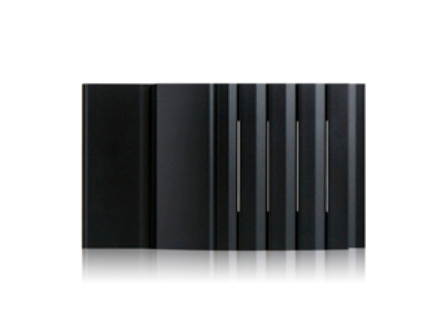

Features- Patented Aluminum Front Panel with Locks
- Front Access USB 2.0 x 2
- 60 mm. x 1 Cooling Fan
- Power and HDD LED
- Power and Alarm Reset Switch
- Optional Aluminum Chassis
Specifications- Form factor - 3 U
- Standard Drive Bays - 3.5 in. Drives - 2. 3.5 in. Drive (internal) - 1. 5.25 in. Drives - 4
- Indicators - Power. HDD. Temperature. Fan (Fan/Temp require sensor board TC - ISF08 )
- Switches - Power. Reset
- Expansion Slots - 7
- Material of Front Bezel - Aluminum alloy
- Material of Handle - SECC Zinc - Coated Steel
- Material of Main Chassis - 1.2 mm. SECC Zinc - Coated Steel
- Color of Main Chassis - Black
- Front Connector - 2 x USB 2.0
- Motherboard Size - 12 x 9.6 (ATX. microATX)
- Cooling Fan - 1 x 60 mm.
- Optional Fan - 60 mm. x 1. 80 mm. x 3 (bracket DD - FANGUARD - 8 required)
- Dimension - 20.80 D x 19 W x 5.25 H in.
