Brand |
Qin Bo Electronics |
Model |
433Mhz RF Wireless Transmitter Receiver Module |
Type |
Test Connectors |
Equipment Type |
RF Test Equipment |
Application |
Test & Measure |
Features |
Transmitter Receiver Module |
100% Brand new, never used. Item's color might be different from the picture because of the aberration. Technology parameters of
Transmitter module: Working
voltage: 3V~12V
Working current: max≤ 40mA (12V), min≤ 9mA (3V)
Working frequency: 433MHz
Resonance mode: sound wave resonance (SAW)
Transmission power: 25mW (433MHz at 12V)
Modulation mode: ASK /OOK
Frequency error: +150kHz (max)
Velocity: ≤ 10Kbps
Self-owned codes: negative

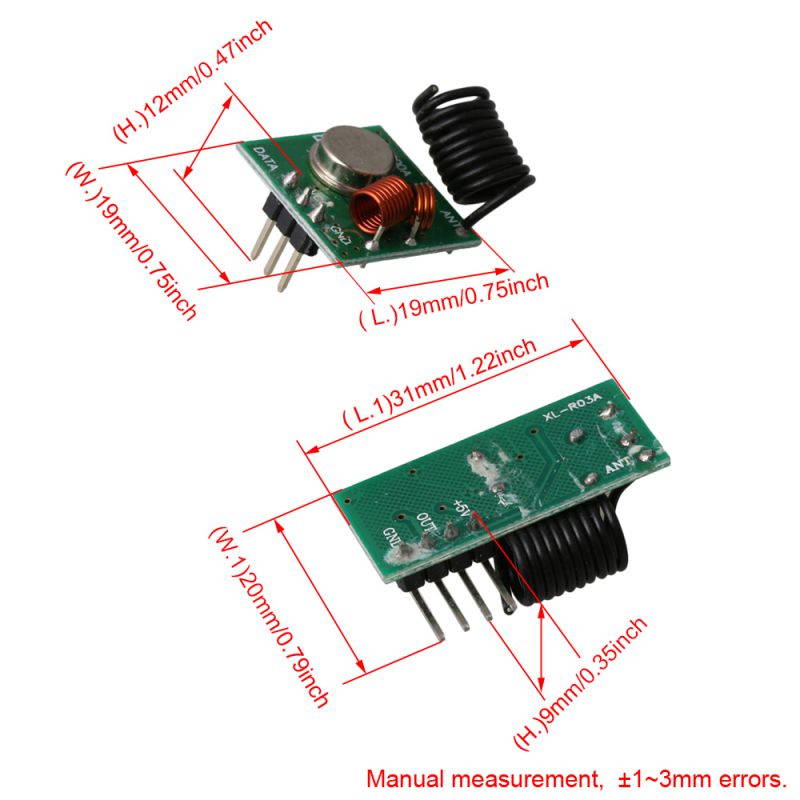

Size: 31mmX20mmX8mm

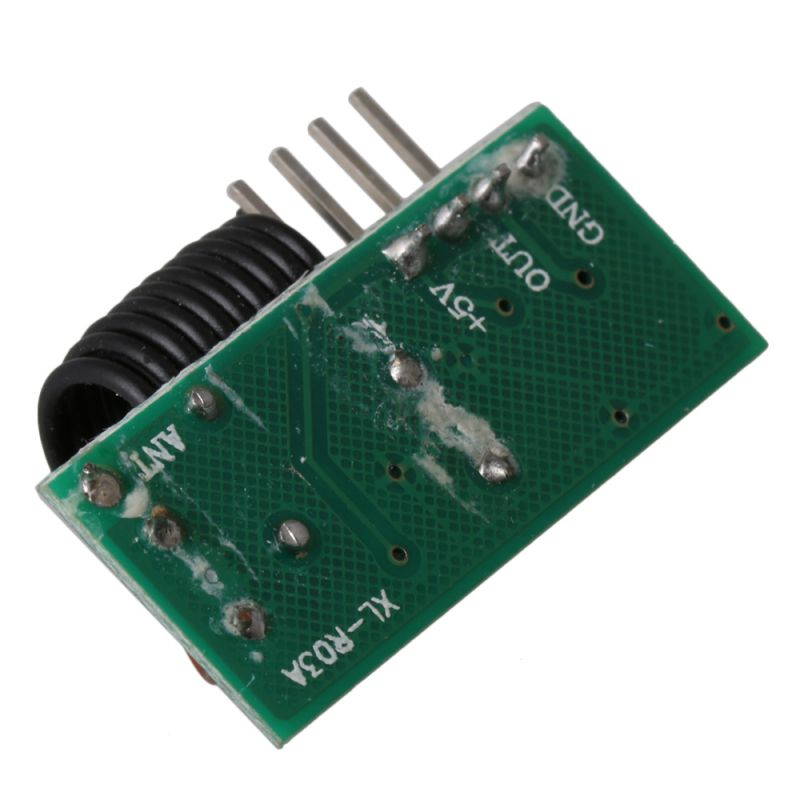

RX Technical Specifications: Working
voltage: 5.0VDC + 0.5V
Working current: ≤ 5.5 mA( 5.0VDC )
Working principle: single chip superregeneration receiving
Working method: OOK/ASK
Working frequency: 433MHz
Bandwidth: 2MHz
Working temperature: -20°C ~+65 °C
Sensitivity (dBm): -103DBm(50ω )
Output signal: TTL level signal transparent transmission
Sensitivity: excel–100dBm(50Ω )
Transmitting velocity: < 9.6K bps
Size: 18mmX7mm

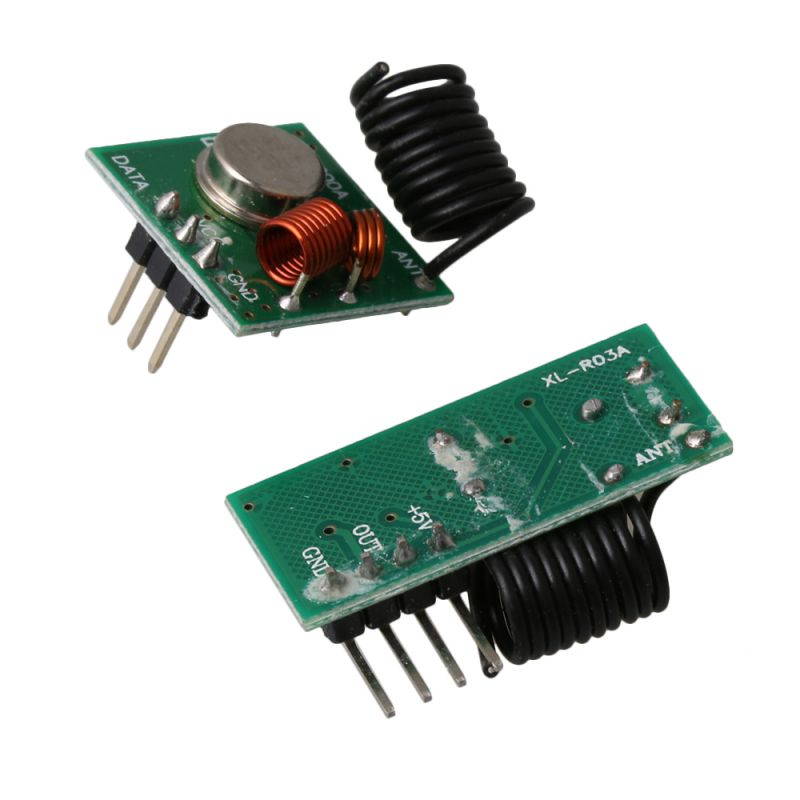

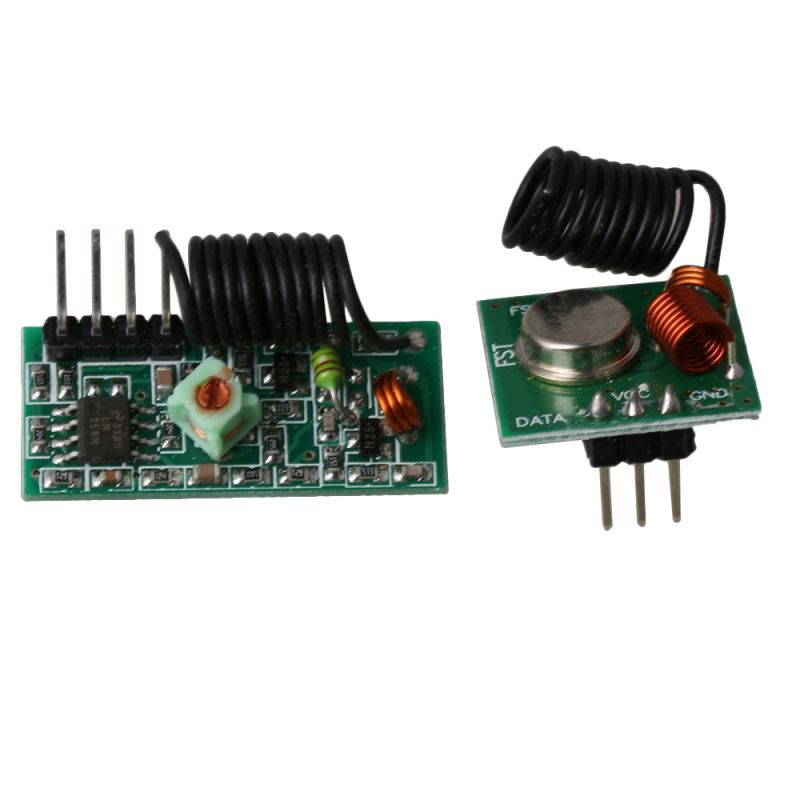

Package include: 1set Transmitter+Receiver(AK-T01+AK-R03A) Module
