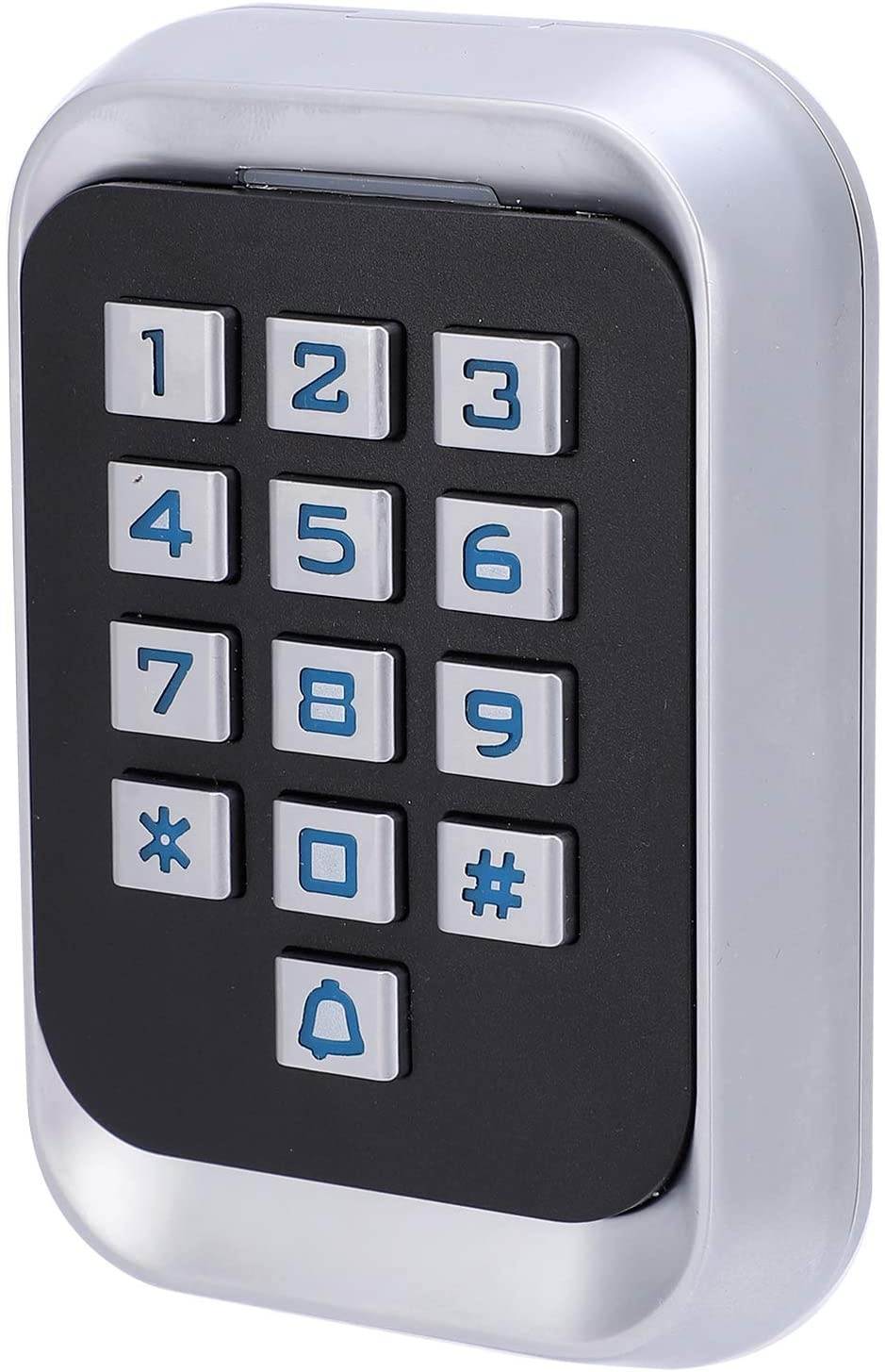

Non?Contact Proximity IC Card Machine RFID Card Reader Short?Circuit Protection Time Setting Anti?Interference for Public Places for Residential Quarters

Feature:

2. Three door opening methods, card, independent password, card+password, large user capacity, support up to 2000 users.
3. Support password modification by users, you can delete the card number after the card is lost, effectively eliminating potential security risks.
4. Using unique metal material design, built?in American for Atmel microprocessor, has strong anti?interference ability.
5. Built?in card reader supports 125KHZ EM card, supports for Wiegand 26 input/output.
6. Adopts backlit keyboard, the key letters can be clearly seen at night without turning on the lights, convenient to use.
7. With doorbell interface, wired doorbell can be connected, anti?disassembly alarm function, the alarm will sound after illegal disassembly, high safety and reliability.
8. Output short-circuit protection, when the electric lock or alarm output is short-circuited, the output will be automatically turned off within 100 microseconds
9. Powerful and easy to use, it can be widely used in high-end office buildings, residential quarters and other public places.

Specification:Condition: 100% Brand New
Item Type: Keypad Access Control
Material: Metal
Color: Black+Silver
Frequency: 125khz
Storage Capacity: 2000 Users
Working Voltage: 12-24V DC
Working Current: <200mA
Quiescent Current: <30mA
Support Card: ID Card
Card Reading Distance: Approx. 2-6CM/0.8-2.4in
Relative Humidity: 10%-90%
Working Temperature: -20°C-+60°C
Storage Temperature: -20°C-+60°C
Output Short Circuit Protection Time: Less Than 100us
Electric Lock Output: =3A
Door Opening Delay Time: 0-99 Seconds (Adjustable)
Size:


1 volts
