Model
Brand
PLANAR
Model

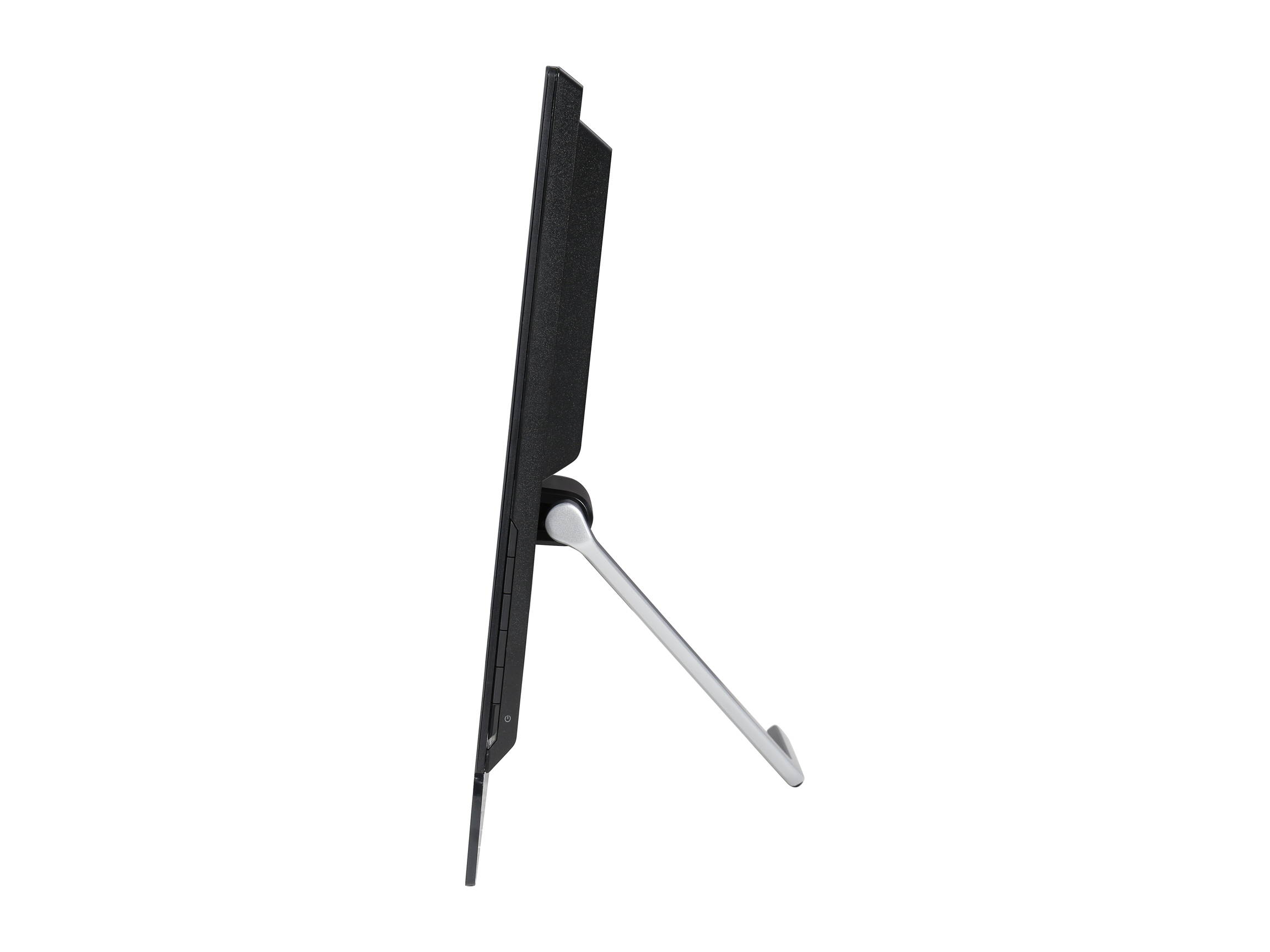

PT1545P
Display
Touchscreen Type
Projected Capacitive
Cabinet Color
997-7413-00
Screen Size
15"
Display Type
XGA-2
Recommended Resolution
1024 x 768
Viewing Angle
140° (H) / 125° (V)
Pixel Pitch
0.297mm
Display Colors
16.7 Million
Brightness
250 cd/m2
Contrast Ratio
500:1
Response Time
8ms
Connectivity
Touchscreen Interface
USB
Input Video Compatibility
Analog RGB
D-Sub
1
Power
Power Supply
100 - 240 VAC, 50/60Hz
Power Consumption
18.2W (1.9W standby, 1.0W off)
Convenience
Regulatory Approvals
UL/c-UL, FCC-Class B, CE, RoHS II
Built-in Speakers
Yes

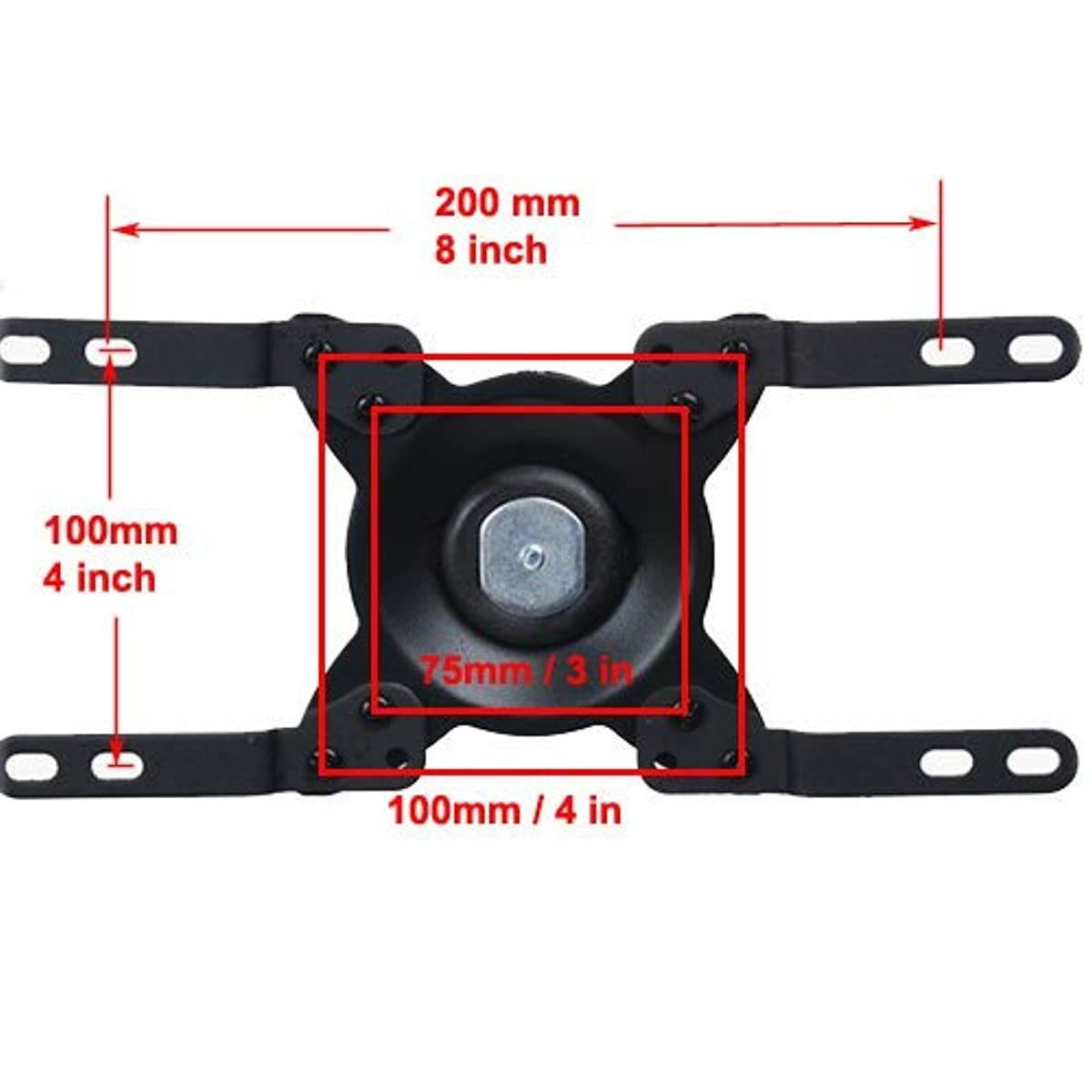

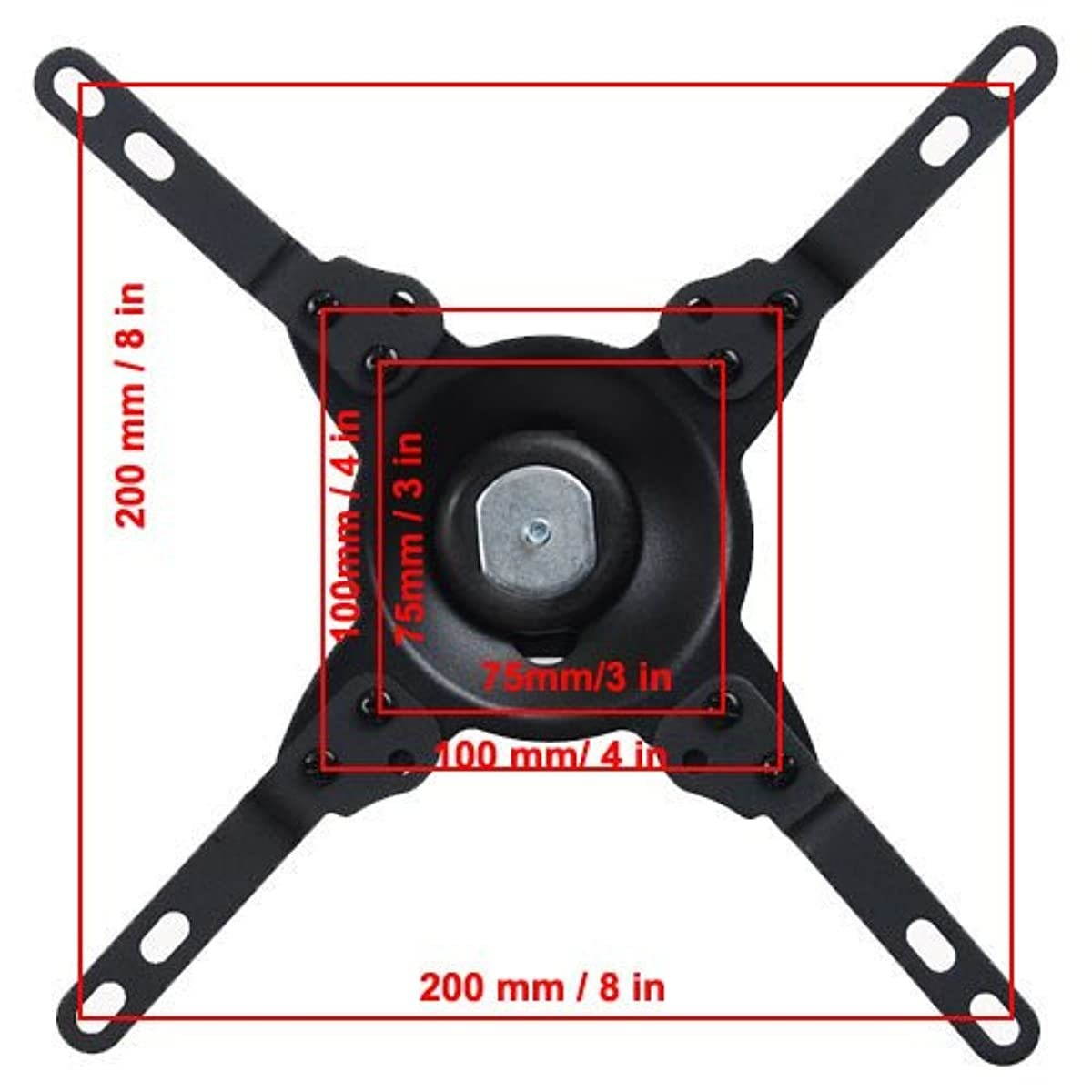

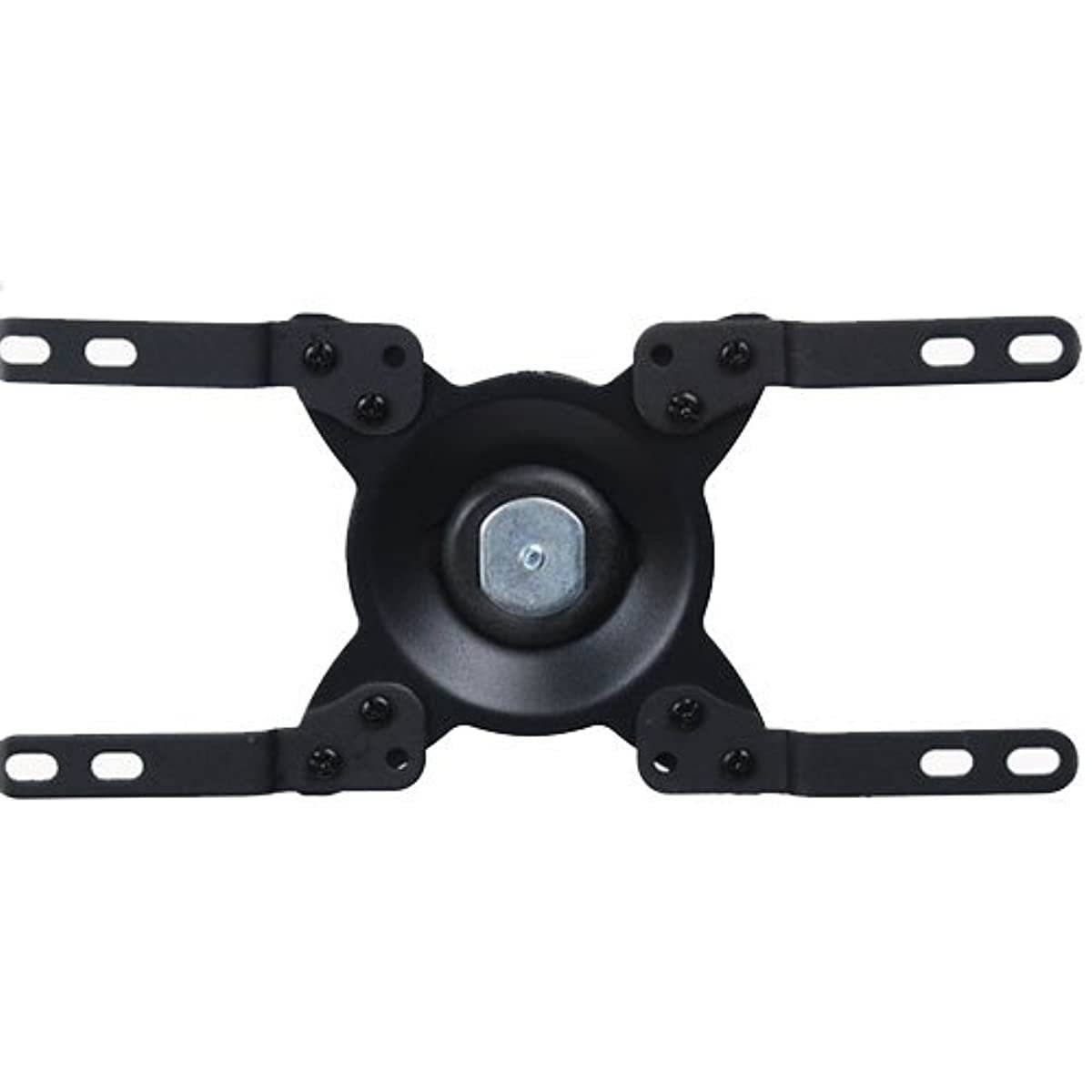

VESA Compatibility - Mountable
100 x 100mm
Dimensions & Weight
Dimensions (H x W x D)
12.10" x 13.80" x 8.00"
Weight
6.40 lbs.
Packaging

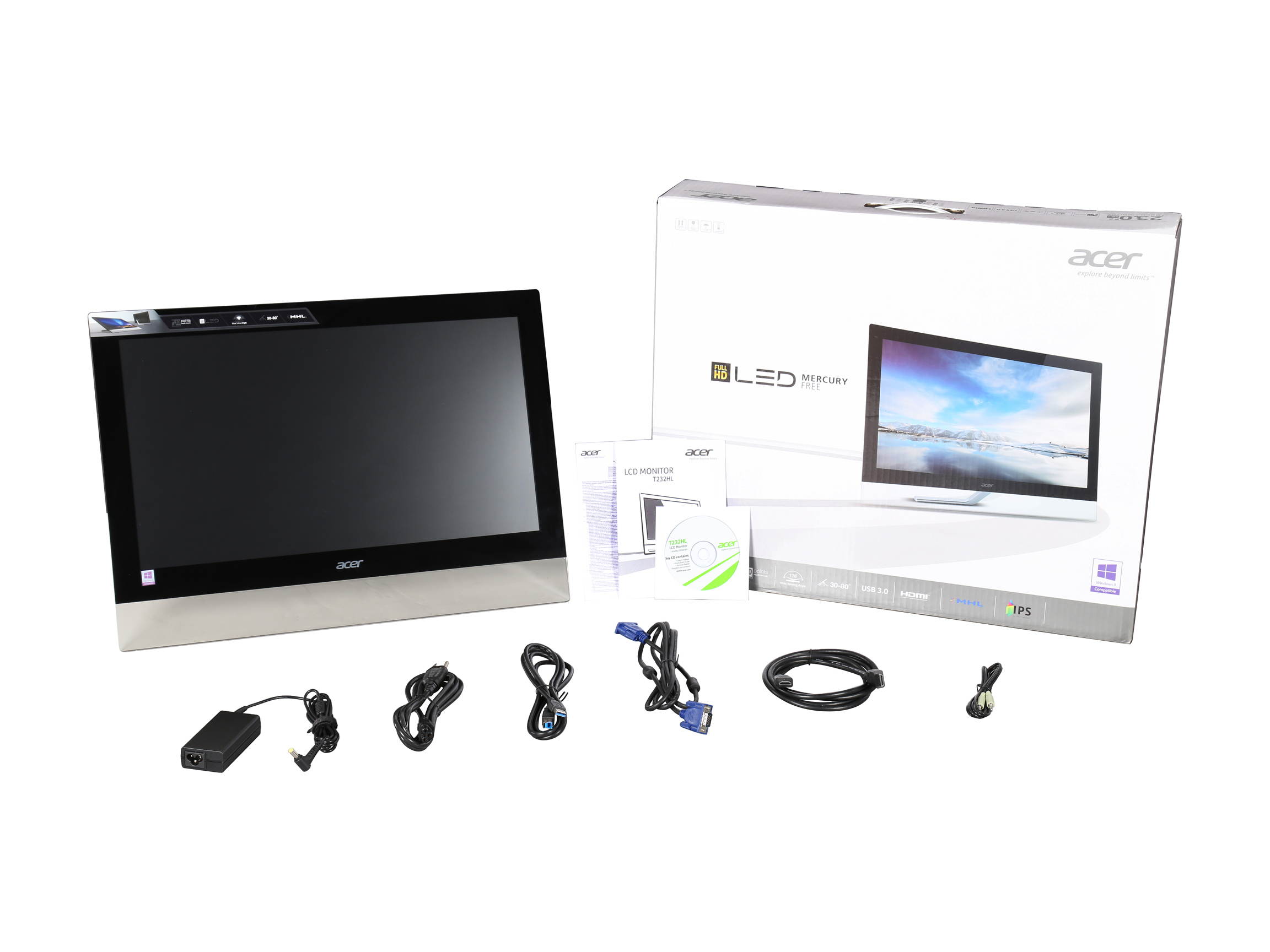

Package Contents
15" Touch Screen Monitor Power Cord VGA Cable USB Cable (A to B) Audio-in Cable User's Guide Quick Start Guide
