Features: The auto leveling sensor is a device that uses the Hall effect to achieve leveling. Intelligent leveling, intelligent compensation z-axis height, making machine leveling printing easier. Accurate measurement, small error and high leveling accuracy. Printing can also be achieved even though the platform is not flat.
Specifications: Shell
Material: PC
Voltage: 5V
Current: 15mA Max.
Current (Peak): 300mA
Cable Length:
Short: 200mm
Long: 1000mm
Wire:
3pin:
Green: -, GND;
Red: +5V;
Orange: Signal
Cable 2pin:
Black: -, GND;
White: Zmin
Package Size: 15.0 * 9.9 * 1.7 cm / 5.9 * 3.9 * 0.7 in
Package Weight: 23g / 0.8 oz

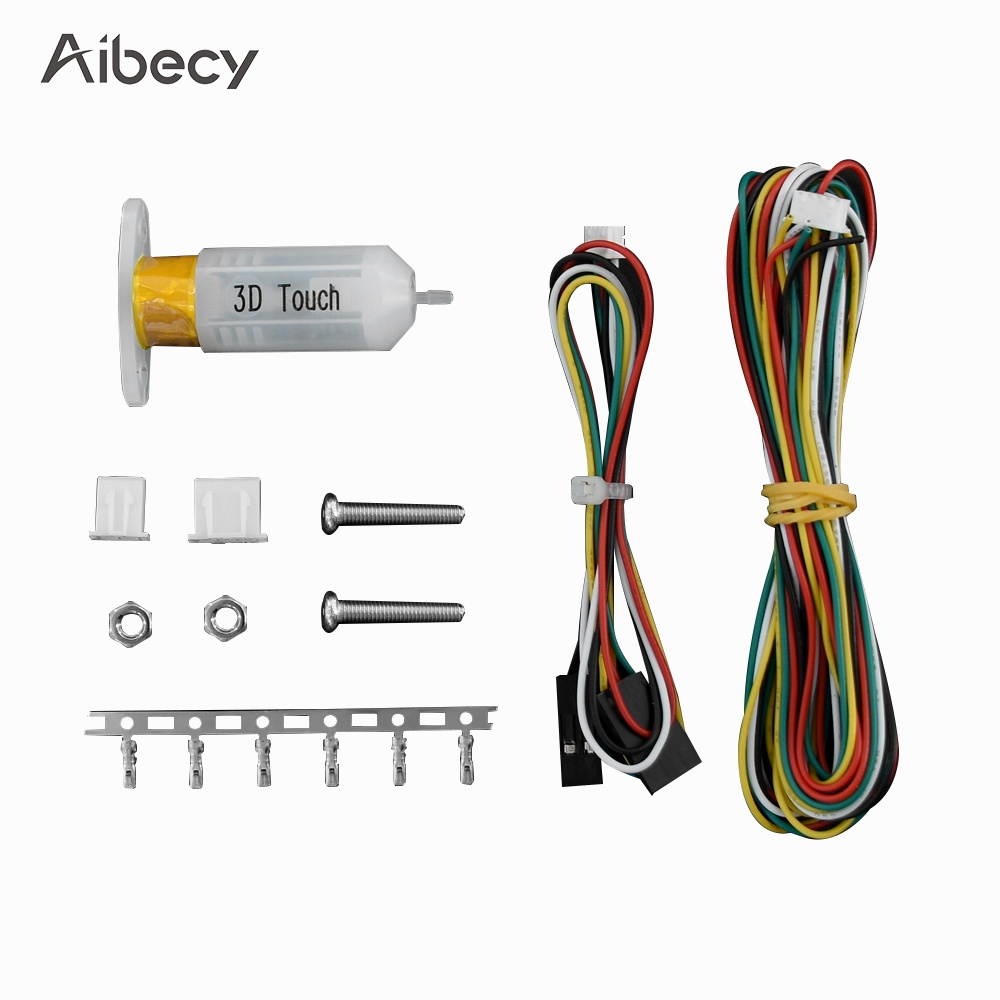

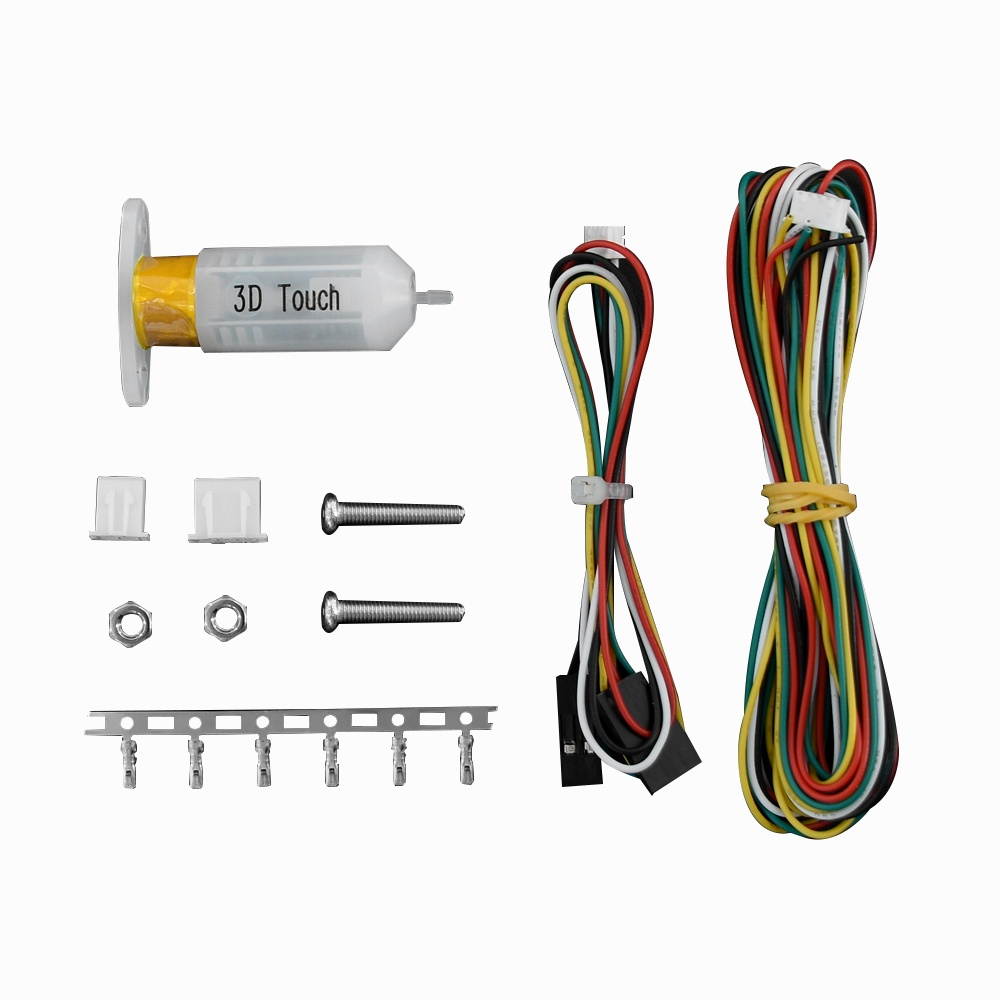

Packing List: 1 * Auto Leveling Sensor Kit
