| Brand | Tripp Lite |
|---|---|
| Model | PDU3V20D354A |
| Type | Switched |
| Rack Size | 0U |
| Style | Vertical |
| Certifications | Tested to UL60950-1 (USA), CSA (Canada), NOM (Mexico), FCC Class A (Emissions) |
| ROHS | Yes |

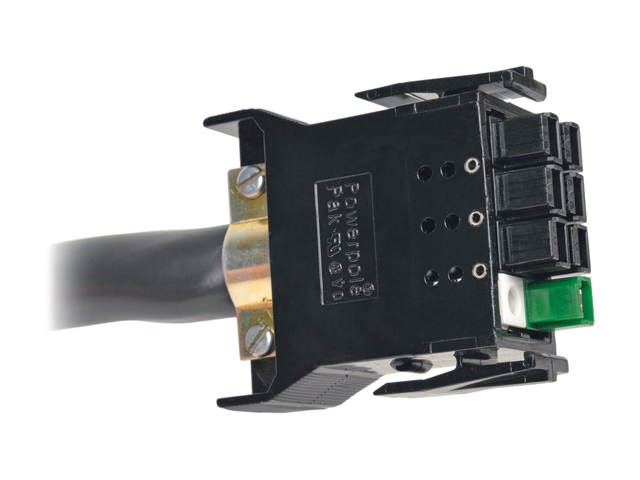

| Connectivity | Includes 7 conductor input plug for use with compatible Tripp Lite ATS PDU products only |
| Input Voltage | 200V / 208V / 220V / 230V / 240V |
| Cord Length | 2.5 ft |
| Output Voltage | 200V / 208V / 220V / 230V / 240V |
| Output Frequency | 50/60Hz |
| Output Watts (VA) | Supports up to 12600 W total output with 20 A maximum per output bank when connected to 208 V ATS models with a 35 A input rating (such as PDU350AT6H50) Supports up to 8600 W total output with 13.9 A maximum per output bank when connected to 208 V ATS models with a 24 A input rating (such as PDU330AT6L21, PDU330AT6L2130, PDU330AT6L1530 or PDU330AT6L15) All configurations: 16A max per C19 outlet, 12A max per C13 outlet |
| Output Connector(s) | 42 x IEC-C13 12 x IEC-C19 |
| Overload Protection | No |
| Operating Environment | 0 to 50 degree C (32 to 122 degree F) |
| Operating Relative Humidity | 5 - 95% non-condensing |
| Operating Elevation | 0 - 3000 m |
| Storage Temperature | -15 to 60 degree C (5 to 140 degree F) |
| Storage Relative Humidity | 5 - 95% non-condensing |
| Features | Required Accessory for Select Tripp Lite ATS PDUs Features 42 C13 and 12 C19 Interlaced C13 Outlets Installs Easily in 0U of Rack Space |
| Dimensions | 70.00" x 2.20" x 2.22" |
| Weight | 9.26 lbs. |
| Package Includes | PDU3V20D354A 8.6 /12.6kW 3-Phase Vertical PDU Outlet Strip |
