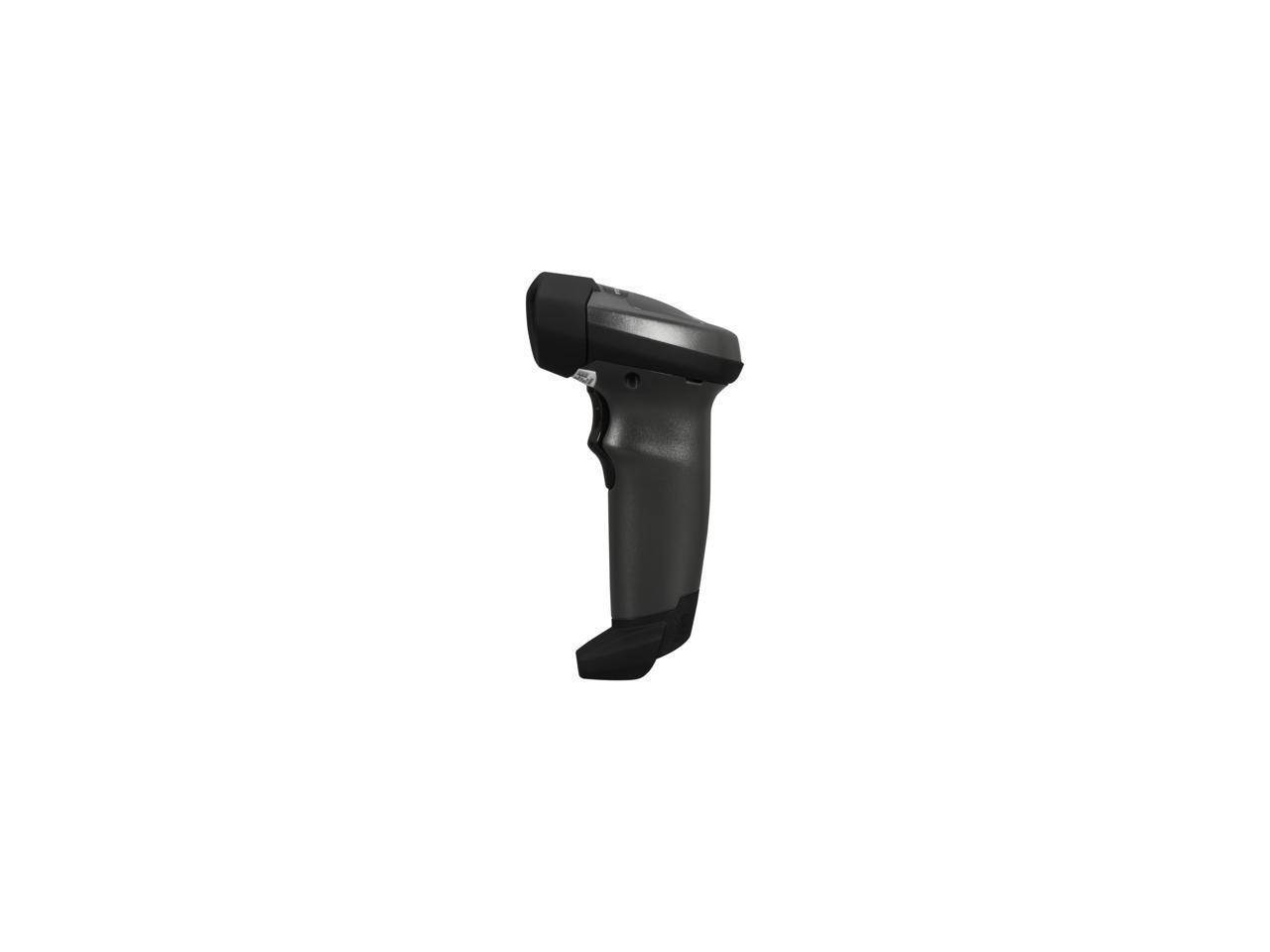

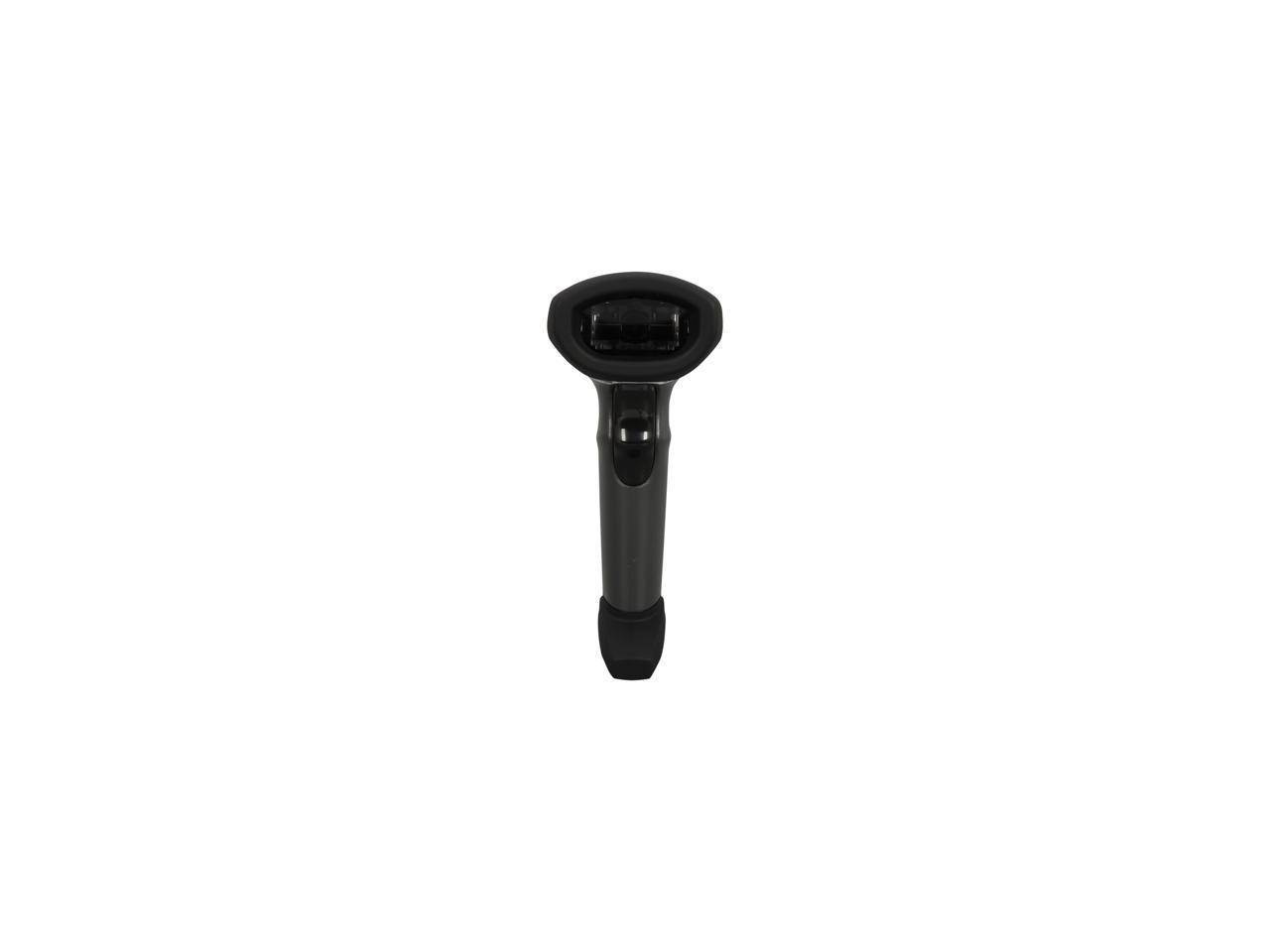

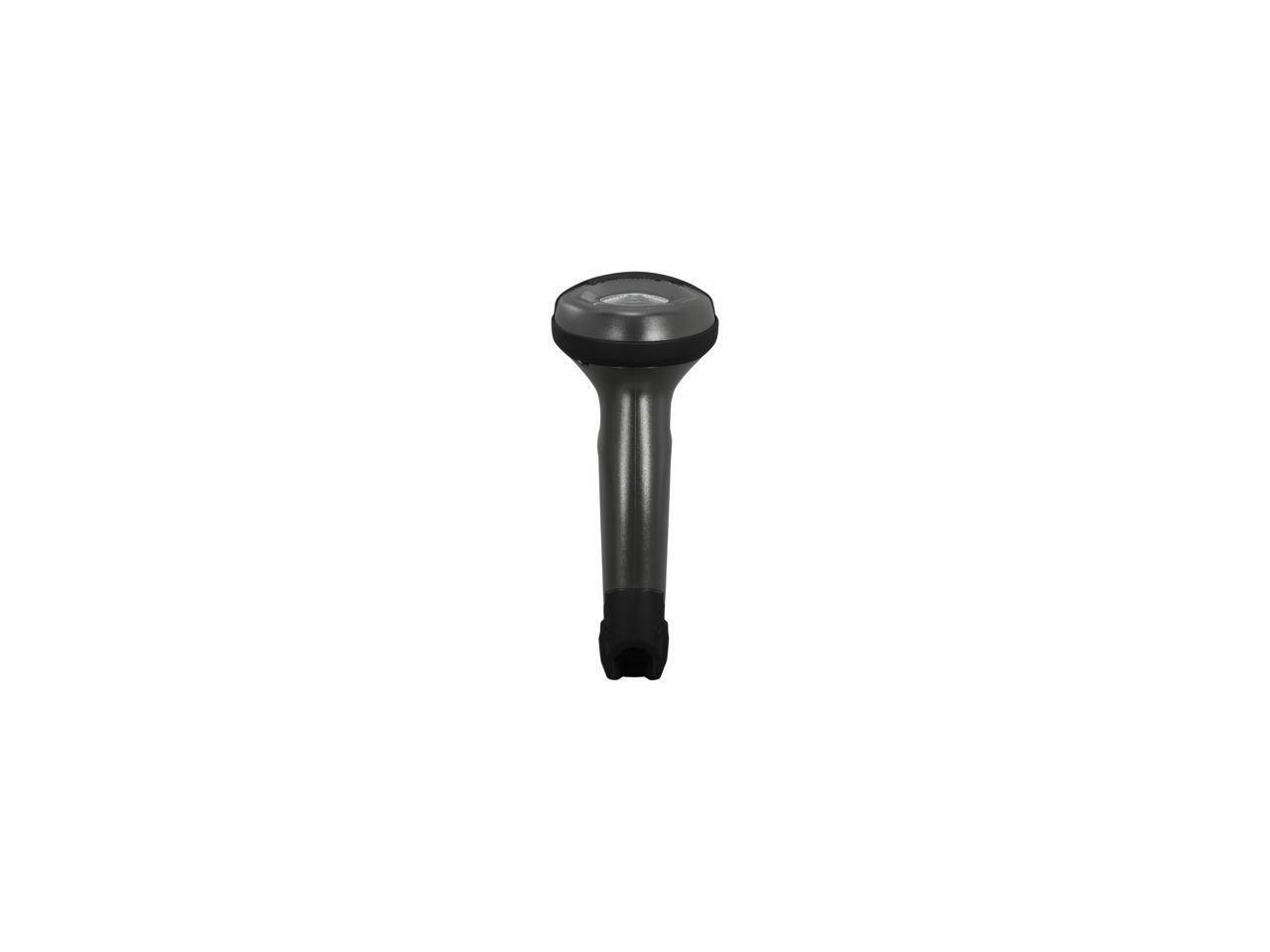

Brand Zebra
Model LI2208
Part Number LI2208-SR7U2100SGN
Form Factor Handheld
Connectivity Corded
Scan Engine 1D Linear Imager
Connectivity

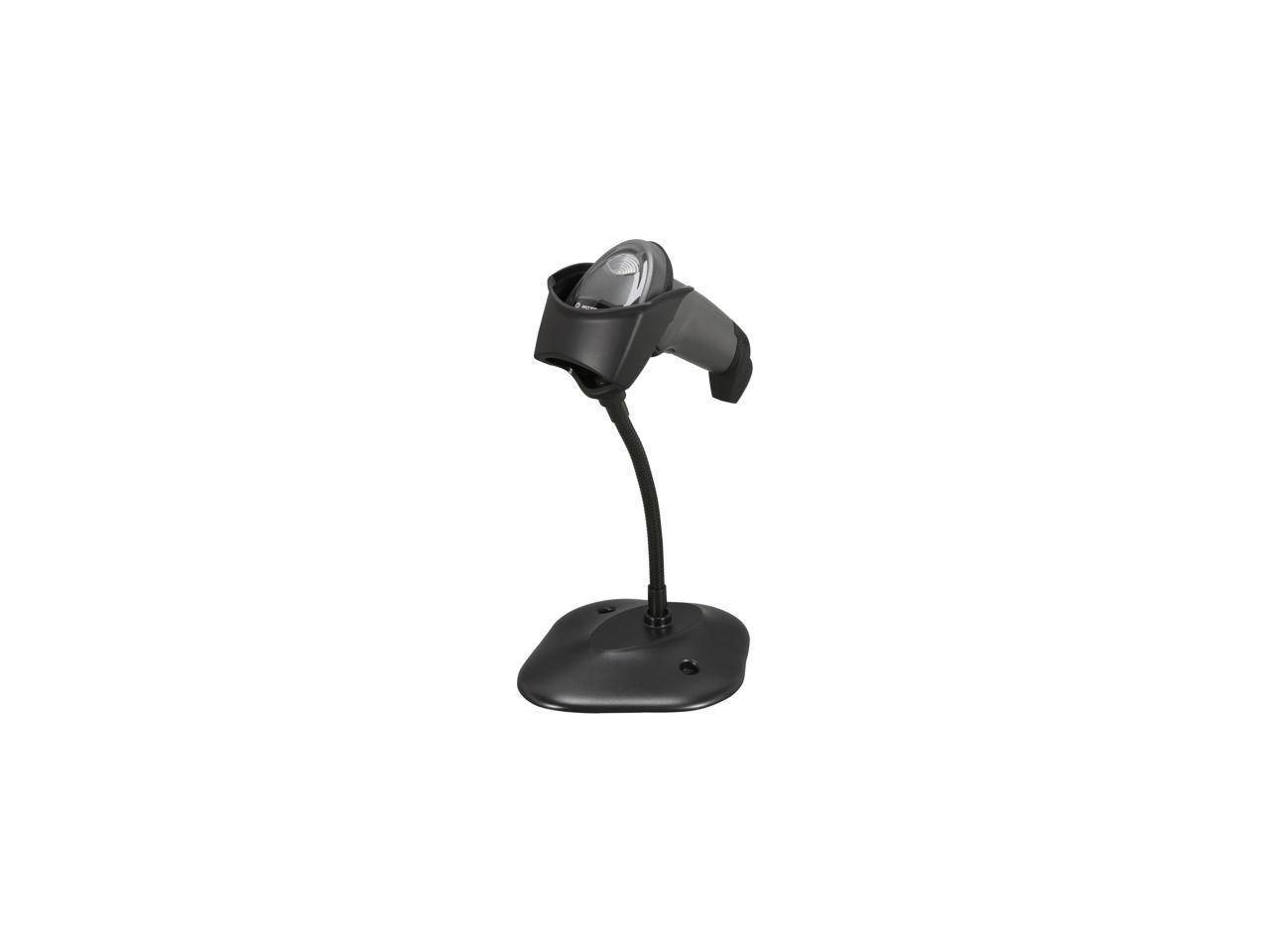

Included Cables Includes Stand & auto-host detect cables
Interfaces Supported USB
Scan Performance
Light Source LED Class 1 device 617 nm (amber)
Pitch ±65 degree
Roll ±45 degree
Yaw ±65 degree
Scan Speed 547 scans per second
Print Contrast Ratio (Minimum) 15% MRD
Electrical
Input Voltage 5 VDC +/- 10%
<165 mA scanning
<40 mA standby
<2.5 mA USB suspend
<4.0 mA low power mode (when enabled, RS232 and Keyboard Wedge only)
Mechanical
Color Twilight Black
Dimensions 6.30" x 2.64" x 3.90"
Weight 0.31 lb.
Features
Features User Environment:
Ambient Light Immunity: Max 108,000 lux
Operating Temp: 32 to 122 degrees Fahrenheit / 0 to 50 degrees Celsius
Storage Temperature: -40 to 158 degrees Fahrenheit / -40 to 70 degrees Celsius
Humidity: 5% to 95% RH, non-condensing
Tumble Testing: 1,000 cycles (2000 drops) in 1/2 meter tumbler
Environmental Sealing: IP42
Drop Over 100 drops at 5 ft. / 1.5 m at room temperature; survives 6 ft. / 1.8 m drops to concrete
Ruggedness General Purpose
