Electrically Conductive Silver Epoxy for Microwave EMI & RFI, PCB, Wave Guides, Electronic Modules, Flat Cable,1 Part, Heat Cure Only, AD1, 10gm Syringe
- PRODUCT DESCRIPTION:
AA-DUCT AD1 is a single component epoxy, formulated with pure silver powder combined with organic binders and solvents to produce electrically conductive paths, films or patterns over non-conductive substrates.
AA-DUCT AD1 shows slight settling when stored for a long period of time, no caking and will re disperse to a smooth homogeneous state.
AA-DUCT AD1 formulation produces electrically conductive paths on a wide variety of surfaces including plastics, rubber, cloth, thermoplastic, paper, wood and many others.
AA-DUCT AD1 designed for use in diversified applications as microwave EMI & RFI shielding, in the assembly or repair of printed circuit boards, wave-guides, electronic modules, flat cable, static shielding, connections, and circuitry.
- PRODUCT PROPERTIES:
Appearance: Silver
Cure Type: Heat cure
Benefits: High strength
Perfect bond
EMI & RFI shielding
Wave guides
Substrates: Excellent choice for Integrated Circuits, aluminum, copper, magnesium, steel, bronze, nickel, kovar, ceramic, glass, phenolic and G-10 epoxy glass boards.
Catalyst: Anhydride
Hardness, Shore D: 83
- UNCURED PROPERTIES:
Viscosity @ 25 °C cps: 6,800
Density gm/cc: 2.35
Silver , %: 70-72
Shelf life 6 Months
Operating Temperature: -45°C to 170°C
Pot Life @ 25 °C: 6 months @ 25°C
9 months refrigerated
- CURE SCHEDULE:
60 min: @ 120°C, 248°F
30 mins: @ 150°C, 302°F
10 mins: @ 175°C, 347°F
- PHYSICAL CHARACTERISTICS:
Sheet Resistivity: 10-12 mO/sq
Bulk Resistivity: 3x10-5O/cm
Adhesion Tensile Strength: 1000 N/cm2 (1500 lb/in2)
Lap shear Strength: 1400 N/cm2 (2000 lb/in2)
Thermal Conductivity: 0.04J/(cm.s. °C):[0.01cal/(cm.s. °C)]
Specific heat: 0.30J/(g. °C) :[0.07 cal/g. °C]
Coefficient of Thermal Expansion: 3x10-5 (m/m)/ °C
Modulus of elasticity: 4x1010 Pa (6x105lb/in2)
Poisson’s Ratio: 0.35
- GENERAL INFORMATION:
For safe handling information on this product, consult the Material Safety Data Sheet, (MSDS).
- AVAILABILITY:
This epoxy can be supplied in various different packages.
Call (888) 522-6742 for more information.

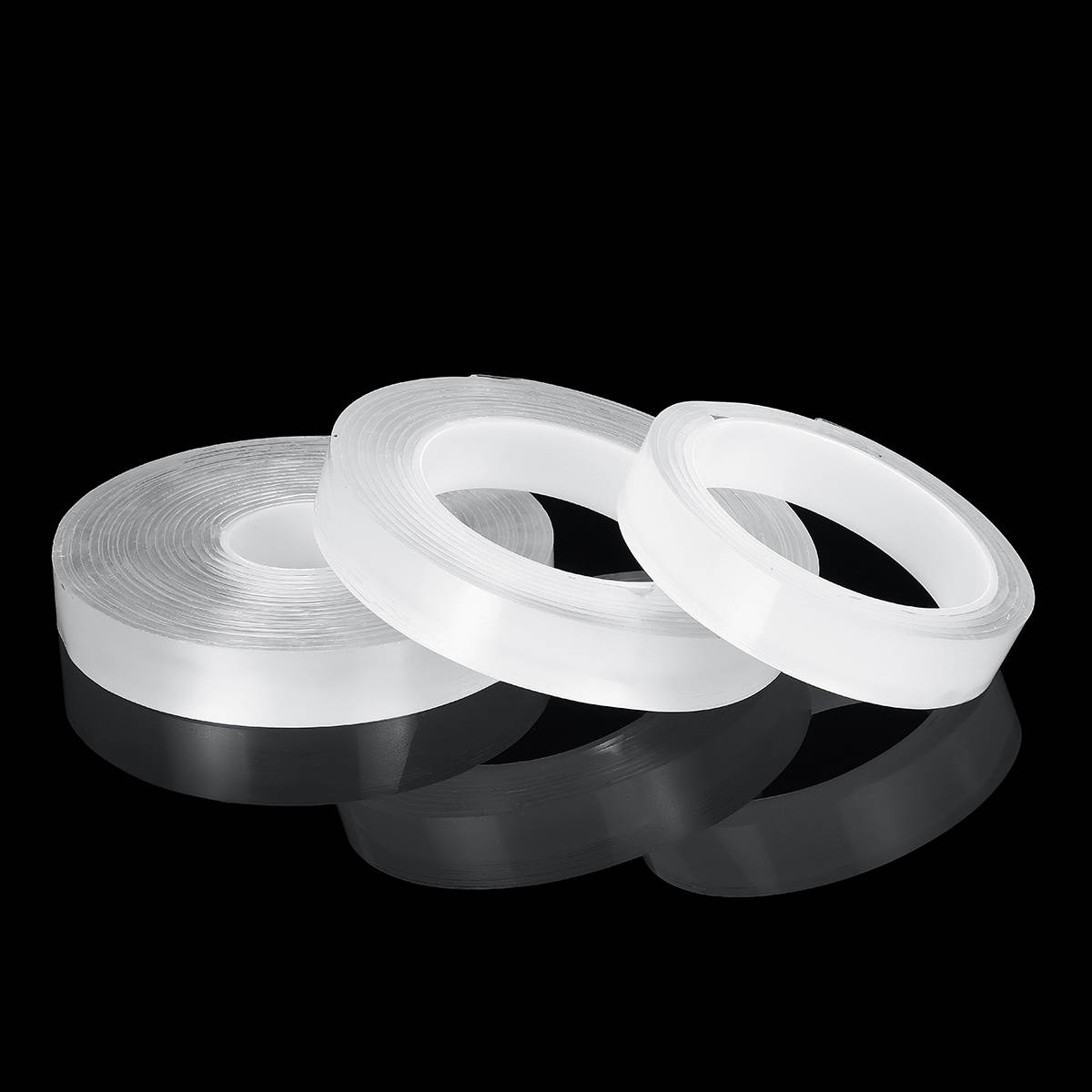

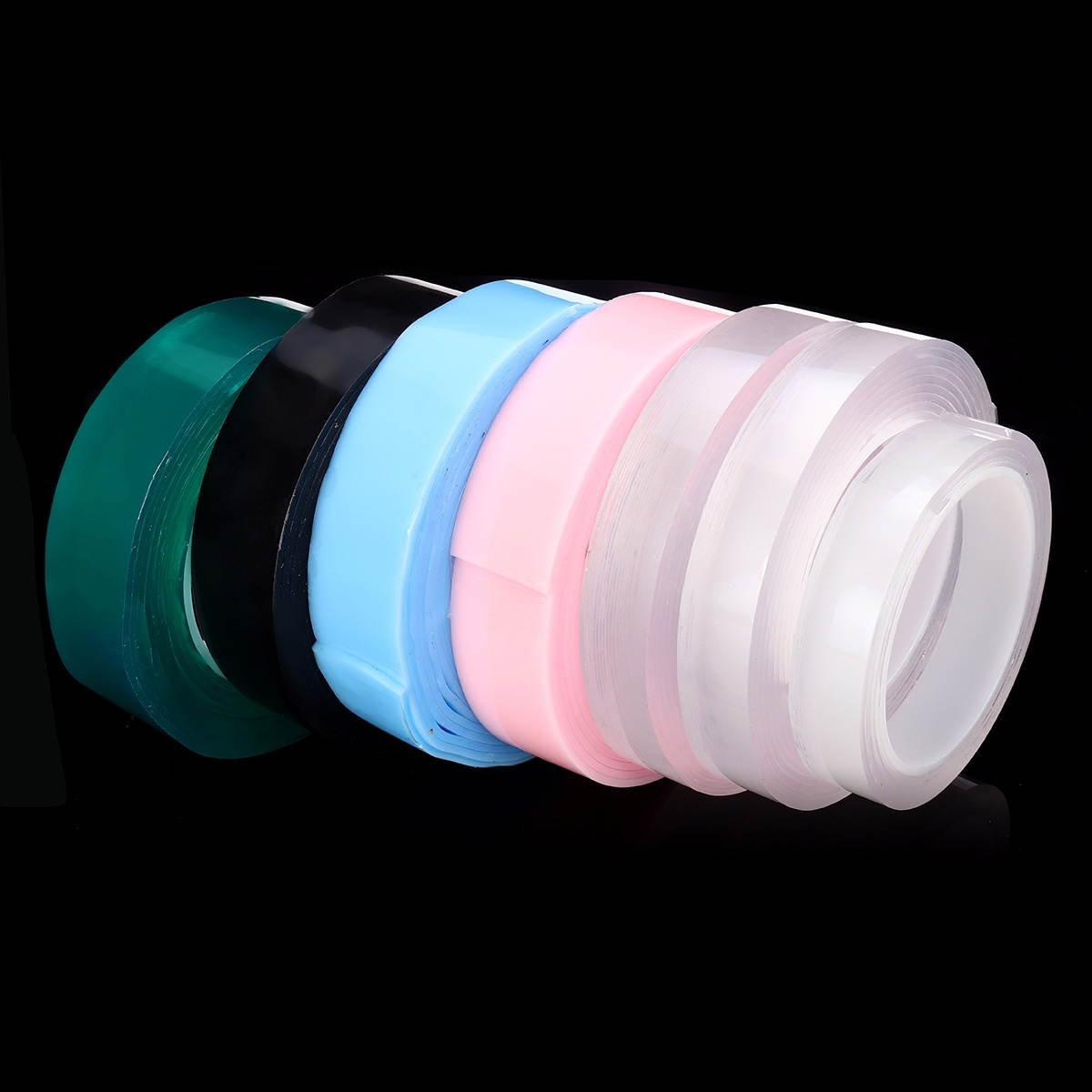

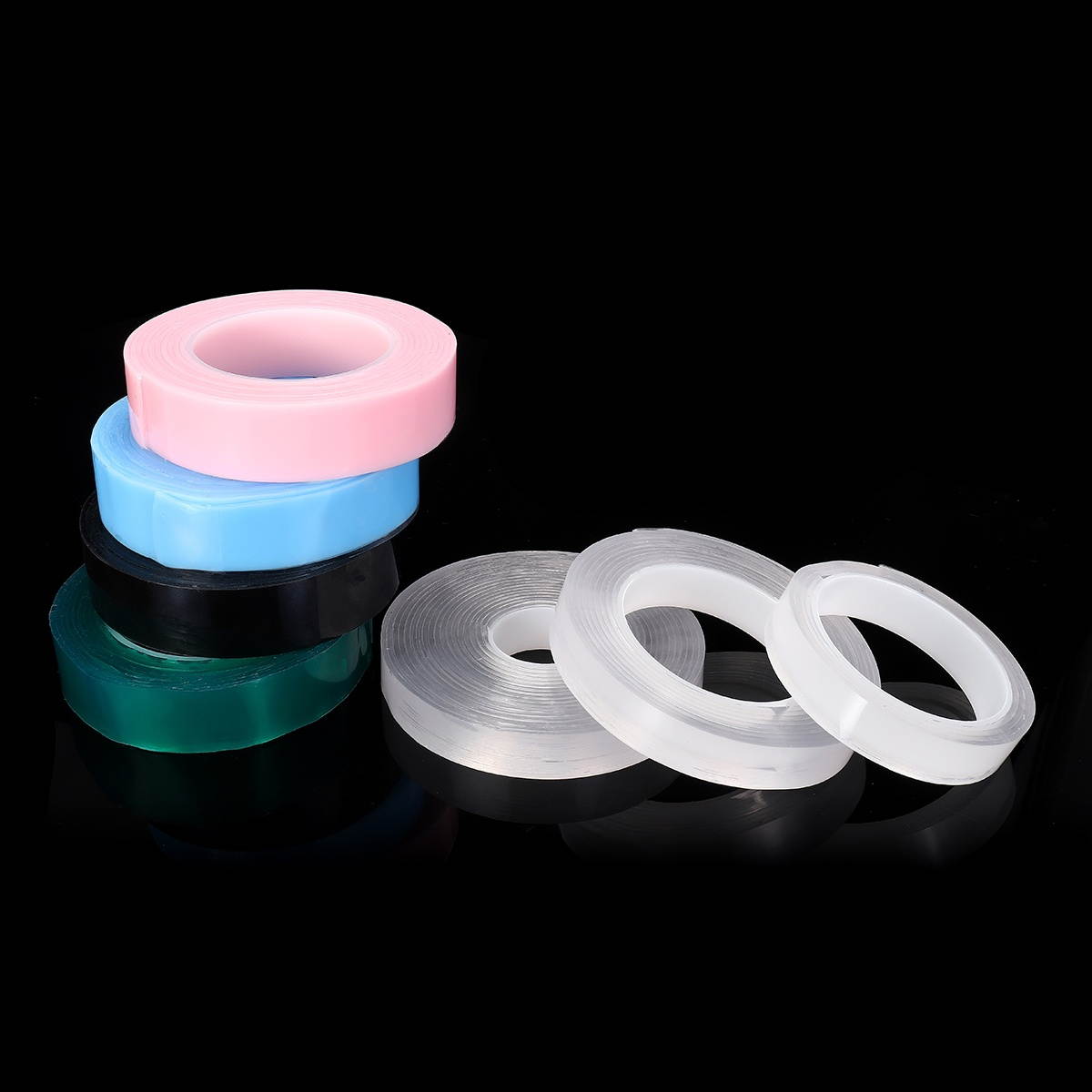

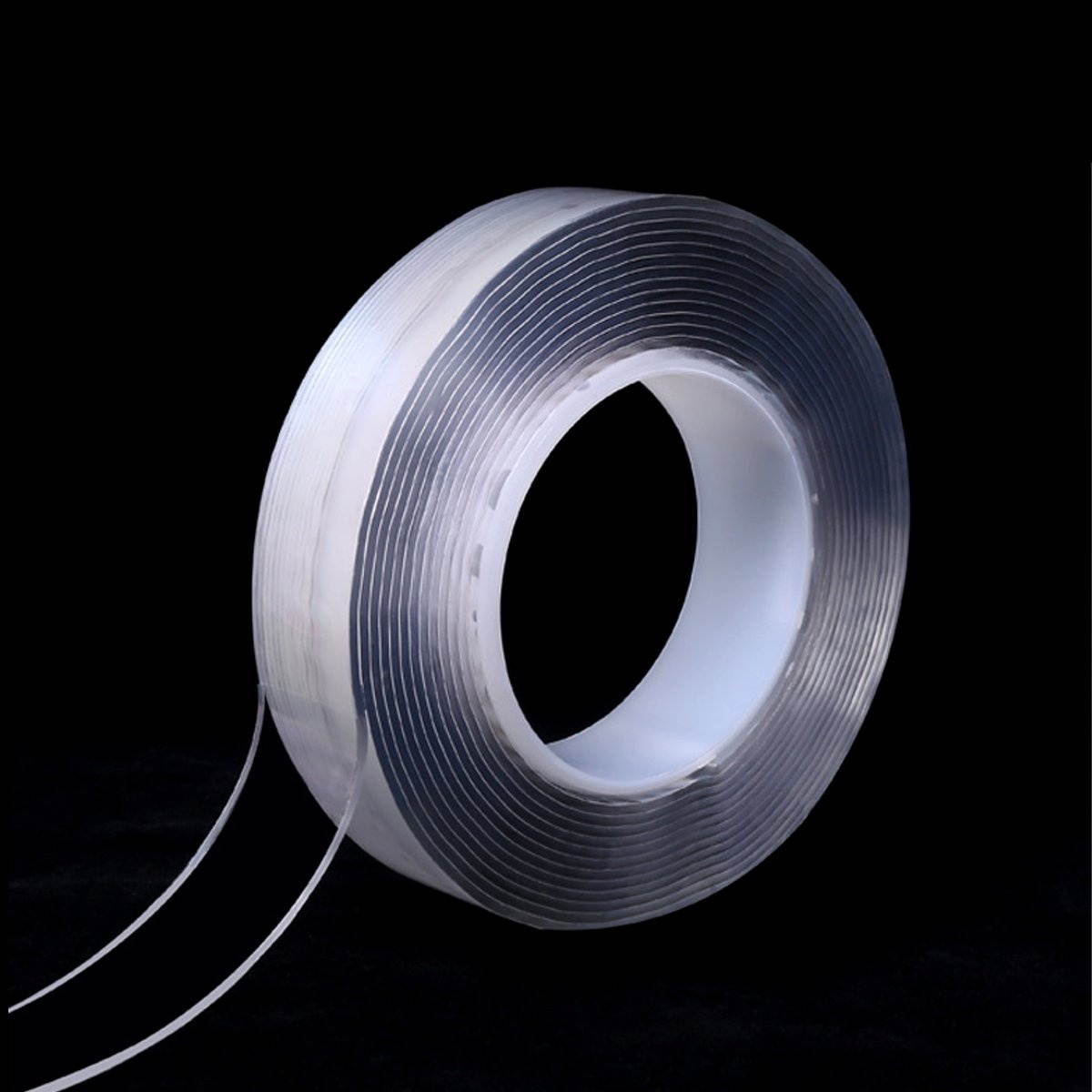

Nano Magic Tape Double Sided Adhesive Tape Sticker Traceless PU Waterproof Super Sticky Gripping Pad 1/3/5M 1M
Features: 1. Washable, can be reused more than 600 times. 2. The gel super strong and washable and reusable Gel formula there are an infinite amount of potential uses. 3. It is easily removable and will not damage your walls or surfaces. 4. Double-sided adhesive and washable and reusable. 5. Keep items in place without slipping. & nbsp; Specification: Main Material: Nano PU Gel Size: 500*3* 0.2 cm(5m/set) 300*3* 0.2 cm(3m/set)100*3* 0.2 cm(1m/set) & nbsp; Package includeds: 1 x Adhesive Tape & nbsp; Details pictures: & nbsp;
General Purpose Adhesive Electrically Insulating Epoxy Transparent Casting AA-CAST 002, 5gm pouch

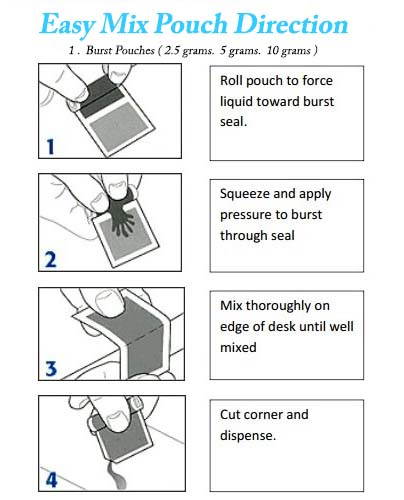

Transparent casting epoxy systemEasy mix pre-measured pouch. Simple mix and use without any mess.
Two Part Epoxy Long Pot Life, Impact Resistant For Fiber Optic Assembly Multimode & Single Mode Connectors, Small Potting & Sealing Applications F112, 100gm
- PRODUCT DESCRIPTION:
AA-BOND F112 is an impact resistant, fiber-optic adhesive.
AA-BOND F112 is two-part, low viscosity epoxy has the distinct advantage of remaining below 3000 cps for a minimum of 40 minutes.
AA-BOND F112 allows more connectors to be produced from one mix. Low stress, AA-BOND F112 is an excellent choice for multimode connectors and single mode connectors where excessive curing temperatures may cause cracking.
AA-BOND F112 can be cured at room temperature overnight or as fast as 15 minutes at 90°C. The blue color facilitates easy polishing and its cured properties prevent pistoning. This product is a 100% solid system that can be used for small potting and sealing applications where resistance to thermal shock and impact are required.
- GENERAL PROPERTIES
• Appearance: Blue
• Components: 2 component - requires mixing
• Mix Ratio by weight: 100:30 / Resin:Hardener
• Benefits:
o Low viscosity
o Thermal shock and impact resistant
o Low stress connections
• Cure Type: Room temperature or Heat Cure
• Operating Temperature : -60 to 100 °C
• Typical Applications:
Fiber optic assembly, multimode and single mode connectors, small potting and sealing applications
- UNCURED PROPERTIES:
Viscosity @ 25 °C: 2300
Thixotropic Index: 1.0
Specific Gravity, cured: 1.2
Pot Life: 30 minutes
- CURE SCHEDULE:
24 hours @ 25°C
1 hour @ 65°C
15 minutes @ 90°C
- CURED PROPERTIES:
Glass Transition Temperature (Tg), ultimate, °C: 102
Hardness, Shore D: 85
Refractive Index: 1.51
Water Absorption , after 24 hours saturation, %: 0.07
- GENERAL INFORMATION:
For safe handling information on this product, consult the Material Safety Data Sheet, (MSDS).
- AVAILABILITY:
This epoxy can be supplied in various different packages.
CALL (888) 522-6742 for more informations.
High strength Silver Epoxy, Electrically Conductive for microwave, EMI & FRI shielding assembly & PCB, electronic component manufacturing & Repair 904, 5gm Syringe
- PRODUCT DESCRIPTION:
AA-DUCT 904 is a single component, heat curing, conductive epoxy that was designed for ease in handling. This high performance conductive epoxy cures quickly at elevated temperatures making it ideally suited for rapid processing and assembly.
AA-DUCT 904 offers excellent mechanical, electrical, and physical properties at continuous operating temperatures up to 175°C. This versatile silver conductive adhesive can be used for chip bonding in micro and opto-electronic hybrid circuit fabrication.
AA-DUCT 904 has also been used in microwave applications for EMI and FRI shielding, for assembly and repair of circuit boards and electronic component manufacturing.
AA-DUCT 904 is a smooth, soft paste that can be applied by hand application, automatic dispensers, screen-printing, transfer or stamping techniques. It is available in both a lower and higher viscosity grade for use in a variety of dispensing equipment and application techniques.
- CURED PROPERTIES:
Hardness, Shore D 83
- PRODUCT PROPERTIES:
Appearance Silver
Cure Type Heat cure
Benefits:
+ High strength
+ Excellent mechanical, electrical properties
Substrates: Excellent choice for Integrated Circuits, aluminum, copper, magnesium, steel, bronze, nickel, ceramic, glass,
phenolic and G-10 epoxy glass boards.
- CURE SCHEDULE:
2 hours @ 125°C
1 hour @ 150°C
1/2 hours @ 175°C
- UNCURED PROPERTIES:
Viscosity @ 25 °C cps: 200,000
Shelf life: 6 Months
Density: 3.6
- THERMAL PROPERTIES:
Thermal Conductivity, btu/hr/ft2/°F/in 16.1
Coefficient of Thermal Expansion 60x 10^-6 (in/in) C
Operating Temperature:
+ -55°C to +175°C
+ Intermit. to 325
- ELECTRICAL PROPERTIES:
Volume Resistivity ohm. cm 0.001
- NASA OUTGASSING RESULTS:
TML (Total Mass Loss) % 0.38
CVCM (Collected Volatile Condensable Materials) % 0.01
WVR (Water Vapor Recovery) % 0.07
- GENERAL INFORMATION:
For safe handling information on this product, consult the Material Safety Data Sheet, (MSDS).
AVAILABILITY:
This epoxy can be supplied in various different packages.
Call (888) 522-6742 for more information.
This epoxy can be supplied in various different packages.
High Impact Strength Epoxy For Electronic Industries, PCB, Aerospace, Staking Components, Bonding, Laminating, Repair, 2 Part 2110, 5gm
- PRODUCT DESCRIPTION:
AA-BOND 2110 is a thixotropic epoxy resin and hardener formulation developed for industrial adhesive, staking, laminating, repair and manufacturing applications where long pot-life, good wetting, non-sag, non-drip and improved impact strength properties are required.
AA-BOND 2110 is easy-to-use two parts adhesive system contains no volatile solvents, readily cures at room temperature, and bonds to most materials including glass and glass fabrics, ceramics, wood, leather, most metals, and many plastics.
AA-BOND 2110 is strong, tough, resilient, has superior mechanical impact and thermal shock resistance characteristics, and is also highly resistant to weather, water, gases and vapors, most petroleum products and fuels, salts, mild acids and alkalis, and many other organic and inorganic compounds.
- GENERAL PROPERTIES:
Appearance: Hazy off white
Cure Type: Room temperature or Heat cure
Benefits: High Impact strength
• Good wetting
• Long pot life
Mix Ratio by weight: 100:30 / Resin:Hardener
Substrates:
Staking components, bonding, laminating, repair applications, metals, glass, ceramics, wood and many plastics
Operating Temperature: -70 to 100 °C
Typical Applications:
PCB components, aerospace, anything where superior properties are required
- UNCURED PROPERTIES:
Specific Gravity, mixed: 1.25 g/cc
Viscosity @25 °C, cps: 65000
Pot Life: 1 hour
- CURE SCHEDULE:
10 hours @ 65°C
24 hours @ 25°C
- MISC PROPERTIES:
Volume Resistivity: 9.30e+8 ohm-cm
Dielectric Constant: 4.7
Dielectric Strength: 430 kV/in
CTE, linear: 30.5 µin/in-°F @ RT
Hardness, Shore D: 80
- GENERAL INFORMATION:
For safe handling information on this product, consult the Material Safety Data Sheet, (MSDS).
- AVAILABILITY:
This epoxy can be supplied in various different packages.
CALL (888) 522-6742 for more information.

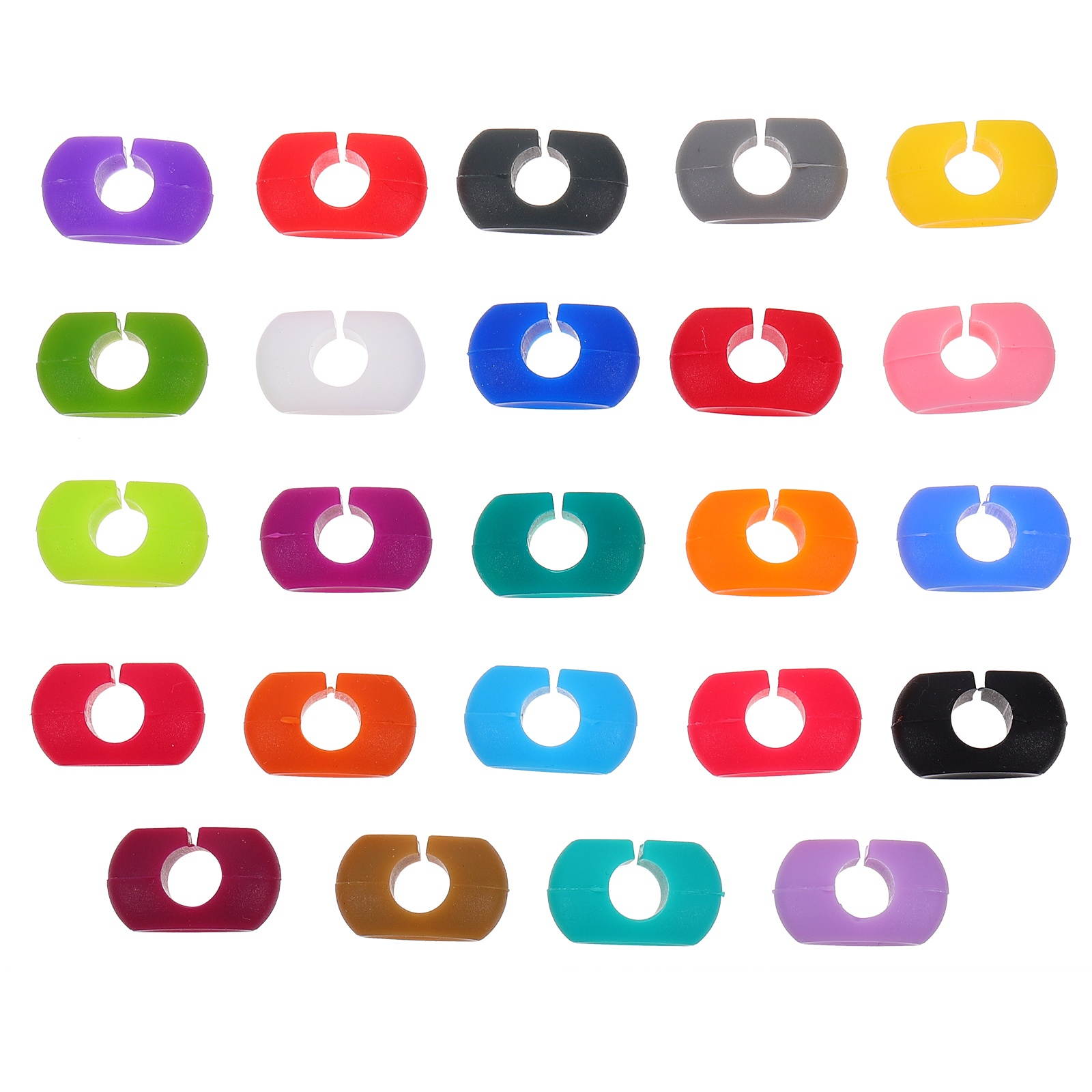

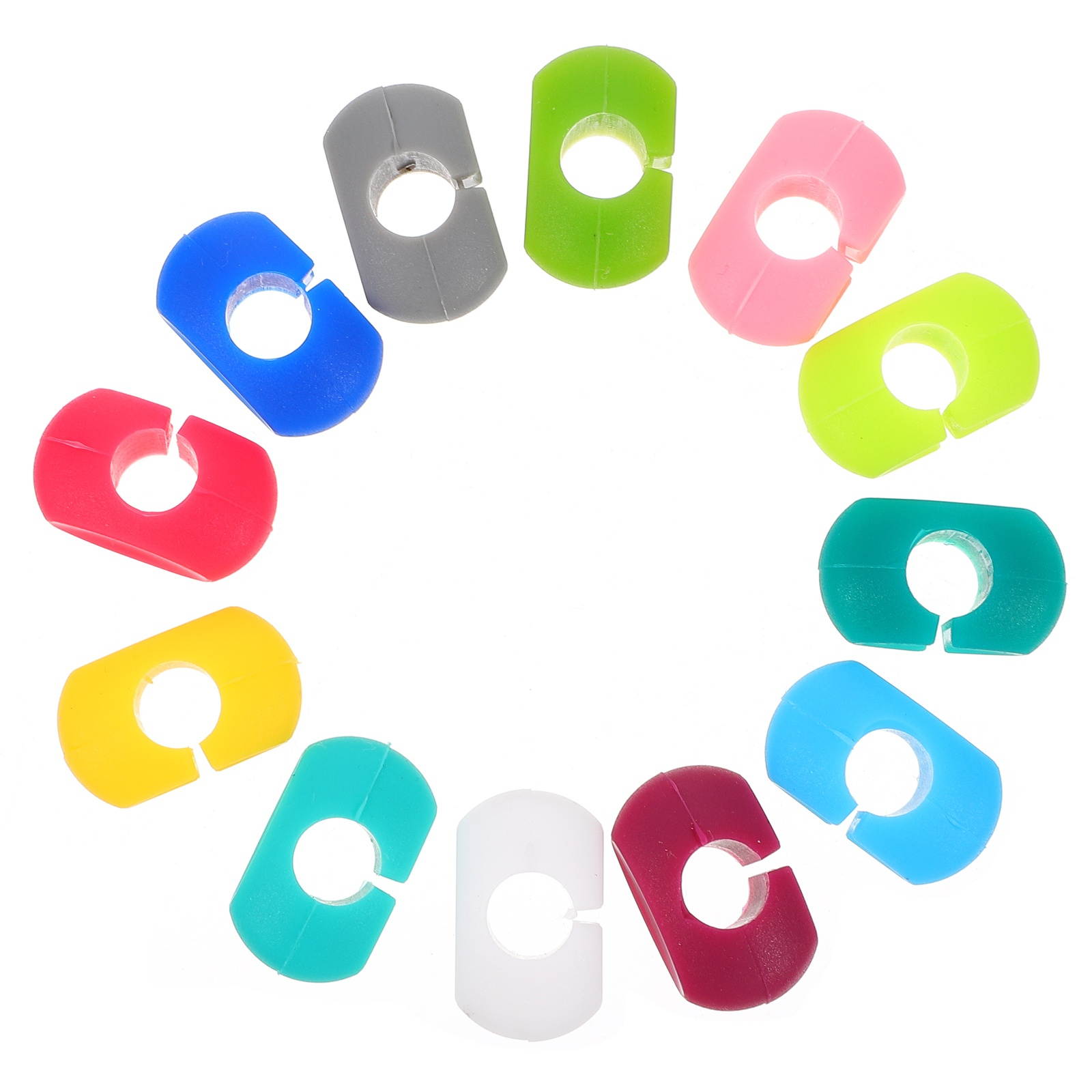

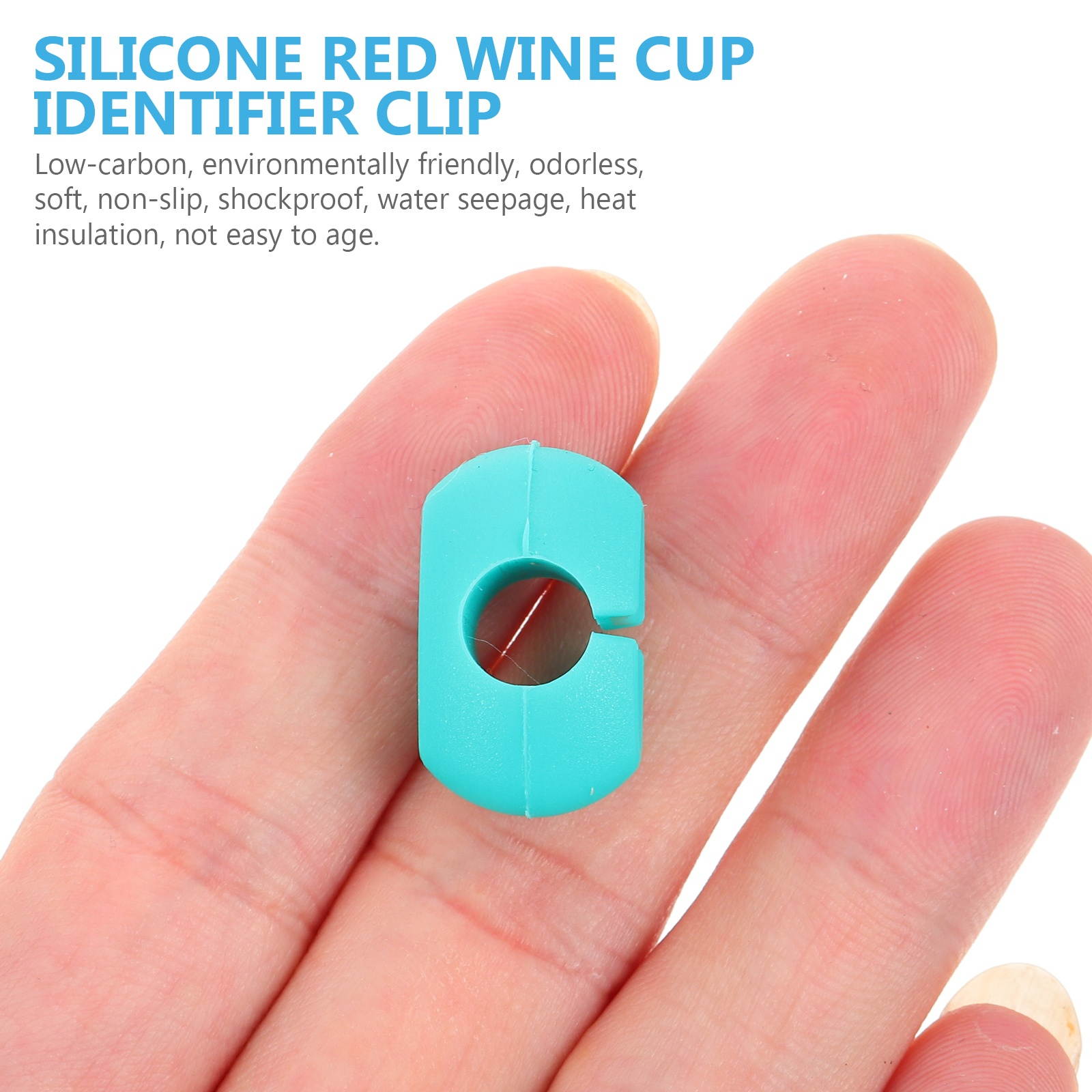

6pcs Silicone Red Wine Glass Marker Creative Pineapple Marker Charm Glass Identification Perfect for Parties (Random Color)
DescriptionEnvironmental friendly, through a variety of environmental testing, good elasticity, mainly used to be stuck in red wine glasses, beverage bottles and straws. When we drink, we can identify each customer’s glass by silicone cup stickers. Stylish and you can find your wine glass easily.Features- Color: Random- Material: Silicone- Size: 2.7 x 1.5 x 1cm- Food grade silicone, low carbon and environmental friendly, and non-slip.- Perfect for parties, cocktail hours, dinners and many other places.- Long service life of silicone products, color and shape can be adjusted according to requirements.- Easy to use, stylish and fashionable.- 6 pcs, enough for daily use.- Note: You may receive the same color.silicone glass marker, silicone red wine glass marker, charms markers, marker glass, silicone glass identification
Nickel Adhesive Electrically Conductive Epoxy, 1 Part, Heat Cure Only, Fast Cure, Ease In Handling, Passes NASA’s Outgassing For EMI RFI Shielding, Circuit Boards & Electronic Component N02 , 500gm
- PRODUCT DESCRIPTION:
AA-DUCT N02 is a single component, heat curing, conductive epoxy polymer that was designed for ease in handling. This high performance conductive polymer cures quickly at elevated temperatures making it ideally suited for rapid Processing and assembly.
AA-DUCT N02 passes NASA’s outgassing testing (ASTM E-595) and is listed in NASA’s Outgassing Data for Selecting Spacecraft Materials list.
AA-DUCT N02 offers excellent mechanical, electrical, and physical properties at continuous operating Temperatures up To 175°C. This versatile nickel conductive adhesive can be used for chip bonding in Micro and electronic hybrid circuit Fabrication. This unique conductive polymer also exhibits outstanding adhesion to a wide variety of substrates with good hot strength at intermittent temperatures up to 325°C.
AA-DUCT N02 has also been used in microwave applications for EMI and FRI shielding, for assembly and repair of circuit boards and Electronic component manufacturing.
- PRODUCT DESCRIPTION:
Base: Epoxy
Appearance :Grey
Cure Type: Heat cure or Room temperature
Mix Ratio by weight : 100:6 / Resin:Hardener
Substrates Excellent choice aluminum, copper, magnesium, steel, bronze, nickel, kovar, ceramic, glass, phenolic and G-10 epoxy glass boards.
Operating Temperature: -60 to 110 °C
Viscosity @ 25 °C cps Soft: Paste
Shelf Life: 6 months
- CURED PROPERTIES:
Hardness, Shore D: 88
Volume Resistivity ohm-cm: 3.8 x 10-2
- CURE SCHEDULE:
2 Hours @ 125 °C
1 hour @ 150°C
30 min @ 175 °C
- THERMAL CHARACTERISTICS:
Thermal Conductivity, Btu/hr/ft2/°F/in: 10.1
Operating Temp. Range, °C: -55 to +175
- NASA OUTGASSING RESULTS:
TML (Total Mass Loss): % 0.25
CVCM (Collected Volatile Condensable Materials): % 0.00
WVR (Water Vapor Recovery): % 0.07
- GENERAL INFORMATION:
For safe handling information on this product, consult the Material Safety Data Sheet, (MSDS).
- AVAILABILITY:
This epoxy can be supplied in various different packages.
Cool Air Products - 210 AC SmartSeal External™
AC SmartSeal External™ & nbsp; is a leak stop suitable for any material. It effectively seals all types of leaks up to 5 mm. Specifically designed to be inert to all kinds of lubricants and refrigerant gases, EXTERNAL does not react to temperature changes. SMART SEAL External has been developed to be compatible with POE, PAG, PAO, minerals lubricants and alkylbenzene, and also with the following refrigerants: CFC HFC HCFC CO It has also been tested for new generation gases such as R1234yf and R1234ze. SMART SEAL External is also resistant to normal flushing liquids, and is resistant to temperatures from -100 ° C to + 270 ° C. The pressure resistance depends on the size of the loss: 580 psi – 5 mm leak diameter 725 psi- 2 mm leak diameter 825 psi-1 mm leak diameter SMART SEAL External can be easily mixed by using two fingers. Once applied, the leak is closed. It is ideal for emergency sealing and does not disperse any residue into the system and, if necessary, it can be easily removed and once dried, the product can be sanded and refinished.
6pcs Silicone Red Wine Glass Marker Creative Pineapple Marker Charm Glass Identification Perfect for Parties (Random Color)
DescriptionEnvironmental friendly, through a variety of environmental testing, good elasticity, mainly used to be stuck in red wine glasses, beverage bottles and straws. When we drink, we can identify each customer’s glass by silicone cup stickers. Stylish and you can find your wine glass easily.Features- Color: Random- Material: Silicone- Size: 2.7 x 1.5 x 1cm- Food grade silicone, low carbon and environmental friendly, and non-slip.- Perfect for parties, cocktail hours, dinners and many other places.- Long service life of silicone products, color and shape can be adjusted according to requirements.- Easy to use, stylish and fashionable.- 6 pcs, enough for daily use.- Note: You may receive the same color.silicone glass marker, silicone red wine glass marker, charms markers, marker glass, silicone glass identification

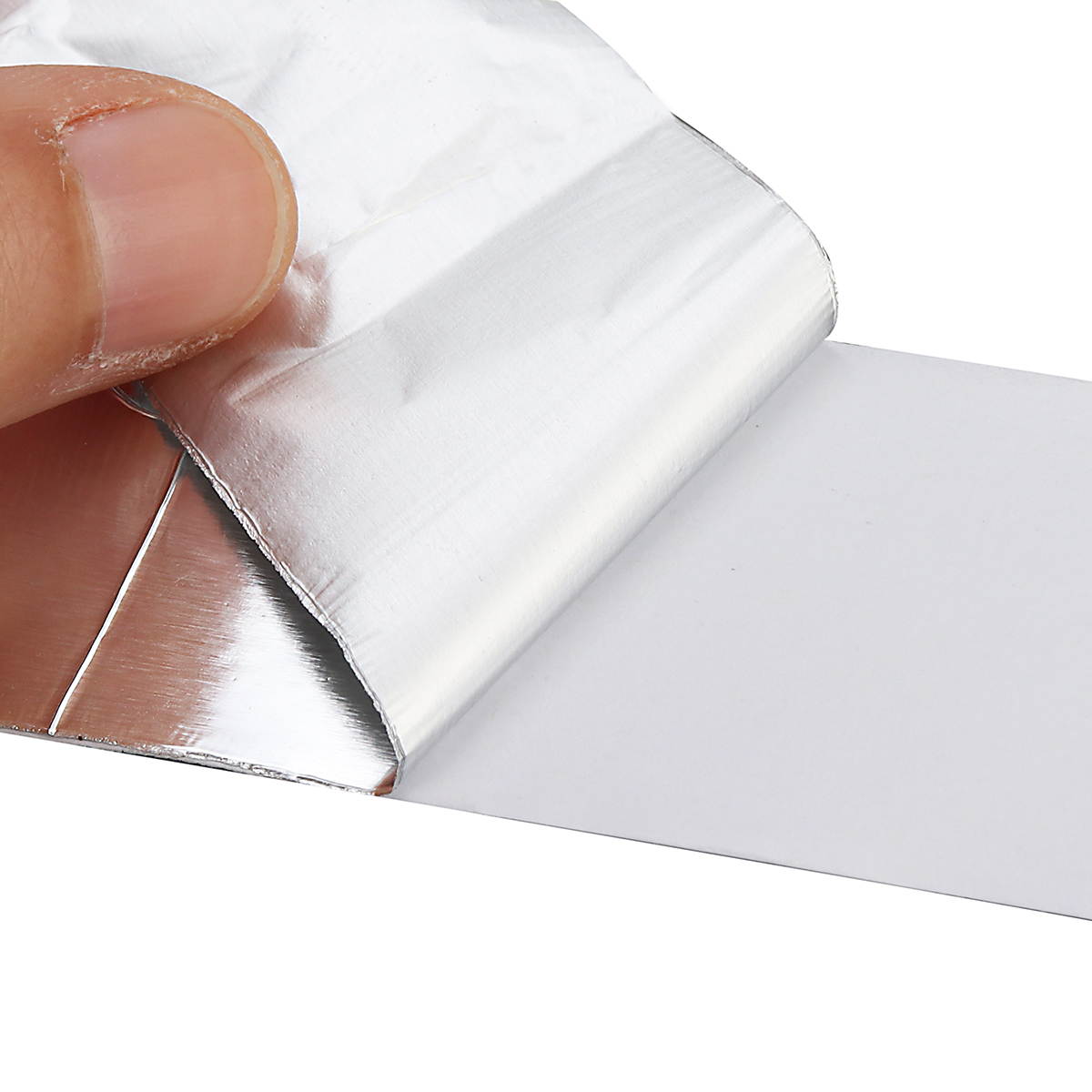

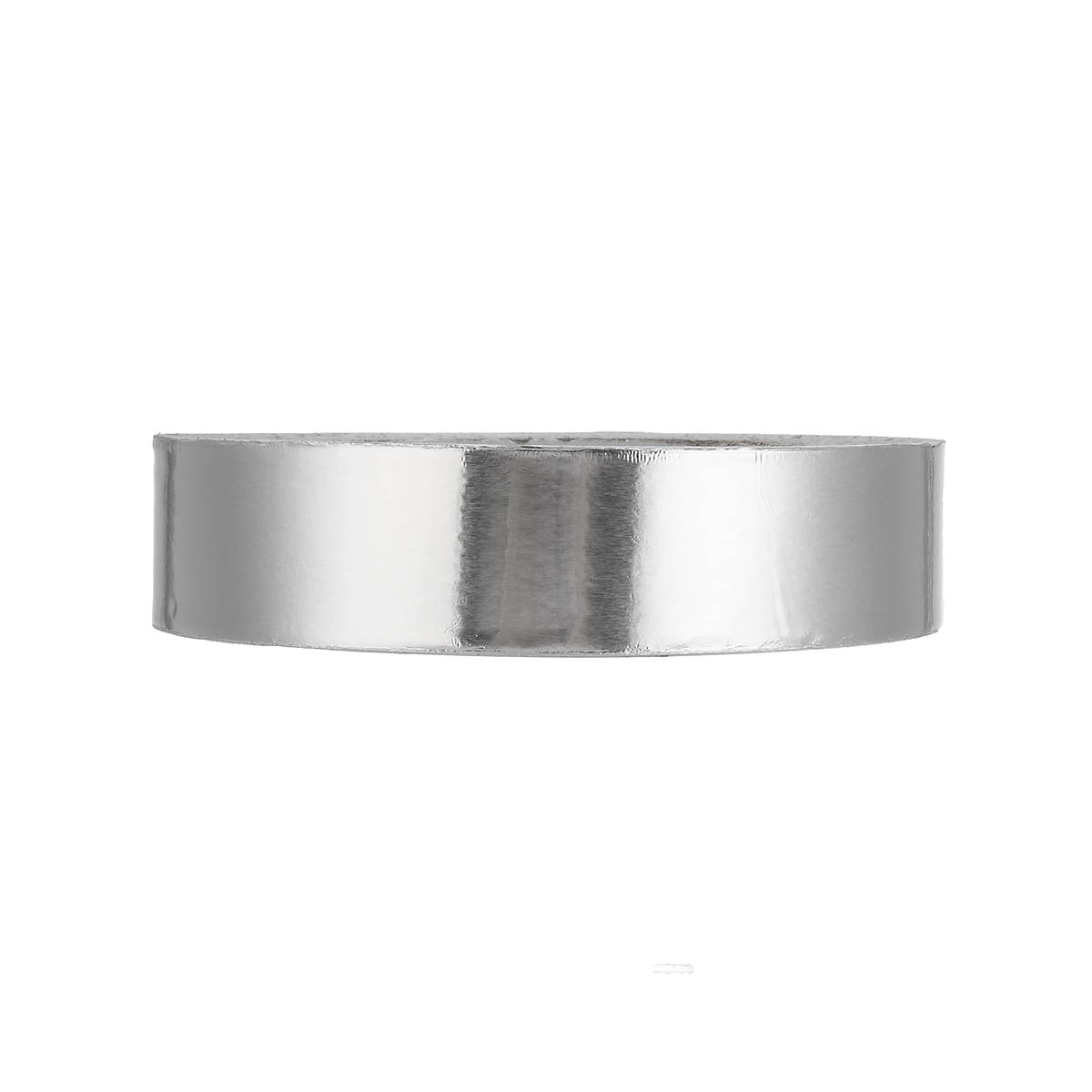

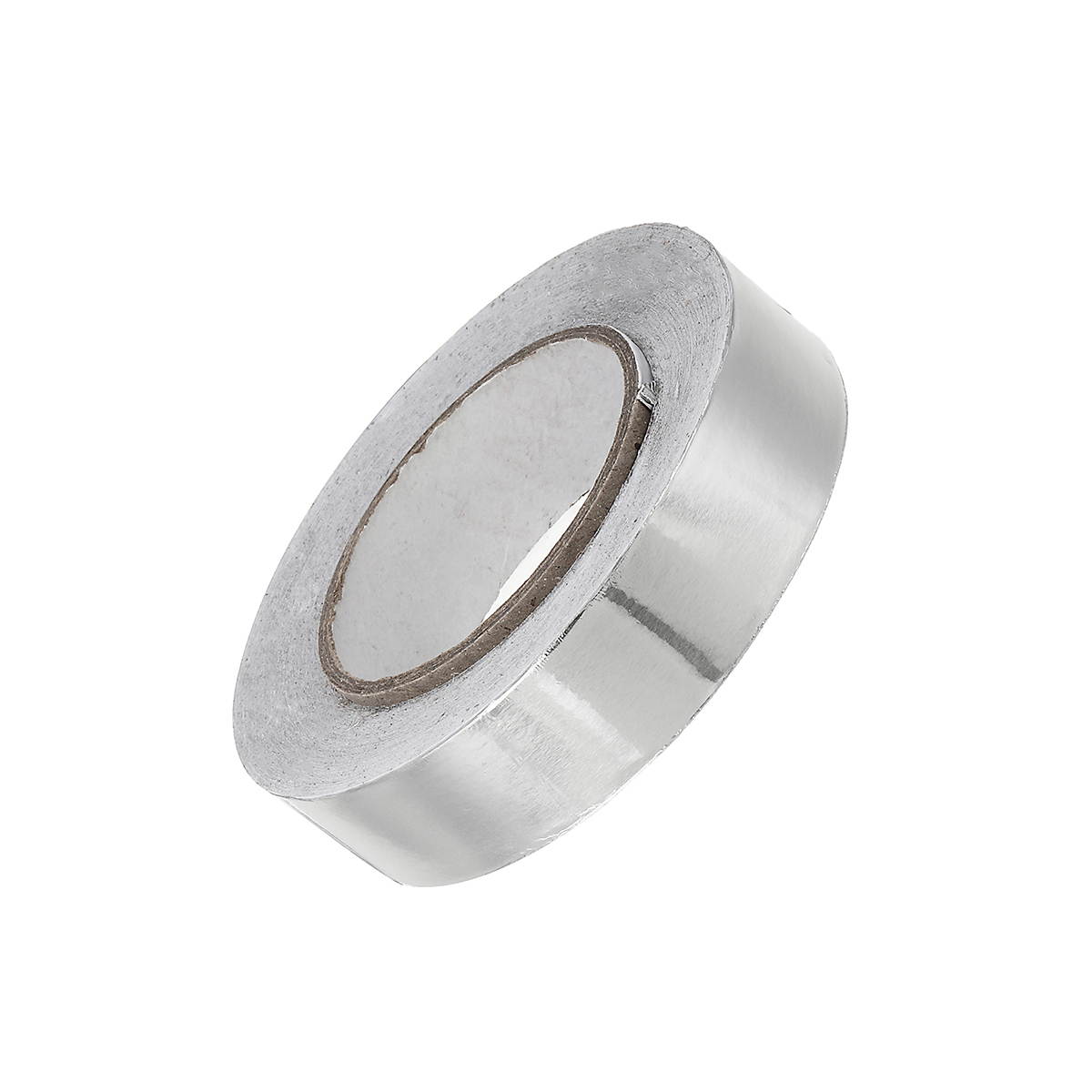

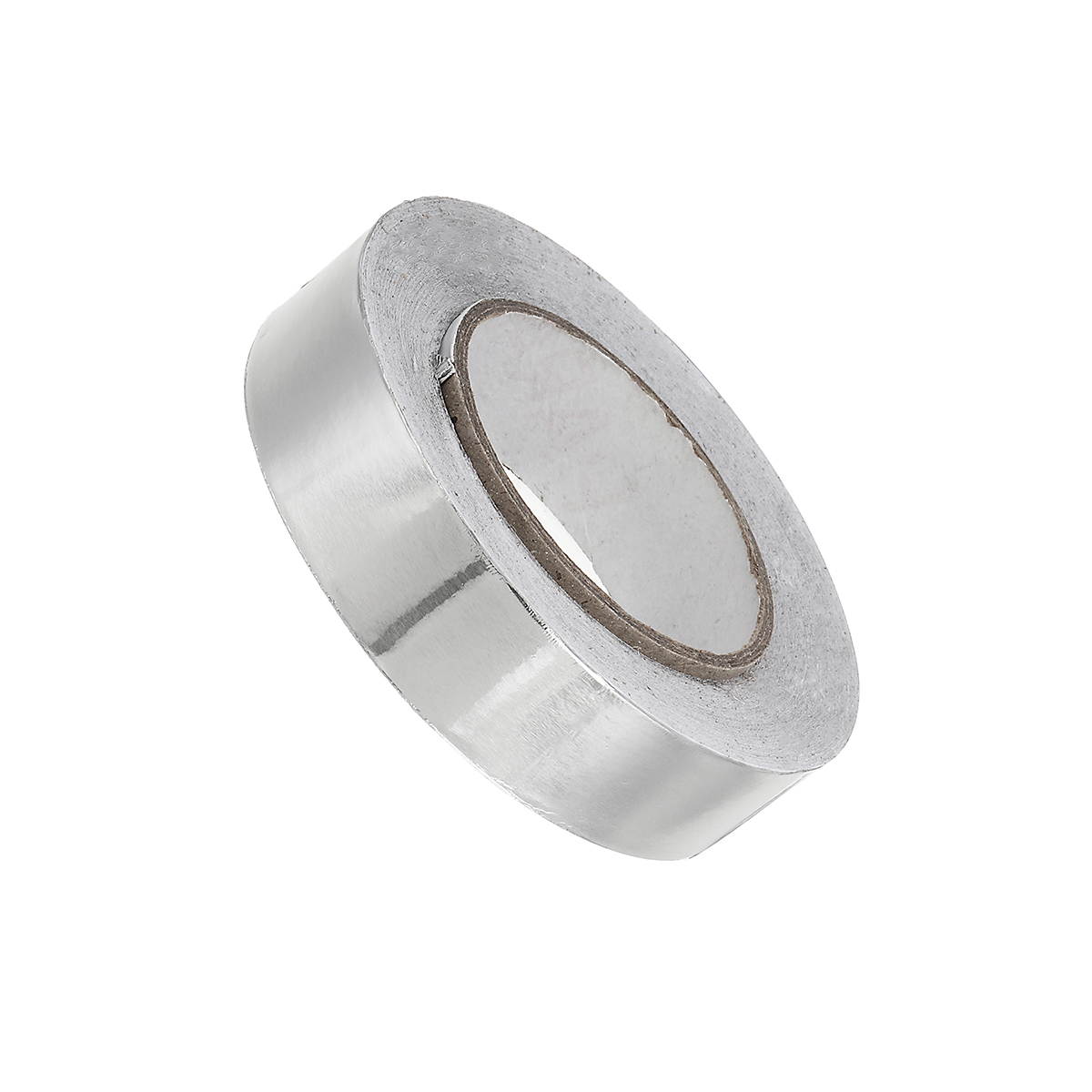

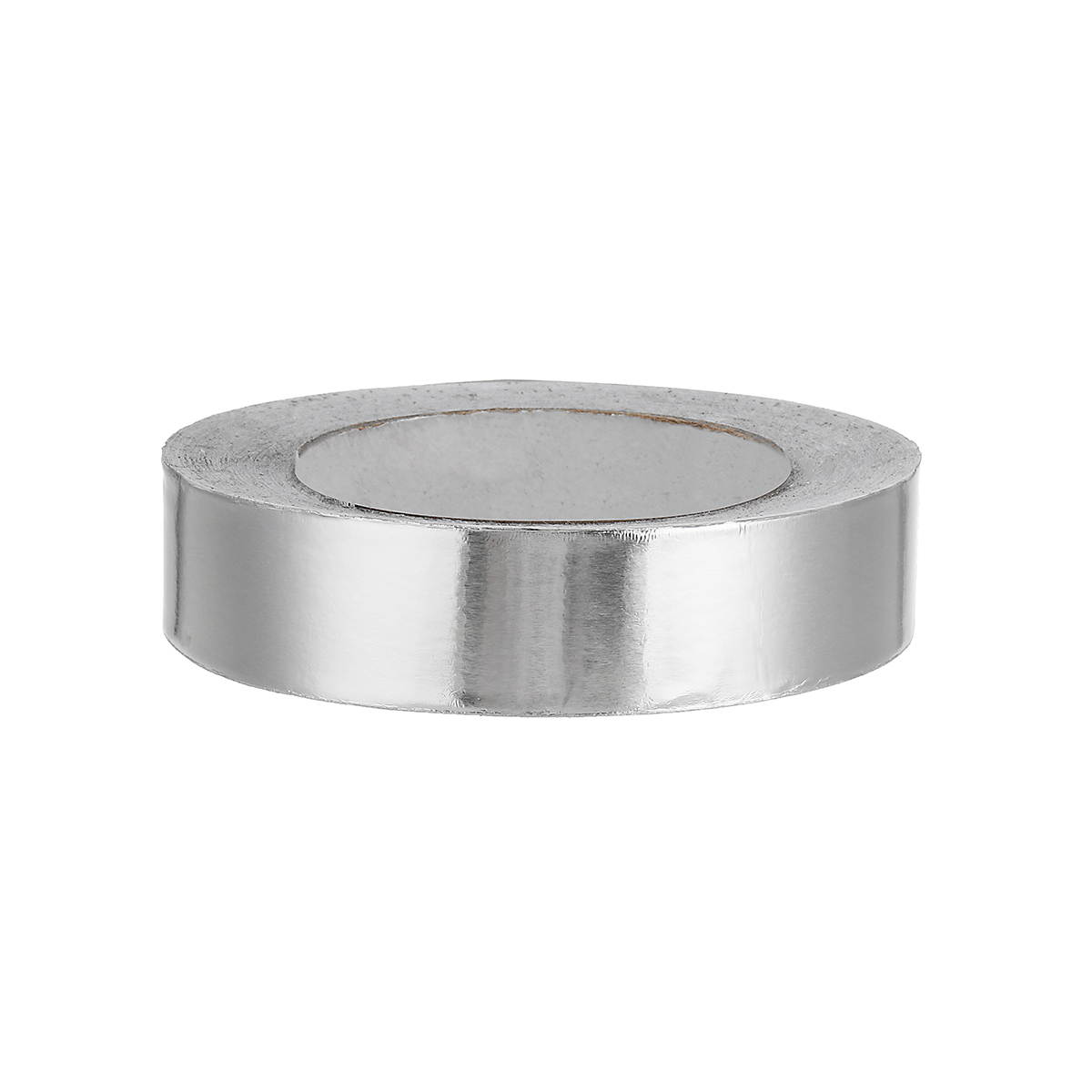

5cmx20m Adhesive Car Aluminium Sealing Foil Tape Stripe Resist Duct Repair Tools
Features: Heat insulation, temperature stability. Strong adhesive force. No harmful substance. Not easy to corrosion. Reduce noise. It is not easy to wear. Soft and strong expansion. Anti pollution ability strong surface.; Specification: Material: AluminiumColour: ChromeThicknes: 0.06 mmWidth: 5cmTotal Length: 20mTemperature resistance: 90? (Long term) 120°C (Short term); Package includeds: 1 x Foil Tape; Details pictures:
High Temperature Adhesive, Fast Cure Epoxy, Low Viscosity For Photographic Industry, Fiber Optics, Laminating, Production & Repair Applications 2 Part, F156, 2.5gm
- PRODUCT DESCRIPTION:
AA-BOND F156 is a black, solvent free thixotropic epoxy recommended for high quality photographic industry, laminating, production and repair applications where a room temperature cure optically opaque adhesive for light sensitive components is required.
AA-BOND F156 is two parts smooth paste formulation is easy to use, develops strong bonds to itself and to most materials.
AA-BOND F156 exhibits low shrinkage during cure, has excellent dimensional stability over a wide temperature range.
- GENERAL PROPERTIES:
• Appearance: Black
• Cure Type: Room Temperature or Heat cure
• Benefits:
o Easy to use
o Good low-temperature structural, physical and electrical properties
o It’s resistant to water, weather, gases, salts, mild acids, alkalis, and many organic and inorganic compounds
• Mix Ratio by weight: 100:12 / Resin:Hardener
• Substrates: Glass and glass fabrics, ceramics, leather, metals and many plastics
• Operating Temperature: -60 to 130 °C
• Typical Applications: High quality photographic industry bonding, laminating, production and repair applications where a room-temperature cure optically opaque adhesive for light sensitive components is required.
- UNCURED PROPERTIES:
• Viscosity @ 25 °C, cps 50,000 After mixing
• Specific Gravity, mixed, g/cc 1.57
• Pot life 30 minutes
• Reactive solids contents, % 100
- CURE SCHEDULE:
o 4 hours @ 65°C
o 24 hours @ 25°C
- CURED PROPERTIES:
o Glass transition temperature (Tg), °C 95
o Hardness, Shore D 90
- GENERAL INFORMATION:
For safe handling information on this product, consult the Material Safety Data Sheet, (MSDS).
- AVAILABILITY:
This epoxy can be supplied in various different packages.
CALL (888) 522-6742 for more informations.
Nu-Calgon - 4133-08 - Cal-Brite
Nu-Calgon - Cal-Brite is a low-pH or acid-based product developed for cleaning evaporator coils, air-cooled condensers and other finned cooling and heating coils. It is based upon glycolic acid and ammonium bifluoride. The activity between the glycolic acid and the ammonium bifluoride produces a synergestic cleaning effect, resulting in a clean, brightened coil but with the utmost in safety to the applicator and the job site as compared to HF-based products.
High Temperature Adhesive, Fast Cure Epoxy, Low Viscosity For Photographic Industry, Fiber Optics, Laminating, Production & Repair Applications 2 Part, F156, 100gm
- PRODUCT DESCRIPTION:
AA-BOND F156 is a black, solvent free thixotropic epoxy recommended for high quality photographic industry, laminating, production and repair applications where a room temperature cure optically opaque adhesive for light sensitive components is required.
AA-BOND F156 is two parts smooth paste formulation is easy to use, develops strong bonds to itself and to most materials.
AA-BOND F156 exhibits low shrinkage during cure, has excellent dimensional stability over a wide temperature range.
- GENERAL PROPERTIES:
• Appearance: Black
• Cure Type: Room Temperature or Heat cure
• Benefits:
o Easy to use
o Good low-temperature structural, physical and electrical properties
o It’s resistant to water, weather, gases, salts, mild acids, alkalis, and many organic and inorganic compounds
• Mix Ratio by weight: 100:12 / Resin:Hardener
• Substrates: Glass and glass fabrics, ceramics, leather, metals and many plastics
• Operating Temperature: -60 to 130 °C
• Typical Applications: High quality photographic industry bonding, laminating, production and repair applications where a room-temperature cure optically opaque adhesive for light sensitive components is required.
- UNCURED PROPERTIES:
• Viscosity @ 25 °C, cps 50,000 After mixing
• Specific Gravity, mixed, g/cc 1.57
• Pot life 30 minutes
• Reactive solids contents, % 100
- CURE SCHEDULE:
o 4 hours @ 65°C
o 24 hours @ 25°C
- CURED PROPERTIES:
o Glass transition temperature (Tg), °C 95
o Hardness, Shore D 90
- GENERAL INFORMATION:
For safe handling information on this product, consult the Material Safety Data Sheet, (MSDS).
- AVAILABILITY:
This epoxy can be supplied in various different packages.
FDA Epoxy, 2 Part, Medium Viscosity, Good Resistance, Low Permeability, Class VI Approved Adhesive for Food Preparation, Processing & Packaging, FDA16, 2.5gm
- PRODUCT DESCRIPTION:
AA-BOND FDA16 is a medium viscosity epoxy resin system specifically developed for medical device applications.
AA-BOND FDA16 has been tested in accordance with USP biological reactivity tests, in vivo and received Class VI approval.
- PRODUCT PROPERTIES:
• Appearance: Amber
• Mix Ratio, by weight: 100:33 / Resin:Hardener
• Benefits:
o Medium viscosity
o low permeability
o good resistance
o class VI approved
• Cure Type Heat cure or Room temperature
• Typical Applications Bonding, laminating and repair applications by manufacturers of food preparation, processing and packaging equipment, and by manufacturers of catheters, hearing aids, dental products and other biomedical instruments and devices.
- UNCURED PROPERTIES:
• Viscosity @ 25 °C, cps 4,700 @ temperature 77°F, 25°C
• Specific Gravity, cured 0.900 g/cc
• Pot Life 25 min
• Solids Content 100%
• Volatile Organic Compounds (VOC) Content 0.15 g/l
• Water Absorption , after 24 HR saturation, % 0.30
- MECHANICAL PROPERTIES:
Lap Shear Strength alum to alum:
o 2,100 24 HR @ 25°C
o 3300 4 HR @ 65°C
Hardness, Shore D 86 (4 hrs @ 65°C, 75 24 hrs @ 25°C)
- CURED SCHEDULE:
1 – 4 hours @ 65°C
72 hours @ 25°C
- ELECTRICAL PROPERTIES:
Volume Resistivity 1.20e+14 ohm-cm
- THERMAL PROPERTIES:
CTE, linear: 29.4 µin/in-°F @ temperature 68.0 °F
Glass Transition Temp, Tg: 97.0 °C, 207 °F
Operating Temperature : -70 to 145 °C
- GENERAL INFORMATION:
For safe handling information on this product, consult the Material Safety Data Sheet, (MSDS).
- AVAILABILITY:
This epoxy can be supplied in various different packages.
Call (888) 522-6742 For More Informations.
Perfect Bond Epoxy For Microwave EMI & RFI Shielding, PCB, Wave Guides, Electronic Modules, Flat Cable, Connections, Circuitry, Cold Solder 906, 2.5gm kit
- PRODUCT DESCRIPTION:
AA-DUCT 906 represents the newest technology since the introduction of electrically conductive silver compounds. This unique formulation is based on a silver coated ceramic that results in lower material costs without adversely sacrificing the properties obtained with a pure silver formulation. This concept opens the door to a wide range of applications previously prohibited by the much higher cost of conventional silver conductive.
AA-DUCT 906 cures at room temperature or can be accelerated with mild heat to form a tenacious bond between similar and dissimilar substrates such as aluminum, copper, magnesium, steel, bronze nickel, ceramic, glass, phenolic, and G-10 epoxy glass boards.
AA-DUCT 906, because of its excellent continuity, has been used extensively in such diversified applications as, microwave EMI and RFI shielding, in the assembly or repair of printed circuit boards, wave guides, electronic modules, flat cable, high frequency shields, connections, and circuitry and as a cold solder. This unique formulation offers ease in handling due to its creamy consistency and versatile application by hand, automatic dispenser, silk-screening, transfer or stamping techniques.
- PRODUCT PROPERTIES:
Appearance : Silver
Cure Type: Heat cure or Room temperature
Benefits:
+ High strength
+ Perfect bond
+ EMI & RFI shielding
+ Cold Solder
Substrates: Excellent choice aluminum, copper, magnesium, steel, bronze, nickel, kovar, ceramic, glass, phenolic and G-10 epoxy glass boards.
- UNCURED PROPERTIES:
Viscosity @ 25 °C cps: Paste
Silver coated ceramic , %: 50 to 75
Pot Life @ RT: 1 Hour
Mix ratio, by weight : 100:5 / Resin:Hardener
Shelf life: 1 Year
- CURE SCHEDULE:
15 minutes @ 100°C
30 minutes @ 60°C
24 hours @ Room temperature
- CURED PROPERTIES:
Volume Resistivity: < 0.0015
Hardness, Shore D: 81
Compressive Strength, psi: 13,600
Shrinkage Linear, in / in: 0.004
Specific Gravity, 25°C / 25°C: 2.60
Tensile Strength, psi: 8,900
Compressive Strength, psi: 13,700
- THERMAL PROPERTIES:
Thermal Conductivity, btu / hr / ft2 / °F / in: 90
Thermal Expansion Coefficient, (cm / cm / °C • 10-5): 1.9
Heat Distortion, °C: 90
Operating Temperature Range, °C: -50 to +165
- GENERAL INFORMATION:
For safe handling information on this product, consult the Material Safety Data Sheet, (MSDS).
- AVAILABILITY:
This epoxy can be supplied in various different packages.
Call (888) 522-6742 For More Informations.
High Temperature Adhesive, Fast Cure Epoxy, Low Shrinkage & Viscosity, 2 Part Fiber Optic Connectors Assembly, Multimode & Single Mode Connectors F125, 10gm
- PRODUCT DESCRIPTION:
AA-BOND F125 is a 8 minutes gelling epoxy recommended for use in fiber optic connectors, optical and industrial bonding applications.
AA-BOND F125 is clear, two part system is easily mixed and used at room temperature. Fiber optic connectors can be polished in as little as 15 to 20 minutes for piston free assurance. The high bond strength of AA-BOND F125 to glass, plastics, ceramics, metals and masonry allows it to be used in a wide array of applications including lens bonding, connector backfills, construction, component assembly and maintenance repair.
AA-BOND F125 is low shrinkage epoxy, develops significant properties 1 hour after mixing. However, an extended cure of 4-6 hours at 25°C is required for fully matured bonds.
NOTE: AA-BOND F125 develops a high exotherm. Use immediately after mixing. The exothermic reaction begins within 2 minutes after initiating the mixing step, so have everything ready before mixing.
- GENERAL PROPERTIES:
• Components: 2 component - requires mixing
• Mix Ratio by weight: 100:95 / Resin:Hardener
• Benefits:
o Low viscosity
o Fast Cure
o Low shrinkage
• Cure Type: Room temperature or Heat cure
• Operating Temperature :-60 to 100 °C
• Typical Applications: Fiber optic assembly, multimode and single mode connectors, small potting and sealing applications
- UNCURED PROPERTIES:
• Viscosity @ 25 °C:
o Resin: 9000cP
o Hardener: 14000cP
• Specific Gravity :1.19
• Pot Life: 5 minutes
- CURE SCHEDULE:
• 24 hours @ 25°C
• 1 hour @ 60°C
- CURED PROPERTIES:
• Glass Transition (Tg), ultimate, °C: 40
• Hardness, Shore D: 75
• Tensile Shear, alum to alum, psi: 2800
- GENERAL INFORMATION:
For safe handling information on this product, consult the Material Safety Data Sheet, (MSDS).
- AVAILABILITY:
This epoxy can be supplied in various different packages.
General Prupose Epoxy Casting, Versatile Formula Adhesive, AA-CAST 156, 2.5gm kit
PRODUCT DESCRIPTION:
This is an easy-to-use, low cost, versatile epoxy resin and hardener system developed for general purpose casting applications. It develops excellent adhesion to most metals, plastics, and ceramics, and is recommended for electrical and structural potting and encapsulating applications where the combination of good mechanical, thermal, electrical and RT Cure properties are required. Fully cured this product is a strong, tough, electrical insulator with high heat stability and a low thermal coefficient of expansion that provides successful performance over a wide temperature range. It is resistant to industrial environments that include water, weather, galvanic action, petroleum fuels, lubricants and solvents, gases and vapors, many mild acids and alkalis.
Call (888) 522-6742 For More Informations.
Clear Epoxy, High Impact, Low Viscosity Adhesive for Fiber Optic Assembly, Small Potting & Sealing Applications, Multimode & Single Mode Connectors, 2 Part, AA-BOND F113, 10gm pouch
- PRODUCT DESCRIPTION:
AA-BOND F113 is an Optically Clear, low viscosity , High impact epoxy adhesives developed for bonding and small volume potting of plastic or glass optical fibers, lenses and prisms, LED displays, and other optical components.
AA-BOND F113 is recommended for laminating, bonding, and sealing applications where excellent wetting, good pot life and improved impact strength properties are required.
AA-BOND F113 is two parts adhesive easily mixed and cured at room temperature and develops strong bond to glass and glass fibers, ceramics, many metals and most rigid plastics.
AA-BOND F113 bonds offer resistance to mechanical impact and thermal shock, and is also resistant to weather, water, gases and vapors, petroleum products, and mild acids and alkalis.
- GENERAL PROPERTIES:
Appearance: Clear
Components: 2 component - requires mixing
Mix Ratio by weight: 100:30 / Resin:Hardener
Benefits: Low viscosity
Thermal shock and impact resistant
Low stress connections
Cure Type: Room temperature or Heat Cure
Operating Temperature: -60 to 120 °C
Typical Applications: Fiber optic assembly, multimode and single mode connectors, small potting and sealing applications
- UNCURED PROPERTIES:
Viscosity @ 25 °C: 175
Thixotropic Index: 1.0
Specific Gravity: 1.23
Pot Life: 1.5 hours
- CURE SCHEDULE:
24 hours @ 25°C
1-2 hours @ 65°C
- CURED PROPERTIES:
Coefficient of Thermal Expansion, cm/cm/ºC: 6.20×10+01
Glass Transition Temperature (Tg), ultimate, °C: 102
Hardness, Shore D: 86
Refractive Index: 1.51
Water Absorption , after 24 hours saturation, %: 0.07
- GENERAL INFORMATION:
For safe handling information on this product, consult the Material Safety Data Sheet, (MSDS).
- AVAILABILITY:
This epoxy can be supplied in various different packages.
Call (888) 522-6742 for more information.
Highly Thermal Conductive Epoxy, Pure Diamond Adhesive For Extremely Sensitive Thermal Cooling Applications 2 Part RT, AA-SUPERTHERM 05, 3gm Pouch
PRODUCT DESCRIPTION:
AA-SUPERTHERM 05 is a thixotropic (smooth paste) Pure Diamond ultra-high thermally conductive epoxy two-part adhesive that develops strong, durable, high-impact bonds at room temperature which improve heat transfer while maintaining electrical insulation.
AA-SUPERTHERM 05 bonds readily to itself, and to metals, silica, alumina, sapphire and other ceramics, glass, plastics and many other materials, because its coefficient of thermal expansion provides a good match for those materials over a fairly wide temperature range.
Fully cured AA-SUPERTHERM 05 provides excellent resistance to salt solutions, mild acids and alkalis, and many other chemicals including petroleum solvents, lubricating oils, and alcohol.
AA-SUPERTHERM 05 passes NASA`s outgassing specification making it ideal for demanding space applications.
PRODUCT PROPERTIES:
Appearance: Grey
Cure Type: Heat cure or Room temperature
Benefits:
+ Strong
+ Durable
+ High-impact bonds
+ Fully cured
+ Excellent resistance to many chemicals
Mix Ratio by weight: 100:100 / Resin:Hardener
Substrates:
metals, silica, alumina, sapphire and other ceramics, glass, plastics and many other materials
Typical Applications:
Extremely sensitive thermal cooling applications
CURE SCHEDULE:
2 – 4 Hours: @ 65 °C
24 Hours: @ 25 °C
UNCURED PROPERTIES:
Viscosity @ 25 °C, 77.0 °F: 33,000 Cp @ 77.0 °F, 25.0 °C
Specific Gravity, mixed: 2.30 g/cc
Pot Life: 45 minutes
MISC PROPERTIES:
CTE, linear: 14.4 µin/in-°F@ RT
Hardness, Shore D: 90
Izod Impact, Notched: 0.490 ft-lb/in
ELECTRICAL PROPERTIES:
Volume Resistivity: 2.10e+15 ohm-cm
3.20e+13 ohm-cm @ 167 °F
Dielectric Constant: 5.9 @ 1000 Hz
Dielectric Strength: 410kV/in, 16.1 kV/mm
Dissipation Factor: 0.010 @ Frequency 1000 Hz
THERMAL PROPERTIES:
Thermal Conductivity: 7.36 BTU-in/hr-ft²-°F
Glass Transition Temp, Tg: 48.0 °C, 118 °F
Maximum Service Temperature, Air: 115 °C, 239 °F
Minimum Service Temperature, Air: -70.0 °C, -94.0 °F
GENERAL INFORMATION:
For safe handling information on this product, consult the Material Safety Data Sheet, (MSDS).
AVAILABILITY:
This epoxy can be supplied in various different packages.
Thermally Conductive Epoxy Adhesive Electrically Insulating Two Part Thixtropic AA-BOND 2153, 5grams
- PRODUCT DESCRIPTION:
AA-BOND 2153 is a thixotropic (smooth paste) thermal conductive epoxy system that passes the NASA Outgassing Specification. It is used for staking transistors, diodes, resistors, integrated circuits and other heat sensitive components to printed circuit boards.
AA-BOND 2153 is two parts adhesive develops strong, durable, high impact bonds at room temperature which improve heat transfer while maintaining electrical insulation.
AA-BOND 2153 bonds to itself and to metals, silica, alumina, others ceramics, glass, plastics and many other materials. AA-BOND 2153 provides excellent resistance to salt solutions, mild acids and alkalis, and many other chemicals.
- GENERAL PROPERTIES:
• Appearance Dark grey
• Cure Type Room temperature or Heat Cure
• Benefits:
Strong Durable High impact bonds at room temperature
Mix Ratio by weight 100:7 Resin:Hardener
Operating Temperature -40 to 125 °C
• Typical Applications:
Staking transistors
Diodes
Resistors
Integrated circuits and other heat-sensitive components to printed circuit boards
- UNCURED PROPERTIES:
• Specific Gravity, mixed 2.44
• Reactive solids contents, % 100
• Pot Life 30 minutes
- CURE SCHEDULE:
• 1-3 hours at 65°C
• 24 hours at 25°C.
- CURED PROPERTIES:
• Glass transition temperature (Tg), °C 110
• Hardness, Shore D 88
• Dielectric strength, volts/mil 410
1pc Wine Bucket Beer Bucket Acrylic Ice Bucket Transparent Ice Bucket Acrylic Ice Barrel for Storage Ice and Wine Party
DescriptionThis practical ice bucket is made of high-quality acrylic material, which is durable and easy to clean. It looks simple, but very practical to use. Its smooth texture and transparent structure make it for use in bars or nightclubs. The classic design accommodates ice cubes and other objects well and won't tip over easily.Features- Color: Transparent- Material: Acrylic - This bucket is made of high-quality acrylic material, which is durable and easy to clean.- The transparent structure makes it easy to see the beverages clear.- Perfect to store the ice cubes and beverages such beer, wine, champagne, etc.- Smooth surface makes clean effortless, just wipe with wet cloth or sponge.- Suitable for the home, bar and restaurant, KTV, etc.1 × ice bucket
Perfect Bond Epoxy For EMI & RFI Shielding, PCB, Wave Guides, Electronic Modules, Flat Cable, Shields, Connections, Circuitry, Cold Solder 906, 250gm
- PRODUCT DESCRIPTION:
AA-DUCT 906 represents the newest technology since the introduction of electrically conductive silver compounds. This unique formulation is based on a silver coated ceramic that results in lower material costs without adversely sacrificing the properties obtained with a pure silver formulation. This concept opens the door to a wide range of applications previously prohibited by the much higher cost of conventional silver conductive.
AA-DUCT 906 cures at room temperature or can be accelerated with mild heat to form a tenacious bond between similar and dissimilar substrates such as aluminum, copper, magnesium, steel, bronze nickel, ceramic, glass, phenolic, and G-10 epoxy glass boards.
AA-DUCT 906, because of its excellent continuity, has been used extensively in such diversified applications as, microwave EMI and RFI shielding, in the assembly or repair of printed circuit boards, wave guides, electronic modules, flat cable, high frequency shields, connections, and circuitry and as a cold solder. This unique formulation offers ease in handling due to its creamy consistency and versatile application by hand, automatic dispenser, silk-screening, transfer or stamping techniques.
- PRODUCT PROPERTIES:
Appearance Silver
Cure Type Heat cure or Room temperature
Benefits:
+ High strength
+ Perfect bond
+ EMI & RFI shielding
+ Cold Solder
Substrates: Excellent choice aluminum, copper, magnesium, steel, bronze, nickel, kovar, ceramic, glass, phenolic and G-10 epoxy glass boards.
- UNCURED PROPERTIES:
Viscosity @ 25 °C cps Paste
Silver coated ceramic , % 50 to 75
Pot Life @ RT 1 Hour
Mix ratio, by weight 100:5 / Resin:Hardener
Shelf life 1 Year
- CURE SCHEDULE:
15 minutes @ 100°C
30 minutes @ 60°C
24 hours @ Room temperature
- CURED PROPERTIES:
Volume Resistivity: < 0.0015
Hardness, Shore D: 81
Compressive Strength, psi: 13,600
Shrinkage Linear, in / in: 0.004
Specific Gravity, 25°C / 25°C: 2.60
Tensile Strength, psi: 8,900
Compressive Strength, psi: 13,700
- THERMAL PROPERTIES:
Thermal Conductivity, btu / hr / ft2 / °F / in 90
Thermal Expansion Coefficient, (cm / cm / °C • 10-5) 1.9
Heat Distortion, °C 90
Operating Temperature Range, °C -50 to +165
- GENERAL INFORMATION:
For safe handling information on this product, consult the Material Safety Data Sheet, (MSDS).
- AVAILABILITY:
This epoxy can be supplied in various different packages.
Call (888) 522-6742 For More Informations.
Transparent Adhesive, Rigid Epoxy, Clear, Low Viscosity, Chemicals Resistant ,Room Temperature Cure, Perfect Insulative Properties Glue Repair Kit F110, 5gm
- PRODUCT DESCRIPTION:
AA-BOND F110 is a rigid, optically clear adhesive with a very low viscosity.
AA-BOND F110 is room temperature system an excellent choice for thin bond-line assembly and repair applications of prisms, lenses and other optic components. And its high strength makes this epoxy ideal for structural applications.
AA-BOND F110 exhibits excellent wetting and wicking capabilities which allows it to adhere strongly to glass, ceramics, metals and most rigid plastics.
- GENERAL PROPERTIES:
• Appearance: Transparent, clear
• Cure Type: Room temperature or Heat cure
• Benefits:
o High strength
o Perfect insulative properties
o Good resistance to salt solutions, mild acids and Alkalis and many other chemicals
• Mix Ratio by weight 100:11 / Resin:Hardener
• Operating Temperature: -60 to 130 °C
• Typical Applications:
Exhibits excellent wetting and wicking capabilities, which allows it to adhere strongly to glass, ceramics, metals, and most rigid plastics.
• Volume Resistivity: 6.00e+13 ohm-cm
- UNCURED PROPERTIES:
• Viscosity @ 25 °C: 310
• Thixotropic Index: 1.0
• Specific Gravity, mixed: 1.16
• Reactive solids contents, %: 100
• Pot Life: 30 minutes
- CURE SCHEDULE:
• 5 minutes @ 100°C
• 2 minutes @ 120°C
• 1 minute @ 150°C
- CURED PROPERTIES:
• Glass transition temperature (Tg), °C: 90
• Hardness, Shore D: 83
• Refractive Index: 1.54
• Lap shear strength, psi:
o 2150 (alum to alum, 24 hrs @ 25°C)
o 2600 (alum to alum, 1 hr @ 65°C)
o 3000( alum to alum, 4 hrs @ 65°C)
- GENERAL INFORMATION:
For safe handling information on this product, consult the Material Safety Data Sheet, (MSDS).
- AVAILABILITY:
This epoxy can be supplied in various different packages.
CALL (888) 522-6742 for more informations.
Wooden Pestle Muddler Garlic Press Spice Grinder Mashers Tool for Home Kitchen
DescriptionThis is a home garlic pestle. Made of premium wood material, the pestle muddler is nontoxic, safe and durable for long lasting use. It also can be used for spice and other powder grind project. Practical kitchen hand tool for kitchen daily use.Features- Color: As shown.- Material: Wood.- Size: Approx. 19 x 3 x 3cm.- Size: Approx. 19 x 3x 3cm.- Premium wood material muddler, durable and safe for use.- Suitable for garlic, spice and other powder grind.- Great kitchen hand tool for home daily use.1 x garlic press
High Strength Perfect Bond Cold Solder Epoxy Adhesive Glue Silver Filled For RMI EFI Shielding Electrically Conductive Long Pot Life Printed Circuit Board & Electronics Repair Kit 902LP, 250gm kit
- PRODUCT DESCRIPTION:
AA-DUCT 902LP is an epoxy adhesive and coating formulation based on pure silver. This versatile silver formulation offers the maximum continuity of conductivity with an electrical resistivity value of less than 1x10-4 ohm-cm. AA-DUCT 902LP is also characterized by a wide operating temperature range from –50 to +170°C.
AA-DUCT 902LP is recommended for electronic bonding and sealing applications that require both fine electrical and mechanical properties.
- GENERAL PROPERTIES:
Appearance: Silver
Cure Type: Heat cure or Room temperature
Benefits:
• High strength
• Perfect bond
• Cold solder for heat sensitive components
• Mix Ratio by weight 100/7 ( Resin/Hardener)
Substrates:
Excellent choice aluminum, copper, magnesium, steel, bronze, nickel, kovar, ceramic, glass, phenolic and G-10 epoxy glass boards.
Operating Temperature: -60 to 150 °C
Typical Applications:
Electrical, conductive, rmi/efi shielding, circuitry, printed circuit board and electronics repair
- UNCURED PROPERTIES:
Viscosity At 25 °C cps Paste
Specific Gravity, mixed 2.79
Reactive solids contents, % 100
Pot Life 3 hours
- CURE SCHEDULE:
2 minutes At 120°C
5 minutes At 100°C
12 hours At 25°C
- MISC PROPERTIES:
Hardness, Shore D 83
Shrinkage linear in/in 0.003
Lap shear strength, psi 9600
Volume Resistivity: ohm cm > 0.0001
- GENERAL INFORMATION:
For safe handling information on this product, consult the Material Safety Data Sheet, (MSDS).
- AVAILABILITY:
This epoxy can be supplied in various different packages.
CALL (888) 522-6742 for more informations.
12Pcs Practical Durable Multifunctional Convenient Glass Charms Drink Markers for Party
DescriptionThis is a set of wine glass markers, they are very stylish and unique. Very suitable for banquet decoration and family or friends gatherings. These marks are reusable, environmentally friendly, and safe to touch your wine glass.Features-Color: Assorted Color.-Material: Silicone.-Size: About 3.00X2.00X2.00cm/ 1.18X0.79X0.79in.- These marks will be tightly fixed on the wine glass.- The simple design makes these wine glasses more special.- Fine workmanship, silicone material, not easy to age and fade.- Made of high-quality materials, they are not easy to break.- Take them with you so you don't forget your cups.12 x Wine Glass Markers
Perfect Bond Silver Epoxy, For Electronic Modules, PCB, Integrated Circuits, Capacitors, Wave Guides & Flat Cables, Electrically Conductive Adhesive, 2 Part, 2924, 2.5gm
- PRODUCT DESCRIPTION:
AA-DUCT 2924 is a two part electrically conductive composition developed for low shrinkage; low resistivity bonding applications where good electrical and physical properties over a wide temperature range (up to 190°C) are required.
AA-DUCT 2924 is smooth paste formulation of refined pure silver and epoxy is free of solvents and copper or carbon additives. It can be used -- after REQUIRED high temperature cure cycle -- for the assembly, manufacture and repair of electronic modules, printed circuits, integrated circuits, electrical contacts, capacitors, wave guides and flat cables, for high-frequency RF shielding, and for applications where a "hot" soldering iron is impractical.
When cured AA-DUCT 2924 is a hard, dimensionally stable, conductive material which is resistant to water, weathering, gases and vapors, lubricants, fuels, alcohol, and also to those salts, salt solutions, mild acids and alkalis, and other organic and inorganic compounds with which silver itself is compatible.
- GENERAL PROPERTIES:
Appearance: Silver
Cure Type: Heat cure
Benefits:
+ High strength
+ Perfect bond
+ Mix Ratio by weight: 100:5 / Resin:Hardener
Substrates: Excellent choice aluminum, copper, magnesium, steel, bronze, nickel, kovar, ceramic, glass, phenolic and G-10 epoxy glass boards.
Operating Temperature: -60 to 190 °C
Shelf Life: 1 Year
- UNCURED PROPERTIES:
Viscosity @ 25 °C cps: Paste
Specific Gravity, mixed: 2.69
Reactive solids contents, %: 100
Pot Life: 3 hours
- CURE SCHEDULE:
2 hours: @ 125 °C
4 hours: @ 100 °C
- MISC PROPERTIES:
Hardness, Shore D: 85
Adhesive bond strength: 1270 psi
Volume Resistivity ohm-cm: < 0.003
- GENERAL INFORMATION:
For safe handling information on this product, consult the Material Safety Data Sheet, (MSDS).
- AVAILABILITY:
This epoxy can be supplied in various different packages.
Call (888) 522-6742 for more information.
Durable Epoxy, Fast Cure, Medium Viscosity, Strong Bond Strength Adhesive, For General Purpose, Bonding, Laminating Repair 2101, 10gm
- PRODUCT DESCRIPTION:
AA-BOND 2101 is a clear medium viscosity epoxy formulation recommended for laminating, bonding, repair and other adhesive applications where the combination of superior structural, mechanical and electrical performance properties are required. AA-BOND 2101 easily mixes and cures at room temperature, and develops strong, durable, tough bonds to most clean, dry material surfaces.
The fully cured AA-BOND 2101 bonds are great electrical insulators which also provide excellent resistance to weather, galvanic action, many mild acids and alkalis, salt solution, petroleum solvents, lubricating oil, gasoline, jet fuels, alcohol, and many other organic and inorganic materials.
- GENERAL PROPERTIES:
• Appearance: Slight haze/Clear
• Cure Type: Room temperature or Heat Cure
• Benefits: Resistant to many organics/inorganics Strong bond strength Durable
• Mix Ratio by weight: 100:25 / Resin:Hardener
• Substrates: Metals, ceramics, glass, glass fabrics, wood leather and rigid plastics
• Operating Temperature: -60 to 135 °C.
- UNCURED PROPERTIES:
• Viscosity at 25 °C: 18500 cPs ±1000
• Solids Content 100%
• Specific Gravity, mixed 1.19 g/cc
• Pot Life 30 minutes.
- CURE SCHEDULE:
• 4 hours at 65°C
• 24 hours at 25°C.
- MISC PROPERTIES:
• Glass Transition Temp, Tg 62°C
• Hardness, Shore D 84
• Lap shear 3300 psi (Alum to Alum).
- GENERAL INFORMATION:
For safe handling information on this product, consult the Material Safety Data Sheet, (MSDS).
- AVAILABILITY:
This epoxy can be supplied in various different packages.
CALL (888) 522-6742 for more information.
Two Part Epoxy Long Pot Life, Impact Resistant For Fiber Optic Assembly Multimode & Single Mode Connectors, Small Potting & Sealing Applications F112, 5gm
- PRODUCT DESCRIPTION:
AA-BOND F112 is an impact resistant, fiber-optic adhesive.
AA-BOND F112 is two-part, low viscosity epoxy has the distinct advantage of remaining below 3000 cps for a minimum of 40 minutes.
AA-BOND F112 allows more connectors to be produced from one mix. Low stress, AA-BOND F112 is an excellent choice for multimode connectors and single mode connectors where excessive curing temperatures may cause cracking.
AA-BOND F112 can be cured at room temperature overnight or as fast as 15 minutes at 90°C. The blue color facilitates easy polishing and its cured properties prevent pistoning. This product is a 100% solid system that can be used for small potting and sealing applications where resistance to thermal shock and impact are required.
- GENERAL PROPERTIES
• Appearance: Blue
• Components: 2 component - requires mixing
• Mix Ratio by weight: 100:30 / Resin:Hardener
• Benefits:
o Low viscosity
o Thermal shock and impact resistant
o Low stress connections
• Cure Type: Room temperature or Heat Cure
• Operating Temperature : -60 to 100 °C
• Typical Applications:
Fiber optic assembly, multimode and single mode connectors, small potting and sealing applications
- UNCURED PROPERTIES:
Viscosity @ 25 °C: 2300
Thixotropic Index: 1.0
Specific Gravity, cured: 1.2
Pot Life: 30 minutes
- CURE SCHEDULE:
24 hours @ 25°C
1 hour @ 65°C
15 minutes @ 90°C
- CURED PROPERTIES:
Glass Transition Temperature (Tg), ultimate, °C: 102
Hardness, Shore D: 85
Refractive Index: 1.51
Water Absorption , after 24 hours saturation, %: 0.07
- GENERAL INFORMATION:
For safe handling information on this product, consult the Material Safety Data Sheet, (MSDS).
- AVAILABILITY:
This epoxy can be supplied in various different packages.
CALL (888) 522-6742 for more informations.
Nu-Calgon - 4168-08 Evap Pow'r-C® Coil Cleaner
Evap Pow'r is a "no-rinse" product formulated for cleaning indoor evaporator coils. The green-colored, slightly alkaline liquid is metal-safe and therefore will not harm the coil's metal surfaces when left in contact with them even in a no-rinse application. It cleans and emulsifies the most stubborn soils and deposits, and is biodegradable as well as USDA-Authorized.
High Temperature Epoxy, Water Resistant Glue, Good Impact & Thermal Shock Resistance, Low Viscosity For Fiber Optic & Optical Materials 2 Part, F253, 250gm
- PRODUCT DESCRIPTION:
AA-BOND F253 is a low viscosity, high temperature, two-part epoxy formulation that changes color during the curing process to indicate cure status.
- GENERAL PROPERTIES:
Appearance Unmixed - Ligh Yellow
Mixed: Greenish Blue
Cured: Reddish Amber
Cure Type: Room Temperatue or Heat cure
Benefits:
* Good impact and thermal shock resistance
* Demonstrates low stress
* Yields excellent pot and polish connections
* It is also resistant to water and weathering, vapors and gases
* Low viscosity
* High temperature
Mix Ratio by weight : 100:10 / Resin:Hardener
Substrates:
Wide variety of fiber optic and optical materials that includes most metals, ceramics, glass and many plastics
Operating Temperature: -60 to 165 °C
- UNCURED PROPERTIES:
Viscosity @ 25 °C : 1800
Thixotropic Index: 1.0
Specific Gravity, mixed: 1.19
Reactive solids contents, %: 100
Pot Life: 1 hour
- CURE SCHEDULE:
15 minutes @ 100°C
5 minutes @ 125°C
1 minute @ 150°C
- CURED PROPERTIES:
Coefficient of thermal expansion ppm/°C Below Tg: – 2.03x1002
Above Tg : – 6.24x1001
Glass transition temperature (Tg), °C: 116
Hardness, Shore D: 88
Refractive Index: 1.56
Water Absorption, %: .004
Lap shear strength, psi: 2700 (Aluminum to Aluminum)
- GENERAL INFORMATION:
For safe handling information on this product, consult the Material Safety Data Sheet, (MSDS).
- AVAILABILITY:
This epoxy can be supplied in various different packages.
Call (888) 522-6742 For More Informations.
Nu-Calgon - 4083-90 DuraCoil Coil and Surface Protectant
Nu-Calgon - DuraCoil is a specially formulated coil and surface protectant for HVACR components. The product is an aerosol based, air-dry phenolic brown colored coating designed to extend the life of the coil or other system component in a corrosive environment. The coating is field proven - used successfully by OEMs for many years - but now available through Nu-Calgon as DuraCoil for field service when durable protective coil treatment is required to extend service life. DuraCoil is formulated to extend the service life of the coil or other system component in a corrosive environment. Coils located in coastal regions, industrial/agricultural production settings or refrigeration applications to protect against food acid. Perfect for a new installation if the coil was not factory supplied with a protective coating or to repair an area of an existing coating already in service.
Totaline® - P902-39008 - Total Fresh Unscented Spray (16oz)
TotalFresh is a long lasting odor neutralizer that removes odors from the air. It is not a perfume or masking agent.
High Strength Perfect Bond Cold Solder Epoxy Adhesive Glue Silver Filled For RMI EFI Shielding Electrically Conductive Long Pot Life Printed Circuit Board & Electronics Repair Kit 902LP, 10gm
- PRODUCT DESCRIPTION:
AA-DUCT 902LP is an epoxy adhesive and coating formulation based on pure silver. This versatile silver formulation offers the maximum continuity of conductivity with an electrical resistivity value of less than 1x10-4 ohm-cm. AA-DUCT 902LP is also characterized by a wide operating temperature range from –50 to +170°C.
AA-DUCT 902LP is recommended for electronic bonding and sealing applications that require both fine electrical and mechanical properties.
- GENERAL PROPERTIES:
Appearance: Silver
Cure Type: Heat cure or Room temperature
Benefits:
• High strength
• Perfect bond
• Cold solder for heat sensitive components
• Mix Ratio by weight 100/7 ( Resin/Hardener)
Substrates:
Excellent choice aluminum, copper, magnesium, steel, bronze, nickel, kovar, ceramic, glass, phenolic and G-10 epoxy glass boards.
Operating Temperature: -60 to 150 °C
Typical Applications:
Electrical, conductive, rmi/efi shielding, circuitry, printed circuit board and electronics repair
- UNCURED PROPERTIES:
Viscosity At 25 °C cps Paste
Specific Gravity, mixed 2.79
Reactive solids contents, % 100
Pot Life 3 hours
- CURE SCHEDULE:
2 minutes At 120°C
5 minutes At 100°C
12 hours At 25°C
- MISC PROPERTIES:
Hardness, Shore D 83
Shrinkage linear in/in 0.003
Lap shear strength, psi 9600
Volume Resistivity: ohm cm > 0.0001
- GENERAL INFORMATION:
For safe handling information on this product, consult the Material Safety Data Sheet, (MSDS).
- AVAILABILITY:
This epoxy can be supplied in various different packages.
CALL (888) 522-6742 for more informations.
Transparent Adhesive, Rigid Epoxy, Clear, Low Viscosity, Chemicals Resistant ,Room Temperature Cure, Perfect Insulative Properties Glue Repair Kit F110, 10gm
- PRODUCT DESCRIPTION:
AA-BOND F110 is a rigid, optically clear adhesive with a very low viscosity.
AA-BOND F110 is room temperature system an excellent choice for thin bond-line assembly and repair applications of prisms, lenses and other optic components. And its high strength makes this epoxy ideal for structural applications.
AA-BOND F110 exhibits excellent wetting and wicking capabilities which allows it to adhere strongly to glass, ceramics, metals and most rigid plastics.
- GENERAL PROPERTIES:
• Appearance: Transparent, clear
• Cure Type: Room temperature or Heat cure
• Benefits:
o High strength
o Perfect insulative properties
o Good resistance to salt solutions, mild acids and Alkalis and many other chemicals
• Mix Ratio by weight 100:11 / Resin:Hardener
• Operating Temperature: -60 to 130 °C
• Typical Applications:
Exhibits excellent wetting and wicking capabilities, which allows it to adhere strongly to glass, ceramics, metals, and most rigid plastics.
• Volume Resistivity: 6.00e+13 ohm-cm
- UNCURED PROPERTIES:
• Viscosity @ 25 °C: 310
• Thixotropic Index: 1.0
• Specific Gravity, mixed: 1.16
• Reactive solids contents, %: 100
• Pot Life: 30 minutes
- CURE SCHEDULE:
• 5 minutes @ 100°C
• 2 minutes @ 120°C
• 1 minute @ 150°C
- CURED PROPERTIES:
• Glass transition temperature (Tg), °C: 90
• Hardness, Shore D: 83
• Refractive Index: 1.54
• Lap shear strength, psi:
o 2150 (alum to alum, 24 hrs @ 25°C)
o 2600 (alum to alum, 1 hr @ 65°C)
o 3000( alum to alum, 4 hrs @ 65°C)
- GENERAL INFORMATION:
For safe handling information on this product, consult the Material Safety Data Sheet, (MSDS).
- AVAILABILITY:
This epoxy can be supplied in various different packages.
CALL (888) 522-6742 for more informations.
1280pcs 5% 0.125W 0805 SMD Resistor 64 Values 0ohm-10Mohm Assortment Kit
Feature: General purpose resistor with 1280pcs. High precision and stability. Automatic insertion is applicable. Each value is clearly marked. Specification: Material: PlasticModel: 0805 whole seriesAllowable deviation: & plusmn ; 5%Rated power: 0.125 (W) Various SMD resistance (unit: & Omega ; ): 0ohm-10Mohm64 values (each type for 20pcs): 0ohm, 2.2 ohm,;; 4.7 ohm, 5.6 ohm, 7.5 ohm, 8.2 ohm, 10ohm, 15ohm, 22ohm, 27ohm, 33ohm, 39ohm, 47ohm, 56ohm, 68ohm, 75ohm, 82ohm, 100ohm, 120ohm, 150ohm, 180ohm, 220ohm, 270ohm, 330ohm, 390ohm, 470ohm, 510ohm, 680ohm, 820ohm, 1Kohm, 1.5K ohm, 2.2K ohm, 3.3K ohm, 3.9K ohm, 4.7K ohm, 5.6K ohm,;; 6.8K ohm, 7.5K ohm, 8.2K ohm, 10Kohm, 15Kohm, 22Kohm, 33Kohm, 39Kohm, 47Kohm, 56Kohm, 68Kohm, 75Kohm, 82Kohm, 100Kohm, 150Kohm, 180Kohm, 220Kohm, 330Kohm, 470Kohm, 560Kohm, 680Kohm, 1Mohm, 1.5M ohm, 2Mohm, 3.3M ohm, 4.7M ohm, 5.6M ohm, 10MohmNotice: As a result of large and cumbersome jobs, sometimes the individual resistor value is duplicate or missing, please understand. Package includes: 1280 x Resistor (64 types);
TRADEPRO® - TP-SF-KIT Solvent Kit with Hose
TRADEPRO, Solvent Kit with Hose
Glass Epoxy Adhesive Laminating , Crystal Clear, Glass to Glass, Glass To Plastics, AA-BOND 2119, 2.5gm
- PRODUCT DESCRIPTION:
AA-BOND 2119 Glass Epoxy is a crystal clear adhesive specifically designed for bonding glass to glass and glass to plastics. It also yields a high lap shear strength to metals and ceramics.
AA-BOND 2119 Glass Epoxy cures to a semi-rigid hardness making it ideal for bonding dissimilar substrates especially when thermal cycling is required.
AA-BOND 2119 is a two part adhesive also has a low exotherm and therefore can be used for small pottings and filling bond gaps up to 1/8 inch.
- GENERAL PROPERTIES:
• Appearance Clear
• Cure Type Room temperature or Heat Cure
• Benefits
o Crystal clear
o Specifically designed for glass
o High lap shear strength to metals and ceramics
• Refractive Index 1.53
• Substrates Glass, ceramics, plastics and metals
• Water Absorption 0.49%
• Typical Applications Glass to glass, dissimilar substrates
- UNCURED PROPERTIES:
• Viscosity @ 25 °C, cps 500
• Thixotropic Index 1.0
• Specific Gravity, mixed 1.07 g/cc
• Reactive solids contents, % 100
• Pot Life 2 hours
- CURE SCHEDULE:
• 60-120 minutes @ 65°C
• 24 hours @ 25°C
Note: For masses over 25gm, allow material to gel for 4 hours @ 25°C follow by 100°C for 5 hours.
- CURED PROPERTIES:
• Glass transition temperature (Tg), °C 120
• Hardness, Shore D 75
• VOC Content 87.7 g/l
• GENERAL INFORMATION:
For safe handling information on this product, consult the Material Safety Data Sheet, (MSDS).
- AVAILABILITY:
This epoxy can be supplied in various different packages.
Good Electrical Insulation Epoxy For PCB Staking Electronics Aerospace Industrial Bonding Laminating Repair Applications 2112, 5gm
- PRODUCT DESCRIPTION:
AA-BOND 2112 is a thixotropic epoxy system recommended for critical electronics, aerospace and industrial bonding, laminating and reinforcing applications requiring an adhesive with high-fill, non-sag characteristics.
AA-BOND 2112 solvent-free adhesive is easily mixed and used for staking components to printed circuit boards for enhanced mechanical rigidity, and for bonding, laminating and repair applications involving metals, glass, ceramics, wood and many plastics.
AA-BOND 2112 hardens to a tough, enamel-like coating offering good chemical resistance as well as superior physical and mechanical properties. The cured adhesive provides good electrical insulation and resistance to weather, galvanic action, petroleum products and lubricants, alcohol, salts, mild acids and alkalis, and other organic and inorganic compounds.
- GENERAL PROPERTIES:
• Appearance: Milky translucent
• Cure Type: Room temperature or Heat Cure
• Benefits:
o Tough enamel like cure
o Bonds variety of substrates
o Good electrical insulation
o Weather resistant
Mix Ratio by weight: 100:22 / Resin:Hardener
Substrates:
Metals, glass, ceramics, wood and many plastics
Operating Temperature : -60 to 125 °C
Typical Applications:
Printed circuit board repair, staking components, bonding, laminating and repair applications.
- UNCURED PROPERTIES:
Viscosity @ 25 °C, mPa·s (cP): 60000 cPs
Thixotropic Index: 6.5
Specific Gravity, mixed: 1.2
Reactive solids contents, %: 100
Pot Life: 30 minutes
- CURE SCHEDULE:
4 hours @ 65°C
24 hours @ 25°C
- MISC PROPERTIES:
• Volume Resistivity 6.00e+13 ohm-cm
• Dielectric Constant 4.6
• Dielectric Strength 16.1 kV/in
• CTE, linear: 55.0 µm/m-°C @ Temperature 20.0 °C
• Glass Transition Temp, Tg: 93 °C
• Hardness, Shore D: 90
• Lap shear : 1900 psi (Alum to Alum)
- GENERAL INFORMATION:
For safe handling information on this product, consult the Material Safety Data Sheet, (MSDS).
- AVAILABILITY:
This epoxy can be supplied in various different packages.
CALL (888) 522-6742 for more information.
FDA Medical Grade Adhesive, Low Permeability & Viscosity Epoxy, Good Resistance, Electrical Insulator for Bonding & Coating Applications 2 Part, FDA15, 2.5gm
- PRODUCT DESCRIPTION:
AA-BOND FDA15 is a low viscosity epoxy resin system specifically developed for bonding and coating applications in accordance with Title 21, U.S. Code of Federal Regulations, Food and Drug Administration Chapter 1, Sub Part B, Sections 175.105 and 175.300.
AA-BOND FDA15 is two-part adhesive is used for bonding, laminating and repair applications by manufacturers of food preparation, processing and packaging equipment, and by manufacturers of catheters, hearing aids, dental products and other biomedical instruments and devices.
AA-BOND FDA15 is an effective electrical insulator, and it provides low permeability to gases and vapors and good resistance to water, weather, galvanic action, to petroleum solvents, lubricants and fuels, to mild acids and alkalis, and to many other organic and inorganic compounds.
- GENERAL PROPERTIES:
• Appearance Clear
• Cure Type Heat cure or Room temperature
• Benefits:
* Low viscosity
* Good resistance
* Effective electrical insulator
* Low permeability
Mix Ratio by weight 100:20 / Resin:Hardener
• Substrates:
* Most metals
* Ceramic
* Glass and plastics
* Operating Temperature -60 to 140 °C.
- Typical Application:
Developed for bonding and coating applications.
- UNCURED PROPERTIES:
Viscosity At 25 °C 4,300 Thixotropic Index 1.0 Specific Gravity, mixed 1.16 g/cc Reactive solids contents, % 100Pot Life 25 minutes.
- CURE SCHEDULE:
• 1-4 hours At 65°C
• 24 hours At 25°C.
- CURED PROPERTIES:
Glass transition temperature (Tg), °C 100 Hardness, Shore D 87Water Absorption, % 0.23Dielectric strength, Volts/mil 420Lap shear strength, psi 2000 (Alum to Alum).
- GENERAL INFORMATION:
For safe handling information on this product, consult the Material Safety Data Sheet, (MSDS).
Call (888) 522-6742 For More Informations.
High Temperature Epoxy Adhesive Glue, Fast Cure, Low Viscosity, 2 Part For LED Displays, Lenses, Fiber Optics Connectors, F131, 250gm
- PRODUCT DESCRIPTION:
AA-BOND F125 is an 8 minutes gelling epoxy recommended for use in fiber optic connectors, optical and industrial bonding applications.
AA-BOND F125 is clear, two part system is easily mixed and used at room temperature. Fiber optic connectors can be polished in as little as 15 to 20 minutes for piston free assurance. The high bond strength of AA-BOND F125 to glass, plastics, ceramics, metals and masonry allows it to be used in a wide array of applications including lens bonding, connector backfills, construction, component assembly and maintenance repair.
AA-BOND F125 is low shrinkage epoxy, develops significant properties 1 hour after mixing. However, an extended cure of 4-6 hours at 25°C is required for fully matured bonds.
NOTE: AA-BOND F125 develops a high exotherm. Use immediately after mixing. The exothermic reaction begins within 2 minutes after initiating the mixing step, so have everything ready before mixing.
- GENERAL PROPERTIES:
• Components: 2 component - requires mixing
• Mix Ratio by weight: 100:95 / Resin:Hardener
• Benefits:
o Low viscosity
o Fast Cure
o Low shrinkage
• Cure Type: Room temperature or Heat cure
• Operating Temperature : -60 to 100 °C
• Typical Applications: Fiber optic assembly, multimode and single mode connectors, small potting and sealing applications
- UNCURED PROPERTIES:
• Viscosity @ 25 °C:
o Resin: 9000cP
o Hardener: 14000cP
• Specific Gravity : 1.19
• Pot Life: 5 minutes
- CURE SCHEDULE:
• 24 hours @ 25°C
• 1 hour @ 60°C
- CURED PROPERTIES:
• Glass Transition (Tg), ultimate, °C: 40
• Hardness, Shore D: 75
• Tensile Shear, alum to alum, psi: 2800
- GENERAL INFORMATION:
For safe handling information on this product, consult the Material Safety Data Sheet, (MSDS).
- AVAILABILITY:
This epoxy can be supplied in various different packages.
CALL (888) 522-6742 for more informations.
Nu-Calgon - 4050-12 - EasySeal Direct Inject-UV Contractor Value Pack (6 Injectors) Leak Sealant and Dye
Nu-Calgon - EasySeal Direct Inject-UV Contractor Value Pack Value pack with 6 injectors Ultraviolet dye detects larger leaks Strongest leak sealant on the market Fast and easy to install Works with all refrigerants and polymer free Forms a permanent seal OEM approved not to clog manifold gauges Proven not to plug TXVs, cap tubes or pistons Precise formula for systems 1.5 to 5 tons
Nano Magic Tape Double Sided Adhesive Tape Sticker Traceless PU Waterproof Super Sticky Gripping Pad 1/3/5M 3M
Features: 1. Washable, can be reused more than 600 times. 2. The gel super strong and washable and reusable Gel formula there are an infinite amount of potential uses. 3. It is easily removable and will not damage your walls or surfaces. 4. Double-sided adhesive and washable and reusable. 5. Keep items in place without slipping. & nbsp; Specification: Main Material: Nano PU Gel Size: 500*3* 0.2 cm(5m/set) 300*3* 0.2 cm(3m/set)100*3* 0.2 cm(1m/set) & nbsp; Package includeds: 1 x Adhesive Tape & nbsp; Details pictures: & nbsp;
Gold Epoxy, 2 Part, Electrically & Thermally Conductive For Hybrid Circuits Joining Die & SMD, Au Thick Film Conductor Traces & Contact Pads, G298, 10gm
- PRODUCT DESCRIPTION:
AA-BOND G298 is a two component, gold-filled, electrically and thermally conductive epoxy designed for hybrid microelectronic and semiconductor packaging.
- GENERAL PROPERTIES:
Components: A & B
Appearance: Brown
Cure Type: Room temperature or Heat cure
Benefits: + Gold filled epoxy allows for anti-oxidation of Contacts and terminals in high reliability devices.
It can be used in medical circuits using traditional hybrid packaging technologies.
High viscosity paste allows for precision deposition onto circuits by means of printing and delicate hand processes.
Mix Ratio by weight: 100:13.5 / Resin:Hardener
Substrates: Metals, ceramics, glass, glass fabrics, wood leather and rigid plastics
Operating Temperature: Continuous: - 55°C to 275°C
Intermittent: - 55°C to 375°C
Typical Applications: Adhesive for joining die and SMDs onto the hybrid circuits
Repairing defective Au thick-film conductor traces and contact pads
Resisting oxidation and electro-migration in high-reliability micro-electronics
Joining material as alternative to high temperature Au-Sn eutectic solders processes exceeding 300°C
- UNCURED PROPERTIES:
Viscosity @ 25 °C, mPa·s (cP) Paste
Pot Life 30 mins
Shelf Life 1 Year
- CURE SCHEDULE:
15 minutes: @ 120°C
90 minutes: @ 80°C
10 hours: @ 50°C
24 hours: @ 25°C
- MISC PROPERTIES:
Volume Resistivity: @ 23°C: = 0.0009 Ohm-cm
Glass Transition Temp, Tg: = 100°C (Dynamic Cure
20—200°C /ISO 25 Min; Ramp-
10—200°C @ 20°C/Min)
Die Shear Strength: @ 23°C: = 5 Kg / 1,700 psi
- GENERAL INFORMATION:
For safe handling information on this product, consult the Material Safety Data Sheet, (MSDS).
- AVAILABILITY:
This epoxy can be supplied in various different packages.
Call (888) 522-6742 for more information.
High Strength Perfect Bond Silver Epoxy Adhesive Glue For Cold Solder Circuitry, Electrical Conductive, RMI, EFI, PCB, & Electronic Repair 902, 100gm kit
+ PRODUCT DESCRIPTION:
AA-DUCT 902 is an epoxy adhesive and coating formulation based on pure silver. This versatile silver formulation offers the maximum continuity of conductivity with an electrical resistivity value of less than 1x10-4 ohm•cm.
AA-DUCT 902 is also characterized by a wide operating temperature range from –50 to +170°C. AA-DUCT 902 is recommended for electronic bonding and sealing applications that require both fine electrical and mechanical properties.
+ PRODUCT PROPERTIES:
- Appearance: Silver
- Cure Type: Heat cure or Room temperature
- Benefits:
* High strength
* Perfect bond
* Cold solder for heat-sensitive components
- Mix Ratio by weight 100:5 / Resin:Hardener
- Substrates:
Excellent choice aluminum, copper, magnesium, steel, bronze, nickel, kovar, ceramic, glass, phenolic and G-10 epoxy glass boards.
- Operating Temperature: –50 to +170°C
- Typical Applications:
Electrical, conductive, rmi/efi shielding, circuitry, printed circuit board and electronics repair
+ UNCURED PROPERTIES:
- Specific Gravity, mixed: 2.79
- Reactive solids contents, %: 100
- Pot Life: 1Hour
- Shelf Life: 1 Year
- Viscosity: Paste
+ CURE SCHEDULE:
15 minutes @ 100°C
45 minutes @ 50°C
24 hours @ Room temperature
+ CURED PROPERTIES:
- Hardness, Shore D: 85
- Shrinkage linear in/in: 0.0003
- Lap shear strength, psi: 9400
- Volume Resistivity ohm. cm :< 0.0001
- Thermal Expansion Coefficient, (cm / cm / °C • 10-5): 1.5
- Thermal Conductivity, btu / hr / ft2 / °F / in: 100
- Tensile Strength, psi: 9500
- Compressive Strength, psi: 14,000
- Heat Distortion, °C: 95
- Electrical Resistivity : < 1x10 -4 ohm•cm
+ GENERAL INFORMATION:
For safe handling information on this product, consult the Material Safety Data Sheet, (MSDS).
+ AVAILABILITY:
This epoxy can be supplied in various different packages.
CALL (888) 522-6742 for more informations.
Totaline® - P902-1801 Triple Clean (1 Gallon)
Totaline® - P902-1801 Triple Clean (1 Gallon) The Totaline® Triple Clean is a coil cleaning detergent, deodorizer and degreaser. Built with a premium formulation this coil cleaning solution easily rinses away dust and grime. Cleaner, deodorizer, degreaser
Excellent Flow & Structural Bonding Epoxy Adhesive, No Sag for Vertical Applications & Overhead Surfaces, FS291 2.5gm
• PRODUCT DESCRIPTION:
AA-BOND FS291 is a thixotropic room temperature cure epoxy adhesive system developed for structural bonding applications on vertical or overhead surfaces where its no-sag characteristics are critical. AA-BOND FS291 is medium exotherming system exhibits excellent flow and wetting characteristics.
• GENERAL PROPERTIES:
Cure Type: Heat cure or Room temperature
Benefits:
o Excellent flow
o Excellent wetting characteristics
o Works on a wide variety of substrates
Mix Ratio by weight: 100:81 / Resin:Hardener
Substrates:
o Glass
o most metals
o variety of plastics
Typical Applications:
o Structural bonding
o Overhead and vertical applications
Pot Life: 45 minutes
• CURE SCHEDULE:
o 1 hour at 65°C
o 24 hours at 25°C
• MISC PROPERTIES:
Volume Resistivity: 2.70e+13 ohm-cm
Hardness, Shore D: 78
Lap shear: 3300 psi (Alum to Alum)
• GENERAL INFORMATION:
For safe handling information on this product, consult the Material Safety Data Sheet, (MSDS).
• AVAILABILITY:
This epoxy can be supplied in various different packages.
Call (888) 522-6742 For More Informations.
Flexible Silver Epoxy, Cold Solder, Electrically Conductive Adhesive, Circuits, Electrical Modules, Wave Guides, Flat Cable & High Frequency Shields Repair Kit 916, 5gm
- PRODUCT DESCRIPTION:
AA-DUCT 916 is an electrically conductive, silver-filled epoxy formulation recommended for electronic bonding, coating, and sealing applications that require high flexibility coupled with good electrical and mechanical properties.
AA-DUCT 916 is two-part, smooth paste adhesive of refined pure silver and epoxy resin components. It is free of solvents and copper or carbon additives. It develops strong, durable, resilient, electrically and thermally conducting bonds and coatings between many different and dissimilar materials such as metals, ceramics, glass and plastic insulates.
AA-DUCT 916 cures at room temperature and can be used as a flexible "cold-solder" for heat-sensitive components where hot-soldering is impractical. It also can be used for the assembly and repair of electrical modules, flexible circuits, wave guides, flat cable and high frequency shields.
- PRODUCT DESCRIPTION:
Appearance :Silver
Cure Type: Heat cure or Room temperature
Benefits:
High strength
Perfect bond
Cold solder for heat sensitive components
Mix Ratio by weight 100:115 / Resin:Hardener
Substrates Excellent choice aluminum, copper, magnesium, steel, bronze, nickel, kovar, ceramic, glass, phenolic and G-10 epoxy glass boards.
- UNCURED PROPERTIES:
Viscosity @ 25 °C cps Paste
Specific Gravity, mixed 2.85
Reactive solids contents, % 100
Pot Life 3 hours
Shelf life 1 year
- CURED PROPERTIES:
Hardness, Shore D 64
Volume Resistivity ohm. cm
High Temperature Epoxy Adhesive Glue, Fast Cure, Low Viscosity, 2 Part For LED Displays, Lenses, Fiber Optics Connectors, F131, 5gm
- PRODUCT DESCRIPTION:
AA-BOND F125 is an 8 minutes gelling epoxy recommended for use in fiber optic connectors, optical and industrial bonding applications.
AA-BOND F125 is clear, two part system is easily mixed and used at room temperature. Fiber optic connectors can be polished in as little as 15 to 20 minutes for piston free assurance. The high bond strength of AA-BOND F125 to glass, plastics, ceramics, metals and masonry allows it to be used in a wide array of applications including lens bonding, connector backfills, construction, component assembly and maintenance repair.
AA-BOND F125 is low shrinkage epoxy, develops significant properties 1 hour after mixing. However, an extended cure of 4-6 hours at 25°C is required for fully matured bonds.
NOTE: AA-BOND F125 develops a high exotherm. Use immediately after mixing. The exothermic reaction begins within 2 minutes after initiating the mixing step, so have everything ready before mixing.
- GENERAL PROPERTIES:
• Components: 2 component - requires mixing
• Mix Ratio by weight: 100:95 / Resin:Hardener
• Benefits:
o Low viscosity
o Fast Cure
o Low shrinkage
• Cure Type: Room temperature or Heat cure
• Operating Temperature : -60 to 100 °C
• Typical Applications: Fiber optic assembly, multimode and single mode connectors, small potting and sealing applications
- UNCURED PROPERTIES:
• Viscosity @ 25 °C:
o Resin: 9000cP
o Hardener: 14000cP
• Specific Gravity : 1.19
• Pot Life: 5 minutes
- CURE SCHEDULE:
• 24 hours @ 25°C
• 1 hour @ 60°C
- CURED PROPERTIES:
• Glass Transition (Tg), ultimate, °C: 40
• Hardness, Shore D: 75
• Tensile Shear, alum to alum, psi: 2800
- GENERAL INFORMATION:
For safe handling information on this product, consult the Material Safety Data Sheet, (MSDS).
- AVAILABILITY:
This epoxy can be supplied in various different packages.
CALL (888) 522-6742 for more informations.
Durable Epoxy, Fast Cure, Medium Viscosity, Strong Bond Strength Adhesive, For General Purpose, Bonding, Laminating Repair 2101, 5gm
- PRODUCT DESCRIPTION:
AA-BOND 2101 is a clear medium viscosity epoxy formulation recommended for laminating, bonding, repair and other adhesive applications where the combination of superior structural, mechanical and electrical performance properties are required. AA-BOND 2101 easily mixes and cures at room temperature, and develops strong, durable, tough bonds to most clean, dry material surfaces.
The fully cured AA-BOND 2101 bonds are great electrical insulators which also provide excellent resistance to weather, galvanic action, many mild acids and alkalis, salt solution, petroleum solvents, lubricating oil, gasoline, jet fuels, alcohol, and many other organic and inorganic materials.
- GENERAL PROPERTIES:
• Appearance: Slight haze/Clear
• Cure Type: Room temperature or Heat Cure
• Benefits: Resistant to many organics/inorganics Strong bond strength Durable
• Mix Ratio by weight: 100:25 / Resin:Hardener
• Substrates: Metals, ceramics, glass, glass fabrics, wood leather and rigid plastics
• Operating Temperature: -60 to 135 °C.
- UNCURED PROPERTIES:
• Viscosity at 25 °C: 18500 cPs ±1000
• Solids Content 100%
• Specific Gravity, mixed 1.19 g/cc
• Pot Life 30 minutes.
- CURE SCHEDULE:
• 4 hours at 65°C
• 24 hours at 25°C.
- MISC PROPERTIES:
• Glass Transition Temp, Tg 62°C
• Hardness, Shore D 84
• Lap shear 3300 psi (Alum to Alum).
- GENERAL INFORMATION:
For safe handling information on this product, consult the Material Safety Data Sheet, (MSDS).
- AVAILABILITY:
This epoxy can be supplied in various different packages.
CALL (888) 522-6742 for more information.
General Purpose Adhesive Electrically Insulating Epoxy Transparent Casting AA-CAST 002, 2.5gm pouch
Transparent casting epoxy systemEasy mix pre-measured pouch. Simple mix and use without any mess.
Good Electrical Insulation Epoxy, Smooth Paste Adhesive for Fiber Optic Connectors, Photonic & Electronic Applications, LED Displays, Lenses F162, 2.5gm
- PRODUCT DESCRIPTION:
AA-BOND F162 is a thixotropic electrical insulating epoxy adhesive system with low vapor pressure and outgassing characteristics.
AA-BOND F162 was specifically developed for fiber optic, laser, photonic and electronic applications requiring excellent electrical insulation in combination with effective thermal dissipation from heat-producing components.
AA-BOND F162 is two-part epoxy compound develops strong, durable, stable, high impact thermally conductive bonds at room temperature, and adheres readily to itself, and to metals, many plastics, silica, steatite, alumina, sapphire and other ceramics, glass, and to many other materials.
AA-BOND F162 provides excellent resistance to salt solutions, mild acids and alkalis and many other chemicals including petroleum solvents, lubricating oils and alcohol.
- GENERAL PROPERTIES:
• Appearance: Ligh grey/off white
• Cure Type: Room Temperature or Heat cure
• Benefits:
o Smooth paste
o Fiber optic
o Laser
o Photonic and electronic applications
o Good electrical insulation
• Mix Ratio by weight: 100:10 / Resin:Hardener
• Substrates: Metals, Many plastics, Glass, and other materials
• Operating Temperature: -60 to 120 °C
• Typical Applications: ALL types of fiber-optic connectors as well as LED displays, lenses and other optical components.
• Max Temperature: 125 °C
- UNCURED PROPERTIES:
• Viscosity @ 25 °C: Paste
• Thixotropic Index: 1.0
• Specific Gravity, mixed, g/cc: 2.29
- CURE SCHEDULE:
• 2-4 hours @ 65°C
• 24 hours @ 25°C
- CURED PROPERTIES:
• Thermal Conductivity: 6.09 BTU-in/hr-ft²-°F
• Hardness, Shore D: 88
- GENERAL INFORMATION:
For safe handling information on this product, consult the Material Safety Data Sheet, (MSDS).
- AVAILABILITY:
This epoxy can be supplied in various different packages.
CALL (888) 522-6742 for more informations.
Gold Epoxy, 2 Part, Electrically & Thermally Conductive For Hybrid Circuits Joining Die & SMD, Au Thick Film Conductor Traces & Contact Pads, G298, 20gm
- PRODUCT DESCRIPTION:
AA-BOND G298 is a two component, gold-filled, electrically and thermally conductive epoxy designed for hybrid microelectronic and semiconductor packaging.
- GENERAL PROPERTIES
Components: A & B
Appearance: Brown
Cure Type: Room temperature or Heat cure
Benefits: + Gold filled epoxy allows for anti-oxidation of Contacts and terminals in high reliability devices.
It can be used in medical circuits using traditional hybrid packaging technologies.
High viscosity paste allows for precision deposition onto circuits by means of printing and delicate hand processes.
Mix Ratio by weight: 100:13.5 / Resin:Hardener
Substrates: Metals, ceramics, glass, glass fabrics, wood leather and rigid plastics
Operating Temperature: Continuous: - 55°C to 275°C
Intermittent: - 55°C to 375°C
Typical Applications: Adhesive for joining die and SMDs onto the hybrid circuits
Repairing defective Au thick-film conductor traces and contact pads
Resisting oxidation and electro-migration in high-reliability micro-electronics
Joining material as alternative to high temperature Au-Sn eutectic solders processes exceeding 300°C
- UNCURED PROPERTIES:
Viscosity @ 25 °C, mPa·s (cP) Paste
Pot Life 30 mins
Shelf Life 1 Year
- CURE SCHEDULE:
15 minutes: @ 120°C
90 minutes: @ 80°C
10 hours: @ 50°C
24 hours: @ 25°C
- MISC PROPERTIES:
Volume Resistivity: @ 23°C: = 0.0009 Ohm-cm
Glass Transition Temp, Tg: = 100°C (Dynamic Cure
20—200°C /ISO 25 Min; Ramp-
10—200°C @ 20°C/Min)
Die Shear Strength: @ 23°C: = 5 Kg / 1,700 psi
- GENERAL INFORMATION:
For safe handling information on this product, consult the Material Safety Data Sheet, (MSDS).
- AVAILABILITY:
This epoxy can be supplied in various different packages.
Call (888) 522-6742 for more information.
One to One Mix Ratio Electrically Conductive Silver Epoxy For Cold Solder Circuitry, RMI, EFI, PCB, & Electronic Repair 907, 100 gm kit
+ PRODUCT DESCRIPTION:
AA-DUCT 902 is an epoxy adhesive and coating formulation based on pure silver. This versatile silver formulation offers the maximum continuity of conductivity with an electrical resistivity value of less than 1x10-4 ohm•cm.
AA-DUCT 902 is also characterized by a wide operating temperature range from –50 to +170°C. AA-DUCT 902 is recommended for electronic bonding and sealing applications that require both fine electrical and mechanical properties.
+ PRODUCT PROPERTIES:
- Appearance: Silver
- Cure Type: Heat cure or Room temperature
- Benefits:
* High strength
* Perfect bond
* Cold solder for heat-sensitive components
- Mix Ratio by weight 100:100 / Resin:Hardener
- Substrates:
Excellent choice aluminum, copper, magnesium, steel, bronze, nickel, kovar, ceramic, glass, phenolic and G-10 epoxy glass boards.
- Operating Temperature: –50 to +170°C
- Typical Applications:
Electrical, conductive, rmi/efi shielding, circuitry, printed circuit board and electronics repair
+ UNCURED PROPERTIES:
- Specific Gravity, mixed: 2.79
- Reactive solids contents, %: 100
- Pot Life: 1Hour
- Shelf Life: 6 months
- Viscosity: Paste
+ CURE SCHEDULE:
15 minutes @ 100°C
45 minutes @ 50°C
24 hours @ Room temperature
+ CURED PROPERTIES:
- Hardness, Shore D: 85
- Shrinkage linear in/in: 0.0003
- Lap shear strength, psi: 9400
- Volume Resistivity ohm. cm :< 0.0001
- Thermal Expansion Coefficient, (cm / cm / °C • 10-5): 1.5
- Thermal Conductivity, btu / hr / ft2 / °F / in: 100
- Tensile Strength, psi: 9500
- Compressive Strength, psi: 14,000
- Heat Distortion, °C: 95
- Electrical Resistivity : < 1x10 -4 ohm•cm
+ GENERAL INFORMATION:
For safe handling information on this product, consult the Material Safety Data Sheet, (MSDS).
+ AVAILABILITY:
This epoxy can be supplied in various different packages.
CALL (888) 522-6742 for more informations.
TRADEPRO® - 45335 Cartridge A/C Leak Freeze 1-1/2 oz With Cool Shot, 10-1/2" x 2" x 1-1/2"
The leading air conditioning and refrigerant leak repair solution in the US today. All products are OEM Approved and Made in the USA. AC Leak Freeze is ideal for preventative maintenance and leak protection.
Perfect Bond Silver Epoxy, For Electronic Modules, PCB, Integrated Circuits, Capacitors, Wave Guides & Flat Cables, Electrically Conductive Adhesive, 2 Part, 2924, 10gm
- PRODUCT DESCRIPTION:
AA-DUCT 2924 is a two part electrically conductive composition developed for low shrinkage; low resistivity bonding applications where good electrical and physical properties over a wide temperature range (up to 190°C) are required.
AA-DUCT 2924 is smooth paste formulation of refined pure silver and epoxy is free of solvents and copper or carbon additives. It can be used -- after REQUIRED high temperature cure cycle -- for the assembly, manufacture and repair of electronic modules, printed circuits, integrated circuits, electrical contacts, capacitors, wave guides and flat cables, for high-frequency RF shielding, and for applications where a "hot" soldering iron is impractical.
When cured AA-DUCT 2924 is a hard, dimensionally stable, conductive material which is resistant to water, weathering, gases and vapors, lubricants, fuels, alcohol, and also to those salts, salt solutions, mild acids and alkalis, and other organic and inorganic compounds with which silver itself is compatible.
- GENERAL PROPERTIES:
Appearance: Silver
Cure Type: Heat cure
Benefits:
+ High strength
+ Perfect bond
+ Mix Ratio by weight: 100:5 / Resin:Hardener
Substrates: Excellent choice aluminum, copper, magnesium, steel, bronze, nickel, kovar, ceramic, glass, phenolic and G-10 epoxy glass boards.
Operating Temperature: -60 to 190 °C
Shelf Life: 1 Year
- UNCURED PROPERTIES:
Viscosity @ 25 °C cps: Paste
Specific Gravity, mixed: 2.69
Reactive solids contents, %: 100
Pot Life: 3 hours
- CURE SCHEDULE:
2 hours: @ 125 °C
4 hours: @ 100 °C
- MISC PROPERTIES:
Hardness, Shore D: 85
Adhesive bond strength: 1270 psi
Volume Resistivity ohm-cm: < 0.003
- GENERAL INFORMATION:
For safe handling information on this product, consult the Material Safety Data Sheet, (MSDS).
- AVAILABILITY:
This epoxy can be supplied in various different packages.
Call (888) 522-6742 for more information.
1280pcs 5% 0.125W 0805 SMD Resistor 64 Values 0ohm-10Mohm Assortment Kit
Feature: General purpose resistor with 1280pcs. High precision and stability. Automatic insertion is applicable. Each value is clearly marked. Specification: Material: PlasticModel: 0805 whole seriesAllowable deviation: & plusmn ; 5%Rated power: 0.125 (W) Various SMD resistance (unit: & Omega ; ): 0ohm-10Mohm64 values (each type for 20pcs): 0ohm, 2.2 ohm,;; 4.7 ohm, 5.6 ohm, 7.5 ohm, 8.2 ohm, 10ohm, 15ohm, 22ohm, 27ohm, 33ohm, 39ohm, 47ohm, 56ohm, 68ohm, 75ohm, 82ohm, 100ohm, 120ohm, 150ohm, 180ohm, 220ohm, 270ohm, 330ohm, 390ohm, 470ohm, 510ohm, 680ohm, 820ohm, 1Kohm, 1.5K ohm, 2.2K ohm, 3.3K ohm, 3.9K ohm, 4.7K ohm, 5.6K ohm,;; 6.8K ohm, 7.5K ohm, 8.2K ohm, 10Kohm, 15Kohm, 22Kohm, 33Kohm, 39Kohm, 47Kohm, 56Kohm, 68Kohm, 75Kohm, 82Kohm, 100Kohm, 150Kohm, 180Kohm, 220Kohm, 330Kohm, 470Kohm, 560Kohm, 680Kohm, 1Mohm, 1.5M ohm, 2Mohm, 3.3M ohm, 4.7M ohm, 5.6M ohm, 10MohmNotice: As a result of large and cumbersome jobs, sometimes the individual resistor value is duplicate or missing, please understand. Package includes: 1280 x Resistor (64 types);
High strength Silver Epoxy, Electrically Conductive for microwave, EMI & FRI shielding assembly & PCB, electronic component manufacturing & Repair 904, 250gm Jar
- PRODUCT DESCRIPTION:
AA-DUCT 904 is a single component, heat curing, conductive epoxy that was designed for ease in handling. This high performance conductive epoxy cures quickly at elevated temperatures making it ideally suited for rapid processing and assembly.
AA-DUCT 904 offers excellent mechanical, electrical, and physical properties at continuous operating temperatures up to 175°C. This versatile silver conductive adhesive can be used for chip bonding in micro and opto-electronic hybrid circuit fabrication.
AA-DUCT 904 has also been used in microwave applications for EMI and FRI shielding, for assembly and repair of circuit boards and electronic component manufacturing.
AA-DUCT 904 is a smooth, soft paste that can be applied by hand application, automatic dispensers, screen-printing, transfer or stamping techniques. It is available in both a lower and higher viscosity grade for use in a variety of dispensing equipment and application techniques.
- CURED PROPERTIES:
Hardness, Shore D 83
- PRODUCT PROPERTIES:
Appearance Silver
Cure Type Heat cure
Benefits:
+ High strength
+ Excellent mechanical, electrical properties
Substrates: Excellent choice for Integrated Circuits, aluminum, copper, magnesium, steel, bronze, nickel, ceramic, glass,
phenolic and G-10 epoxy glass boards.
- CURE SCHEDULE:
2 hours @ 125°C
1 hour @ 150°C
1/2 hours @ 175°C
- UNCURED PROPERTIES:
Viscosity @ 25 °C cps: 200,000
Shelf life: 6 Months
Density: 3.6
- THERMAL PROPERTIES:
Thermal Conductivity, btu/hr/ft2/°F/in 16.1
Coefficient of Thermal Expansion 60x 10^-6 (in/in) C
Operating Temperature:
+ -55°C to +175°C
+ Intermit. to 325
- ELECTRICAL PROPERTIES:
Volume Resistivity ohm. cm 0.001
- NASA OUTGASSING RESULTS:
TML (Total Mass Loss) % 0.38
CVCM (Collected Volatile Condensable Materials) % 0.01
WVR (Water Vapor Recovery) % 0.07
- GENERAL INFORMATION:
For safe handling information on this product, consult the Material Safety Data Sheet, (MSDS).
- AVAILABILITY:
This epoxy can be supplied in various different packages.
Call (888) 522-6742 for more information.
This epoxy can be supplied in various different packages.
Electrically Conductive Silver Epoxy for Microwave EMI & RFI, PCB, Wave Guides, Electronic Modules, Flat Cable,1 Part, Heat Cure Only, AD1, 500gm Jar
- PRODUCT DESCRIPTION:
AA-DUCT AD1 is a single component epoxy, formulated with pure silver powder combined with organic binders and solvents to produce electrically conductive paths, films or patterns over non-conductive substrates.
AA-DUCT AD1 shows slight settling when stored for a long period of time, no caking and will re disperse to a smooth homogeneous state.
AA-DUCT AD1 formulation produces electrically conductive paths on a wide variety of surfaces including plastics, rubber, cloth, thermoplastic, paper, wood and many others.
AA-DUCT AD1 designed for use in diversified applications as microwave EMI & RFI shielding, in the assembly or repair of printed circuit boards, wave-guides, electronic modules, flat cable, static shielding, connections, and circuitry.
- PRODUCT PROPERTIES:
Appearance: Silver
Cure Type: Heat cure
Benefits: High strength
Perfect bond
EMI & RFI shielding
Wave guides
Substrates: Excellent choice for Integrated Circuits, aluminum, copper, magnesium, steel, bronze, nickel, kovar, ceramic, glass, phenolic and G-10 epoxy glass boards.
Catalyst: Anhydride
Hardness, Shore D: 83
- UNCURED PROPERTIES:
Viscosity @ 25 °C cps: 6,800
Density gm/cc: 2.35
Silver , %: 70-72
Shelf life 6 Months
Operating Temperature: -45°C to 170°C
Pot Life @ 25 °C: 6 months @ 25°C
9 months refrigerated
- CURE SCHEDULE:
60 min: @ 120°C, 248°F
30 mins: @ 150°C, 302°F
10 mins: @ 175°C, 347°F
- PHYSICAL CHARACTERISTICS:
Sheet Resistivity: 10-12 mO/sq
Bulk Resistivity: 3x10-5O/cm
Adhesion Tensile Strength: 1000 N/cm2 (1500 lb/in2)
Lap shear Strength: 1400 N/cm2 (2000 lb/in2)
Thermal Conductivity: 0.04J/(cm.s. °C):[0.01cal/(cm.s. °C)]
Specific heat: 0.30J/(g. °C) :[0.07 cal/g. °C]
Coefficient of Thermal Expansion: 3x10-5 (m/m)/ °C
Modulus of elasticity: 4x1010 Pa (6x105lb/in2)
Poisson’s Ratio: 0.35
- GENERAL INFORMATION:
For safe handling information on this product, consult the Material Safety Data Sheet, (MSDS).
- AVAILABILITY:
This epoxy can be supplied in various different packages.
Call (888) 522-6742 for more information.
Electrically Conductive Silver Epoxy for Microwave EMI & RFI, PCB, Wave Guides, Electronic Modules, Flat Cable,1 Part, Heat Cure Only, AD1, 500gm Jar
$ 1,179.02 $ 1,215.48
3% Off
