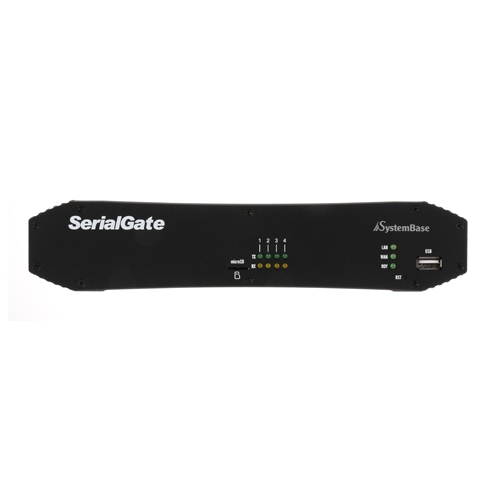

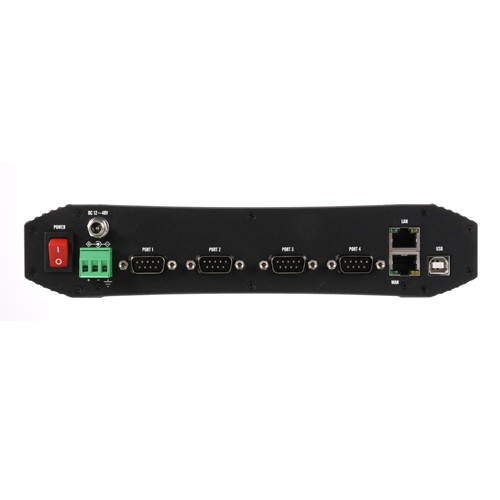

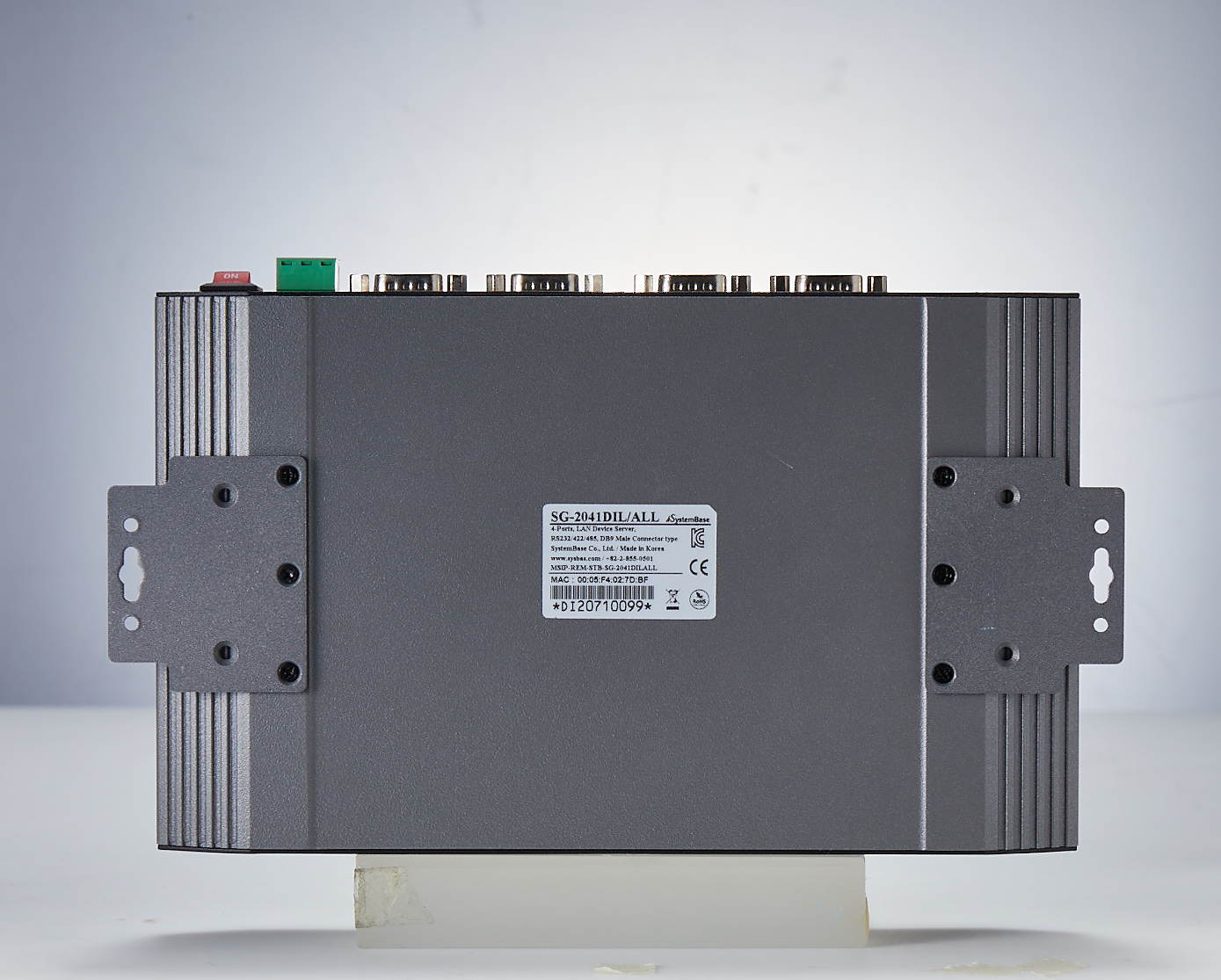

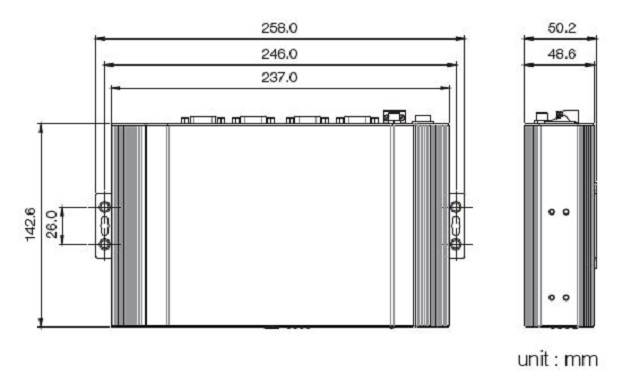

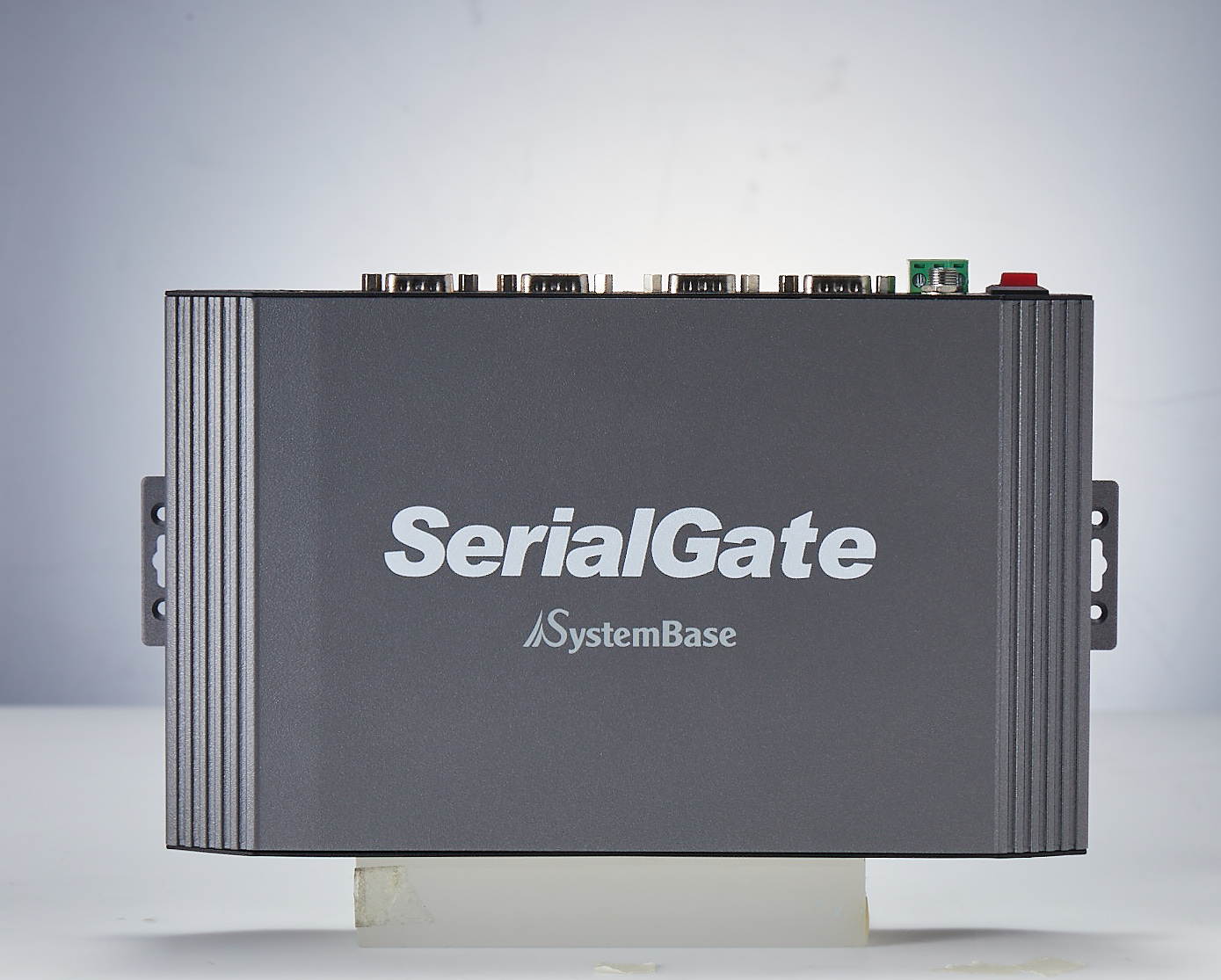

SystemBase - Serial(RS232/422/485) to Ethernet 4Ports Industrial Grade Device Server, DB9 Male Connector, Supports Modbus RTU/ASCII (SG-2041DIL/ALL)
SG-2041DIL can be used anywhere in the network to connect to serial device using the 9 pin D-sub interface with DE shell size. This device server support maximum 921.6Kbps for the RS-232 or RS-232/422/485 serial interface. ModBus is supported also. The COM Redirector is provided for remote control, monitoring and data communication. The SerialGate family is ideal for POS, medical use, factory automation and building automation field.
Optimized for Industrial Use
SG-2041DIL provides two types of power connection. The users can use the adapter or the terminal block to supply power to the system. The system supports operating temperature from -40 to 85°C (by IEC60068-2-33 temperature cycle) and pass the IEC60068-2-30 temperature and humidity environment test. It provides stable operation in tough environment for industrial use.
Enhanced Surge and ESD Protection
To provide high reliability and stability, SerialGate has passed the tests with IEC 61000-4-2(ESD Level 4), ±8KV(Contact), ±15KV(Non-contact), and ±15KV(HBM). The IEC61000-4-4(40A) and IEC61000-4-5(24A) standard for surge protection is a built-in feature for possible incident of ESD, EFT, and surge to operate stably. This will eliminate malfunction or damaging the product with overcurrent.
Provides Various Software Utilities
The SerialGate series comes with following utilities:
COM Port Redirector: This utility allows the users to add virtual port to the PC without modifying the client software to enable the serial communication.
PortView™: Monitoring and managing utility for the serial ports in the SerialGate.
TestView™: A utility for checking performance and stability of the data communication between the serial ports and Ethernet port.

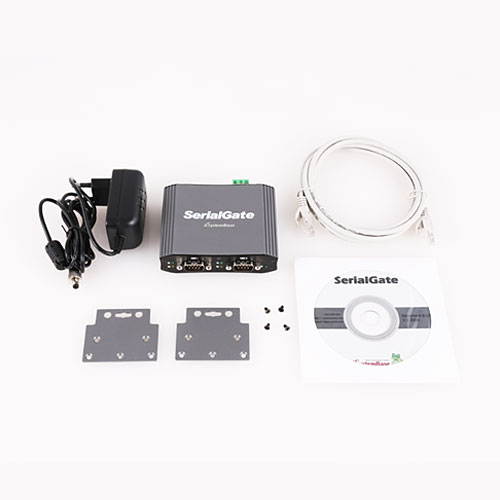

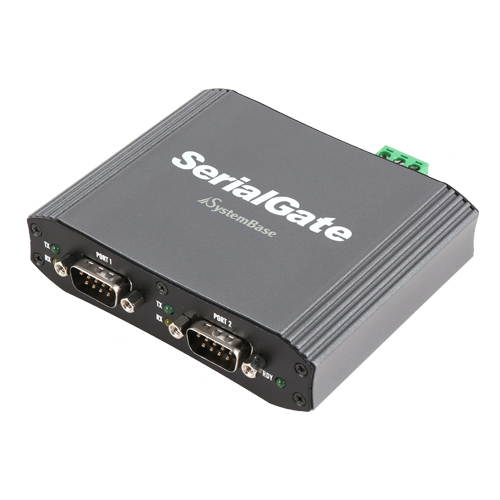

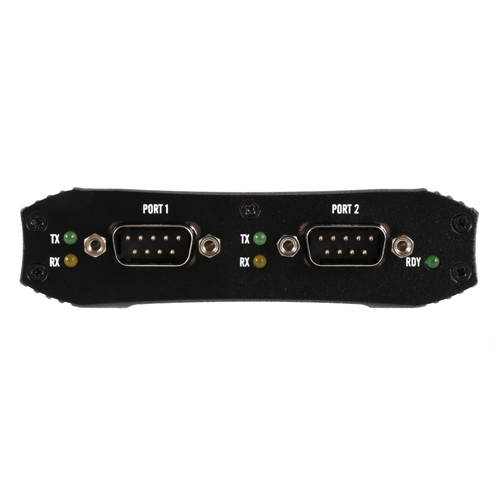

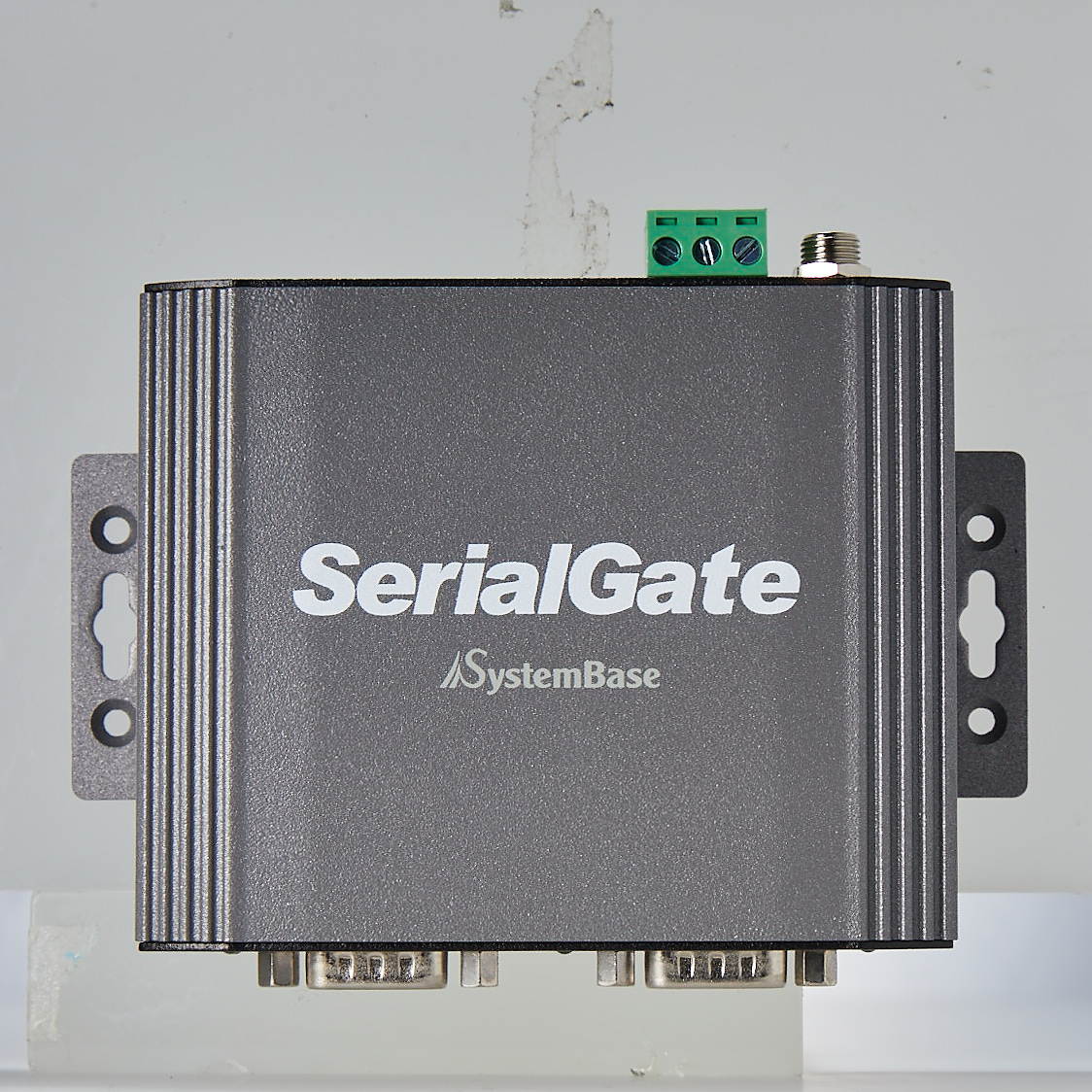

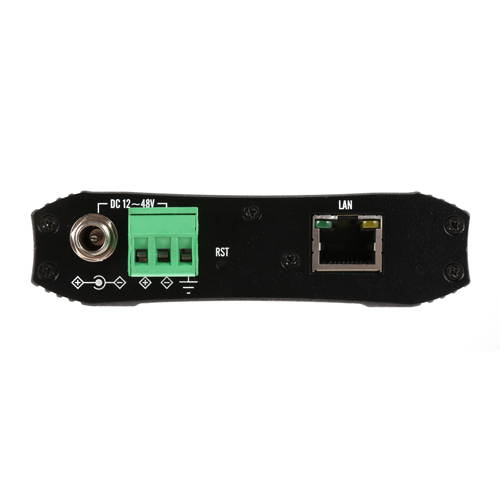

SystemBase - Serial(RS232/422/485) to Ethernet 2Ports Industrial Grade Device Server, DB9 Male Connector, Supports Modbus RTU/ASCII (SG-2021DIL/ALL)
SG-2021DIL can be used anywhere in the network to connect to serial device using the 9 pin D-sub interface with DE shell size. This device server support maximum 921.6Kbps for the RS-232 or RS-232/422/485 serial interface. ModBus is supported also. The COM Redirector is provided for remote control, monitoring and data communication. The SerialGate family is ideal for POS, medical use, factory automation and building automation field.
Optimized for Industrial Use
SG-2021DIL provides two types of power connection. The users can use the adapter or the terminal block to supply power to the system. The system supports operating temperature from -40 to 85°C (by IEC60068-2-33 temperature cycle) and pass the IEC60068-2-30 temperature and humidity environment test. It provides stable operation in tough environment for industrial use.
Enhanced Surge and ESD Protection
To provide high reliability and stability, SerialGate has passed the tests with IEC 61000-4-2(ESD Level 4), ±8KV(Contact), ±15KV(Non-contact), and ±15KV(HBM). The IEC61000-4-4(40A) and IEC61000-4-5(24A) standard for surge protection is a built-in feature for possible incident of ESD, EFT, and surge to operate stably. This will eliminate malfunction or damaging the product with overcurrent.
Provides Various Software Utilities
The SerialGate series comes with following utilities:
COM Port Redirector: This utility allows the users to add virtual port to the PC without modifying the client software to enable the serial communication.
PortView™: Monitoring and managing utility for the serial ports in the SerialGate.
TestView™: A utility for checking performance and stability of the data communication between the serial ports and Ethernet port.

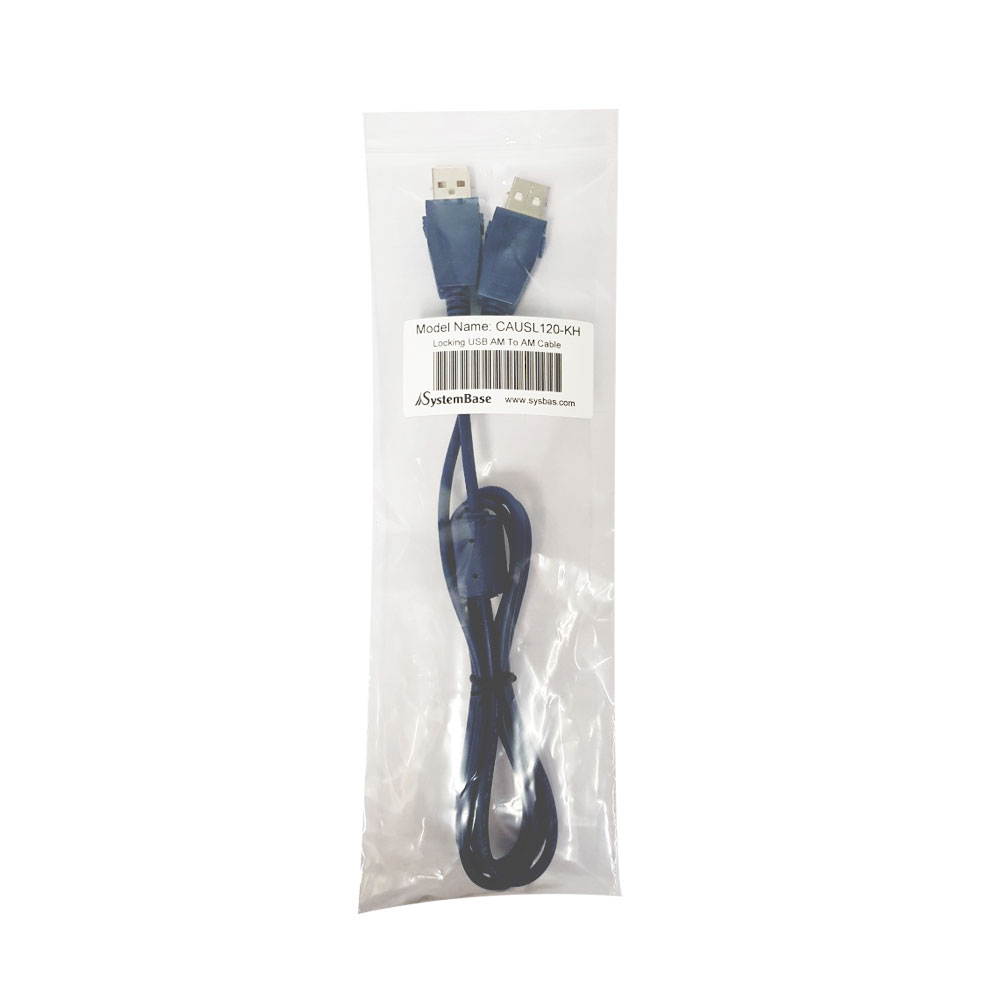

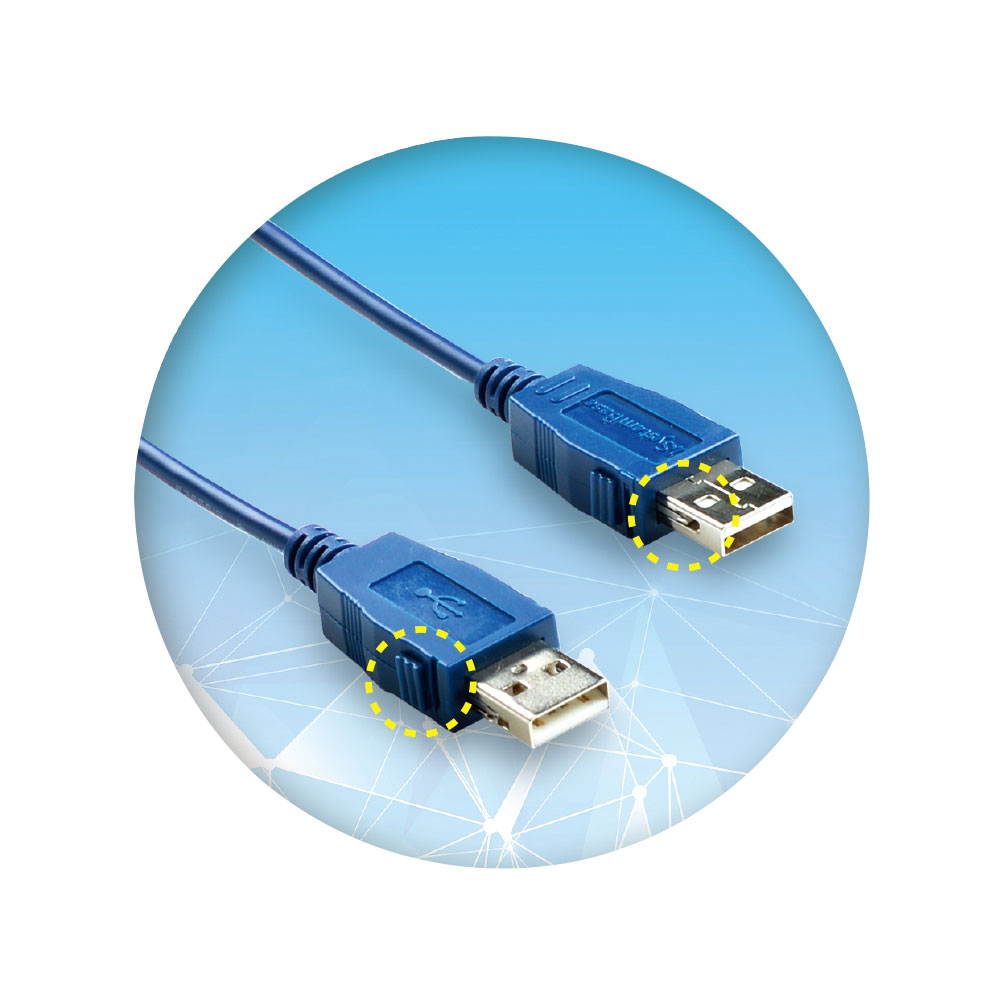

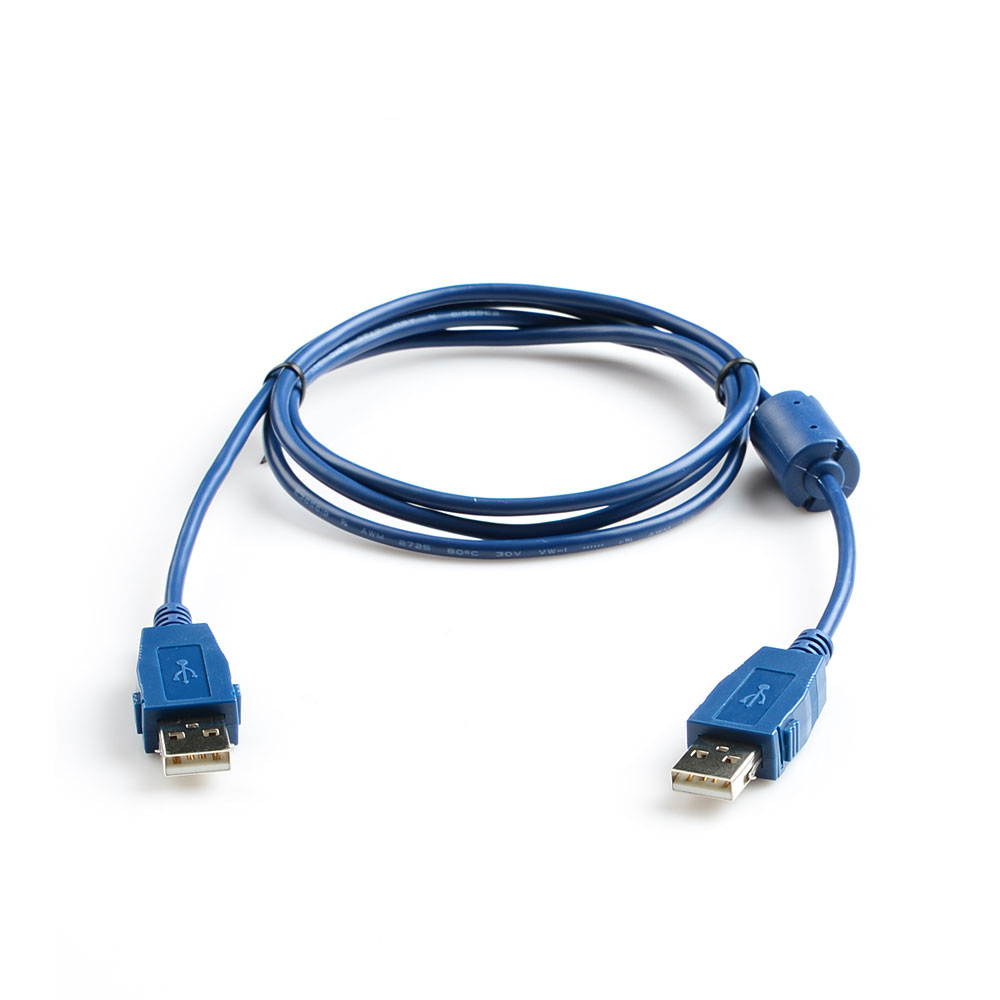

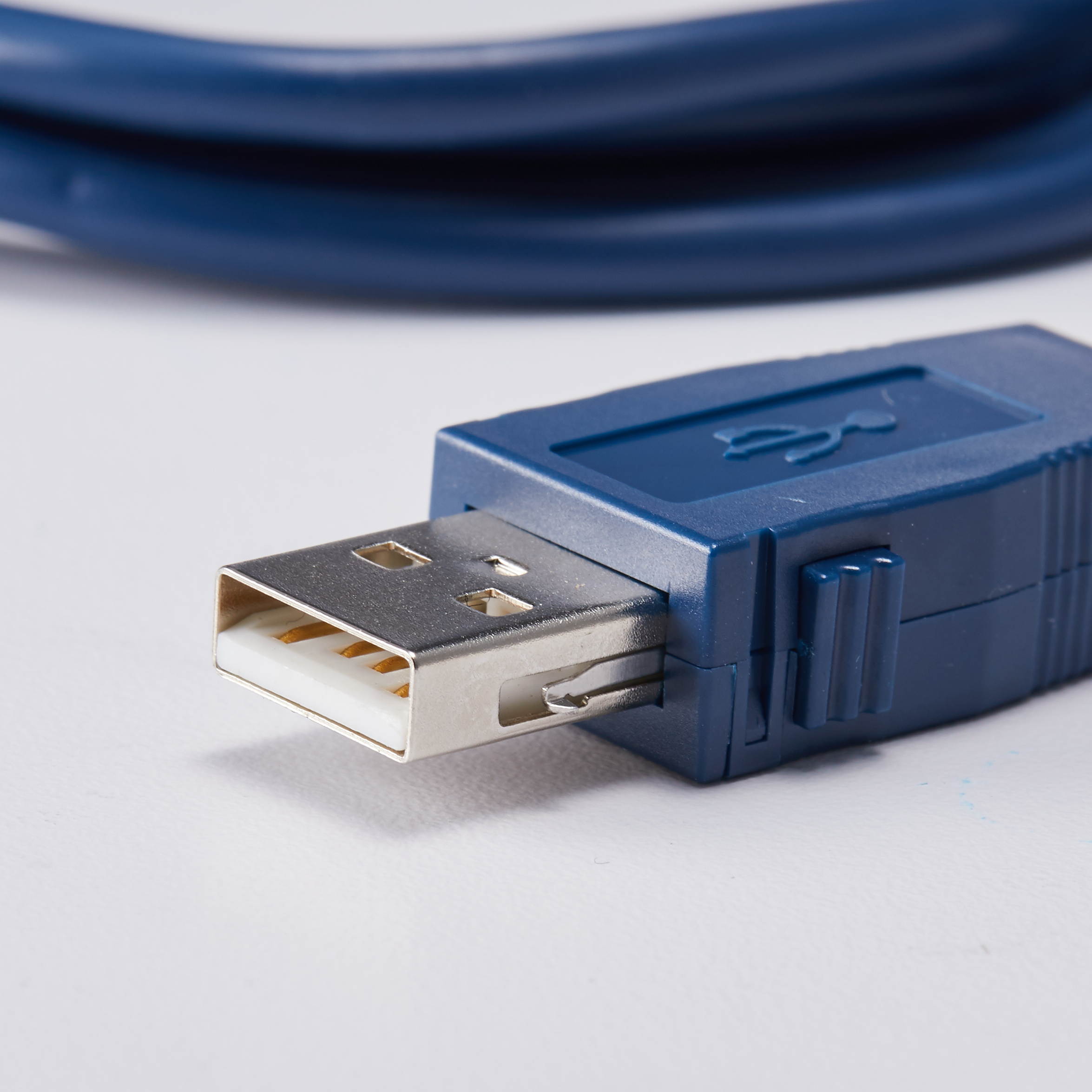

SystemBase Latching USB Cable(AM to AM, USB with Latch-Locking Function) / SystemBase - Latching USB AM-AM Cable, 3.93ft USB Cable lock
Latching USB Cable enables safe use in industrial fields.
2 latch locking connector protects the connection from coming loose or undone due to external shock.
It is compatible with all USB connectors on the market and is easy to connect to.
Short circuit protection and spark protection with the Lock function reduces USB equipment and PC failures.
(Some manufacturers may have limited USB Lock functionality, but there is no problem with communication.)

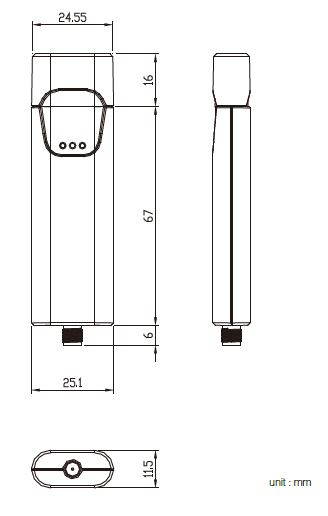

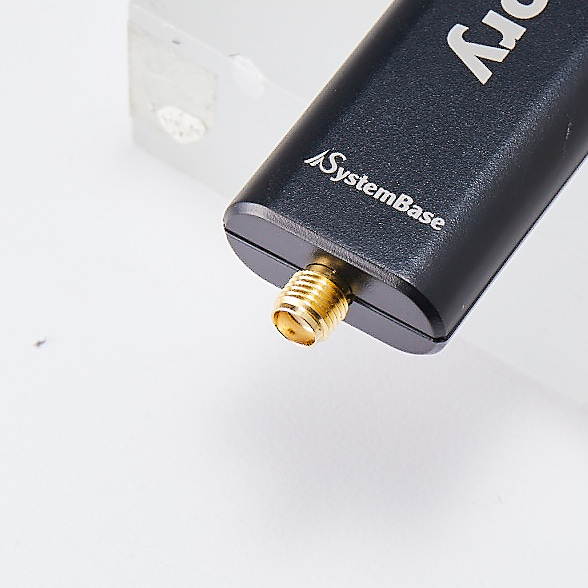

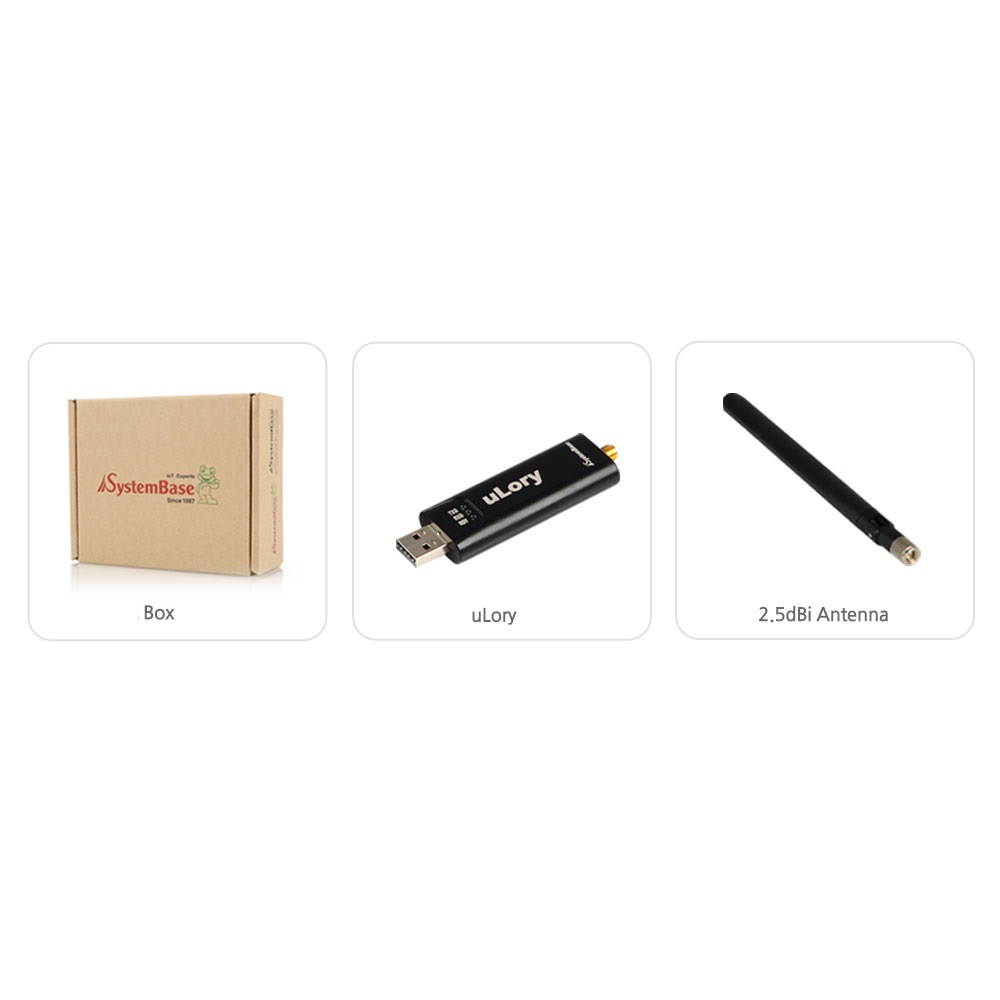

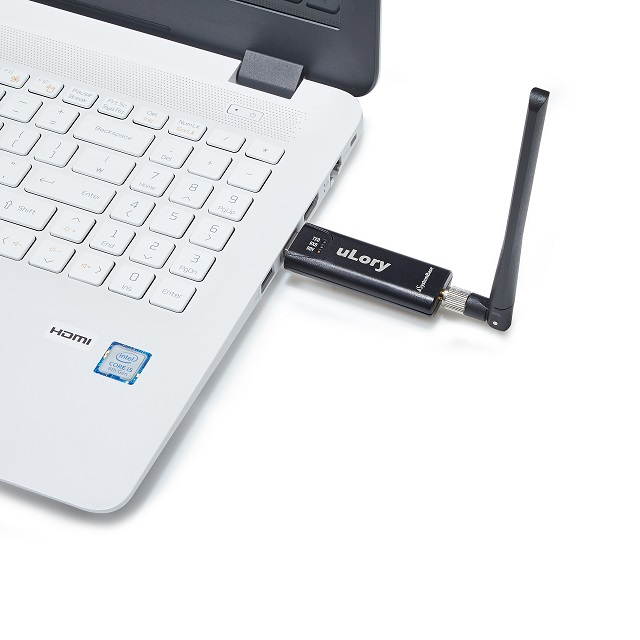

SystemBase - USB to LoRa Wireless Converter, USB 2.0 high speed, Industrial Grade, low-power and mid-to-long-range wireless (uLory)
LoRa is a wireless communication technology for sensor networks, a next-generation LPWA (Low Power Wide Area) communication technology that can transfer a small amount of data over long range. uLory from SystemBase uses the LoRa to provide a communication range of a few kilometers and the users can build a long-range wireless network using USB, an interface widely used with computers or smartphones.
LoryNet Compatibility
LoryNet, a virtual cable platform based on LPWA (Low Power Wide Area) communication technology LoRa, connects sensor nodes, converters, repeaters, and gateways via the Internet to create an environment where communication is as easy as writing/reading on a hard disk drive. The configuration and preference settings related to connecting various digital and analog communications, including the Internet, have been simplified. Also, the compatibility between different protocols is strengthened, making network system configuration as easy as writing and reading data from a hard disk drive in a computer. By using a physical, virtual cable platform “LoryNet,” which connects various communication methods, one can monitor, analyze, and control data obtained from all over the world. Additionally, due to its table-based communication methods, application and communication protocol can be differentiated and easily used. The private LoRa network operating in the unlicensed frequency band allows the user to configure the network without an additional charge. To this end, various environment SDK’s (Windows, Linux, Android, iOS, and OS-less) are provided so that users can easily create and apply customized applications.
Building a Wireless USB Network
USB interface, with its general usability, is the most commonly accepted communication standard with computers and various devices. By using the uLory, a technology that combines the USB standard serial communications and the long-range wireless communication technology Lora, the user can configure and utilize a wireless network for remote control, data collection, and monitoring in various industrial fields.

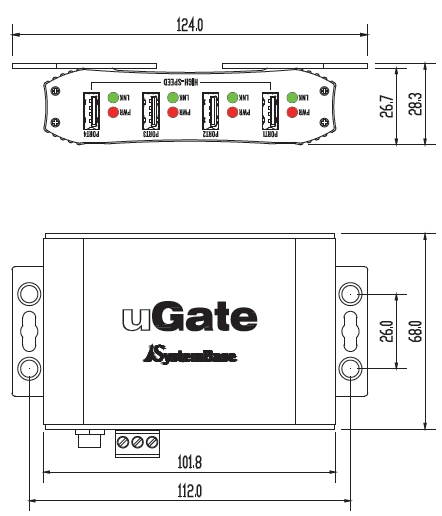

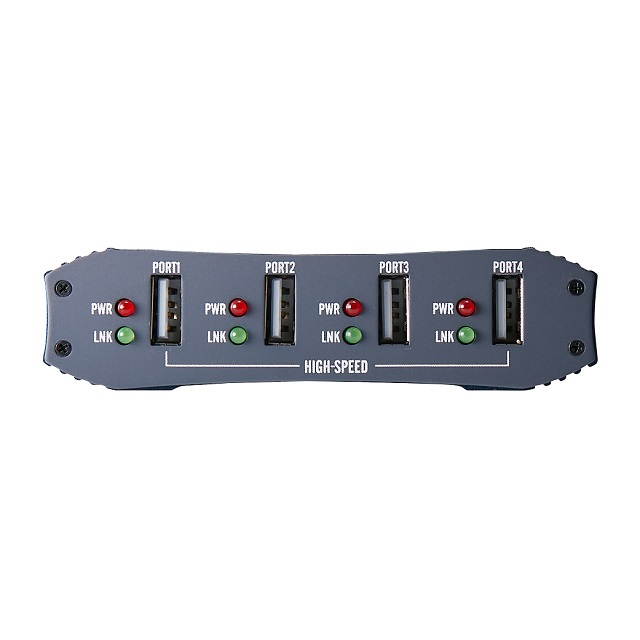

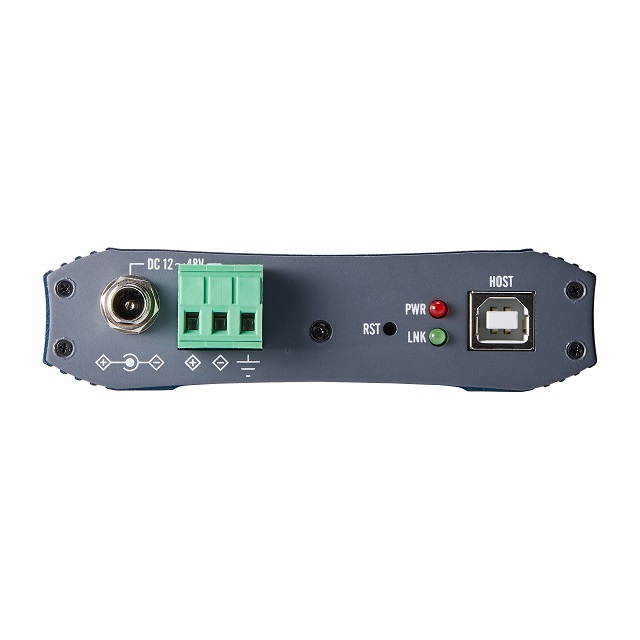

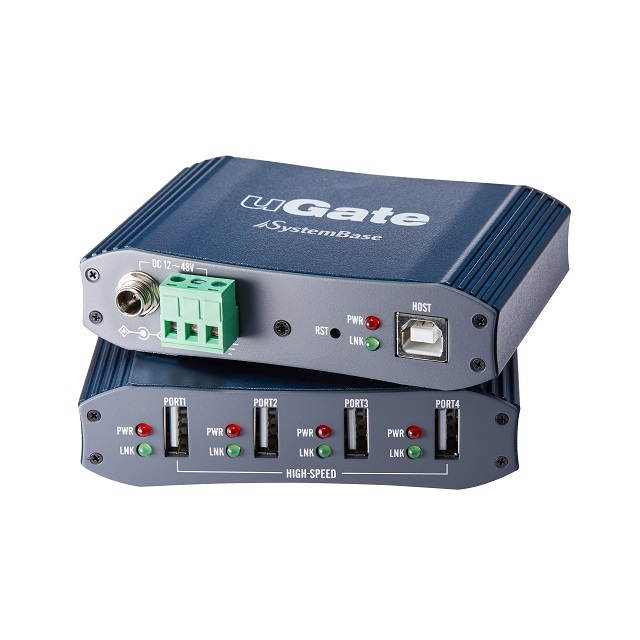

SystemBase – Industrial grade 4 ports USB 2.0 Hub, powered & mountable expander Hub, High Speed 480Mbps, ESD/Surge Protection (uGate-400H)
- Overview

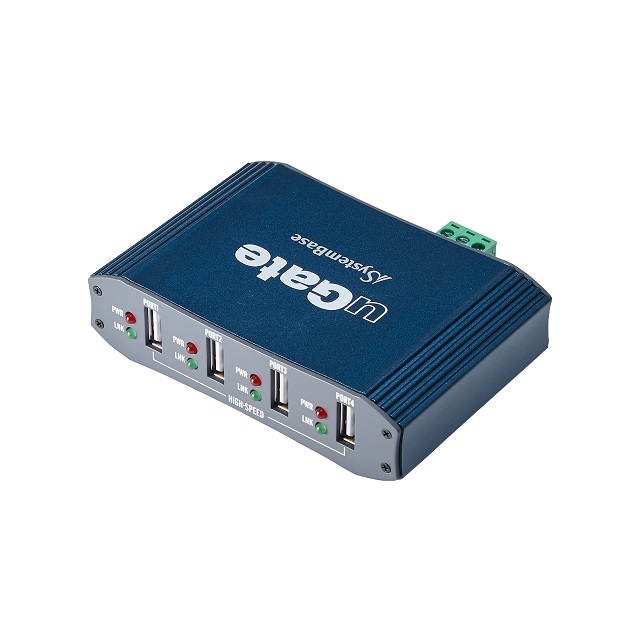

The uGate-400H is an industrial USB hub supporting USB 2.0 High-Speed 480Mbps. It supports -40 to 85°C operating temperature and equipped with ±8KV ESD level 4 protection circuit to withstand the extreme environment. When an external power supply is connected, each port can provide 500mA power to the USB devices. Wide range of external power can be supplied from 12 to 48 volt. The users can use the adapter or the terminal block to supply power to the system. When one of the power supply is broken, it will get the power from the other source. Therefore, uGate series are suitable and will operate stable in the industrial environment.
- Industrial Grade Operating Temperature
The uGate-400H supports operating temperature from -40 to 85°C (by IEC60068-2-33 temperature cycle) and pass the IEC60068-2-30 temperature and humidity environment test. It provides stable operation in tough environment for industrial use.
- Surge Protection
Most of the surge, the rapid increase in electrical current or voltage shock, comes from the power cable. When there are weak surge that occurs often, it will deteriorate the components. The strong surge will break the circuit that will be not be recoverable. Most surge occurs by lightening. It can also be generated by an electrical actuator. The main source of the surge occurrences cannot be eliminated therefore some method of protection is required to prevent this problem. uGate series are equipped with built-in surge protection that will withstand and protect the internal or external device from 400W surge in 10/1000 ? peak pulse.
- ESD Protection
The ESD (Electrostatic Discharge) occurs by a person or other sources which is cause of the deterioration or destruction of the electronic components. In order to prevent this, uGate series has built-in ESD protection based on IEC 61000-4-2 (ESD Level 4 Protection) to resist electrostatic discharge of ±4KV by contact or ±8KV by air.

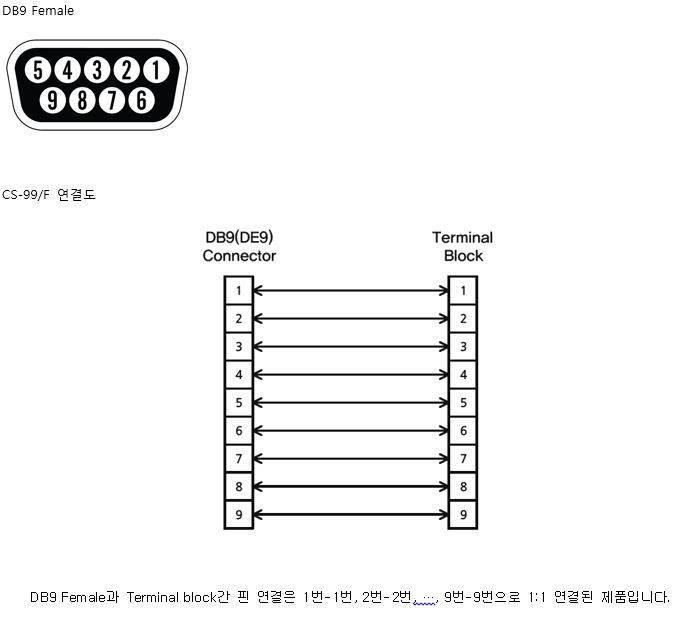

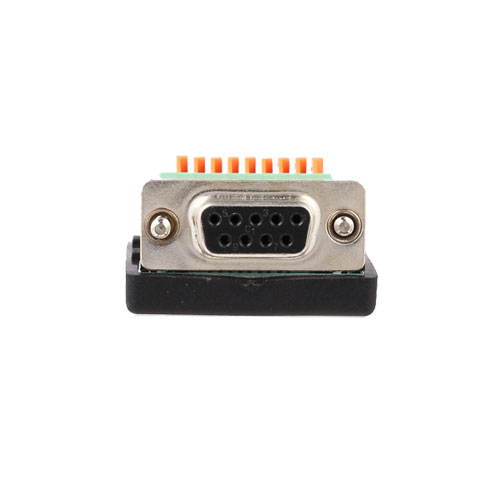

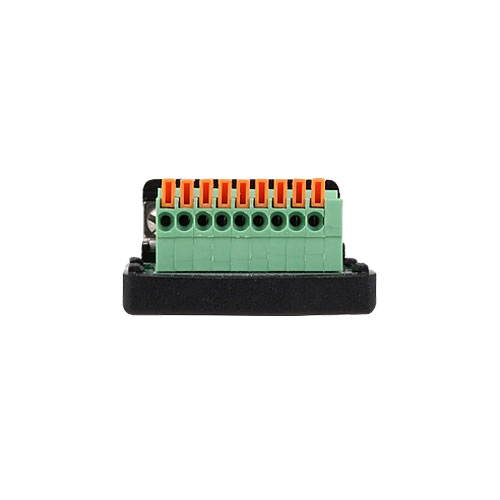

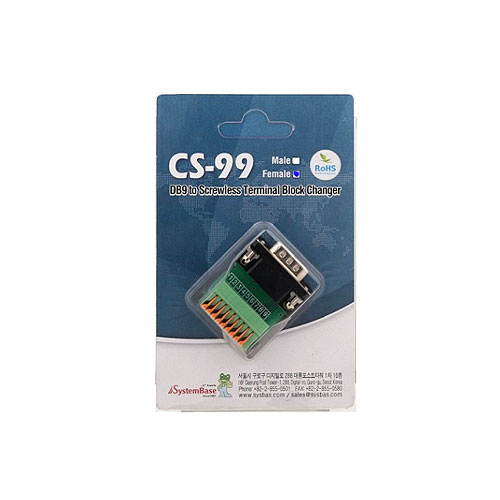

SystemBase - Converts DB9 Female Connector to 9 pin terminial block Converter (CS-99/F)

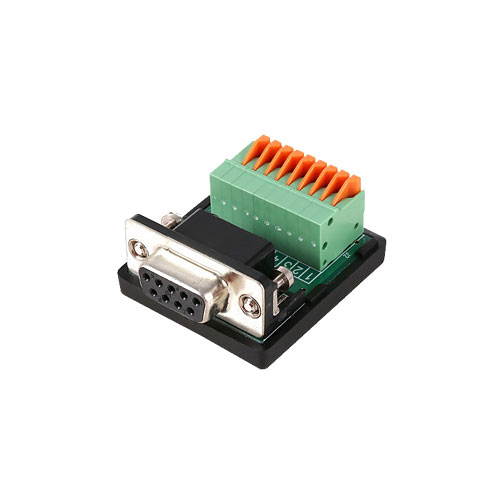

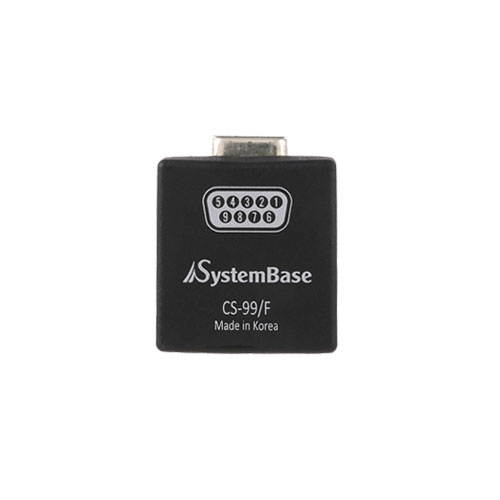

CS-99/F is DE9(female) to 9 pin terminal block converter without any screws.
When using the serial communication in a variety of industrial equipment, sometimes it requires to use terminal block instead of d-sub connector. In this case the user would have to make a separate cable for the serial port.
CS-99 is a product designed to solve such inconvenience.

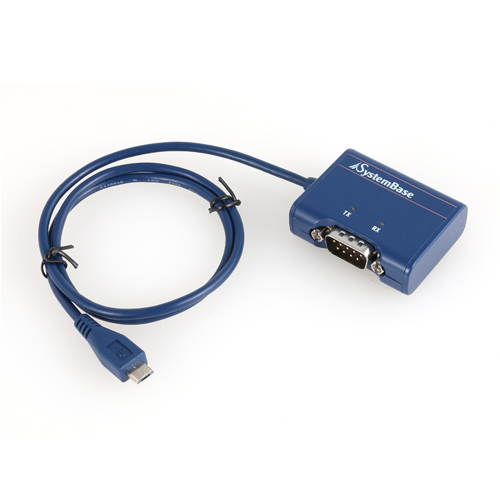

SystemBase - 1Port micro USB to Serial Converter RS232, Male Connector (Multi-1/micro USB RS232)
Easily and quickly add additional serial ports to your system through the USB port. The Multi-1/micro USB deliver maximum performance up to 921.6Kbps. Combine that with the need for fewer components and you get costeffective and reliable connections to your serial devices. The USB to serial multi-ports support most Windows and Linux operating systems and include 15,000 volt surge suppression eliminating blown ports. The Multi-1/micro USB includes a 1 port panel with a DE9 connector and are available in two models, RS232 and RS422/RS485. Simply plug in the USB connector and you have a COM port to connect modems, printers, bar-code scanners or other any serial devices.

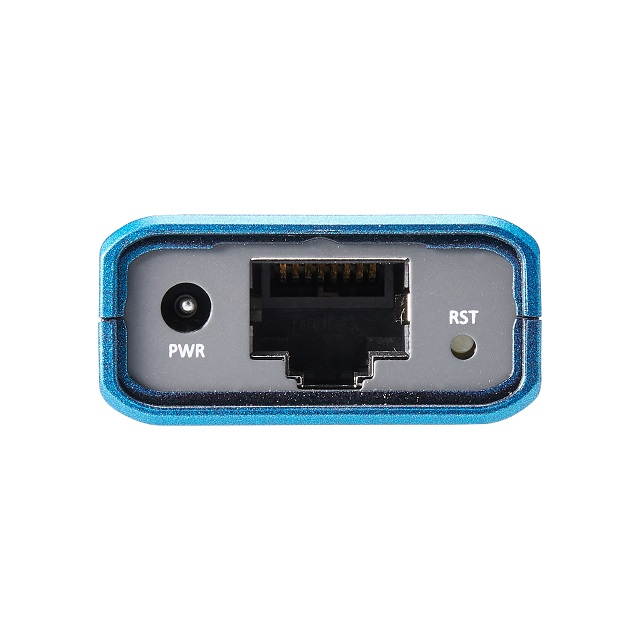

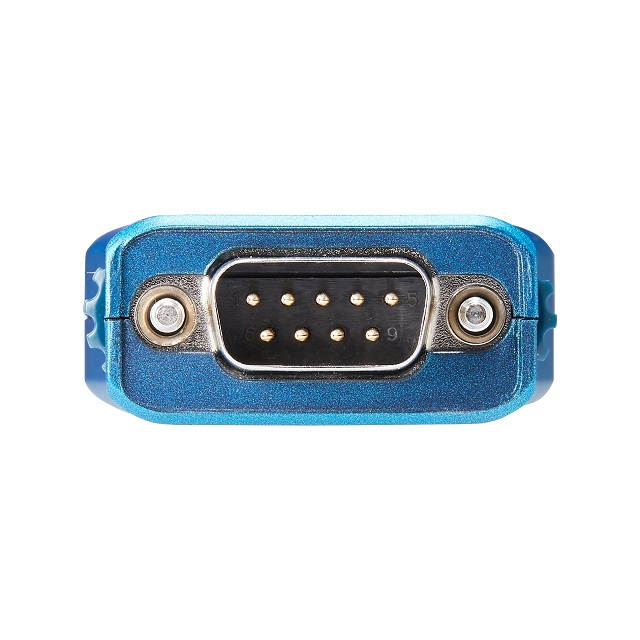

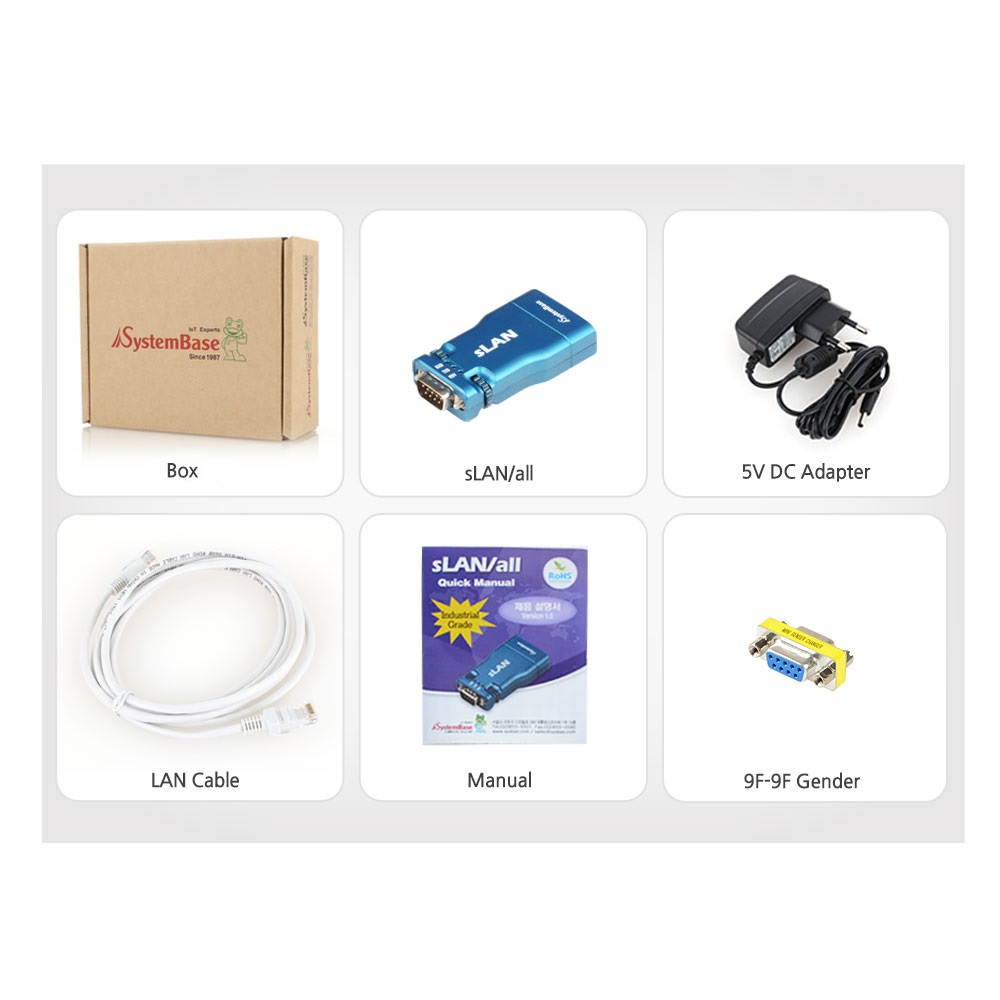

SystemBase – 1Port RS232/422/485 to RJ45 Ethernet LAN Network adapter, DB9 Serial port Male to RJ45 Female adapter, Speed up to 921.6Kbps (sLAN/All)
- Overveiw

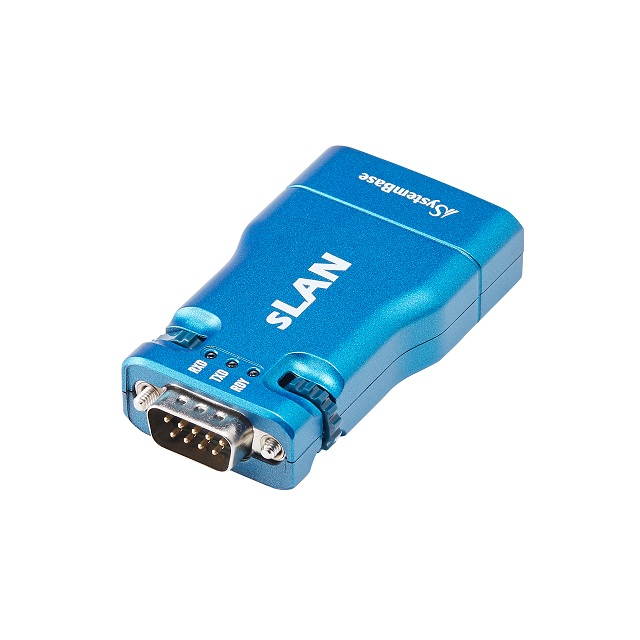

sLAN/all can be used anywhere in the network to connect to serial device using the 9 pin D-sub interface with DE shell size for the RS-232/422/485. This device server supports maximum 921.6Kbps for the RS-232/422/485 serial interface. The COM Redirector is provided for remote control, monitoring and data communication. It is ideal for POS, factory automation and building automation field.
- Provides Ethernet Based Serial Communication
Easily connect RS-232/422/485 serial devices to your network using sLAN which can be conveniently placed next to your serial equipment.
- High Performance and Reliablility
Considering unstable power supply in the industrial field, protections against, over-voltage, over-current, and reverse voltage were provided as well as using the reliable components when designing the product for superior reliability and high performance at the same time.
- Provides Various Software Utilities
The SerialGate series comes with following utilities:
*COM Port Redirector: This utility allows the users to add virtual port to the PC without modifying the client software to enable the serial communication.
*TestView™: A utility for checking performance and stability of the data communication between the serial ports and Ethernet port.

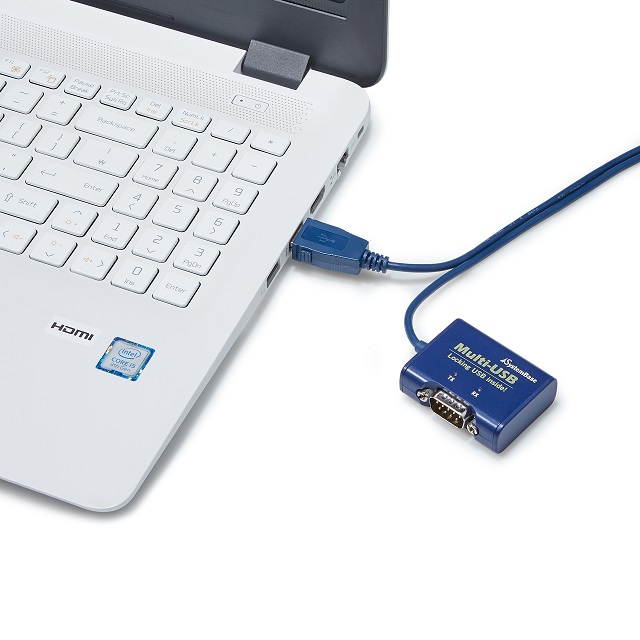

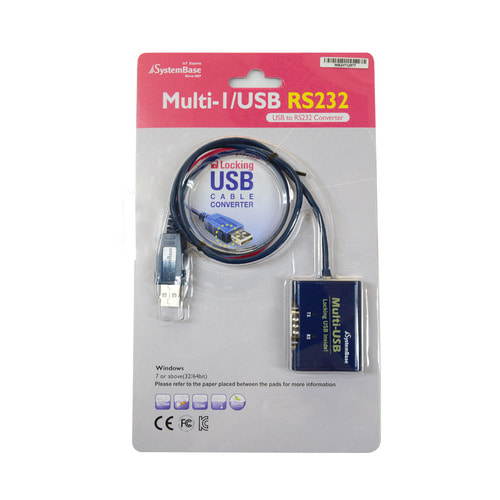

SystemBase - Made In Korea - 1Port USB 2.0 to RS232 Serial adapter Cable (USB to RS232 Converter), DB9 Male Connector, 1.96ft USB Cable lock (Multi-1/
Easily and quickly add additional serial ports to your system through the USB port. The Multi-1/USB deliver maximum performance up to 921.6Kbps. Combine that with the need for fewer components and you get costeffective and reliable connections to your serial devices. The USB to Serial Multiports support most Windows and Linux operating systems and include 15,000 volt surge suppression eliminating blown ports. The Multi-1/USB includes a 1 port panel with a DB9 connector and is available in two models, RS232 and RS422/RS485. Simply plug in the USB connector and you have a COM port to connect modems, printers, bar-code scanners or other any serial devices.
Connector Panel:
The Multi-1/USB plugs into the USB port on your system. The connector panel has a DB9 male connector and is available with support for either RS232 or RS422/RS485. LEDs next to the connector provide visual communication status of the ports. No additional power supply is required.
Supports USB Specification Revision 2.0:
The Multi-1/USB supports revision 2.0 and is compatible with revision 1.1
15KV Surge Protection – Built-in:
Don’t risk blown ports and down time. The Multi-1/USB has built-in 15,000 volt surge suppression to protect against electrical spikes and blown ports giving you more reliable communications.

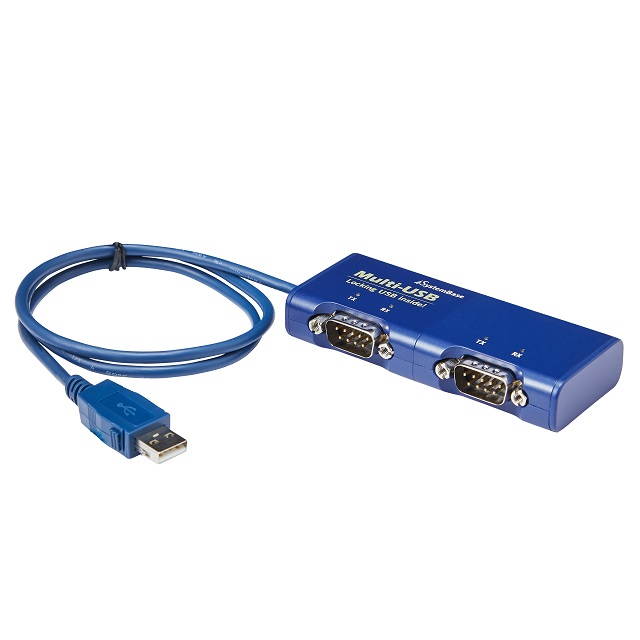

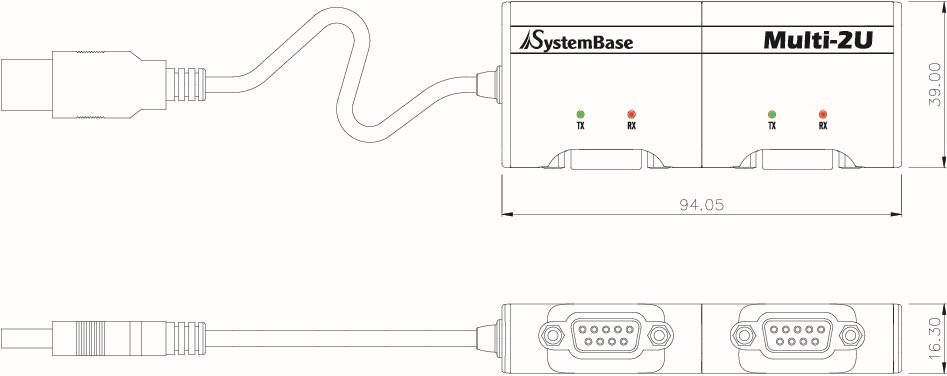

SystemBase - 2Ports USB to Serial Converter RS232, Male Connector, 1.96ft USB Cable lock (Multi-2/USB RS232)
Easily and quickly add additional serial ports to your system through the USB port. The Multi-2/USB deliver maximum performance up to 921.6Kbps. Combine that with the need for fewer components and you get costeffective and reliable connections to your serial devices. The USB to Serial Multiports support most Windows and Linux operating systems and include 15,000 volt surge suppression eliminating blown ports. The Multi-2/USB includes a 2 port panel with a DB9 connector and is available in two models, RS232 and RS422/RS485. Simply plug in the USB connector and you have a COM port to connect modems, printers, bar-code scanners or other any serial devices.
Connector Panel:
The Multi-2/USB plugs into the USB port on your system. The connector panel has two DB9 male connectors and is available with support for either RS232 or RS422/RS485. LEDs next to the connector provide visual communication status of the ports. No additional power supply is required.
Supports USB Specification Revision 2.0:
The Multi-2/USB supports revision 2.0 and is compatible with revision 1.1
15KV Surge Protection – Built-in:
Don’t risk blown ports and down time. The Multi-2/USB has built-in 15,000 volt surge suppression to protect against electrical spikes and blown ports giving you more reliable communications.

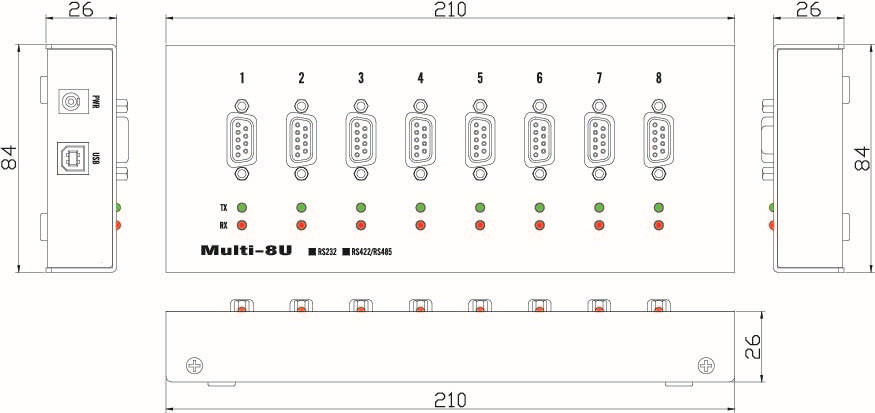

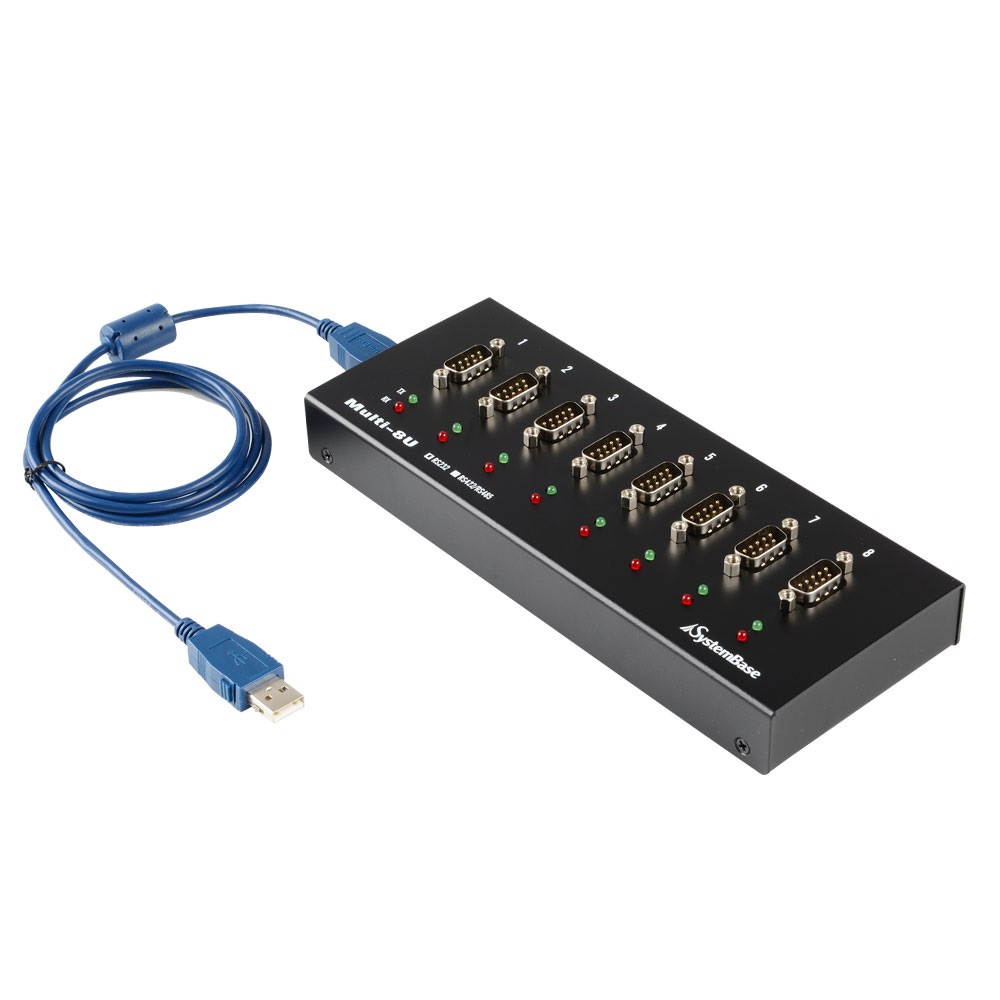

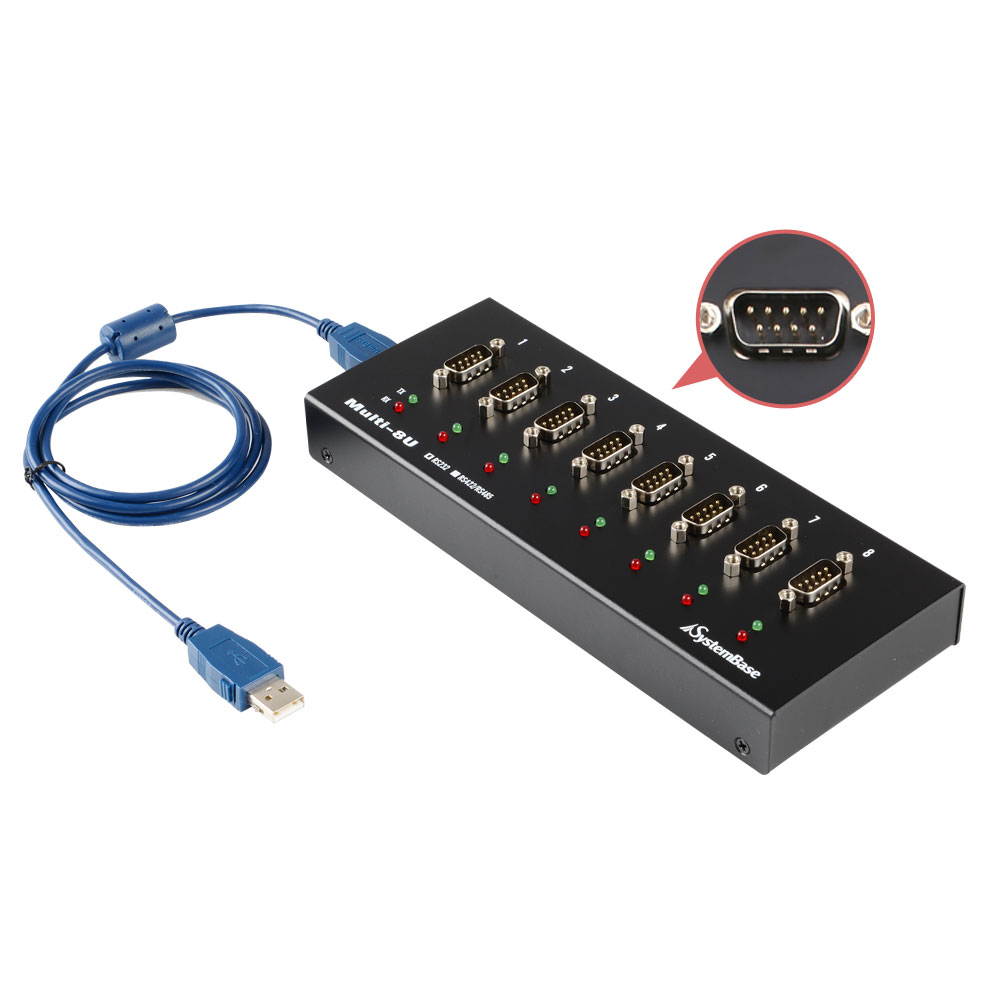

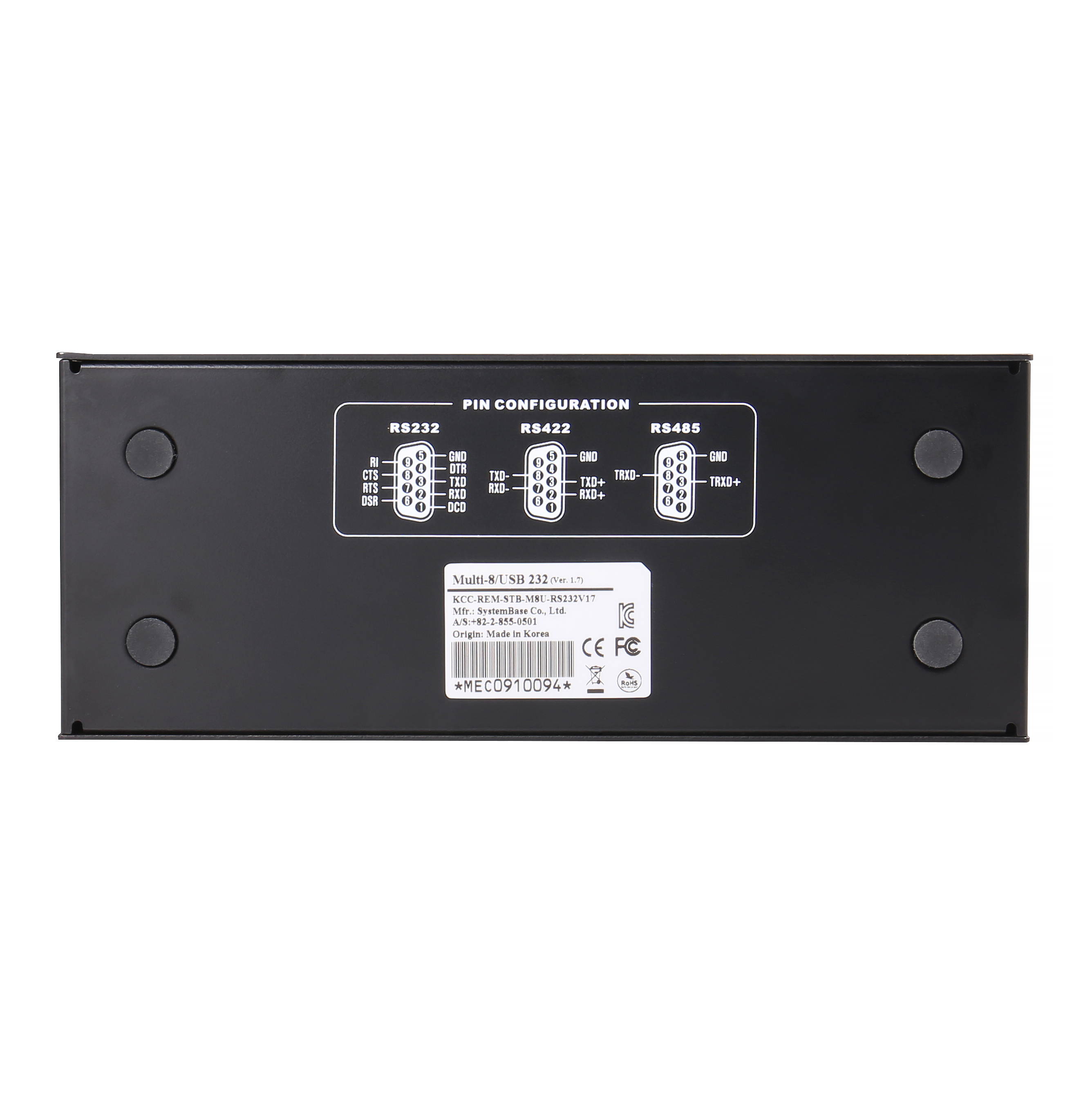

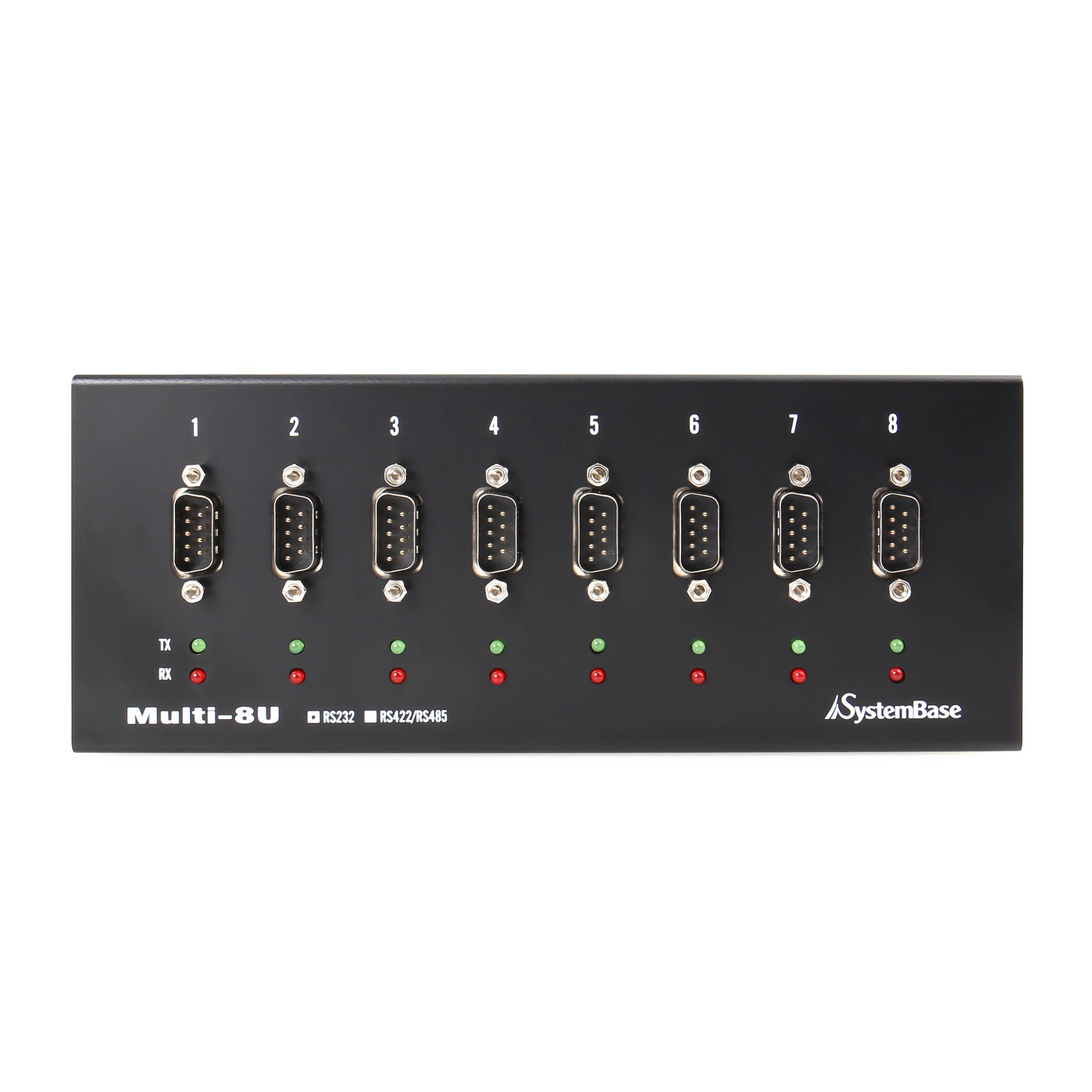

SystemBase - 8Ports USB to Serial Converter RS232, Male Connector, 4.92ft USB Cable lock (Multi-8/USB RS232 V1.7)
Easily and quickly add additional serial ports to your system through the USB port. The Multi-8U delivers maximum performance up to 921.6Kbps. Combine that with the need for fewer components and you get costeffective and reliable connections to your serial devices.
The USB to Serial Multiports support most Windows and Linux operating systems and include 15,000 volt surge suppression eliminating blown ports. The Multi-8U includes a 8 port panel with a DB9 connector and is available in two models, RS232 and RS422/RS485. Simply plug in the USB connector and you have a COM port to connect modems, printers, bar-code scanners or other any serial devices.
Connector Panel:
The Multi-8U plugs into the USB port on your system. The connector panel has eight DB9 female connectors and is available with support for either RS232 or RS422/RS485. LEDs next to the connector provide visual communication status of the ports. No additional power supply is required.
Supports USB Specification Revision 2.0:
The Multi-8U supports revision 2.0 and is compatible with revision 1.1
15KV Surge Protection – Built-in:
Don’t risk blown ports and down time. The Multi-8U has built-in 15,000 volt surge suppression to protect against electrical spikes and blown ports giving you more reliable communications.
SystemBase - 8Ports USB to Serial Converter RS422/RS485 Male Connector, 4.92ft USB Cable lock (Multi-8/USB COMBO V1.7)
Easily and quickly add additional serial ports to your system through the USB port. The Multi-8U delivers maximum performance up to 921.6Kbps. Combine that with the need for fewer components and you get costeffective and reliable connections to your serial devices.
The USB to Serial Multiports support most Windows and Linux operating systems and include 15,000 volt surge suppression eliminating blown ports. The Multi-8U includes a 8 port panel with a DB9 connector and is available in two models, RS232 and RS422/RS485. Simply plug in the USB connector and you have a COM port to connect modems, printers, bar-code scanners or other any serial devices.
Connector Panel:
The Multi-8U plugs into the USB port on your system. The connector panel has eight DB9 female connectors and is available with support for either RS232 or RS422/RS485. LEDs next to the connector provide visual communication status of the ports. No additional power supply is required.
Supports USB Specification Revision 2.0:
The Multi-8U supports revision 2.0 and is compatible with revision 1.1
15KV Surge Protection – Built-in:
Don’t risk blown ports and down time. The Multi-8U has built-in 15,000 volt surge suppression to protect against electrical spikes and blown ports giving you more reliable communications.

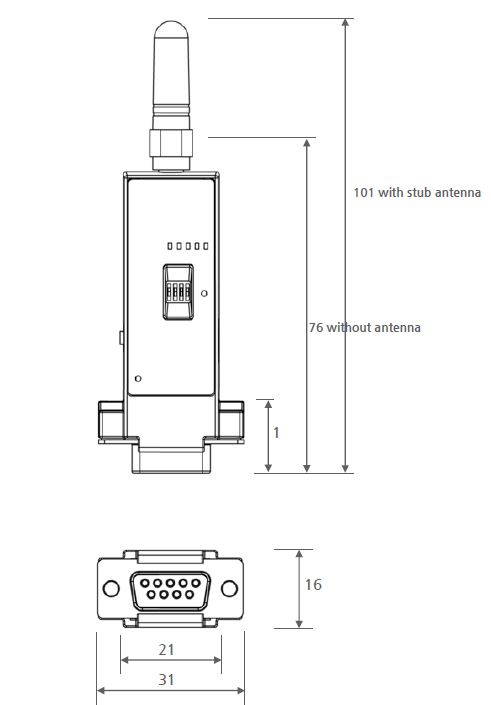

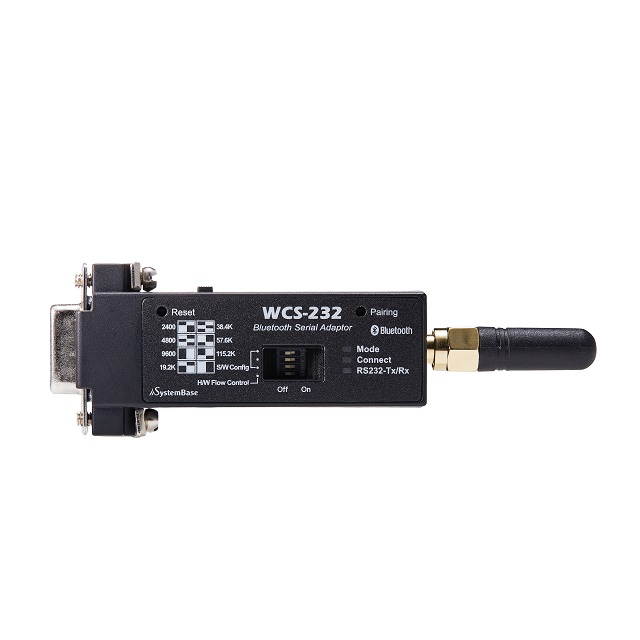

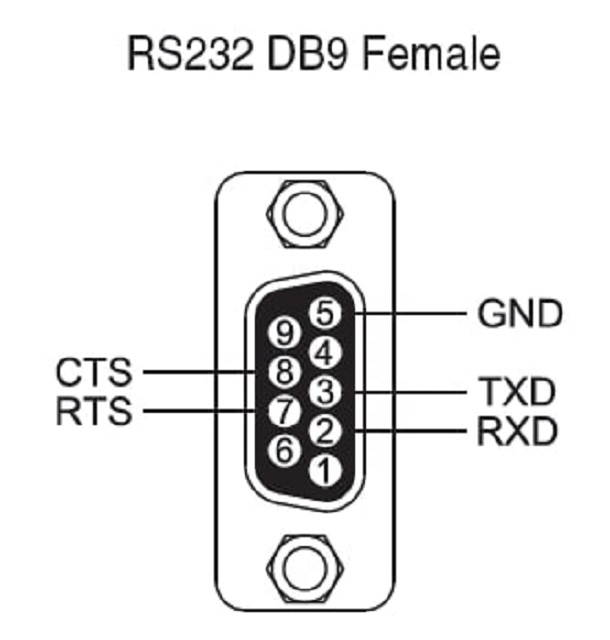

SystemBase - RS232 to Bluetooth and Bluetooth to RS232 Serial Converter, Long Range Bluetooth Serial Adapter, RS232 Bluetooth Class1 Adapter 2pcs/Pack

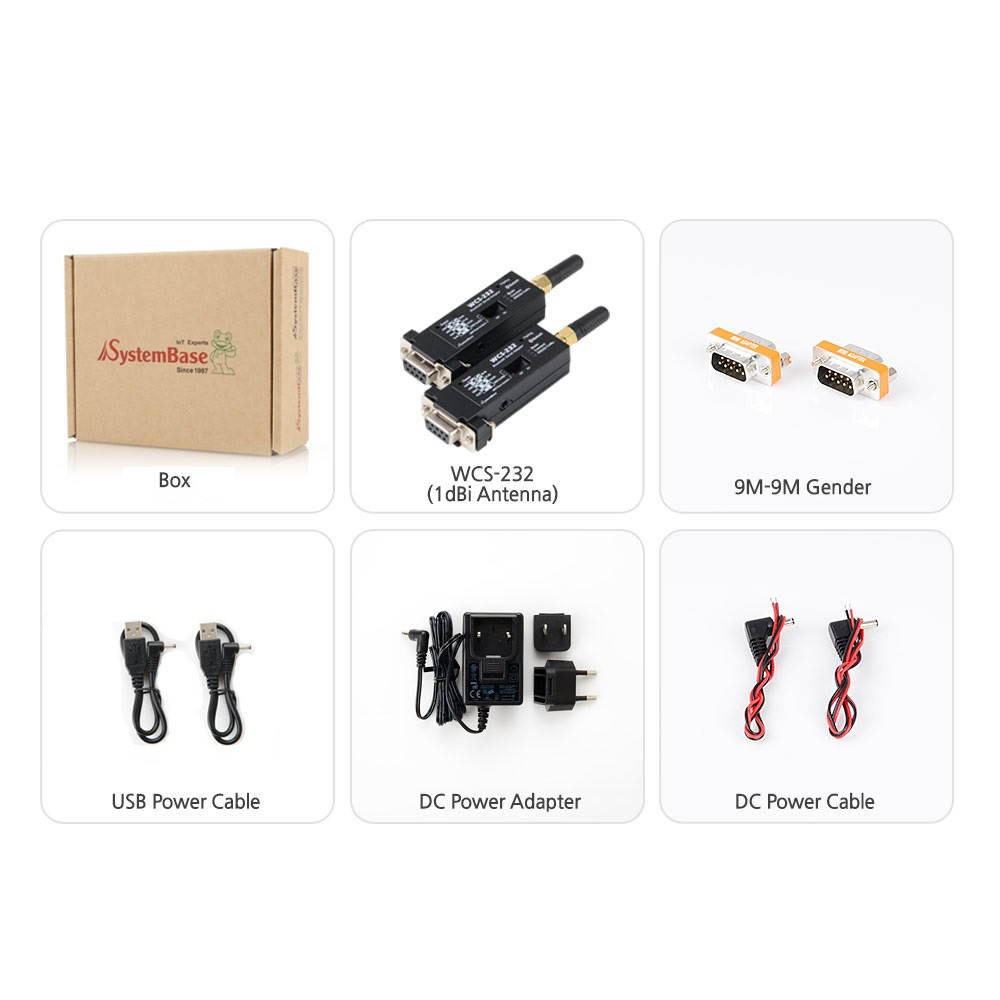

WCS-232 converts RS232 signals to Bluetooth. If both ends of devices use WCS-232, wireless 1:1 data communication is available. The compact design allows it to be easily connected to a PC, laptop, PDA or other devices and is fully compatible with the serial COM ports in the PC.
Enhanced Communication Distance
The Bluetooth is an industry standard for short-range wireless communication for personal use. At the time when it was first developed, the distance was approximately 10m. However, using the Bluetooth connection to a variety of devices based on the communication range is classified into three kinds of class. The Class 1 is to have the communication distance of up to 100m , Class 2 is 30m, Class 3 supports the communication distance up to 10m. The WCS-232 is a Bluetooth Class 1 device. It will operate in a factories and the communication is possible without the constraints of distance.
Bluetooth v2.0 + EDR
‘EDR’ stands for ‘Enhanced Data Rate’. THE EDR allows fast data transfer technology in Bluetooth communication. Bluetooth is initially developed to support the communication speed up to 1Mbps, but when EDR function is used, the maximum communication speed is increased up to 3Mbps.
SystemBase - 8Ports USB to Serial Converter RS422/RS485 Female Connector, 4.92ft USB Cable lock (Multi-8/USB COMBO V1.6)
Easily and quickly add additional serial ports to your system through the USB port. The Multi-8U delivers maximum performance up to 921.6Kbps. Combine that with the need for fewer components and you get costeffective and reliable connections to your serial devices.
The USB to Serial Multiports support most Windows and Linux operating systems and include 15,000 volt surge suppression eliminating blown ports. The Multi-8U includes a 8 port panel with a DB9 connector and is available in two models, RS232 and RS422/RS485. Simply plug in the USB connector and you have a COM port to connect modems, printers, bar-code scanners or other any serial devices.
Connector Panel:
The Multi-8U plugs into the USB port on your system. The connector panel has eight DB9 female connectors and is available with support for either RS232 or RS422/RS485. LEDs next to the connector provide visual communication status of the ports. No additional power supply is required.
Supports USB Specification Revision 2.0:
The Multi-8U supports revision 2.0 and is compatible with revision 1.1
15KV Surge Protection – Built-in:
Don’t risk blown ports and down time. The Multi-8U has built-in 15,000 volt surge suppression to protect against electrical spikes and blown ports giving you more reliable communications.

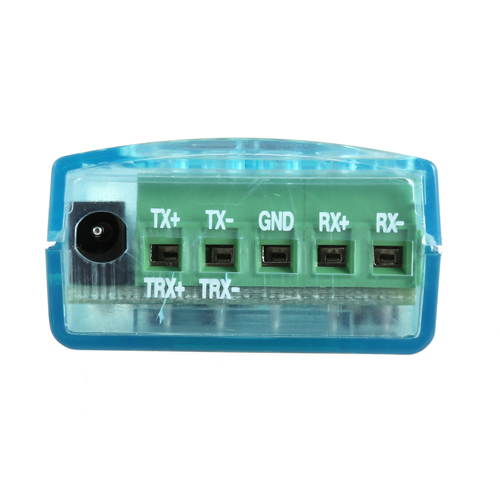

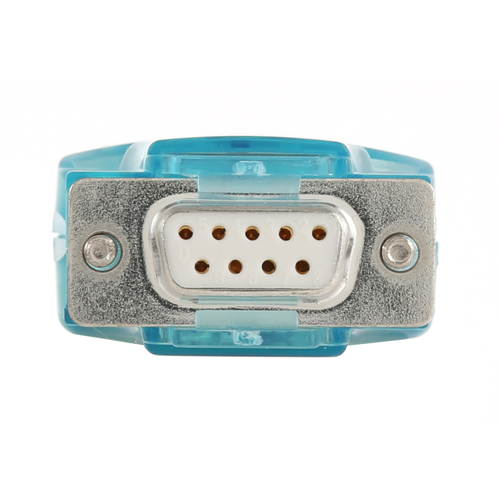

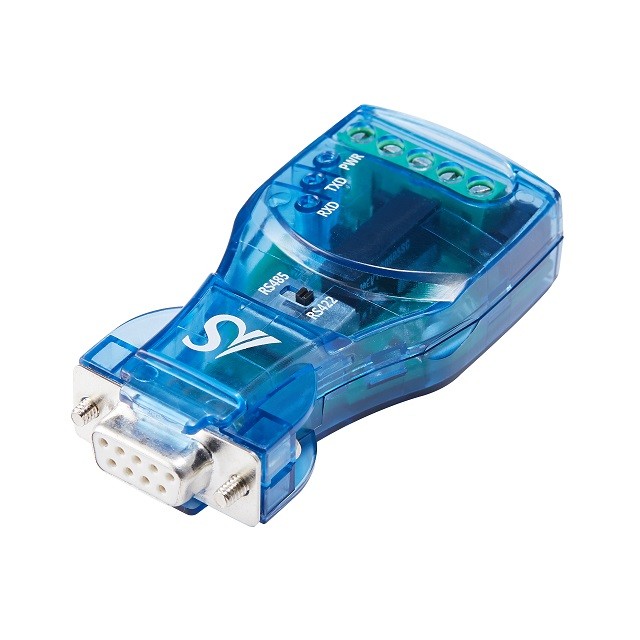

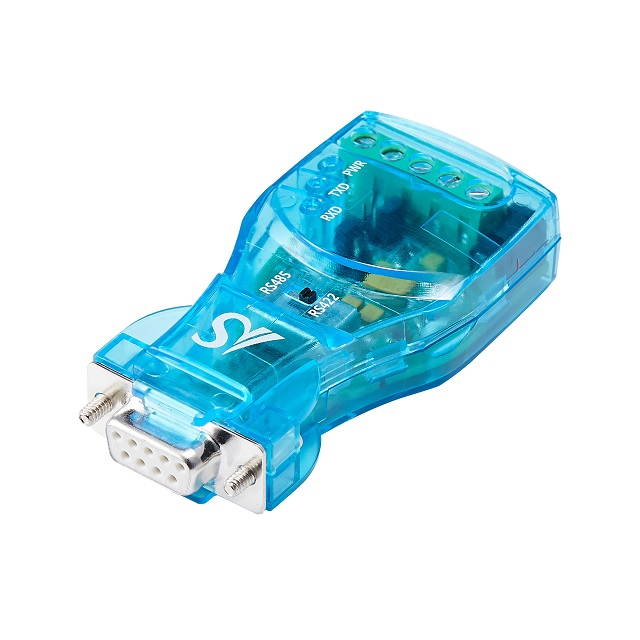

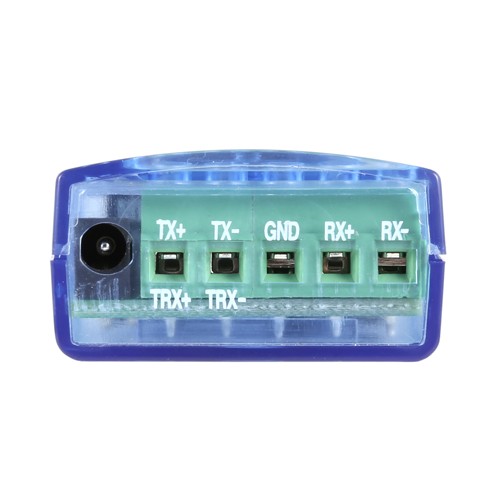

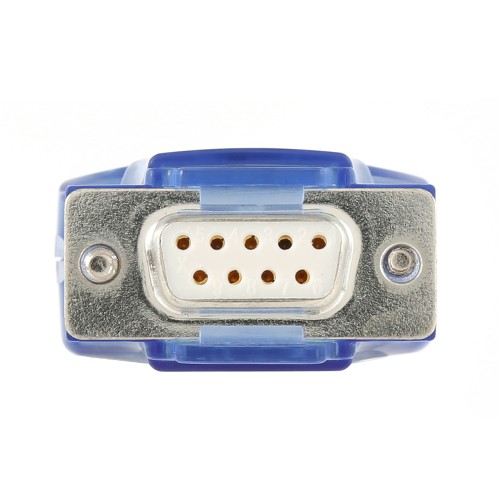

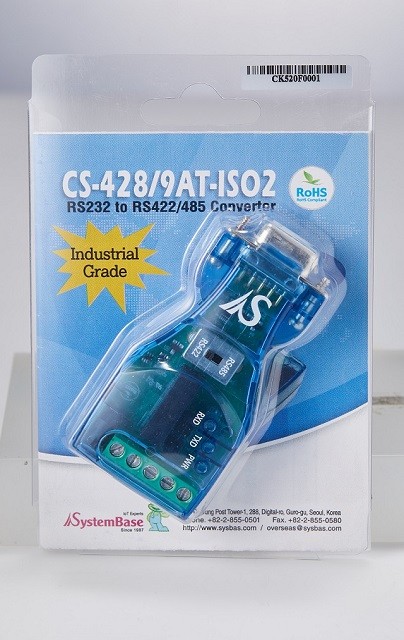

SystemBase - Industrial Grade Port-Powered RS232 to RS422/RS485 Serial Converter (CS-428/9AT PRO2)
– Maximum Communication Speed: 921.6K bps – Industrial Grade Temperature: -40~85°C (IEC 60068-2-30/33) – RS422/RS485 side: absorb 400W surge from waveform of 10/1000µs peak pulse – ESD Protection (IEC 61000-4-2: ESD level 4 protection) – External power not required (When DTR signal line is enabled) – Hardware-based Auto Toggling – RS422/RS485 mode selectable by external switch – Max. 10 Devices Connectable for RS422 Multi-Drop Mode – Max. 10 Devices Connectable for RS485 Mode – Power: 9~12V, 500mA CS-428/9AT-PRO2 converts RS232 signals to RS422 or 485 and is the smallest converter available on the market. It is a fast and efficient solution to overcome distance limitations of RS232 or for connecting to industrial devices with an RS422/RS485 interface. No additional software is required for operation. With an easily accessible DIP switch you can configure the interface for RS422 or RS485. The CS-428/9AT-PRO2 is fully compatible with the serial COM port on your PC. Auto RTS Control (Auto Toggling) The CS-428/9AT-PRO2 has a built-in hardware feature that performs automatic toggling to prevent devices from sending data simultaneously. This operation is crucial when multiple devices are connected to prevent electrical collisions that lead to errors and unstable communications. What is RS485 Echo Mode? Different from RS485 Non-echo mode, RS485 Echo Mode enables the output signal line to function as the input signal. Therefore, it is not necessary to read the echoed data to confirm whether the data sent crashes with data sent by another device. On CS-428/9AT-PRO2, all operations are controlled by the hardware so no additional modifications are required to the application program.

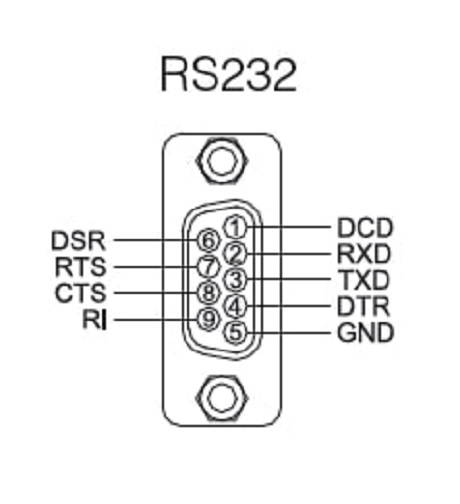

SystemBase - 1Port USB Type C to Serial Converter RS232, Male Connector (Multi-1/USB-C RS232)
Easily and quickly add additional serial ports to your system through the USB-C port. The Multi-1/USB-C deliver maximum performance up to 921.6Kbps. Combine that with the need for fewer components and you get cost effective and reliable connections to your serial devices. The USB-C to serial multi-ports support most Windows and Linux operating systems and include 15,000 volt surge suppression eliminating blown ports. The Multi-1/USB-C includes a 1 port panel with a DE9 connector and are available in RS232 . Simply plug in the USB connector and you have a COM port to connect modems, printers, bar-code scanners or other any serial devices.

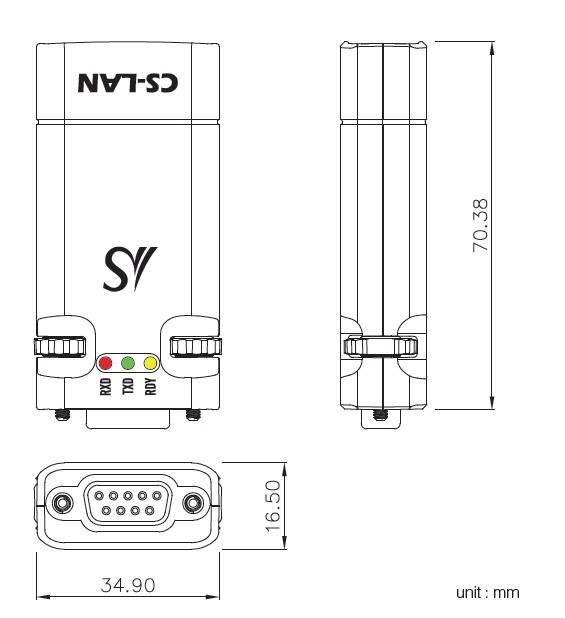

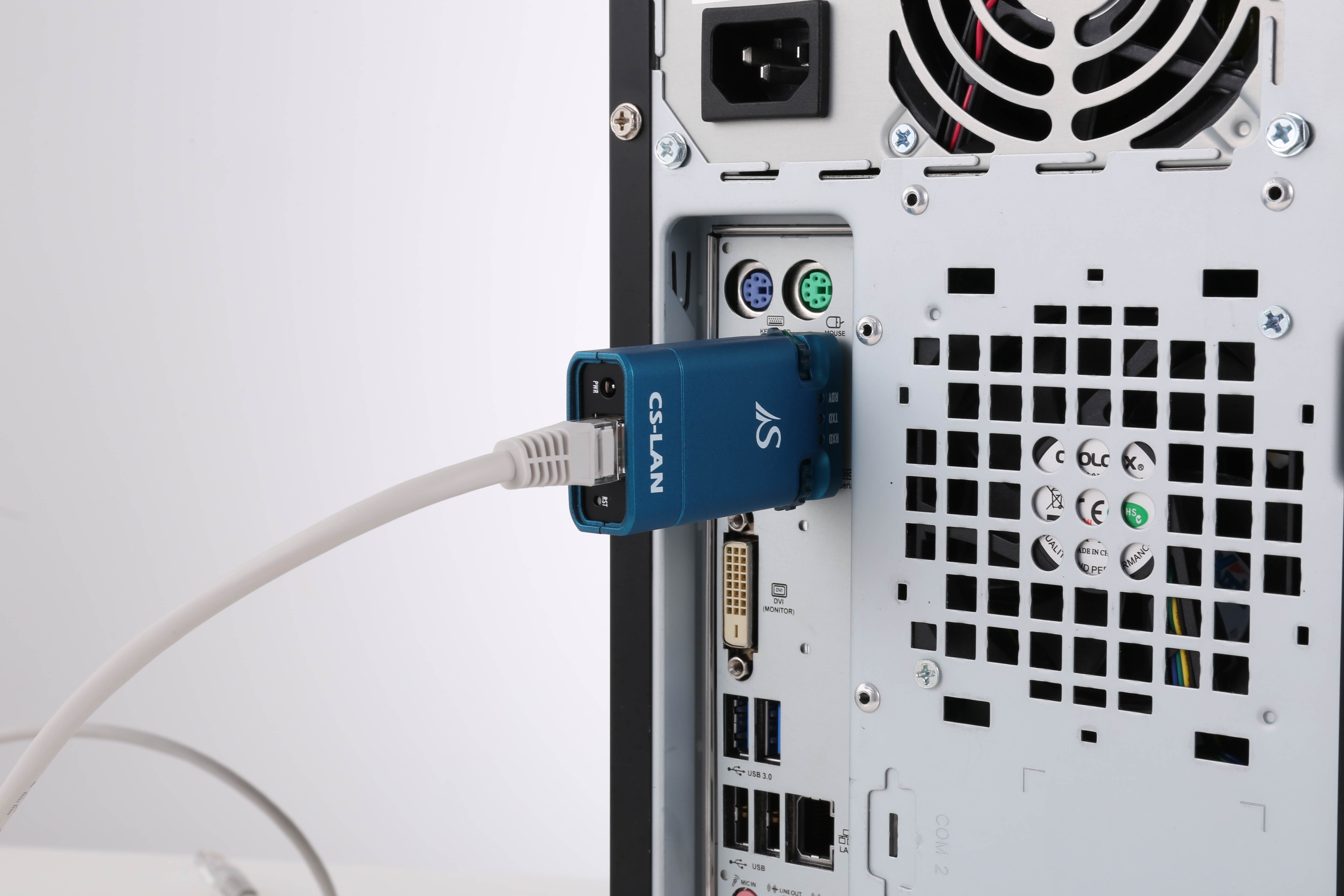

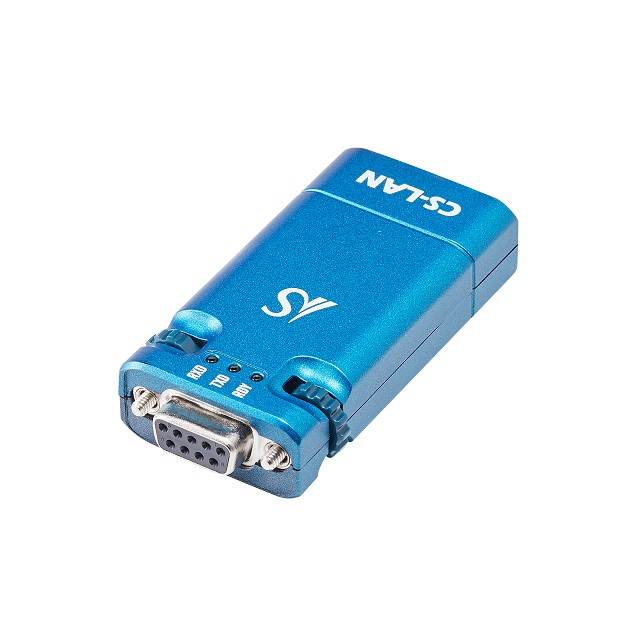

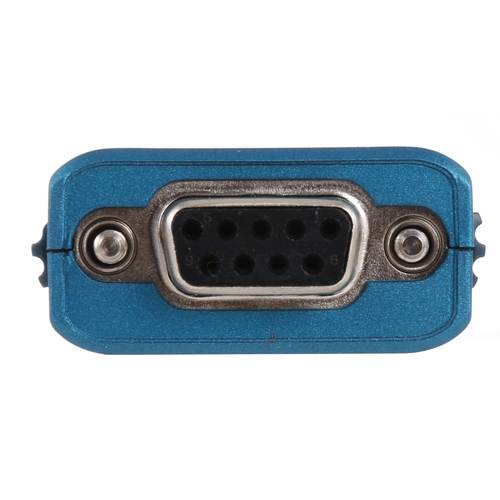

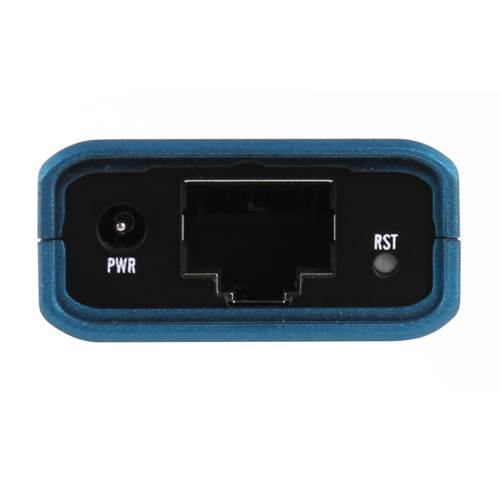

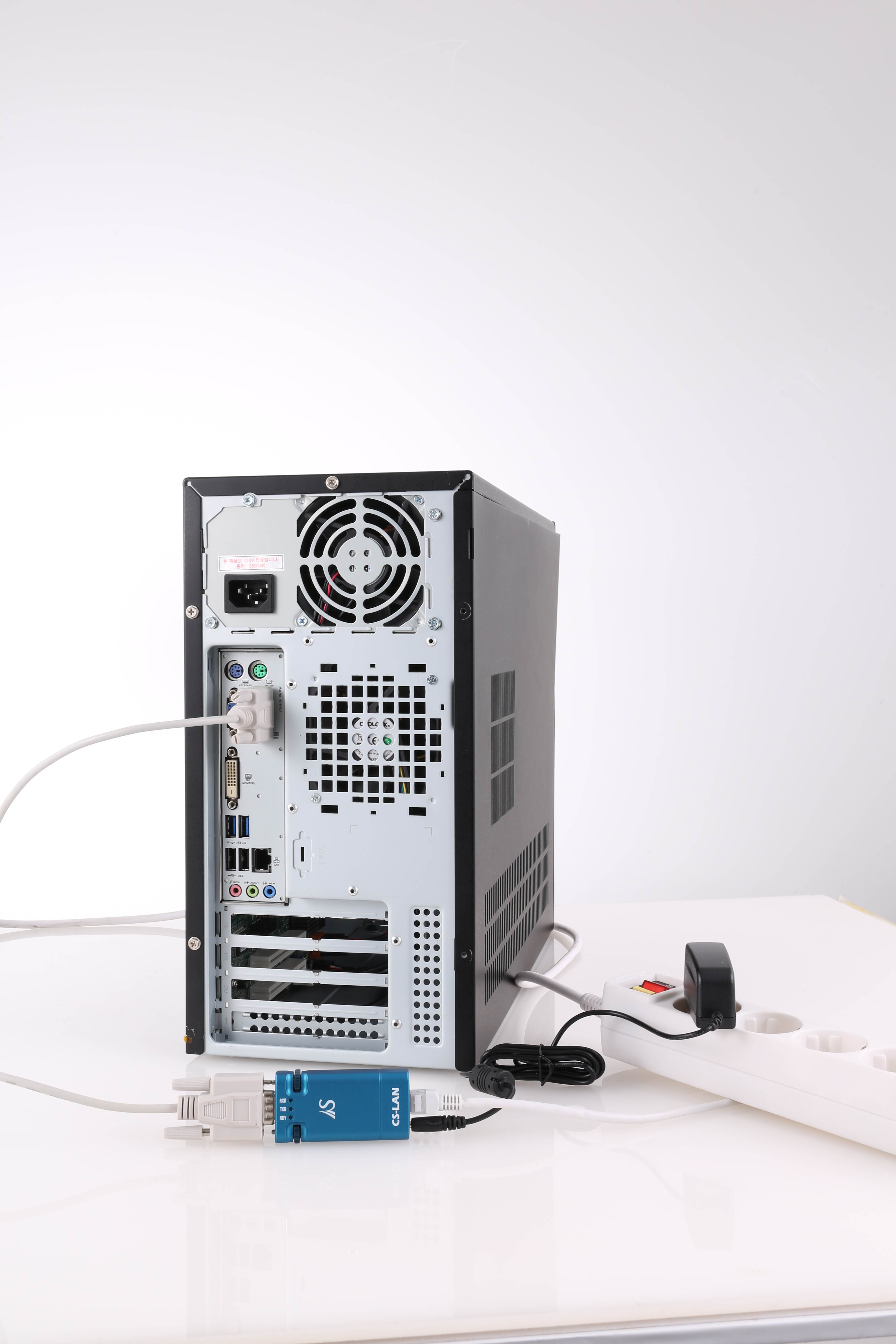

SystemBase - RS232 Serial to RJ45 Ethernet Adapter/IP Device Server Ethernet Converter (CS-LAN)
CS-LAN can be used anywhere in the network to connect to serial device using the 9 pin D-sub interface with DE shell size for the RS-232. This device server supports maximum 921.6K bps for the RS-232 serial interface. The COM Redirector is provided for remote control, monitoring and data communication. It is ideal for POS, factory automation and building automation field.
Provides Ethernet Based Serial Communication
Easily connect RS-232 serial devices to your network using CS-LAN which can be conveniently placed next to your serial equipment.
High Performance and Reliablility
Considering unstable power supply in the industrial field, protections against, over-voltage, over-current, and reverse voltage were provided as well as using the reliable components when designing the product for superior reliability and high performance at the same time.
Provides Various Software Utilities
The SerialGate series comes with following utilities:
COM Port Redirector: This utility allows the users to add virtual port to the PC without modifying the client software to enable the serial communication.
TestView™: A utility for checking performance and stability of the data communication between the serial ports and Ethernet port.

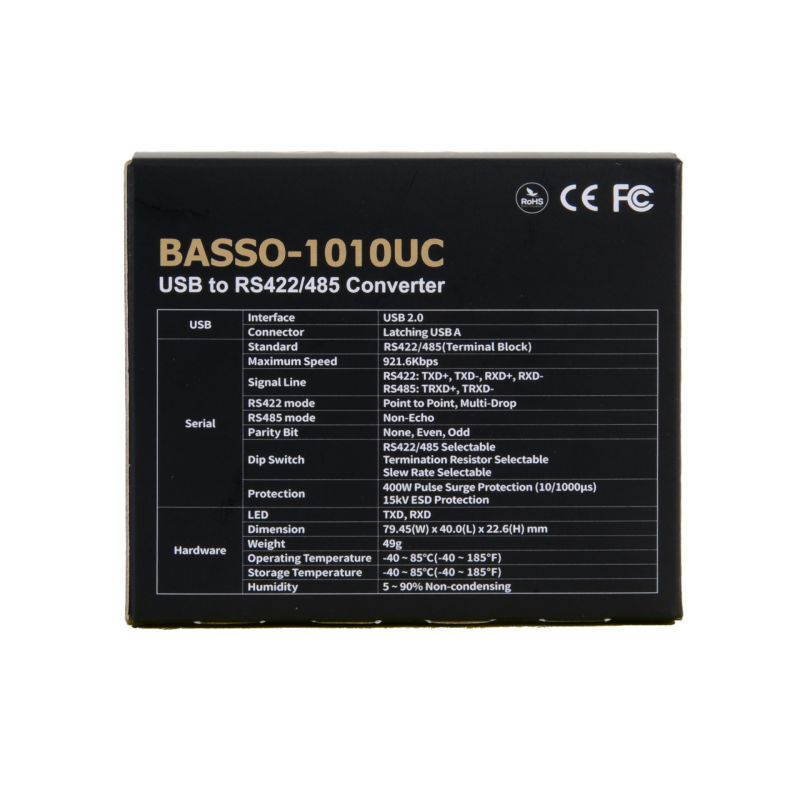

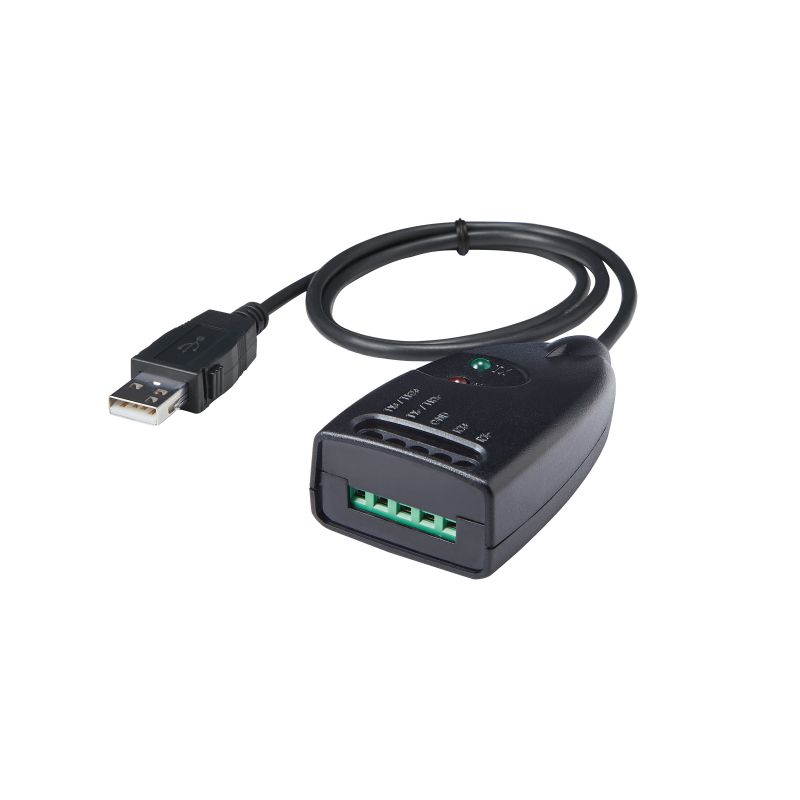

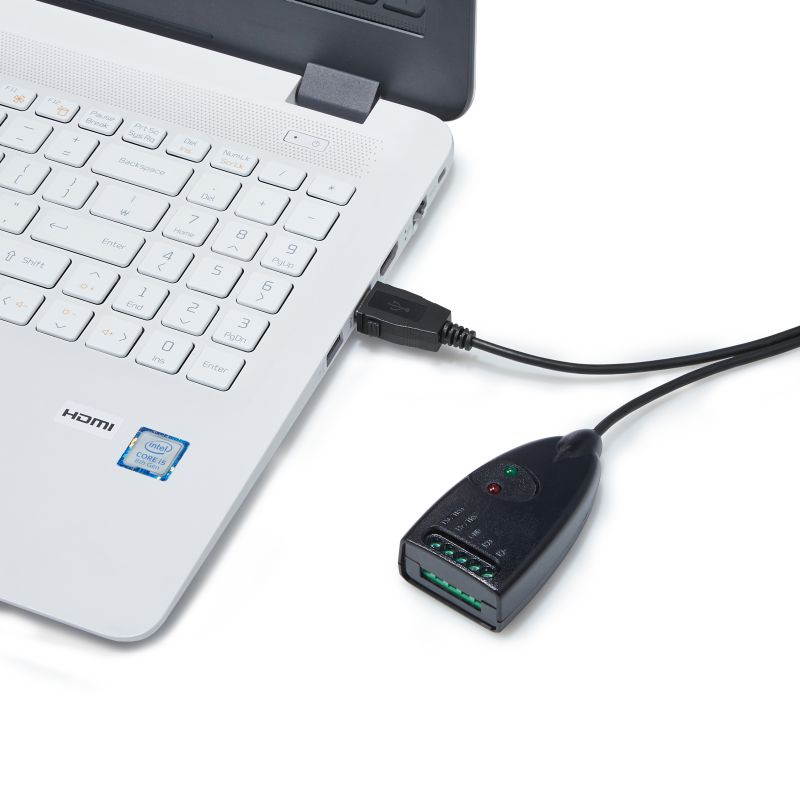

SystemBase - USB to 1port RS422/RS485 Terminal Block(5pin TBL) Serial Converter, Cable Length 1.97ft(0.6m), Latching applied USB 2.0, USB to RS422/485
BASSO-1010UC is an easy-to-use USB to serial converter that mounts serial communications ports to system via USB BUS. It supports serial communication speed of 921.6Kbps and built-in 15kV surge protector for compatibility and reliability.
RS-422/485
BASSO-1010UC includes 1 port serial panel with DB9 male connector and is available in RS-422/485 interface. Simply plugging in USB port will create COM port for connecting modems, printers, barcode scanners or any other serial devices. LED shows communication status of the port. No additional power supply is required.
USB Specification 2.0, Full-Speed
BASSO-1010UC supports USB 2.0 and is compatible with 1.1., supporting USB Full-Speed.
Latching USB Connector applied
SystemBase’s USB Serial Converters are all equipped with latching USB connector. Latches on connector side prevent USB from being detached by external shocks. It is compatible with existing USB connectors on the market.
Slew-Rate Limit Control
The BASSO-1010UC has a slew rate limiting function that inhibits electromagnetic emissions when communicating in RS-422/RS-485 interface. When this function is activated, the maximum communication speed is limited to 250kbps. However, it prevents malfunctioning of equipment in electromagnetic-sensitive environments such as hospitals and laboratories.

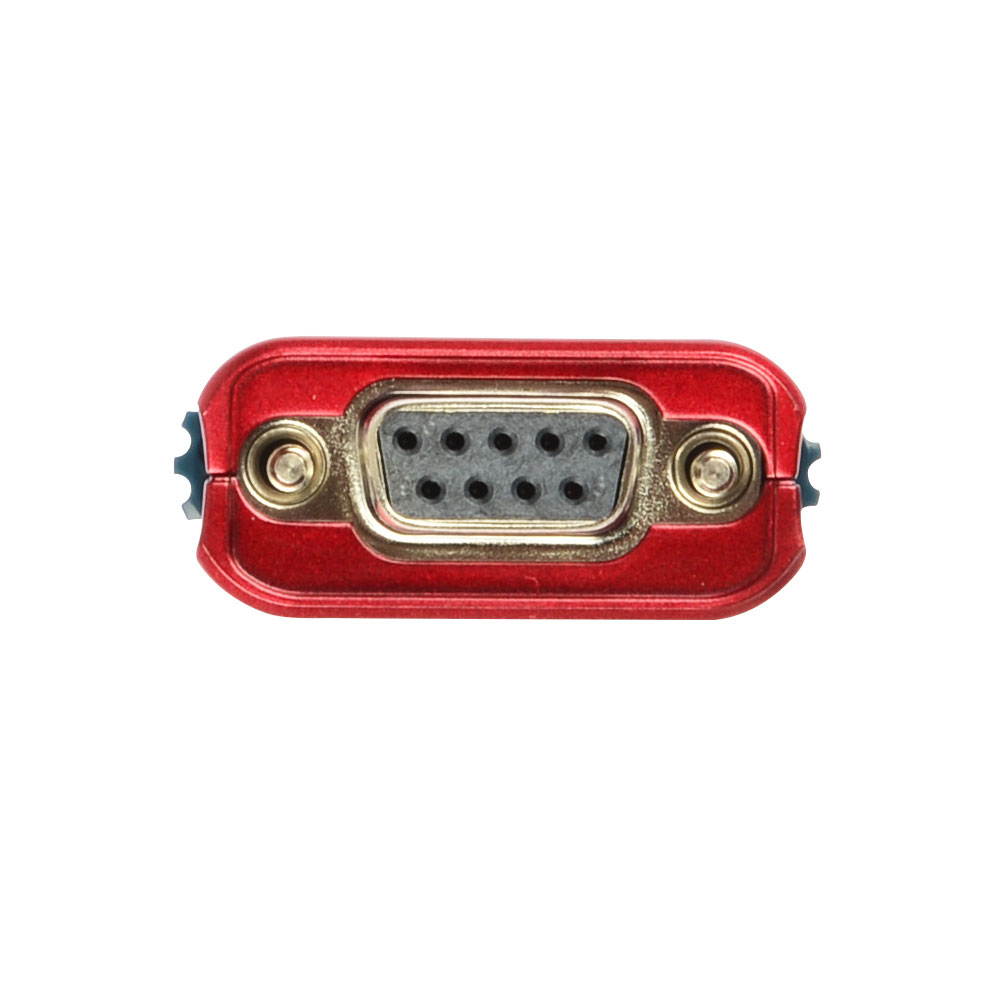

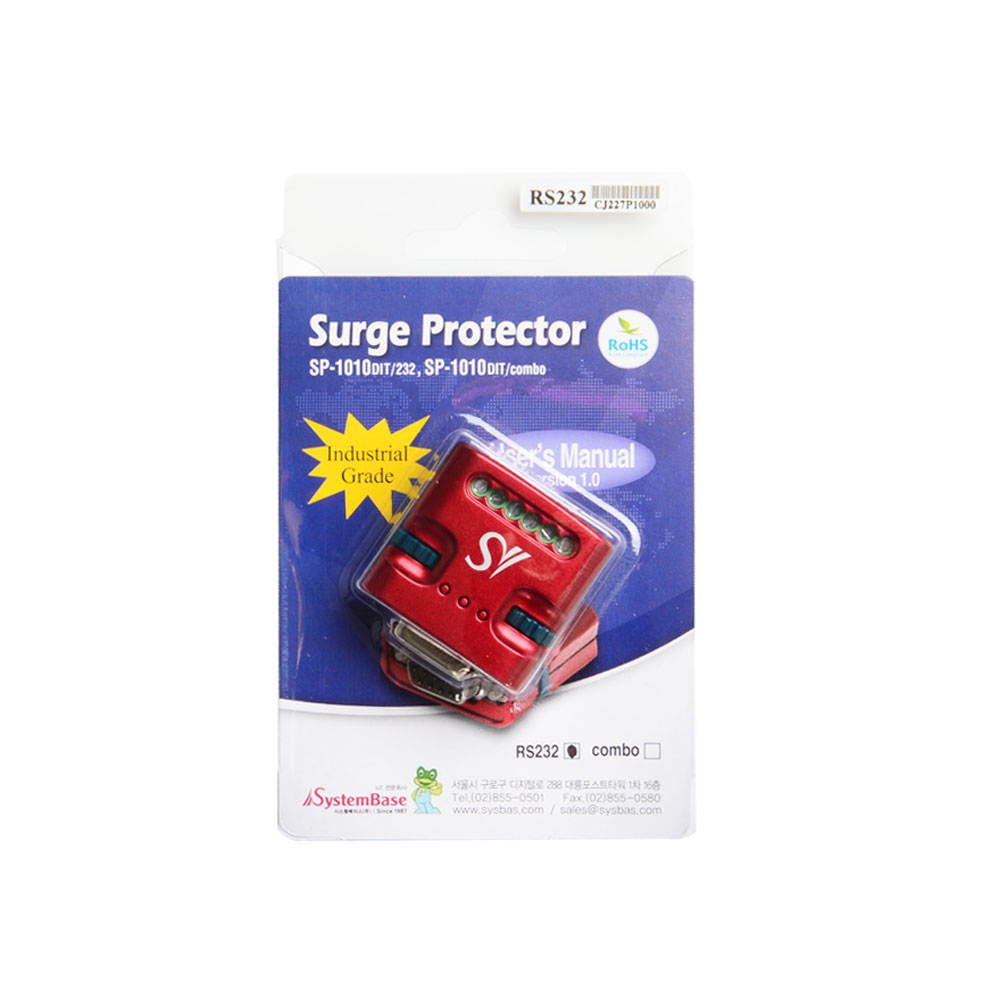

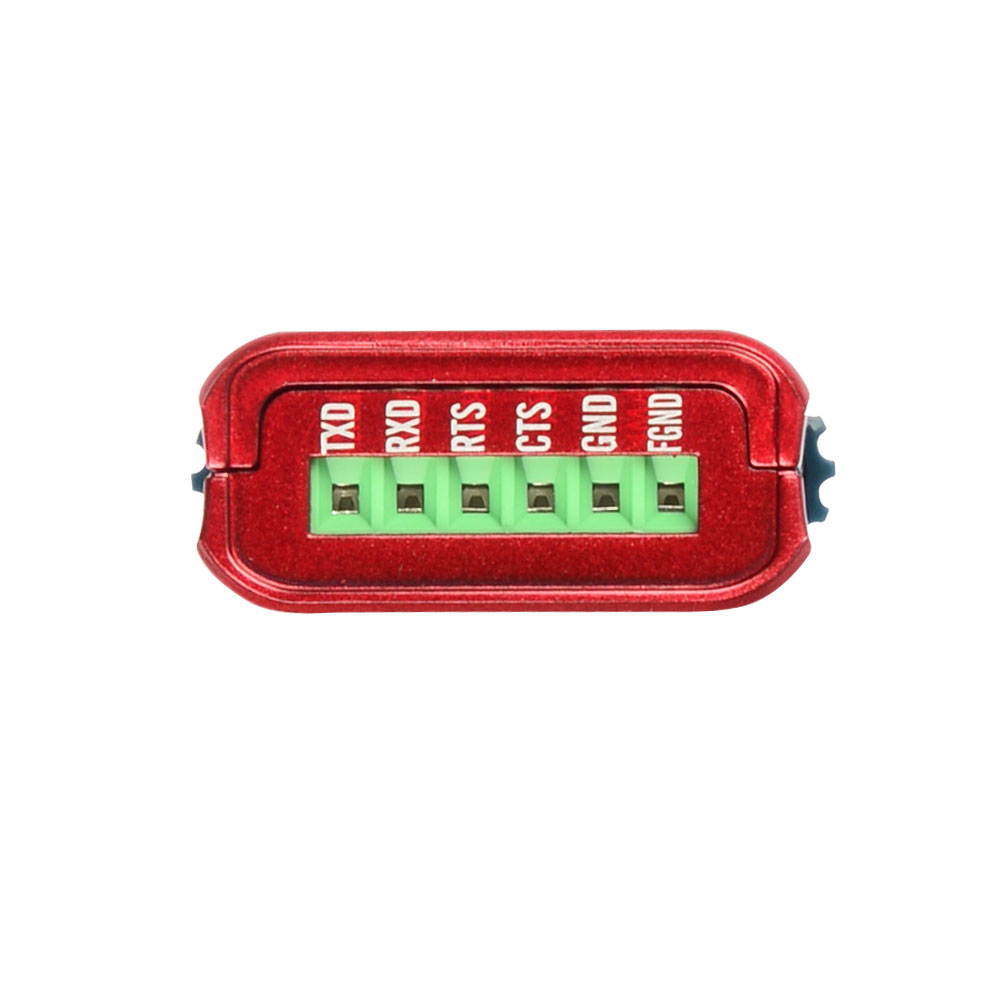

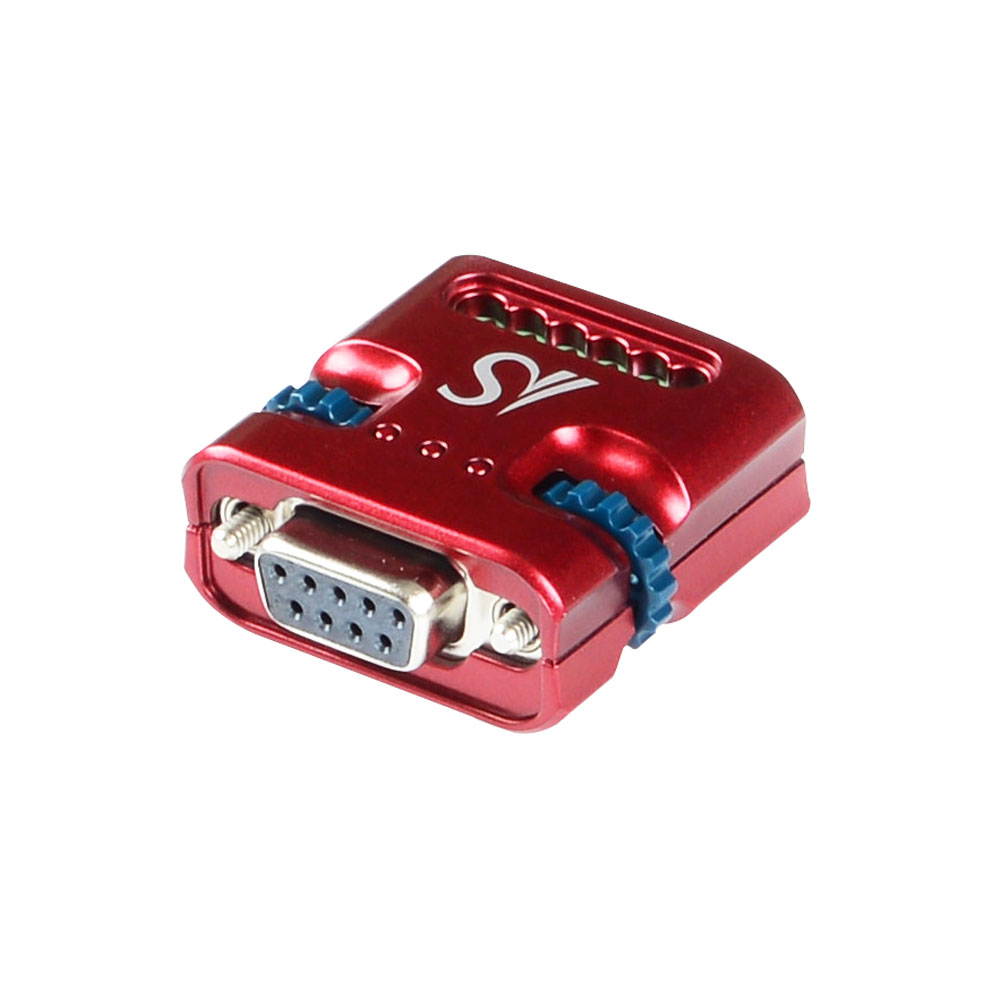

SystemBase - Industrial Grade Surge protector, RS232 signal lines to protect the equipment, DB9 Female Connector, Terminal block, mini size (SP-1010DI
The SP-1010DIT series are mounted on RS232 or RS422/RS485 signal lines to protect the equipment from surge impacts from various external equipment. It also supports industrial operating temperatures of -40ºF to 185ºF (-40°C to 85°C). Both RS232 and RS422/ RS485 sides are industrial surge protectors that meet IEC 61000 -4-2 (ESD), IEC 61000 -4-4 (EFT) and IEC 61000 -4-5 (Surge) specifications.
Proven Protection
External electromagnetic impacts (called surges) generated externally and applied to equipment temporarily or continuously causes errors in communication and equipment failure. The SP-1010DIT series provides high reliability and improves the user communication environment with validated surge protectors that have passed performance tests of international standards IEC 61000-4-2 (Level 4), IEC 61000-44, and IEC 64000-4-5 through authorized laboratories.
Protects RS232, RS422/485 signal lines

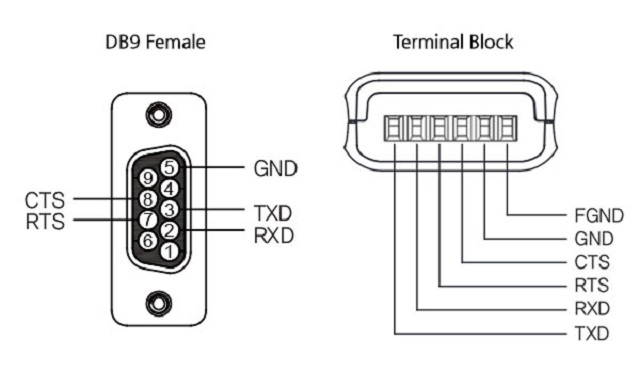

The SP-1010DIT series is divided into 232 version supporting RS232 specification and combo version supporting RS422/485 specification. 232 version protects TXD, RTS and CTS signal lines in RS232 specification, and combo version protects TXD+, TXD-, RXD+, RXD- signal lines in RS422 specification and TRXD+, TRXD signal lines in RS485 specification from external surges.

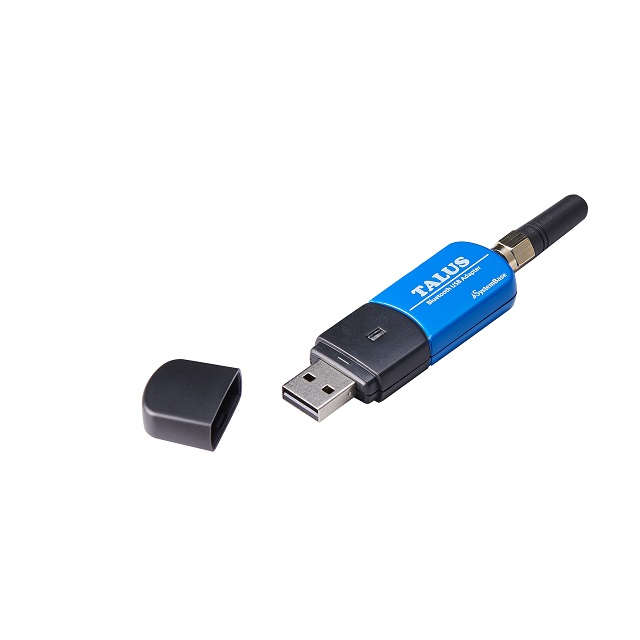

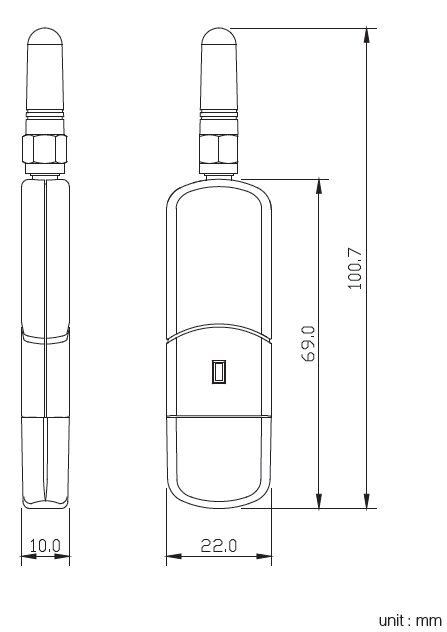

SystemBase - USB Bluetooth Dongle, USB to Bluetooth Converter, Bluetooth 4.0+EDR Class 1, Working distance 100m, USB 2.0 interface, Long Range Bluetoo
- Overview

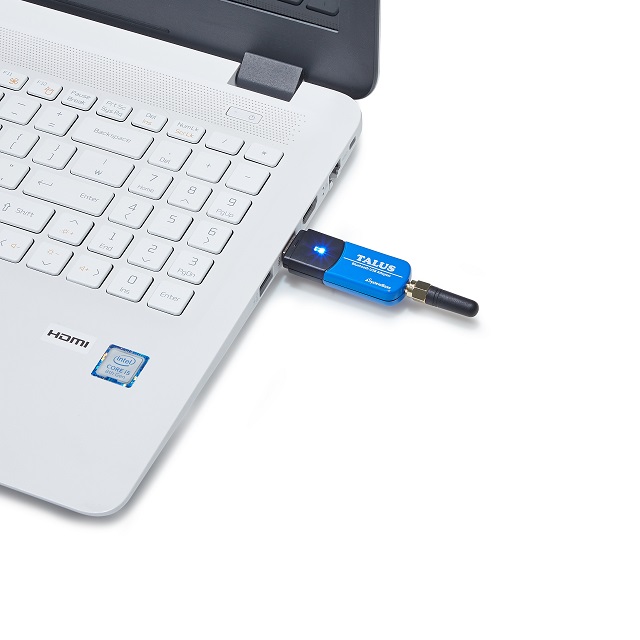

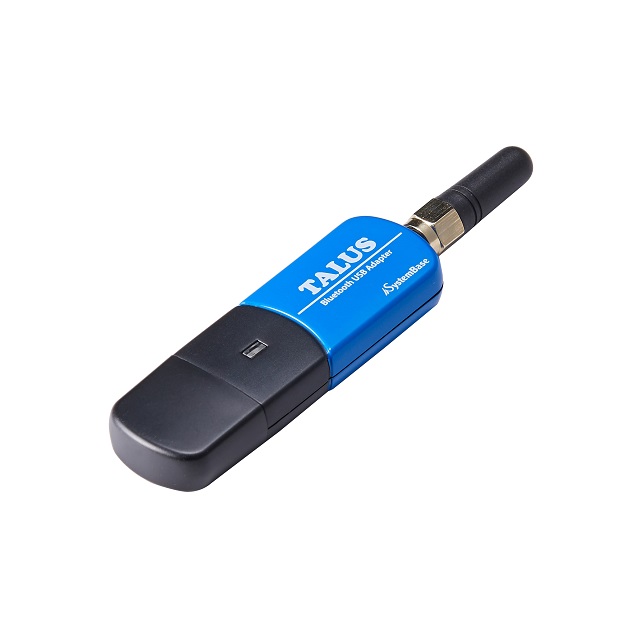

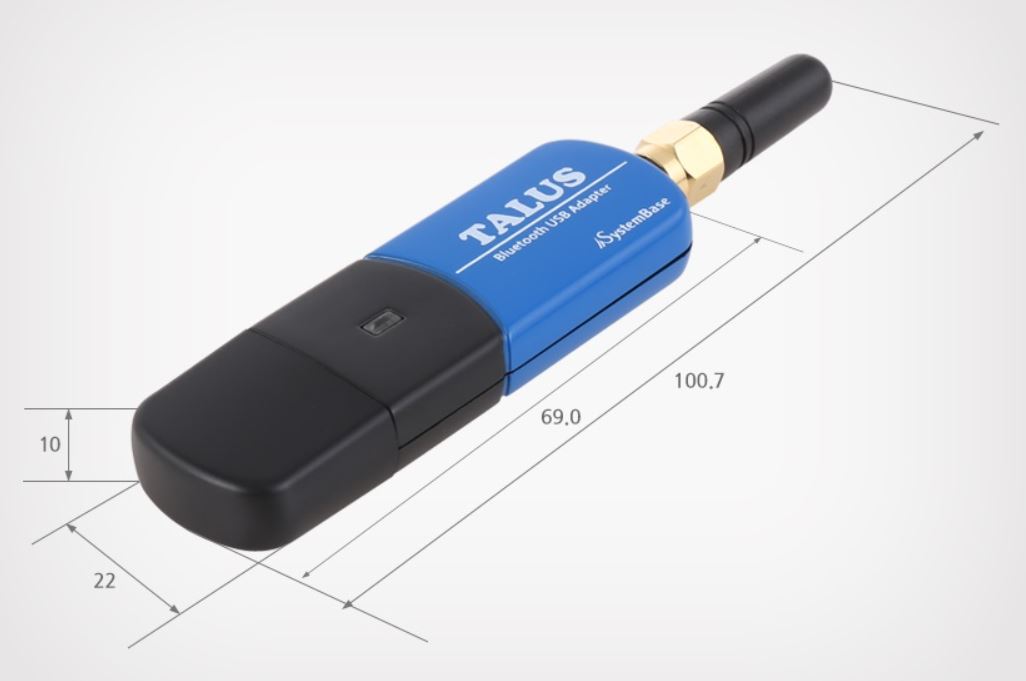

TALUS adds a Bluetooth communication to a laptop or a PC. It is Class 1 equipment and supports Bluetooth v4.0 + EDR. The users can use it to communicate or manage the devices in a large factory.
- Enhanced Communication Distance
The Bluetooth is an industry standard for short-range wireless communication for personal use. At the time when it was first developed, the distance was approximately 10m. However, using the Bluetooth connection to a variety of devices based on the communication range is classified into three kinds of class. The Class 1 is to have the communication distance of up to 100m , Class 2 is 30m, Class 3 supports the communication distance up to 10m. In will operate in a factories and the communication is possible without the constraints of distance .
- Bluetooth v4.0 + EDR
‘EDR’ stands for ‘Enhanced Data Rate’. THE EDR allows fast data transfer technology in Bluetooth communication. Bluetooth is initially developed to support the communication speed up to 1Mbps, but when EDR function is used, the maximum communication speed is increased up to 3Mbps. Thus TALUS allows more rapid communication.
- Variety Profiles Supported
For each purpose, Bluetooth can use specific profiles for its required field. The TALUS supports SPP (Serial Port Profile), HID (Human Interface Device), A2DP (Advanced Audio Distribution Profile), and many more. Therefore, the users can use TALUS to connect to numbers of devices.

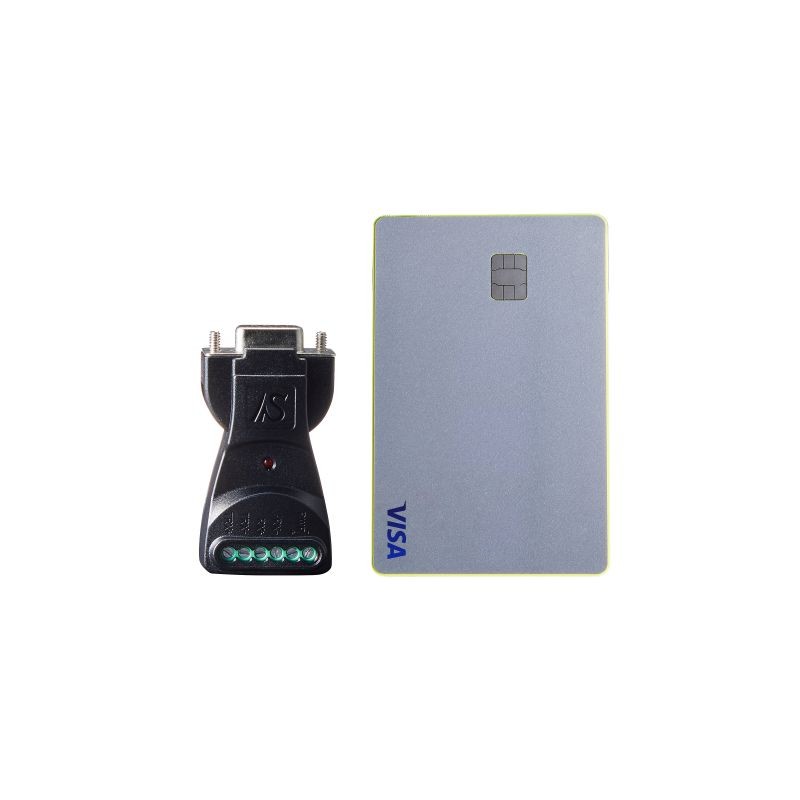

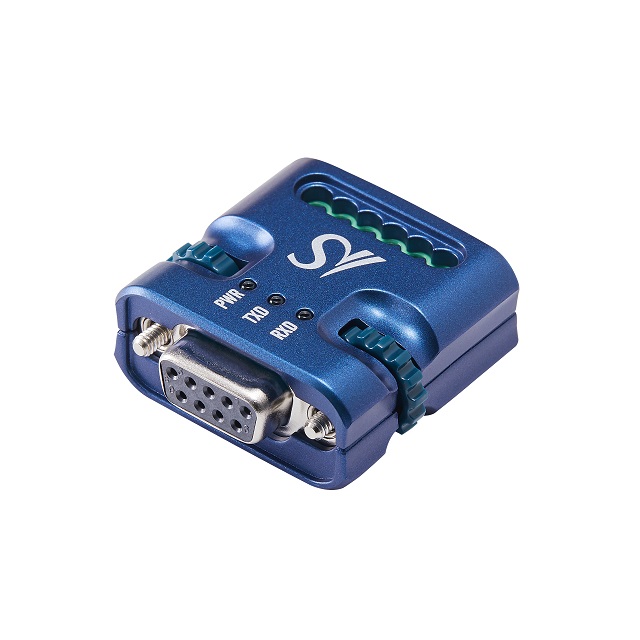

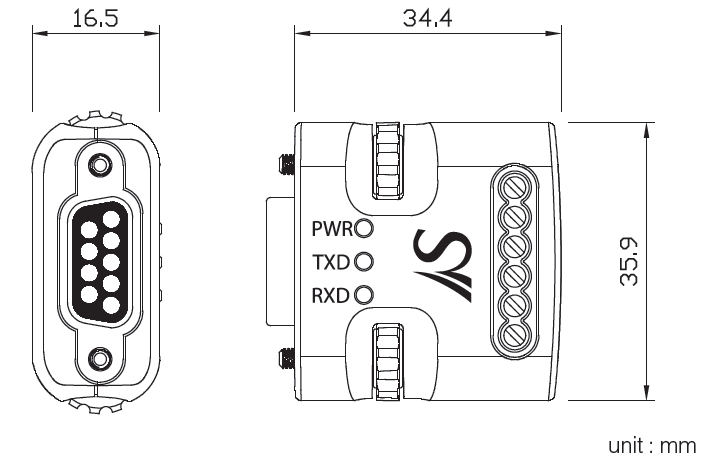

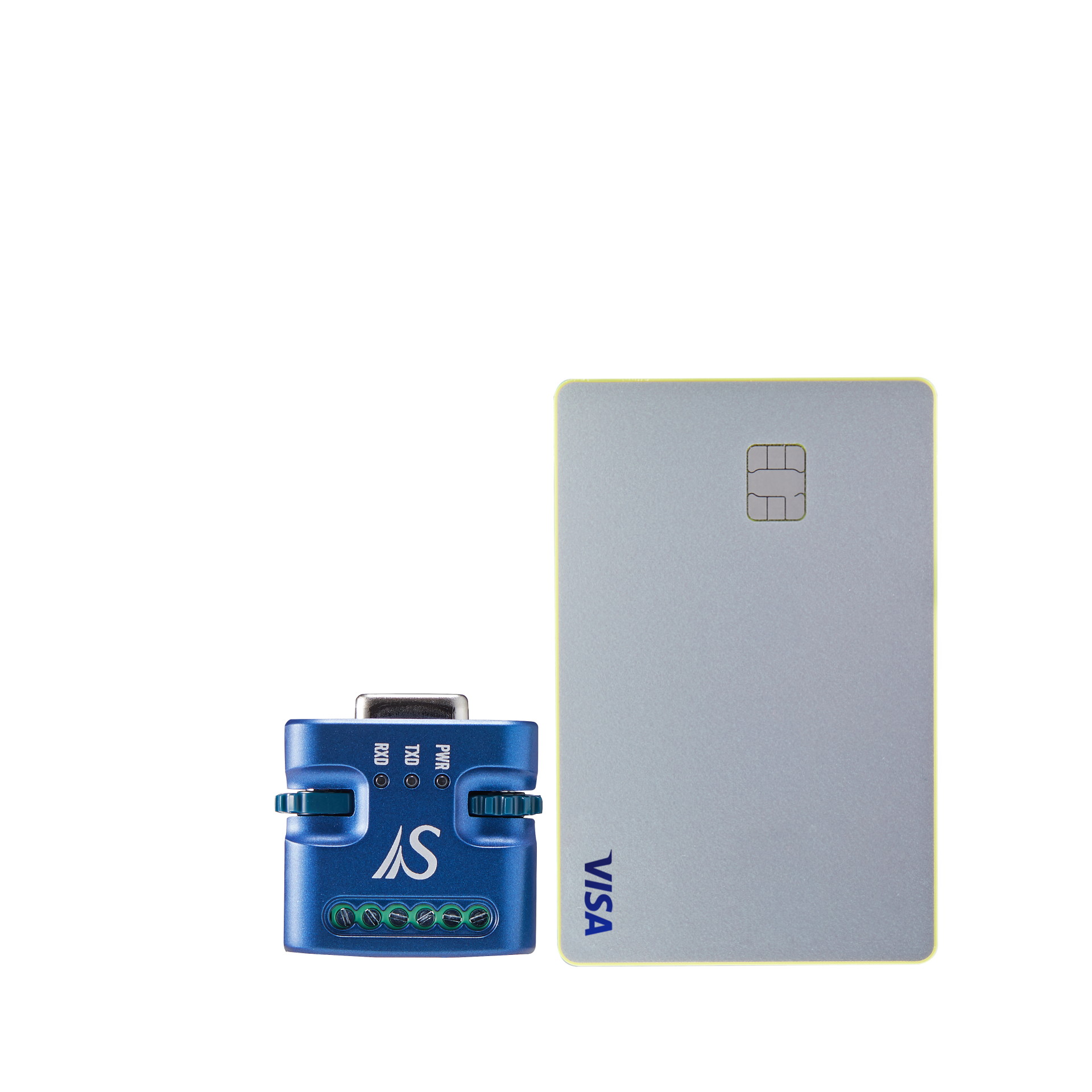

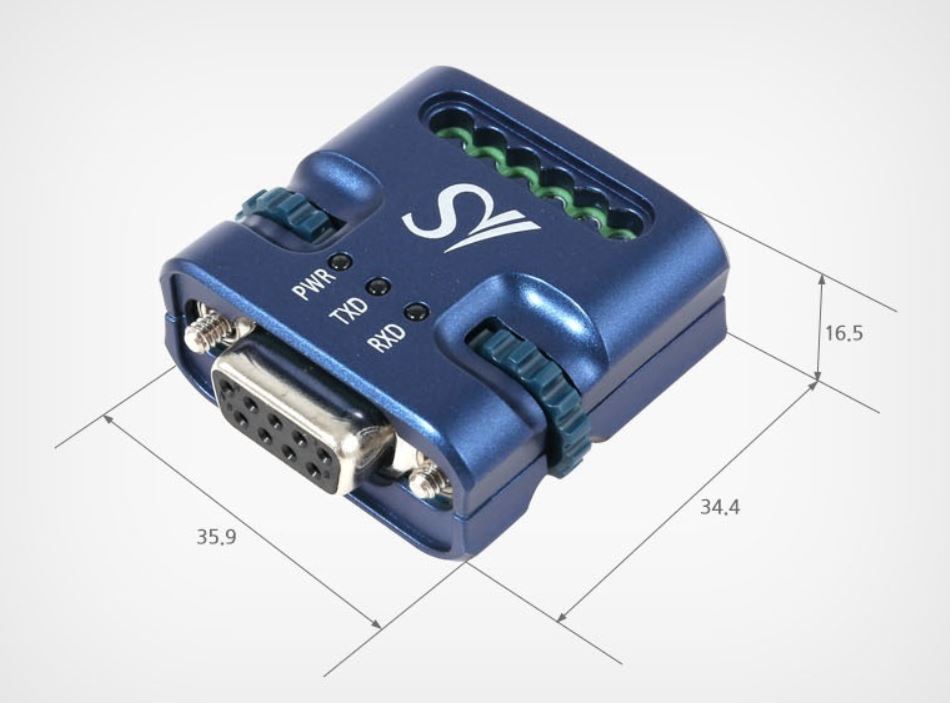

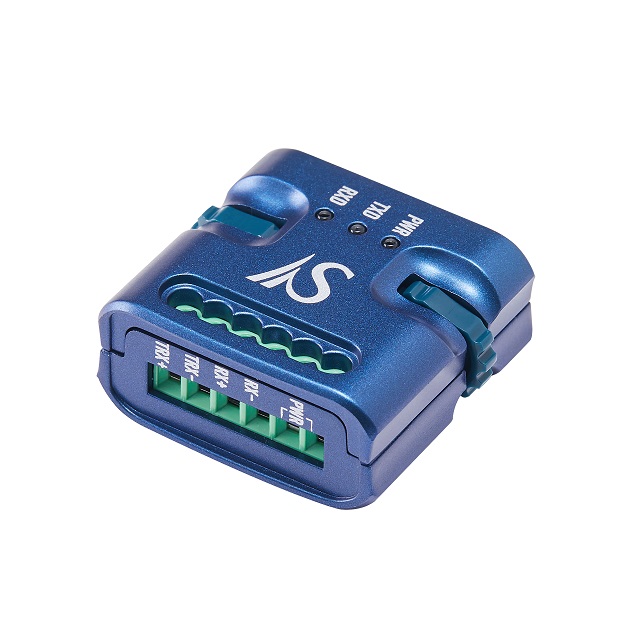

SystemBase - Industrial RS232 to 422/485 Serial Converter (Serial adapter) mini size, 15kV ESD Protection (CS-428/9AT-mini2)
- Overview
CS-428/9AT-mini2 converts RS232 signals to RS422 or 485 and is the smallest converter available on the market. It is a fast and efficient solution to overcome distance limitations of RS232 or for connecting to industrial devices with an RS422/RS485 interface.
No additional software is required for operation. With an easily accessible DIP switch you can configure the interface for RS422 or RS485. The CS-428/9AT-mini2 is fully compatible with the serial COM port on your PC.
- Auto RTS Control (Auto Toggling)
The CS-428/9AT-mini2 has a built-in hardware feature that performs automatic toggling to prevent devices from sending data simultaneously. This operation is crucial when multiple devices are connected to prevent electrical collisions that lead to errors and unstable communications.
- What is RS485 Echo Mode?
Different from RS485 Non-echo mode, RS485 Echo Mode enables the output signal line to function as the input signal. Therefore, it is not necessary to read the echoed data to confirm whether the data sent crashes with data sent by another device. On CS-428/9AT-mini2, all operations are controlled by the hardware so no additional modifications are required to the application program.
- Using 4-Wire RS485
4-Wire RS485 networking is the same as RS422 Multi- Drop networking. A RS422 device is used as the master and a RS485 device is used as the slave on a 4-Wire RS485 bus. While RS422 and RS485 have different electrical standards, most manufacturers make ICs that use both the RS422 and RS485 interface.
Therefore, RS422 Multi-Drop and 4-Wire RS485 can be considered equal. However, there can be a difference in how software controls them. We engineered our converter to operate with both interfaces regardless of how the application software works.

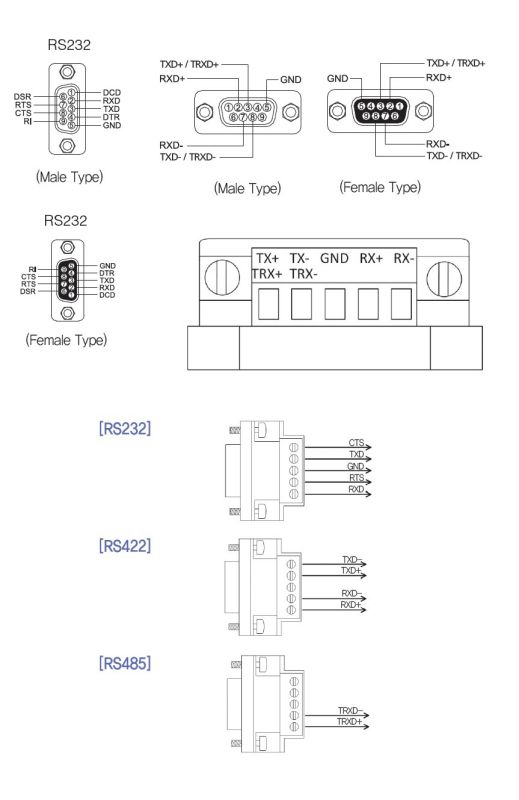

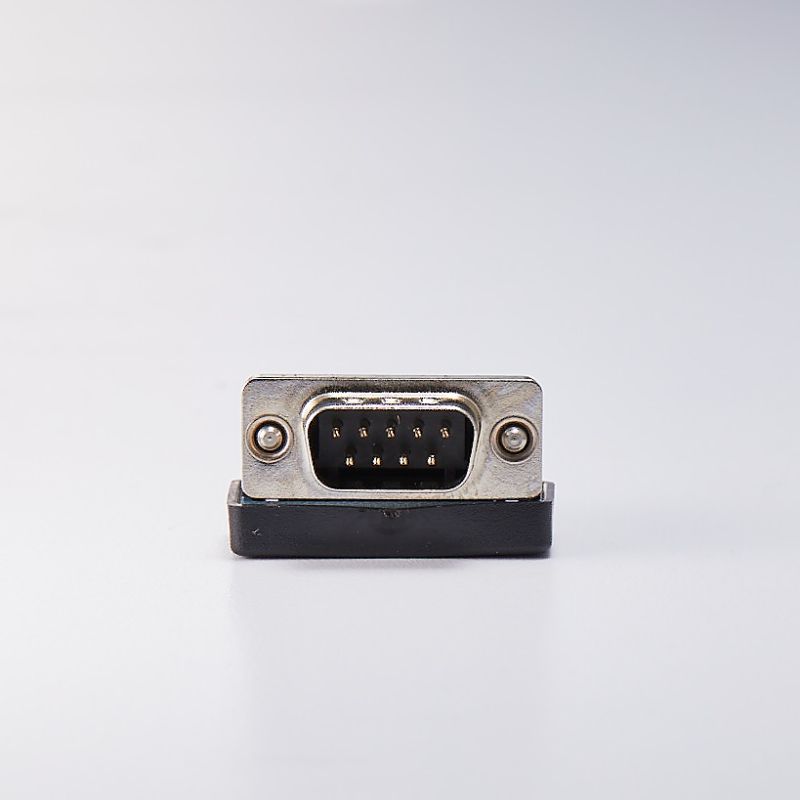

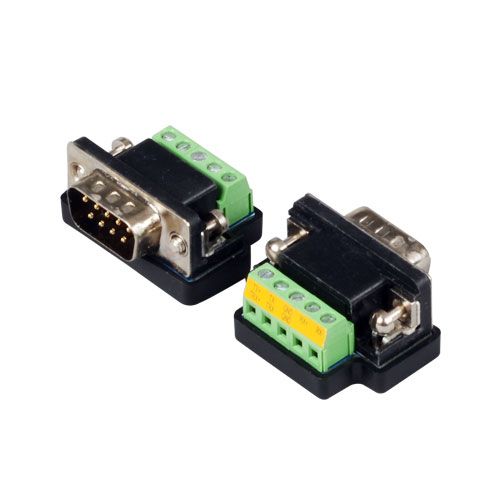

SystemBase - Converts DB9 Male Connector to 5 pin terminial block Converter, 2pcs/Pack (CS-95/M)
CS-95/M converts DE9(male) to 5 pin terminal block.
When using the serial communication in a variety of industrial equipment, sometimes it requires to use terminal block instead of d-sub connector. In this case the user would have to make a separate cable for the serial port.
CS-95 is a product designed to solve such inconvenience.

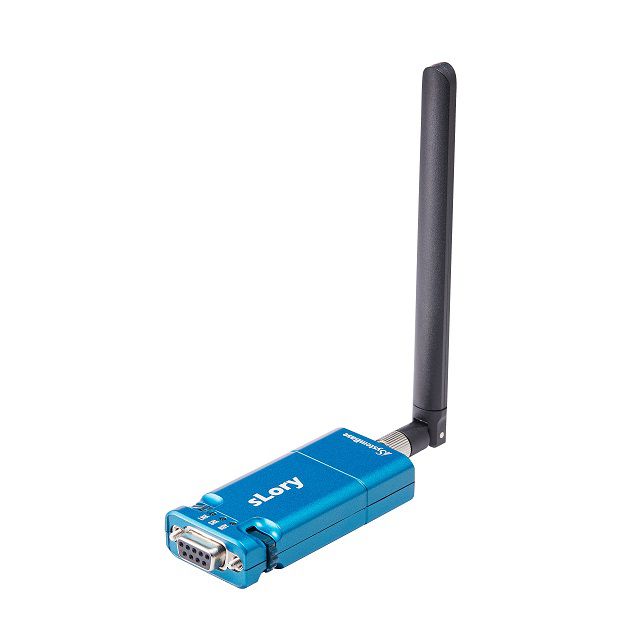

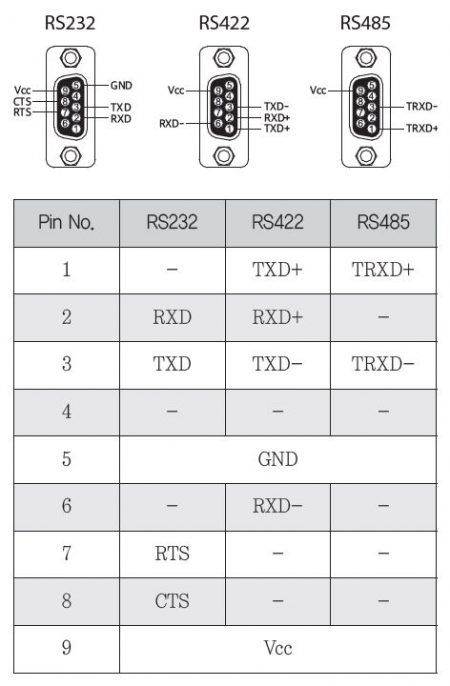

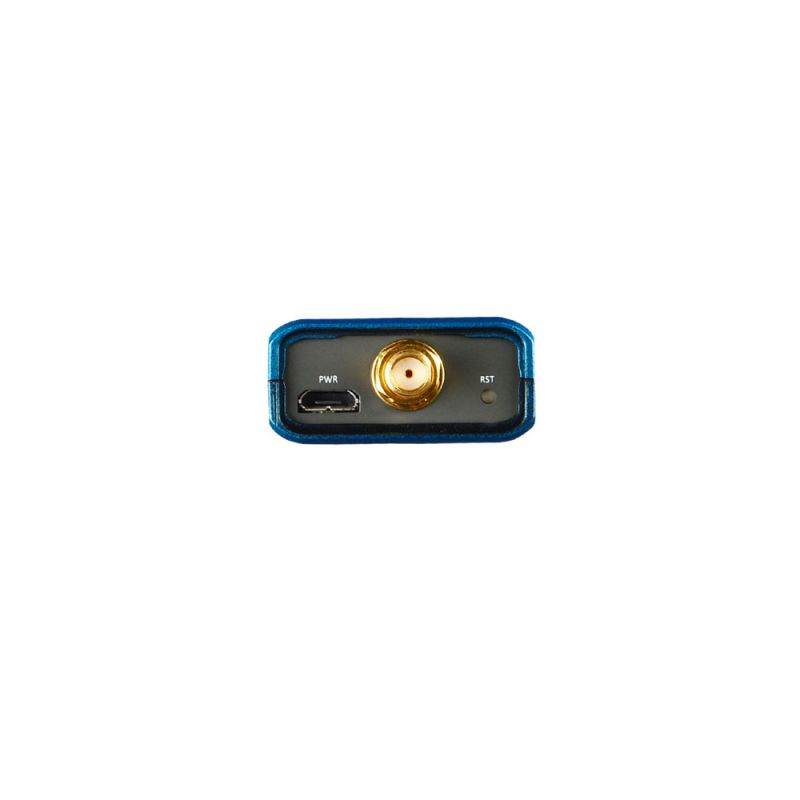

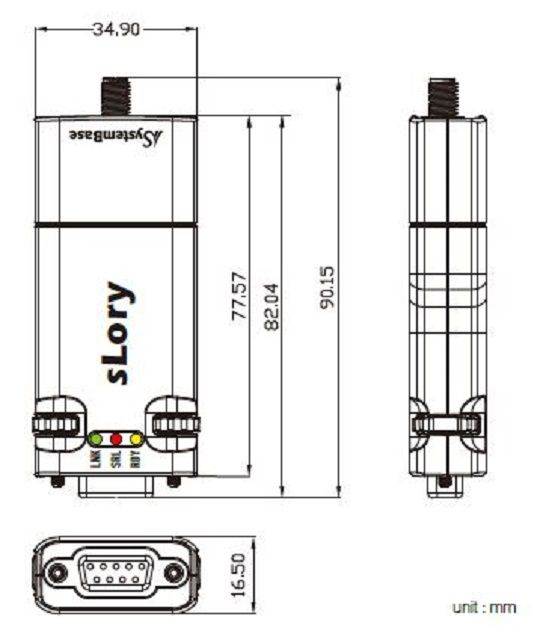

SystemBase - Serial(RS232/RS422/RS485) to LoRa Wireless Converter, Industrial Grade, low-power and mid-to-long-range wireless (sLory)
LoRa is a wireless communication technology for sensor networks, a next-generation LPWA (Low Power Wide Area) communication technology that can transfer a small amount of data over long range. sLory from SystemBase uses the LoRa to provide a communication range of a few kilometers and supports RS-232 or RS-232/422/485 standards for wireless communication of serial data. Users can build a long-range wireless network based on the serial standards.
LoryNet Compatibility
LoryNet, a virtual cable platform based on LPWA (Low Power Wide Area) communication technology LoRa, connects sensor nodes, converters, repeaters, and gateways via the Internet to create an environment where communication is as easy as writing/reading on a hard disk drive. The configuration and preference settings related to connecting various digital and analog communications, including the Internet, have been simplified. Also, the compatibility between different protocols is strengthened, making network system configuration as easy as writing and reading data from a hard disk drive in a computer. By using a physical, virtual cable platform “LoryNet,” which connects various communication methods, one can monitor, analyze, and control data obtained from all over the world. Additionally, due to its table-based communication methods, application and communication protocol can be differentiated and easily used. The private LoRa network operating in the unlicensed frequency band allows the user to configure the network without an additional charge. To this end, various environment SDK’s (Windows, Linux, Android, iOS, and OS-less) are provided so that users can easily create and apply customized applications.
Wireless serial network construction
The serial network communication, widely used in the industrial field and in control measurement areas, is used in various industries due to its easy operation. By using the Lory series from SystemBase, a technology that combines RS-232/422/485 standard serial communications and Lora, the user can configure and utilize a wireless network for remote control, data collection, and monitoring.
High performance and excellent reliability
Designed with the industry field in mind, sLory provides stable reliability and high performance by using proven components and employing the preventative measures against electric shock that can be caused by input surge.

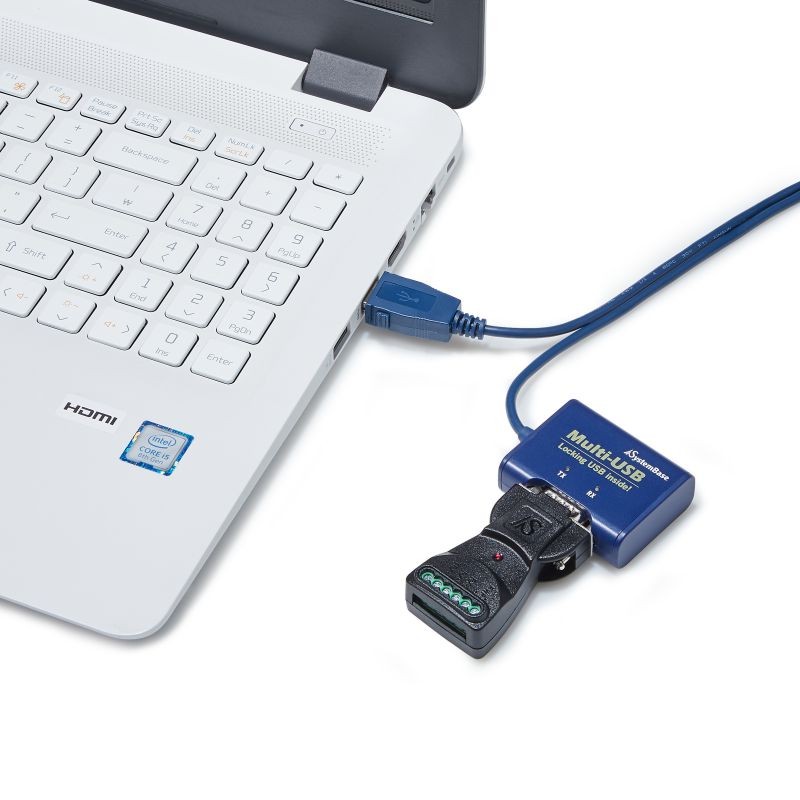

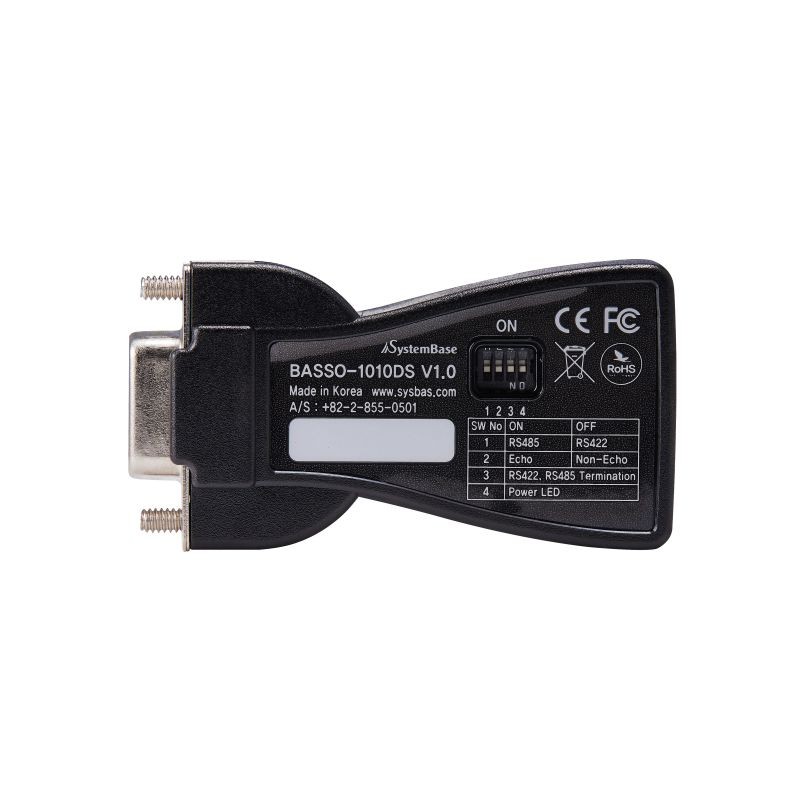

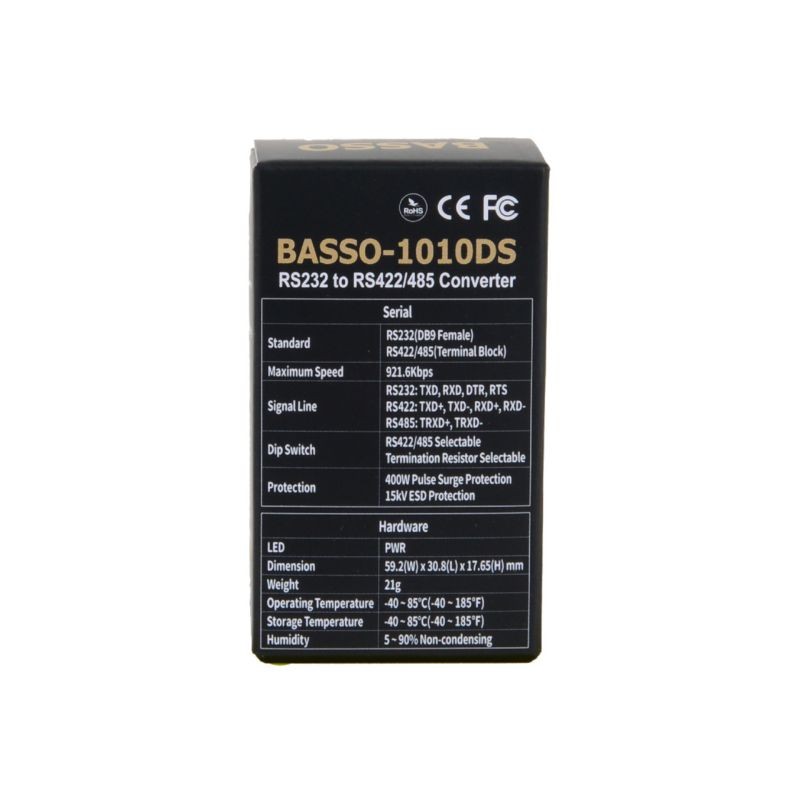

SystemBase – Industrial RS232 to RS422/485 Serial Converter, Industrial RS232 to RS422/485 Serial Adapter, mini size, 15kV ESD Protection (BASSO-101
BASSO-1010DS converts RS-232 signals to RS-422 or RS-485 signals, and RS-422/485 signals to RS-232 signals. No additional software is required for operation. Dip switch enables selecting various operation or interface such as RS-422 or RS-485. BASSO-1010DS is a converter for industrial use which provides high performance and functionality supporting serial communication speed of up to 921.6Kbps. It also supports various options such as Echo mode, Terminal Resistance ON/OFF and power LED.
High Reliability
Considering the unstable industrial sites, preventive measures against electrical shocks such as external overvoltage are applied and reliable components are used to simultaneously provide high reliability and performance.
Auto RTS Control (Auto Toggling)
The BASSO-1010DS has a built-in hardware feature that performs automatic toggling to prevent devices from sending data simultaneously. This operation is crucial when multiple devices are connected to prevent electrical collisions that lead to errors and unstable communications.
What is RS485 Echo Mode?
Different from RS485 Non-echo mode, RS485 Echo Mode enables the output signal line to function as the input signal. Therefore, it is not necessary to read the echoed data to confirm whether the data sent crashes with data sent by another device. On BASSO-1010DS, all operations are controlled by the hardware so no additional modifications are required to the application program.

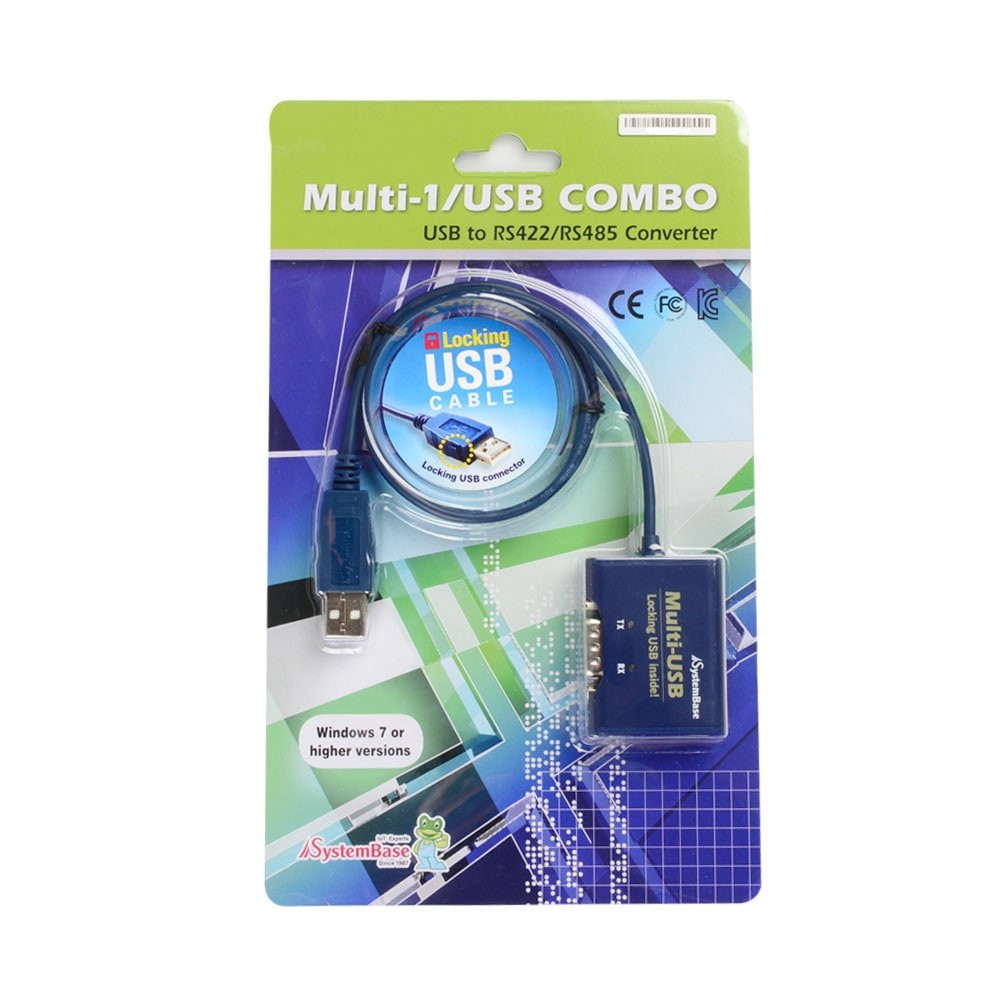

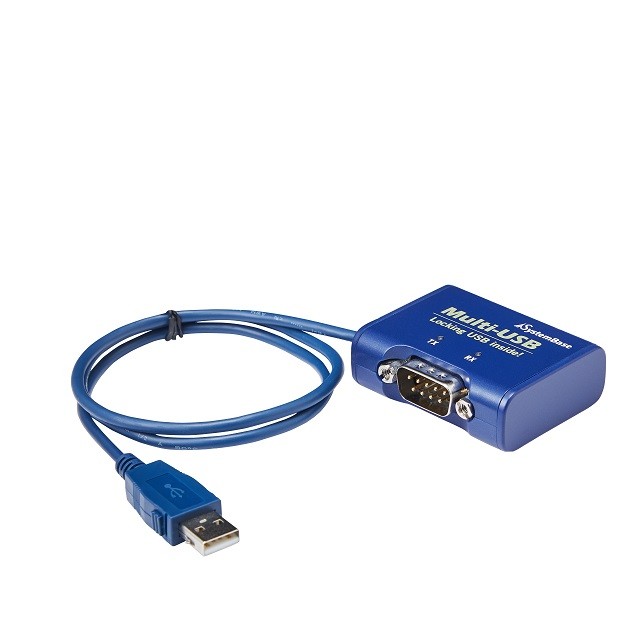

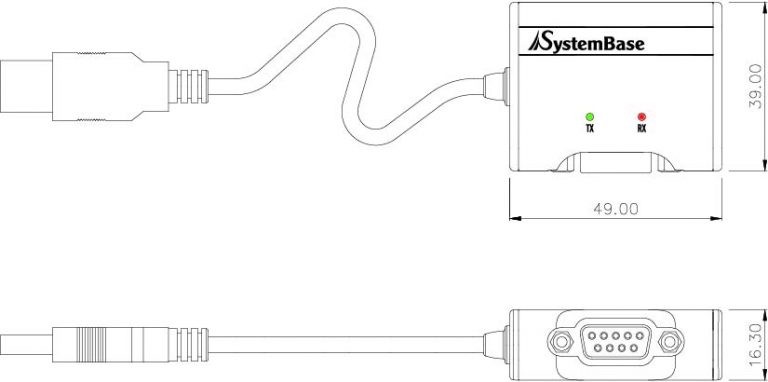

SystemBase - 1Port USB to Serial Converter RS422/RS485, Male Connector, 1.96ft USB Cable lock (Multi-1/USB COMBO)
Easily and quickly add additional serial ports to your system through the USB port. The Multi-1/USB deliver maximum performance up to 921.6Kbps. Combine that with the need for fewer components and you get costeffective and reliable connections to your serial devices. The USB to Serial Multiports support most Windows and Linux operating systems and include 15,000 volt surge suppression eliminating blown ports. The Multi-1/USB includes a 1 port panel with a DB9 connector and is available in two models, RS232 and RS422/RS485. Simply plug in the USB connector and you have a COM port to connect modems, printers, bar-code scanners or other any serial devices.
Connector Panel:
The Multi-1/USB plugs into the USB port on your system. The connector panel has a DB9 male connector and is available with support for either RS232 or RS422/RS485. LEDs next to the connector provide visual communication status of the ports. No additional power supply is required.
Supports USB Specification Revision 2.0:
The Multi-1/USB supports revision 2.0 and is compatible with revision 1.1
15KV Surge Protection – Built-in:
Don’t risk blown ports and down time. The Multi-1/USB has built-in 15,000 volt surge suppression to protect against electrical spikes and blown ports giving you more reliable communications.

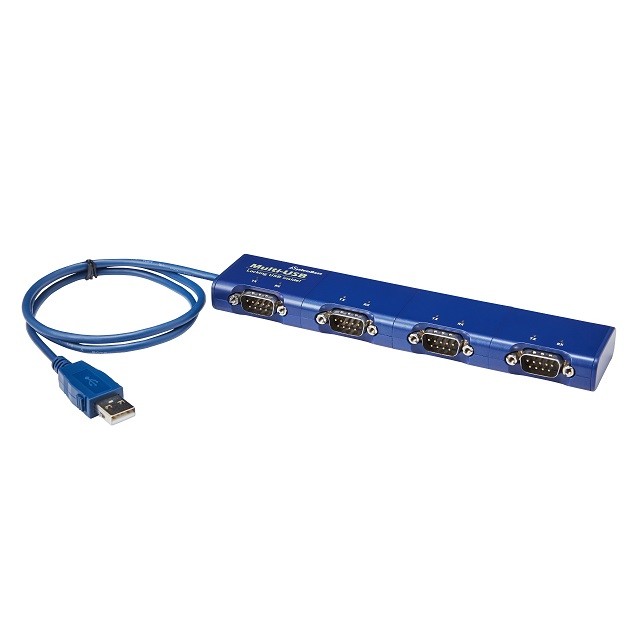

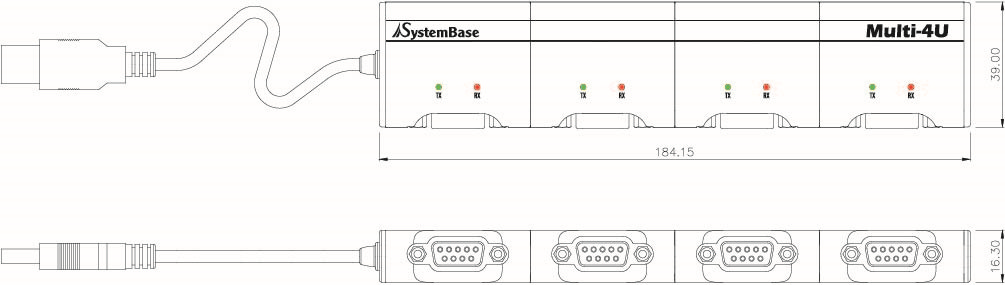

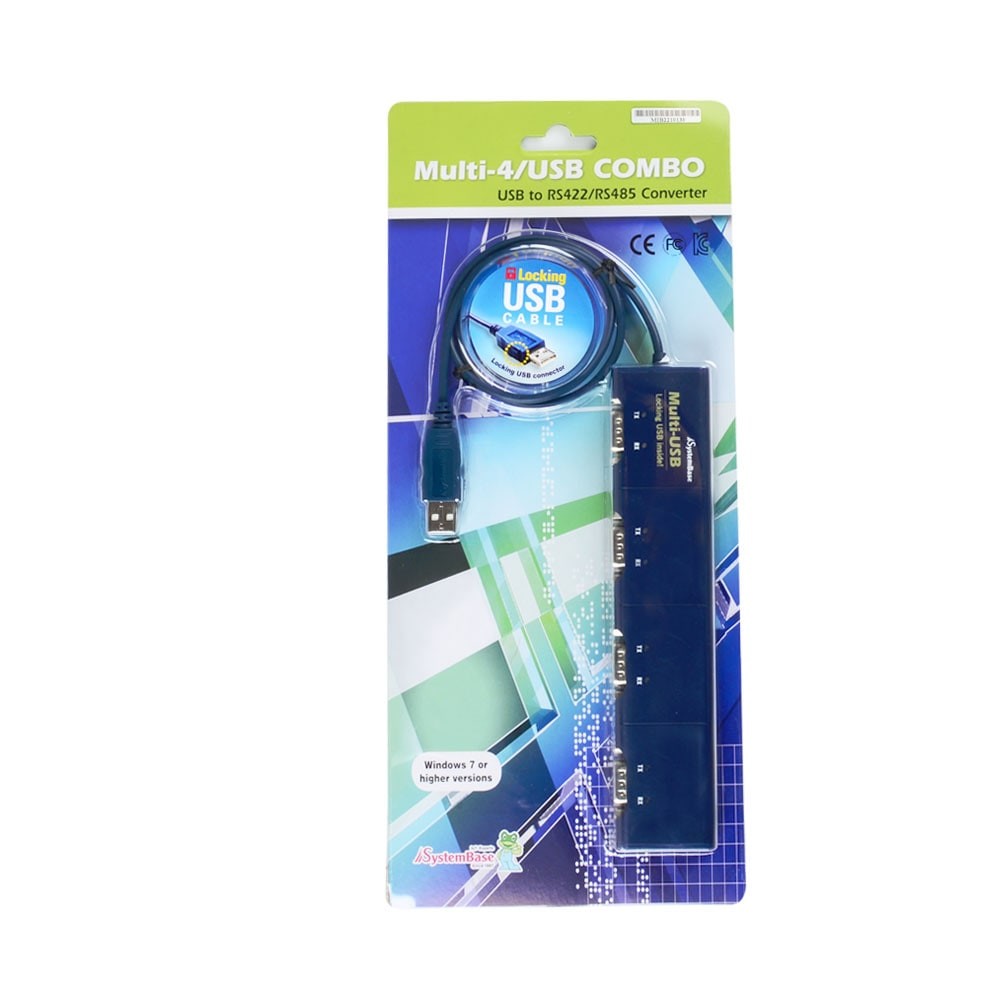

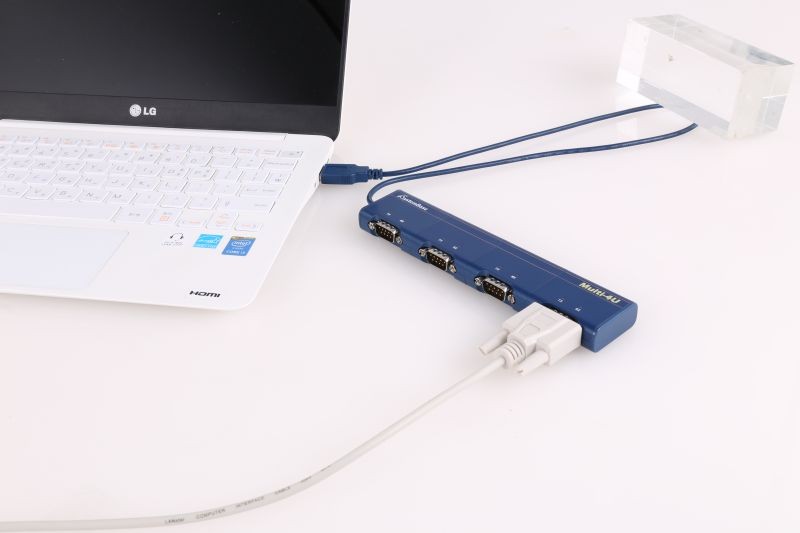

SystemBase - 4Ports USB to Serial Converter RS422/RS485, Male Connector, 1.96ft USB Cable lock (Multi-4/USB COMBO V4.0)
Easily and quickly add additional serial ports to your system through the USB port. The Multi-4/USB deliver maximum performance up to 921.6Kbps. Combine that with the need for fewer components and you get costeffective and reliable connections to your serial devices. The USB to Serial Multiports support most Windows and Linux operating systems and include 15,000 volt surge suppression eliminating blown ports. The Multi-4/USB includes a 4 port panel with a DB9 connector and is available in two models, RS232 and RS422/RS485. Simply plug in the USB connector and you have a COM port to connect modems, printers, bar-code scanners or other any serial devices.
Connector Panel:
The Multi-4/USB plugs into the USB port on your system. The connector panel has four DB9 male connectors and is available with support for either RS232 or RS422/RS485. LEDs next to the connector provide visual communication status of the ports. No additional power supply is equired.
Supports USB Specification Revision 2.0:
The Multi-4/USB supports revision 2.0 and is compatible with revision 1.1.
15KV Surge Protection – Built-in:
Don’t risk blown ports and down time. The Multi-4/USB has built-in 15,000 volt surge suppression to protect against electrical spikes and blown ports giving you more reliable communications.

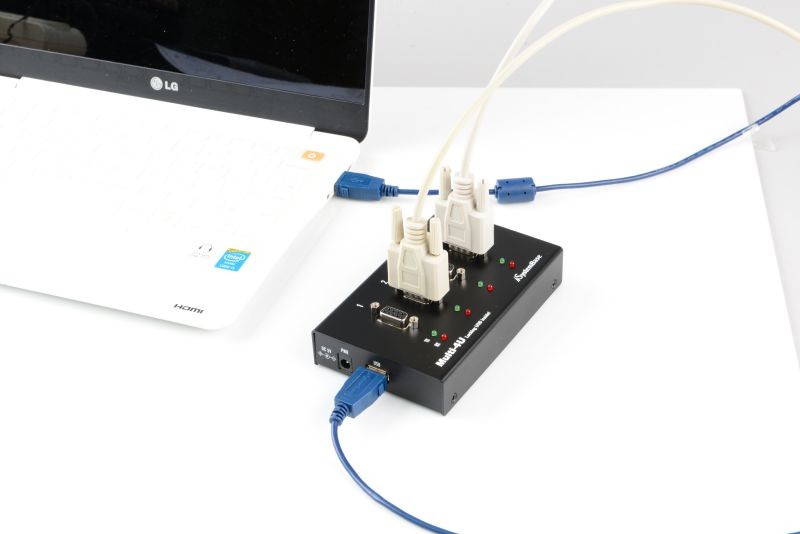

SystemBase - 4Ports USB to Serial Converter RS422/RS485, Female Connector, 4.92ft USB Cable lock (Multi-4/USB COMBO V1.6)
Easily and quickly add additional serial ports to your system through the USB port. The Multi-4U delivers maximum performance up to 921.6Kbps. Combine that with the need for fewer components and you get costeffective and reliable connections to your serial devices. The USB to Serial Multiports support most Windows and Linux operating systems and include 15,000 volt surge suppression eliminating blown ports. The Multi-4U includes a 4 port panel with a DB9 connector and is available in two models, RS232 and RS422/RS485. Simply plug in the USB connector and you have a COM port to connect modems, printers, bar-code scanners or other any serial devices.
Connector Panel:
The Multi-4U plugs into the USB port on your system. The connector panel has four DB9 female connectors and is available with support for either RS232 or RS422/RS485. LEDs next to the connector provide visual communication status of the ports. No additional power supply is required.
Supports USB Specification Revision 2.0:
The Multi-4U supports revision 2.0 and is compatible with revision 1.1
15KV Surge Protection – Built-in:
Don’t risk blown ports and down time. The Multi-4U has built-in 15,000 volt surge suppression to protect against electrical spikes and blown ports giving you more reliable communications.
SystemBase - Industrial Grade Port-Powered RS232 to RS422/RS485 Isolated Serial Converter (CS-428/9AT ISO2)
– ‘RS232 to RS422/RS485’ and ‘RS422/RS485 to RS232’ Converter – Distance: Max. 1.2 km – 2.5 kV Isolation Protector – Fully compatible with serial COM port in the PC – External power requirement: 9~12V DC – External power not required (When DTR signal line is enabled) – RS422/RS485 mode, Termination and Echo mode selectable by external switches – Max. 10 Devices Connectable for RS422 Multi-Drop Mode – Max. 10 Devices Connectable for RS485 Mode – Power: 9~12V, 500mA CS-428/9AT-ISO converts RS232 signals to RS422 or RS485 with optical isolation protection. It is a fast and efficient solution to overcome distance limitations of RS232 or for connecting to industrial devices with an RS422/485 interface. No additional software is required for operation. With an easily accessible DIP switch you can configure the interface for RS422 or RS485. The CS-428/9AT-ISO has high performance 2.5 kV Opto- Isolation to protect your equipment. Opto Isolation The CS-428/9AT-ISO Opto-Isolation protects up to DC 2.5 kV between RS232 and RS422, RS485 sides. Opto-Isolation perfectly isolates the two endpoints so devices are protected from unfavorable electrical conditions such as ground potential differences, lightning and line interference. This results in more stable and reliable communications. Auto RTS Control (Auto Toggling) The CS-428/9AT-ISO has a built-in hardware feature that performs automatic toggling to prevent devices from sending data simultaneously. This operation is crucial when multiple devices are connected to prevent electrical collisions that lead to errors and unstable communications.
