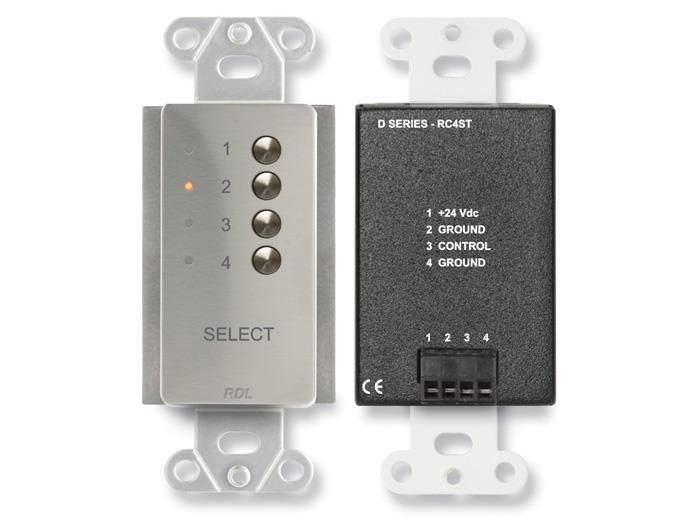

The DS-RC4ST is a wall-box mounted remote module designed to directly control an RDL ST-SX4 Audio Switcher Module. The ST-SX4 provides solid-state switching of one of four unbalanced audio inputs to a single unbalanced audio output. The DS-RC4ST connects directly to the?POWER?and?CTRL?terminals of the ST-SX4 using either a 3-conductor cable or a single shielded pair.

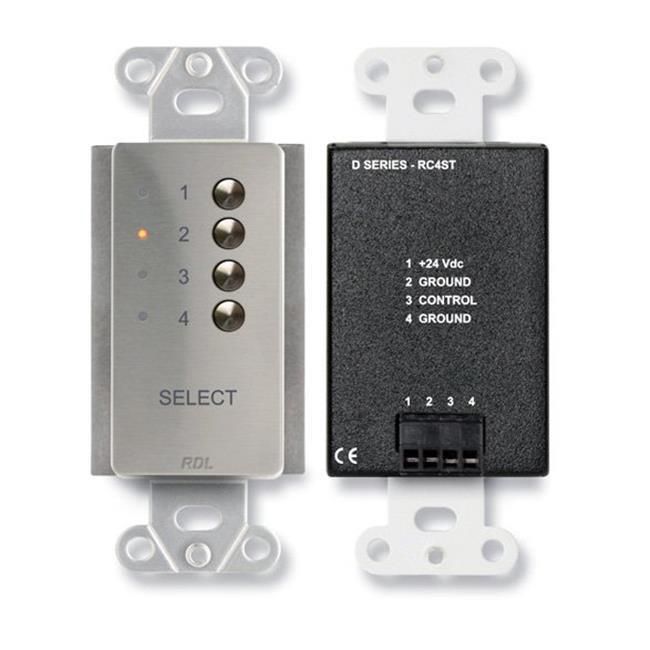

The front panel of the DS-RC4ST features four pushbuttons with four associated LEDs. Upon initial application of power, source?1?is selected. Touching any of the other three buttons de-selects source?1?and immediately selects the source corresponding to the button pushed. An LED, adjacent to each button shows which source is selected. For stereo installations, the?SLAVE?output from the ST-SX4 is used to drive the?CTRL?input of an additional ST-SX4.
Features
