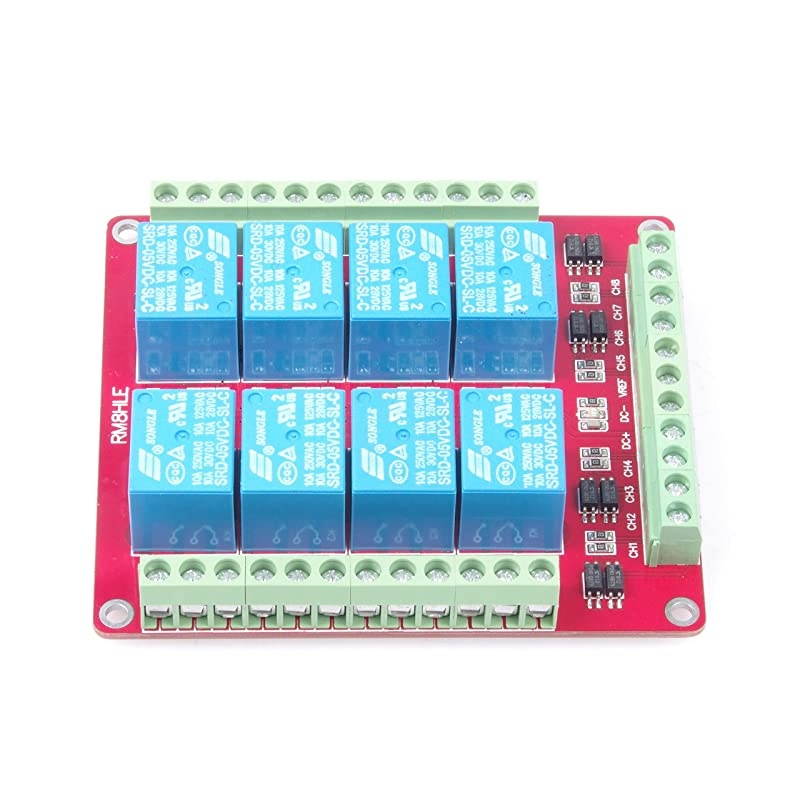

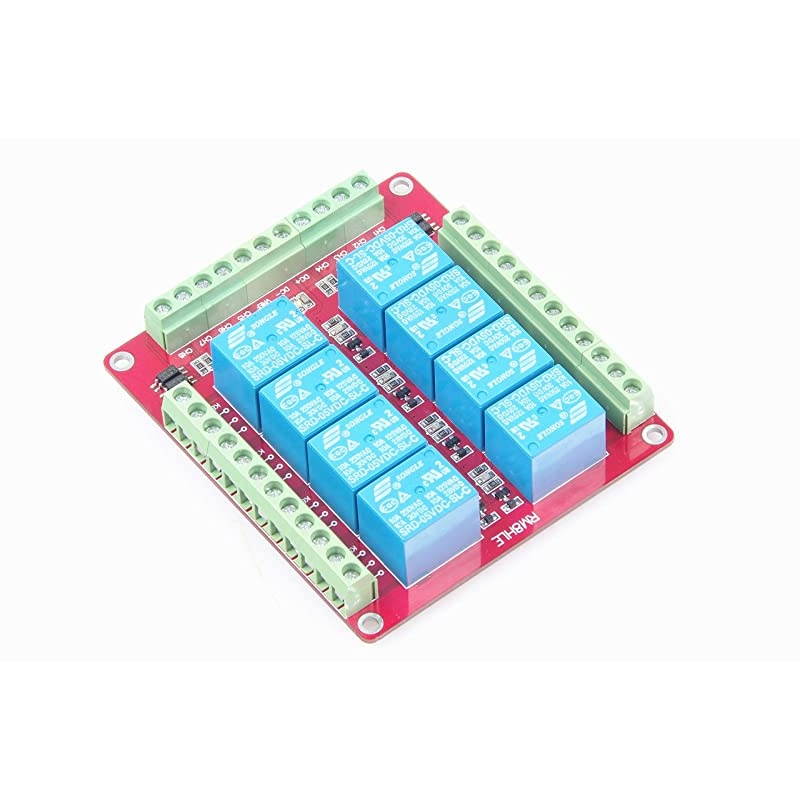

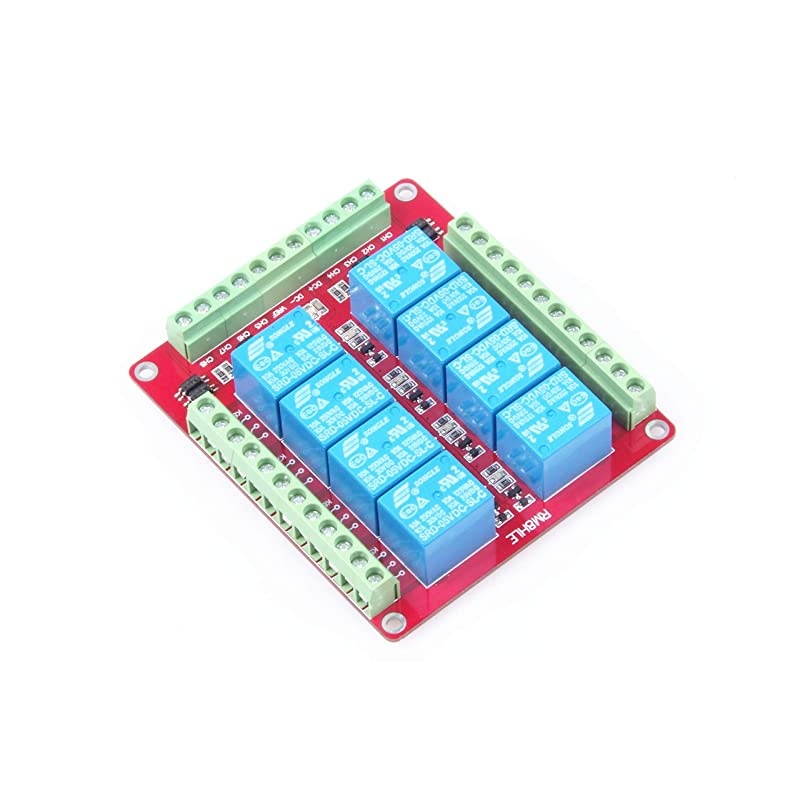

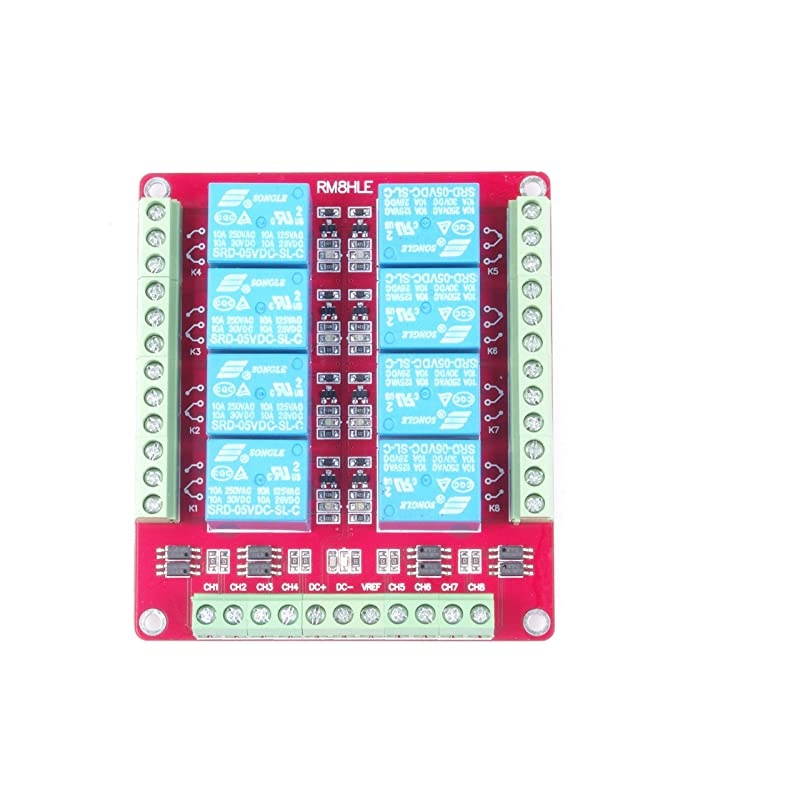

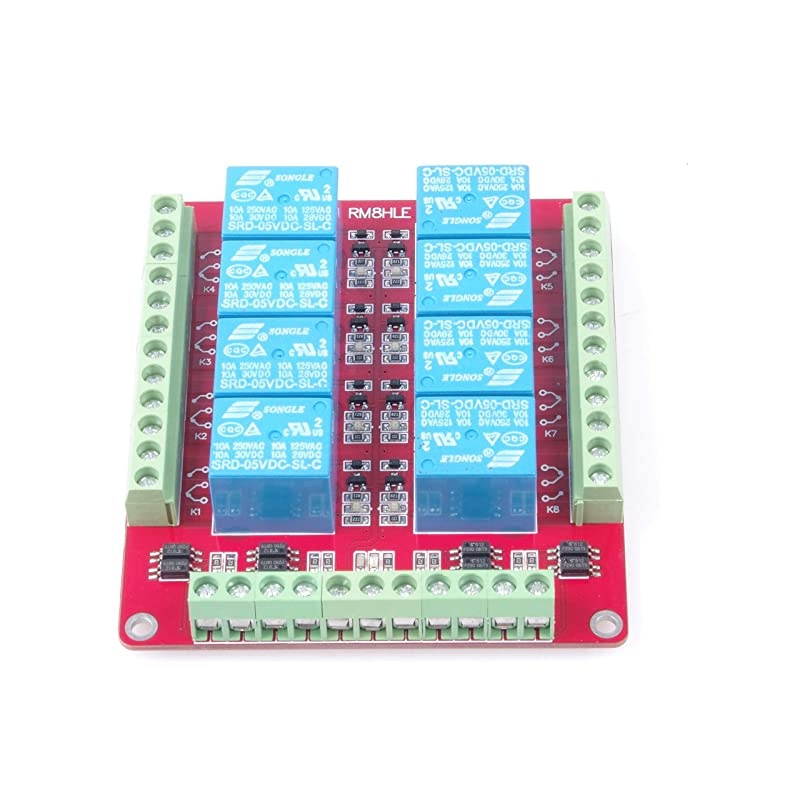

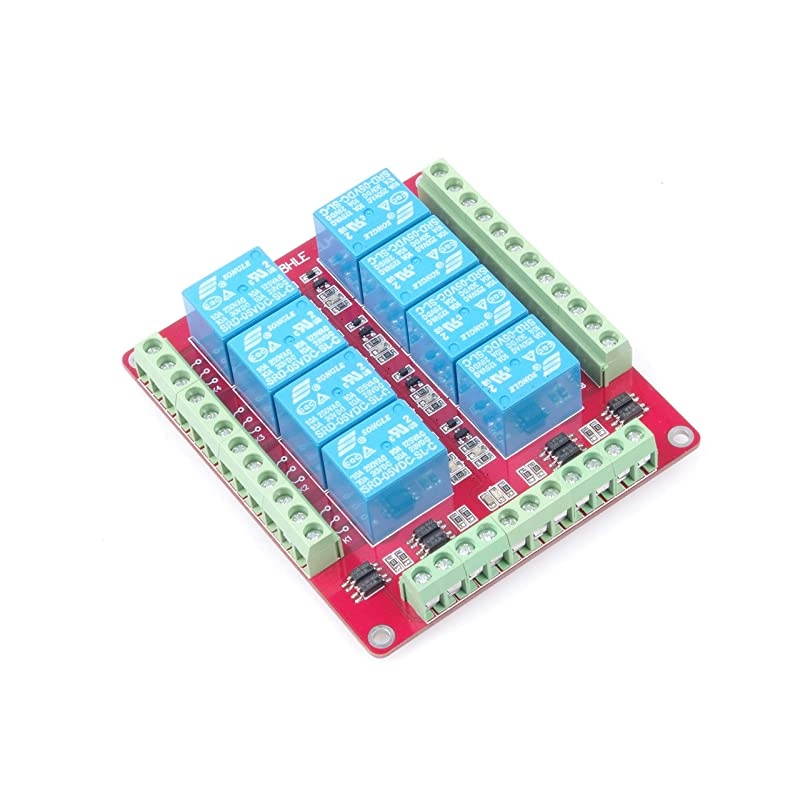

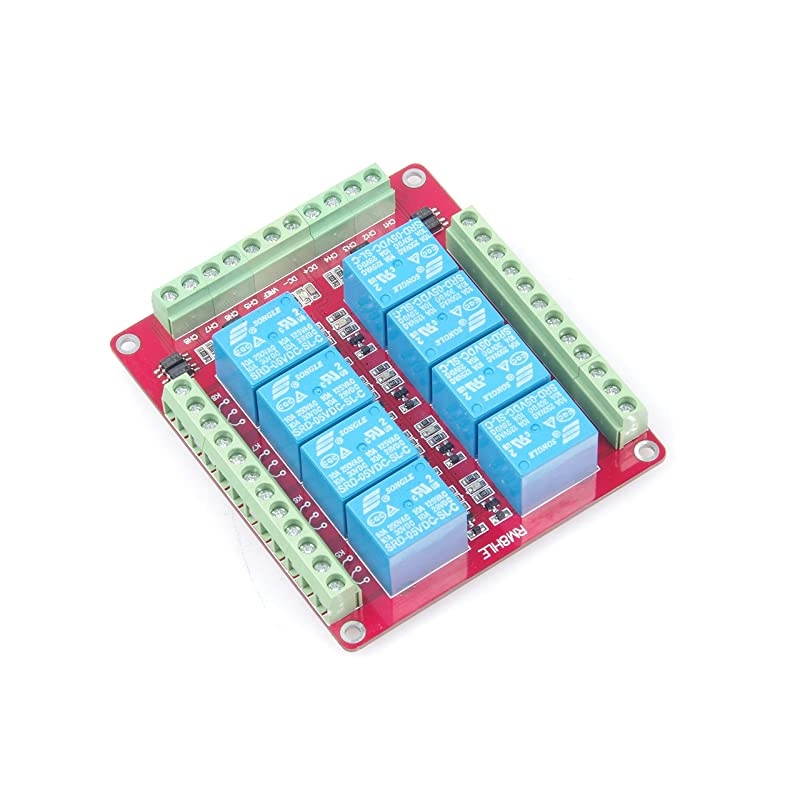

DC 5V 8-Channel 10A Relay Control Module Bi-Directional Isolated Control Module High Low Level Trigger (DC 5V, 10A 8-Channel)
CTNR1171675 CTNR1171675REVO INNOVATIONS
2026-02-22
/itm/dc-5v-8-channel-10a-relay-control-module-bi-directional-isolated-control-module-high-low-level-trigger-dc-5v-10a-8-channel-1171675
USD
23.77
$ 23.77 $ 24.01 1% Off
Item Added to Cart
customer
*Product availability is subject to suppliers inventory
SHIPPING ALL OVER UNITED STATES
100% MONEY BACK GUARANTEE
EASY 30 DAYSRETURNS & REFUNDS
24/7 CUSTOMER SUPPORT
TRUSTED AND SAFE WEBSITE
100% SECURE CHECKOUT
Size: DC 5V |
Color: 10A 8-ChannelThe module uses genuine high quality relay, normally
open interface maximum load: AC 250V / 10A, DC 30V / 10A; Using high-power high-voltage transistor 2907A, strong driving capability, stable performance; trigger current 5mA; Module working voltage DC 5V; The relay pull-low, the module contains a current-limiting resistor, low / high level can be DC-, microcontroller I / O port can also be set low; Fault-tolerant design, even if the control line is broken, the relay will not move; Power indicator (red), 8 relay status indicator (blue); User-friendly interface design, all interfaces can be directly connected leads, very convenient;
Module size: 79mm x 90m x 1.8 mm (L * W * H); With 4 fixing bolt holes for easy installation. Module interface
Module control side: All interfaces can be directly connected, user-friendly 1, DC
+: DC 5V 2, DC-: DC - 3, CL1-CL8: relay control interface, the corresponding low level pull the relay.
Relay output: 8-wire interface (K1 to K8), all interfaces can be directly connected to the wiring, user-friendly NO1 -
NO: relay normally open interface; COM1 -
COM16: relay common interface; NC1 -
NC16: normally closed relay interface.
Package Included: DC 5V 8-Channel Relay Control Module
