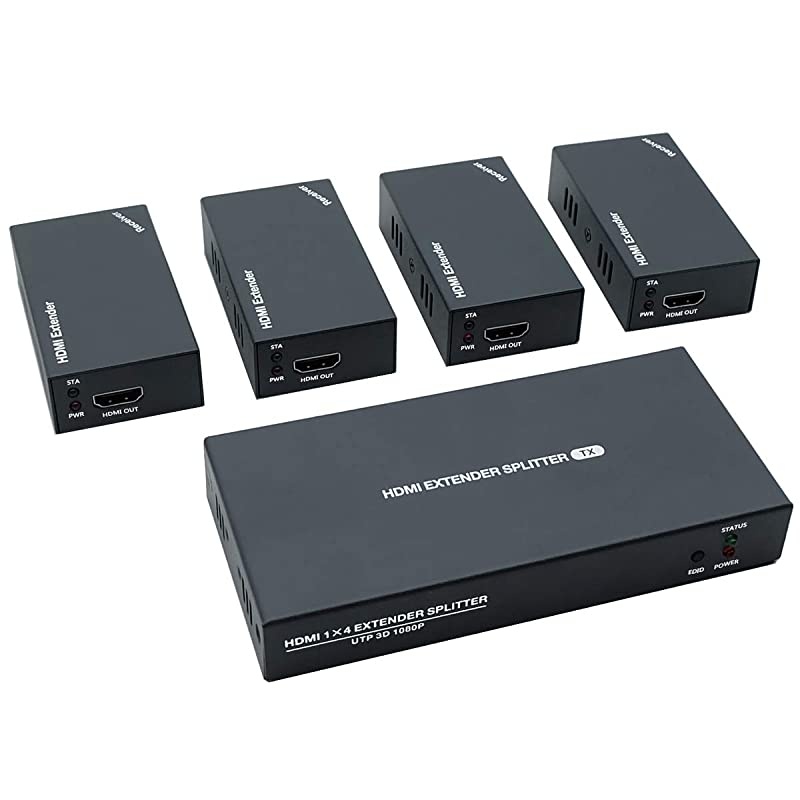

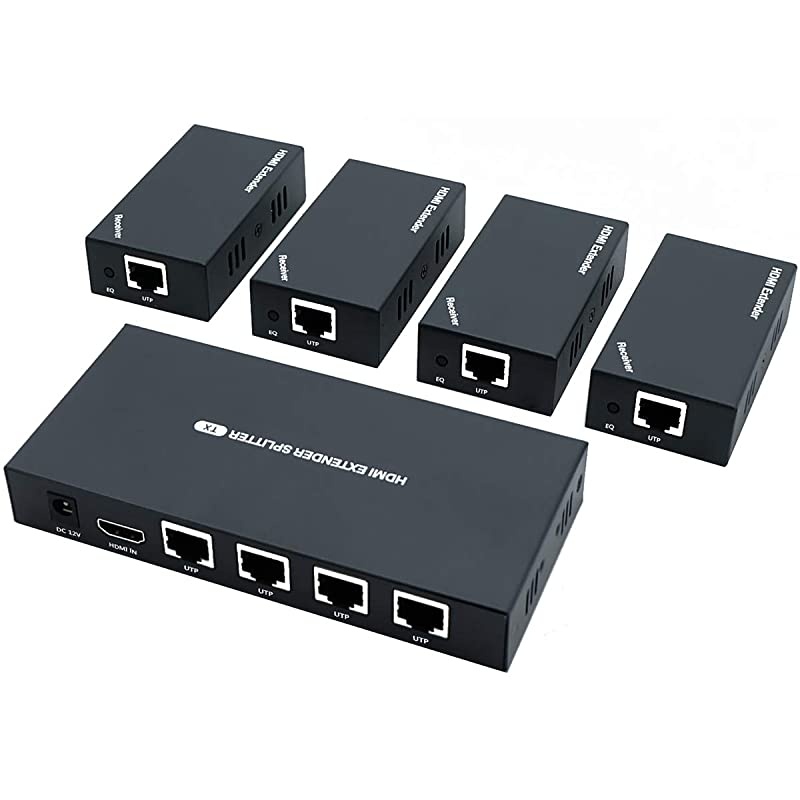

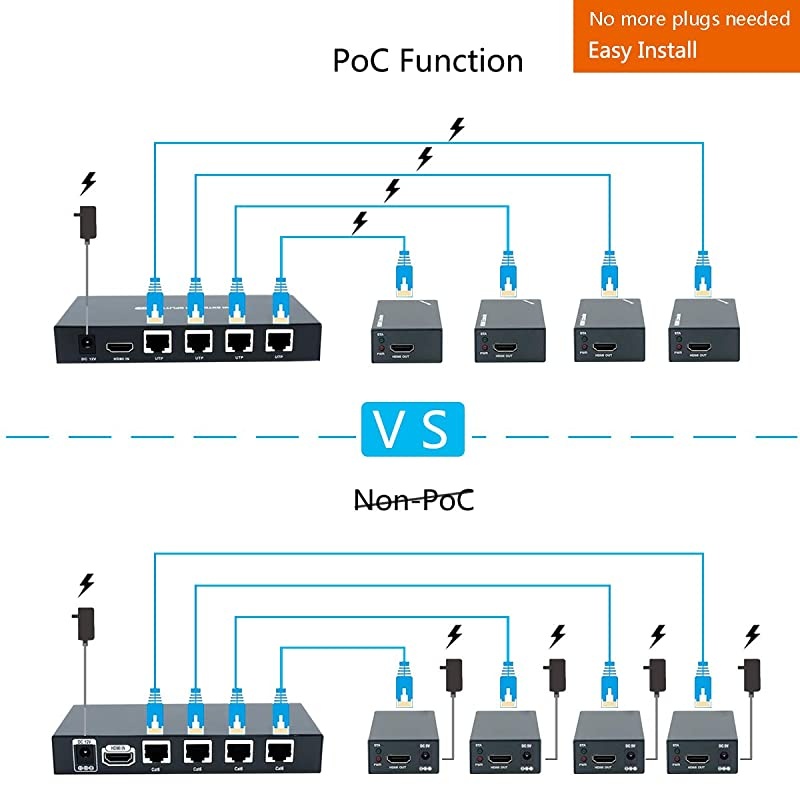

Extender Splitter 1x4 1080P@60Hz Over Cat 5E/6/7 Ethernet Cable 50m (165ft) Support EDID Copy POC Function (1 in 4 Out)

Size: 1x4 1080P 164ftEXTENDER/SPLITTER
Change the mode of audio&video signals for longer distance transmission, IN --- CAT X --- OUT. 4-channel simultaneous transmission.
Specifications: 1. Video Standards --- 1.3; HDCP 1.2 Maximum pixel clock---165MHz Maximum data rate--- 6.75G bps Resolution ---1920X1080@60Hz, 3D Connector --- -A2. Ethernet Interface --- RJ45 Transmission distance --- CAT6---50m/164ft; CAT5E---40m/130ft; CAT5-30m/100ft. When the Ethernet cable is between 1~10 feet, it may have no image, please try another longer cable. 3.
Others Power supply--- Input: 110~220V;
Output: 12V Power dissipation---MAX 12W
Temperature---Operating: -5 ~ +70
Humidity---Operating: 5% ~ 90%
Dimension---TX: 150*71*23mm /

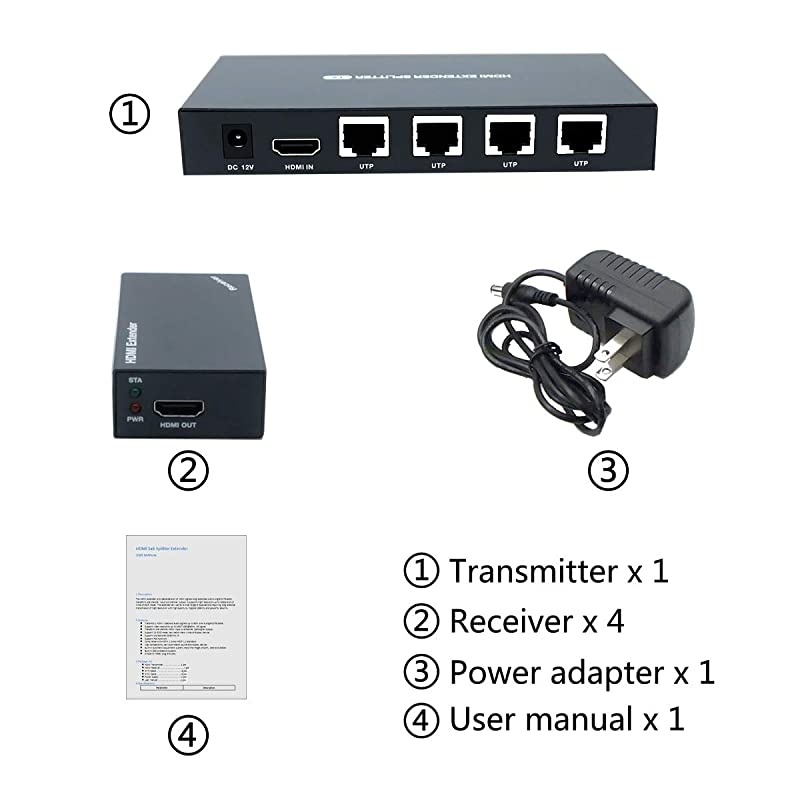

RX: 81*45*23 The warranty---1 year free warranty4. Packing list transmitter --- 1 pcs receiver --- 4 pcs Power adapter --- 1 pcs User manual --- 1 pcsAbout EDID
When the EDID cannot automatically identify the monitor parameters, the image may not be displayed, please perform the following steps. (1) Connect the monitor to the IN on transmitter. (2) Connect the power supply to transmitter. (3) Press and hold the EDID button for 3-5 seconds. The green light on transmitter side stops flashing, indicating EDID copy is complete. Last but not least, if the signal loss or unstable, it may be caused by Ethernet cable compatibility, please adjust the EQ button on the receiver (RX), press and hold for one second and release. If have any product problems, please feel free to contact us via.
