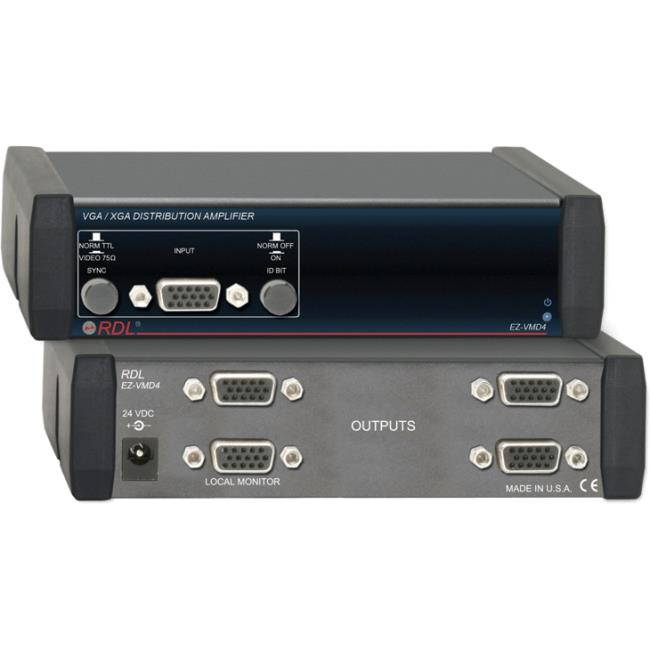

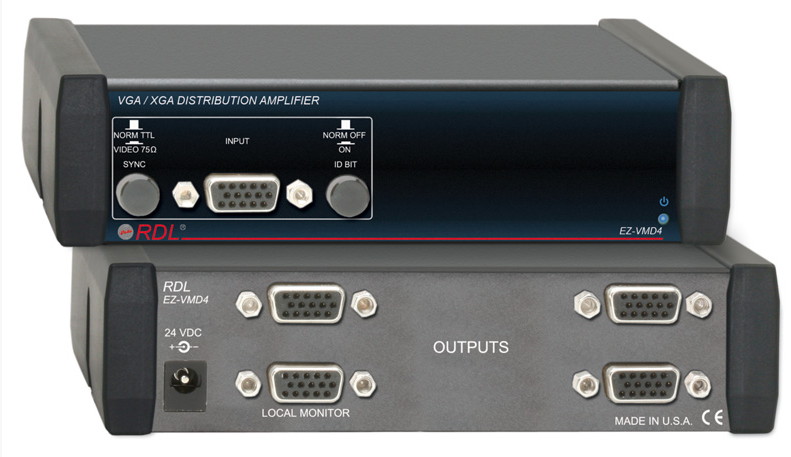

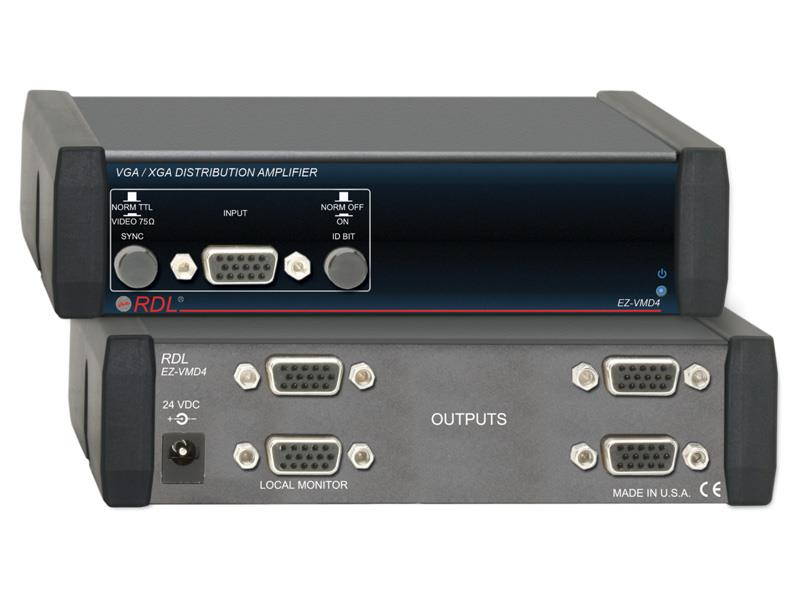

Input: VGA - QXGA RGBHV or RGB with combined sync Outputs (4): LOCAL MONITOR (1, Buffered, ID bit pass-thru to INPUT), OUTPUTS (3, buffered separately from LOCAL MONITOR) Gain: Unity Video bandwidth: > 470 MHz Video impedance: 75 Ω (Input and output) Sync (HV) input: 500 Ω TTL or 75 Ω Video (Switch-selectable), 0.7 V to 5 V p-p Sync (HV) output: 5V TTL Sync (HV) Propogation delay: < 4 nS typ. Sync (HV) Rise time: < 4 nS typ. Sync (combined): Output follows input Bit Control: Switch-selectable (Pin 4, over-rides LOCAL MONITOR jack ID bit pass-thru) 24 Vdc power supply current: 70 mA (idle), 90 mA (max.) Case dimensions: 5.75â€? (14.6 cm)W x 5â€? (12.7 cm)D Mounting size: 1/3 rack width
