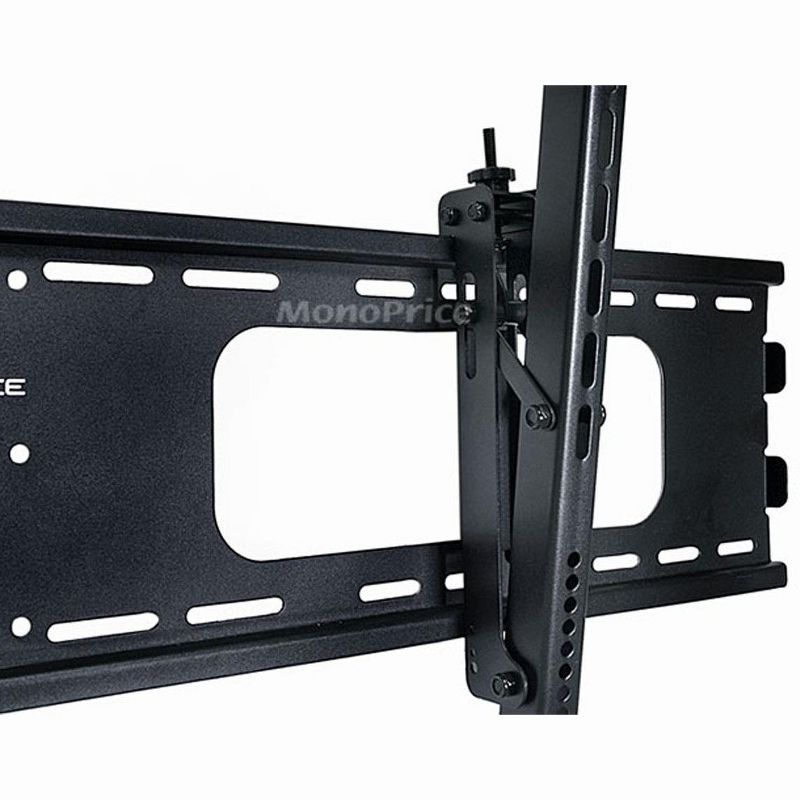

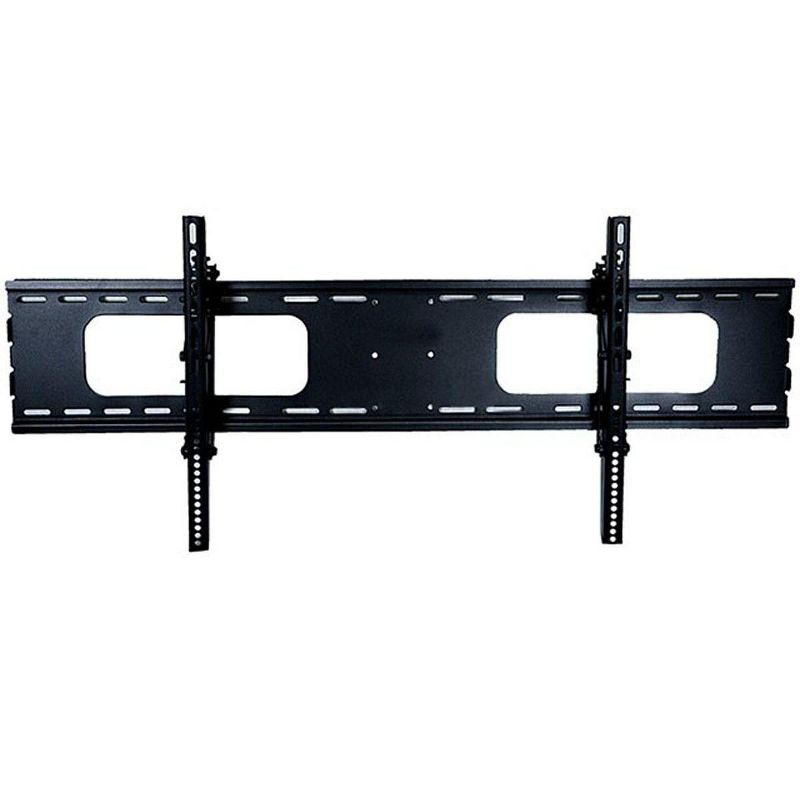

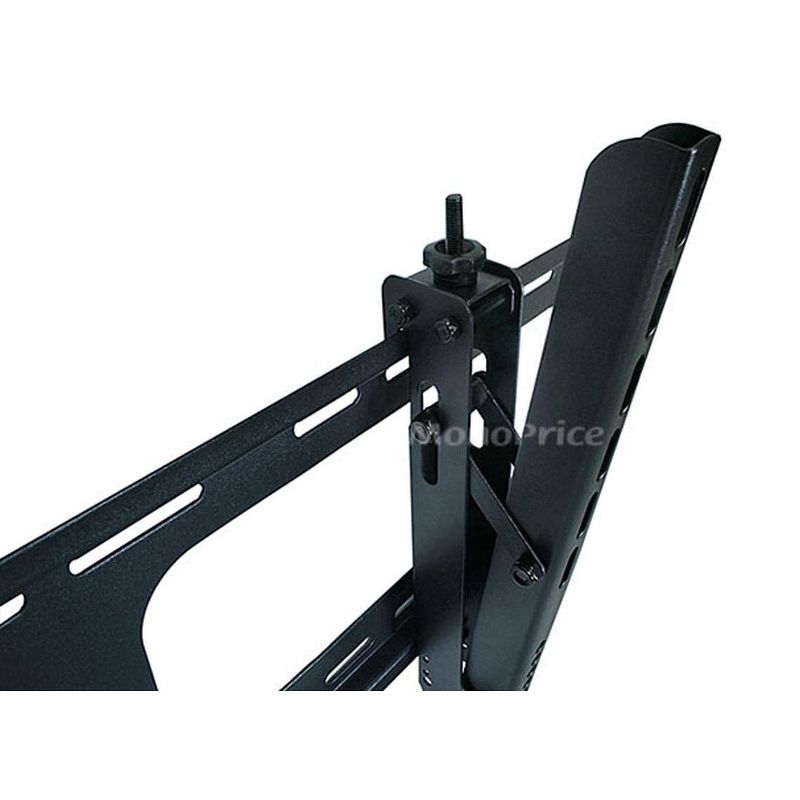

Monoprice Titan Series Tilt Wall Mount For Extra Large 37" - 70" Inch TVs Displays, Max 165 LBS. 100x100 to 1050x450, Black, UL Certified

Dimensions (Overall): 46.5 inches (L), 3.6 inches (H) x 10.3 inches (W)
Weight: 17.7 pounds
Holds up to: 165 pounds
Mount Type: Tilt Mount
VESA Mounting Standard: 1000x800
Model name: 106663
Minimum TV Screen Size: 70 inches
Maximum TV Screen Size: 37 inches
Warranty: Lifetime Limited Warranty. To obtain a copy of the manufacturer's or supplier's warranty for this item prior to purchasing the item,
• Mounts to any type wall (brick, concrete, wood stud, etc.) and can safely hold up to 165 lbs (including the weight of the mount itself).
• Supports displays 37 inches to 70 inches, and up to 165 lbs.
• Supported VESA: 100x100 200x200 300x200 400x200 300x300 400x300 400x400 500x400 600x400 700x400 800x400 900x400 1000x400.
• Mount type: Tilt. Color: Black.
• Mounting hardware included. UL Certified.
One of the great things about the new HDTVs is that they can be easily mounted to a wall, which frees the top of your furniture from a big heavy television and provides theater-like viewing angles, all in the comfort of your own home. When purchasing a wall mount there are several basic considerations. The first is the weight of your display versus the weight limit of the mount. You should look for a mount with a weight capacity that exceeds the weight of your TV by at least 50 percent. The reason for this is that the rated weight capacity of a mount is the absolute maximum weight it can withstand without incurring a structural failure of some kind. Also, the weight of the mount itself is included in the maximum capacity. The second thing to look for is a mount that can accommodate the mounting holes on the back of your TV. The actual size of the display itself (e.g., 42 inch) is of almost no concern. The owner's manual of your TV should show the VESA size required, which is measured in millimeters. The third thing to look for is the type of mount. In general, there are three basic types: fixed, tilting, and fully articulating with tilt, swivel, and extension. Which you should choose depends entirely on your needs and your budget. This mount has the following features: Mount Type: TiltingWall Type: anyMinimum VESA: 100x100Maximum VESA: 1050x450Weight Capacity: 165 lbsTypical Display Size: 52-71 inchMinimum Extension: 4 inchMaximum Extension: N/ATilt Range: +0 degree to -15 degreeSwivel Range: N/AMaterial: SteelWall Plate Dimensions: 45 inch x 8.9 inchFront Plate Dimensions: N/AFeatures: fits VESA 100x100-1050x450, black color, hardware included
