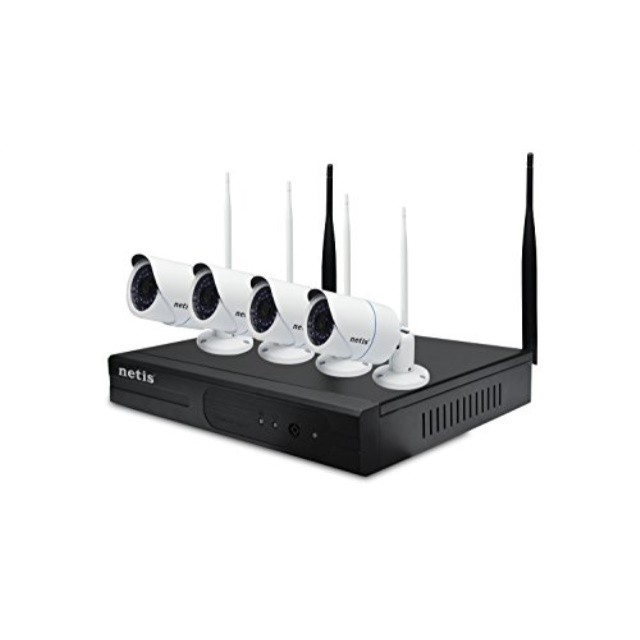

Brand | Netis Systems |
---|---|
Model | SEK204 |
Type | Kit Solution |
Camera inputs | 4 Channel |
Video Input | 4 x (1280x960) IP camera |
Recording Mode | Support manual, auto, dynamic detection, alarm trigger record mode (Partly needs IPC Support) |
Video Output | HDMI Output: 1ch, resolution: 1920 x 1080P / 60Hz, 1920 x 1080P / 50Hz, 1440 x 900, 1366 x 768, 1280 x 1024, 1024 x 768 VGA Output: 1ch, resolution: 1920 x 1080P / 60Hz, 1920 x 1080P / 50Hz, 1440 x 900, 1366 x 768, 1280 x 1024, 1024 x 768 |
Interface | 1x 10/100Mbps Auto MDI / MDIX RJ45 WAN port 3x 10/100Mbps Auto MDI / MDIX RJ45 LAN port |
Backup Device | 2 x USB 2.0 Port |
Power Supply | DC 12V / 3A (Output) |
System Requirement | Embedded Linux operating system |
Bundled Camera Number | 4 |
Bundled Camera Spec | Image Sensor: 1/3" Progressive scan CMOS sensor Min. Illumination: 0.1Lux @(F1.4, AGC ON), 0 Lux with IR Shutter time: 1/25s ~ 1/100,000s Lens: 3.6mm @ F2.0 Angle of view: 75.7 degree Lens Mount: C/M12 (optional) LED: 36pcs LED (940nm) IR Distance: 10-15M Day& Night: ICR Wide Dynamic Range: Digital WDR Digital noise reduction: 3D DNR Image Compression: H.264 Image Frame Rate: 32 Kbps ~ 16 Mbps Resolution: 960P (1280 x 720), VGA (640 x 480), QVGA (320 x 240) Stream: Dual stream Frame Rate: 50Hz: 25 fps (1280 x 960) 60Hz: 30fps (1280 x 960) |
Dimensions | NVR: 1.77" x 10.12" x 8.27" Camera: 2.17" x 8.07" x 2.76" |
Package Contents | 1 x SEV204 (With HDD) 4 x SEC111 1 x 12V / 3A Power Adapter 4 x 12V / 1A Power Adapter 4 x Mounting Kits 1 x USB Mouse 1 x Ethernet Cable 1 x Quick Installation Guide |
