| Brand |
Tenda |
| Model |
TEF1008P |
| Format |
Desktop |
| Standards |
IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3af,IEEE 802.3at |
| Network Management Type |
Unmanaged |
| Primary Ports |
8*10/100Mbps auto-negotiation ports, port1 to port4 support IEEE802.3 at/af standard |
| Primary Port Speed |
10/100Mbps |
| MAC Address Table |
2K |
| PoE |
Yes |
| Power |
External Power Supply: DC: 51V/1.25A
Consumption: 2 Watts (max. no PD connected)60 Watts (max. with 58W PD connected) |
| Features |
Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at standard

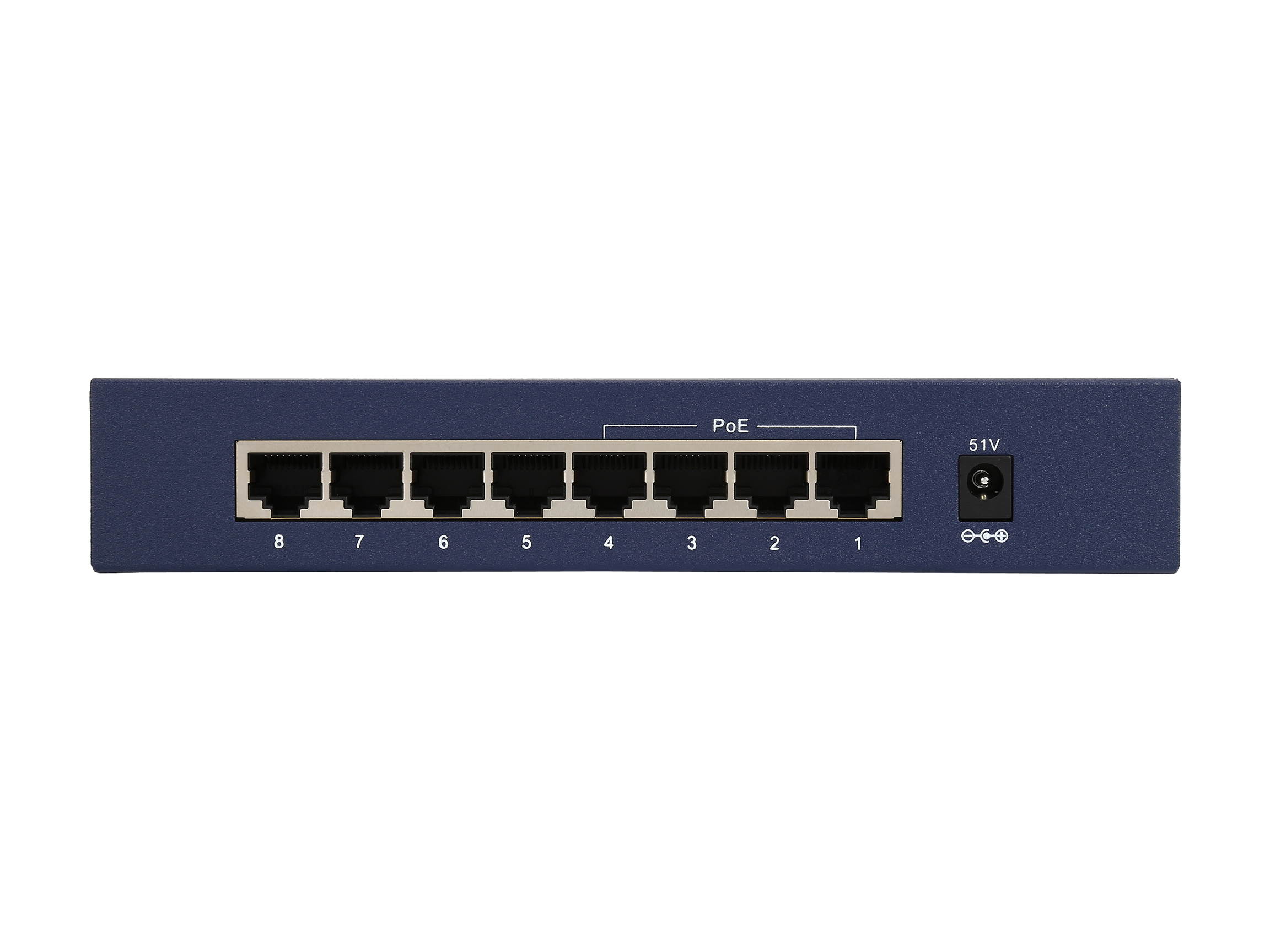

8 Auto-Negotiation RJ45 ports , supports Auto MDI/MDIX, (port-1 to port-4) of the switch supports IEEE802.3at/af standard
1.6Gpbs backbound bandwidth, 1.19Mpps packet forwarding rate, support non-blocked wire speed forwarding
Supports PoE power up to 40W for each PoE port
Adopts category 5e cable, power supply and transfer distance up to 150m
Automatically adjust the power supply powered devices
Durable case and silent,fan-less design, longer service life |
| Dimensions |
1.31" x 4.20" x 7.35" (H x W x L) |
| Weight |
2.9 |

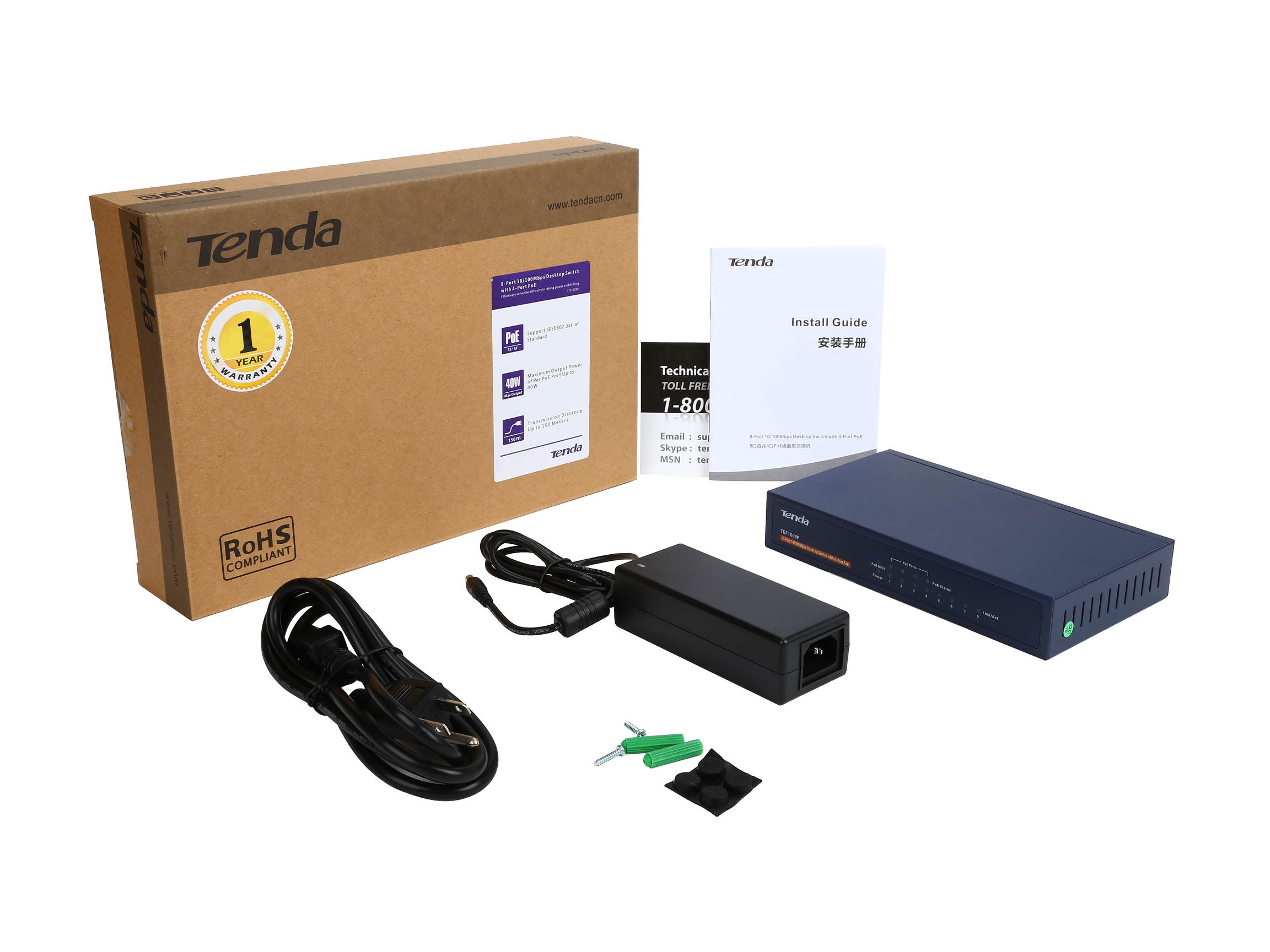

Tenda TEF1008P 8-Port 10/100 Mbps Unmanaged Switch TEF1008P is a 8-Port 10/100Mbps Desktop Switch with 4-Port PoE that requires no configuration. 4 of the 8 Ethernet ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to connect devices such as APs, IP Cameras or IP Phones, etc.Total Number of Network Ports: 8Port/Expansion Slot Details: 8 x Gigabit Ethernet NetworkMedia Type Supported: Twisted PairEthernet Technology: Gigabit EthernetNetwork Technology: 1000Base-TLayer Supported: 2Manageable: NoPower Source: Power SupplyRedundant Power Supply Supported: NoForm Factor: DesktopHeight: 1.3Width: 7.4"Depth: 4.2"Weight (Approximate): 11.02 lbPackage Contents: TEF1008P 8-Port 10/100 Mbps Unmanaged Switch 1 Environmentally Friendly: YesEnvironmental Certification: RoHSLimited Warranty: 3 YearPackage Contents TEF1008P 8-Port 10/100 Mbps Unmanaged Switch 1 "
