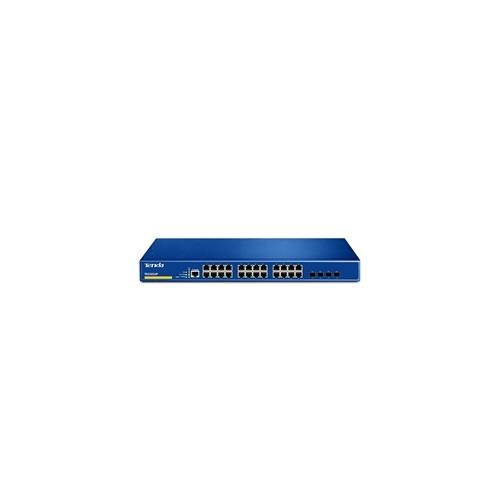

Brand | Tenda |
---|---|
Model | TEG3224P |
Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3z,IEEE 802.3ab,IEEE 802.3x,IEEE 802.1D,IEEE 802.3af,IEEE 802.3at |
Network Management Type | Managed |
Primary Ports | 24 x 10/100/1000Base-T ports (Data / PoE) 4 x 10/100/1000 Base-X SFP ports ( Combo) |
Primary Port Speed | 10/100/1000Mbps |
MAC Address Table | 8K |
Switching Method | Store and Forward |
VLAN Support | Support port-based VLAN (4K), protocol-based VLAN Compliant with Voice VLAN, VLAN Mapping, VLAN VPN (Qin), flexible QinQ |
Security | User classification management,and password protection IEEE 802.1 X authentication Centralized MAC address authentication Protection of the ARP,IP source address intrusion detection Support SSH2.0, port isolation |
PoE | Yes |
QoS | Yes |
Power | Power supply module: Supply 24 RJ-45 802.3af(15.4W)/12 RJ-45 802.3at(30W) Power Pin Assignment: 1/2 (+), 3/6 (-) Input Voltage: AC: 176V~264V, 50/60 Hz Consumption: Power consumption:<450W PoE Power Budget:370 Watts |
Features | Support the whole network management, prevent ARP virus, IP / MAC deceit and Dos attacks, 802.1 X and MAC authentication 24 x Gigabit + 4 x SFP Support VCT cable diagnosis, quickly locate fault point of illness |
Dimensions | 1.73" x 17.32" x 11.18" |
Temperature | 0 ~ 45 degree Celsius |
Humidity | 10% ~ 95% non-condensing |
