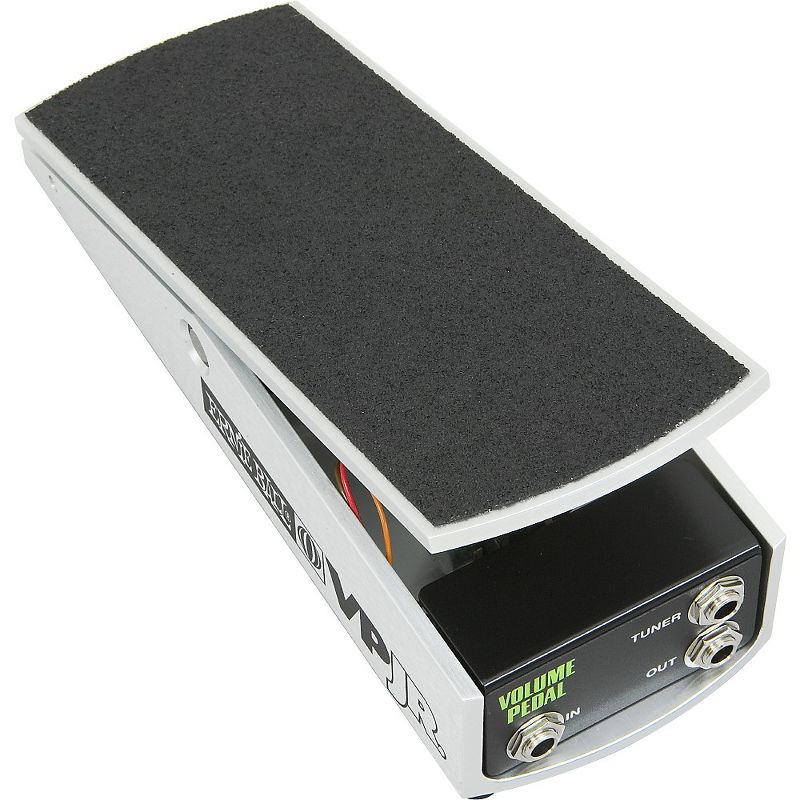

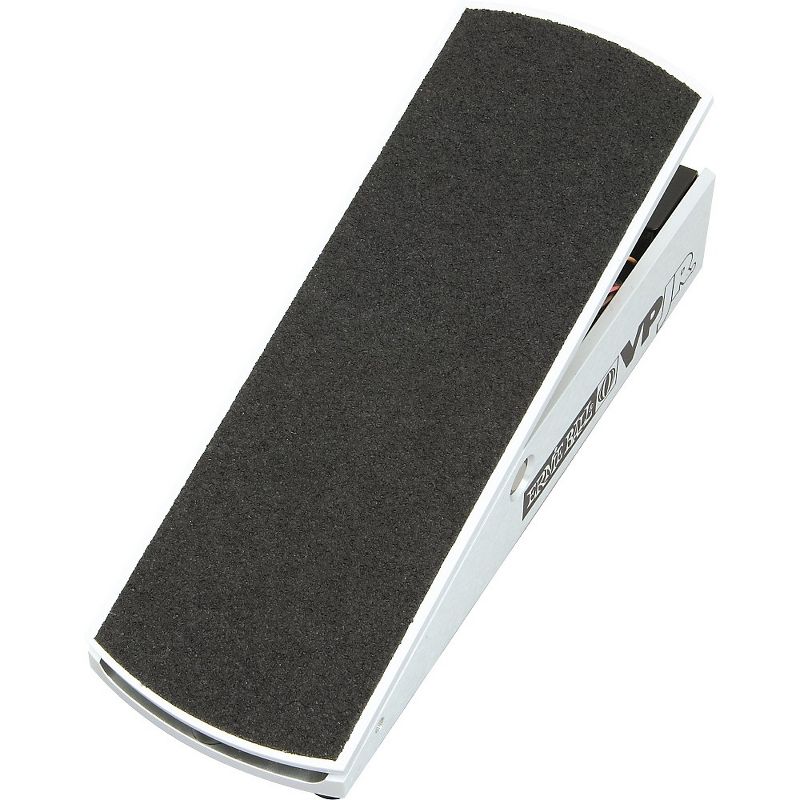

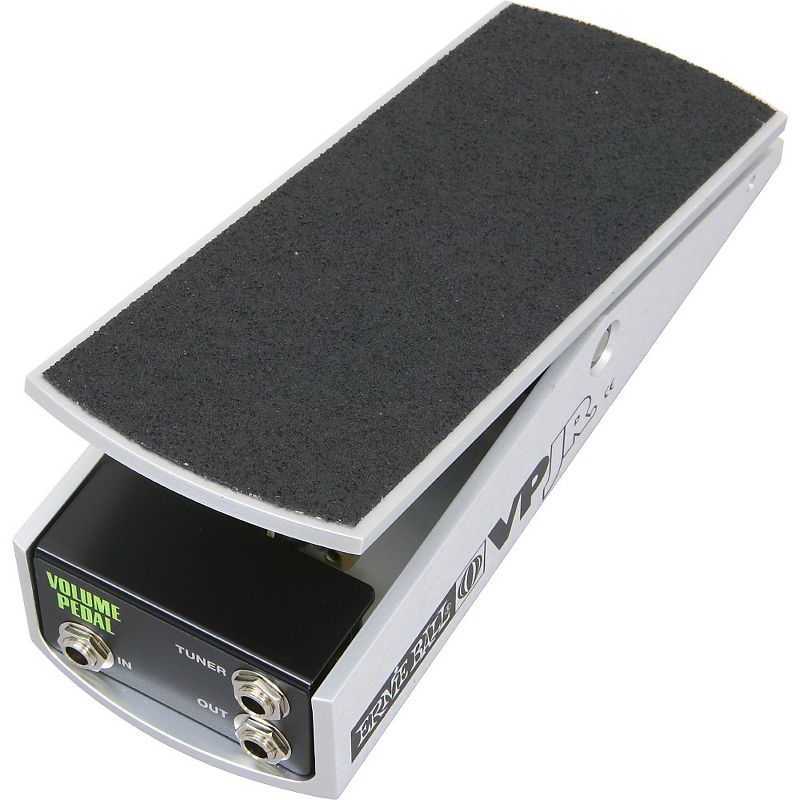

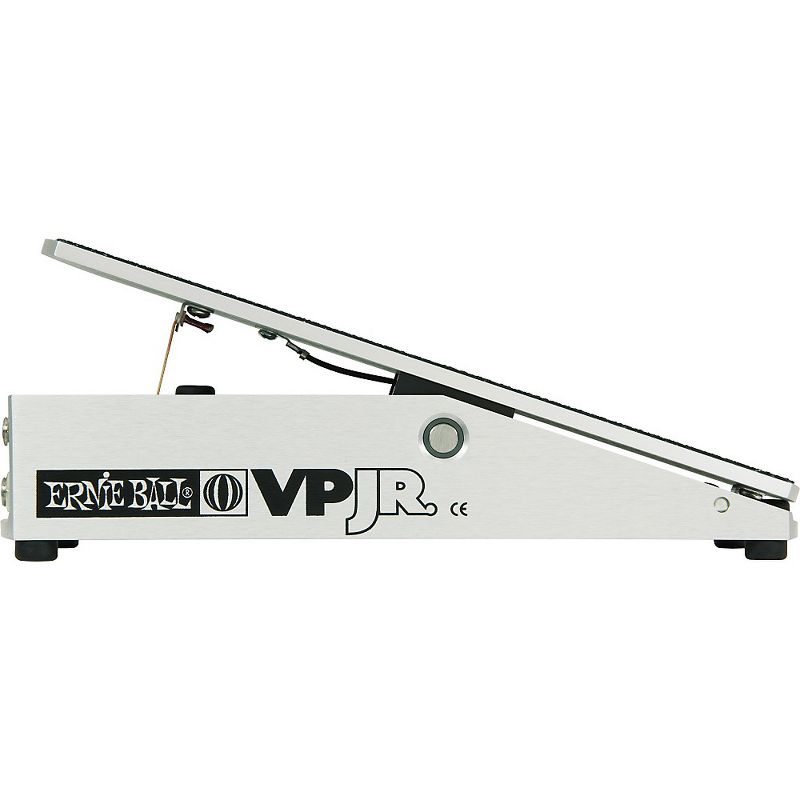

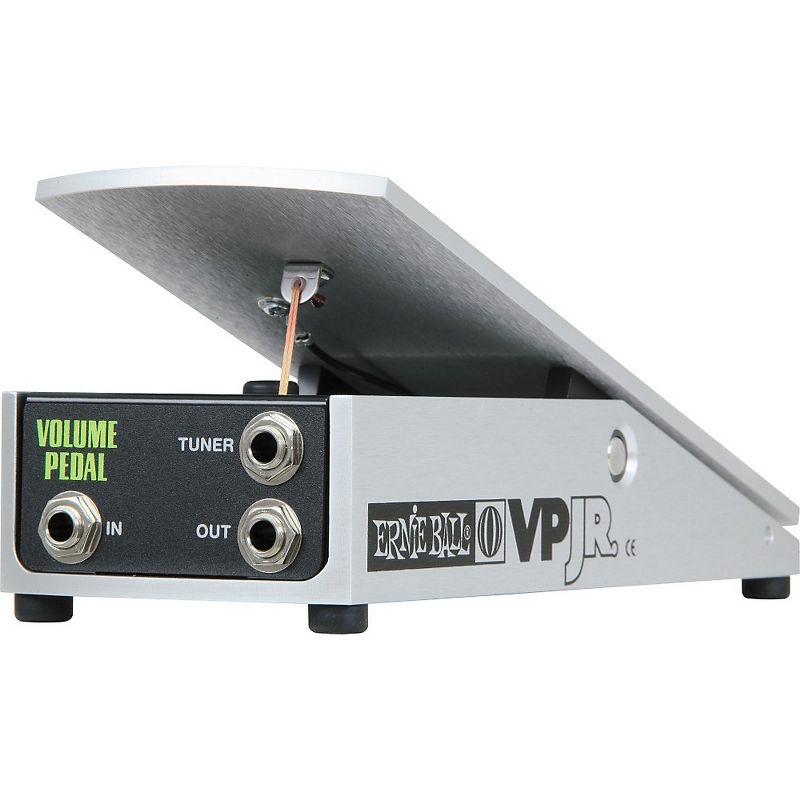

Ernie Ball VP JR. Passive Volume Pedal

Dimensions (Overall): 10.5 inches (L), 3.5 inches (H) x 4.7 inches (W) x 10.5 inches (D)
Weight: 2.5 pounds
Effect Type: Volume and Expression
Warranty: No Applicable Warranty. To obtain a copy of the manufacturer's or supplier's warranty for this item prior to purchasing the item,
• Compact design
• Potentiometer is optimized for passive instruments
• Micro taper switch provides 2 distinct swell rates
• Tuner output
The Ernie Ball VP JR. Passive Volume Pedal has a durable, compact design that allows more floor space. It features a potentiometer with 250kOhm resistance suitable for the audio path of passive instruments. A micro taper switch gives 2 distinct swell rates. A tuner output provides silent tuning in the heel-down pedal position. The potentiometer has a 250k ohm resistance suitable for the audio path of passive instruments. Behind the jack area under the footplate is a micro taper switch which provides the user two distinct volume swell rates. Overall Volume Pedal Junior dimensions: 3.5" W x 10" L x2 3/8" H . The main pivot shaft is of centerless ground 1/2' diameter stainless steel, precision seated though nylon bushings at both ends. Tough long lasting Kevlar cable transmits pedal travel to the controls and is attached by stainless steel springs.
