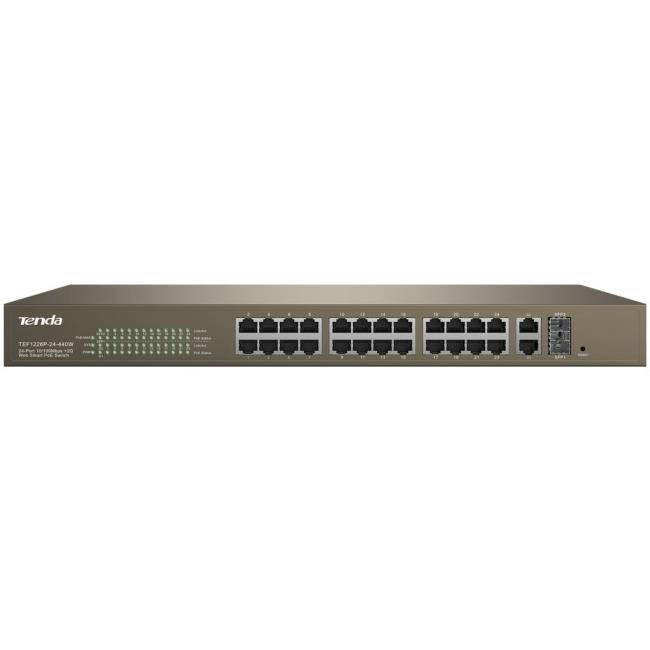

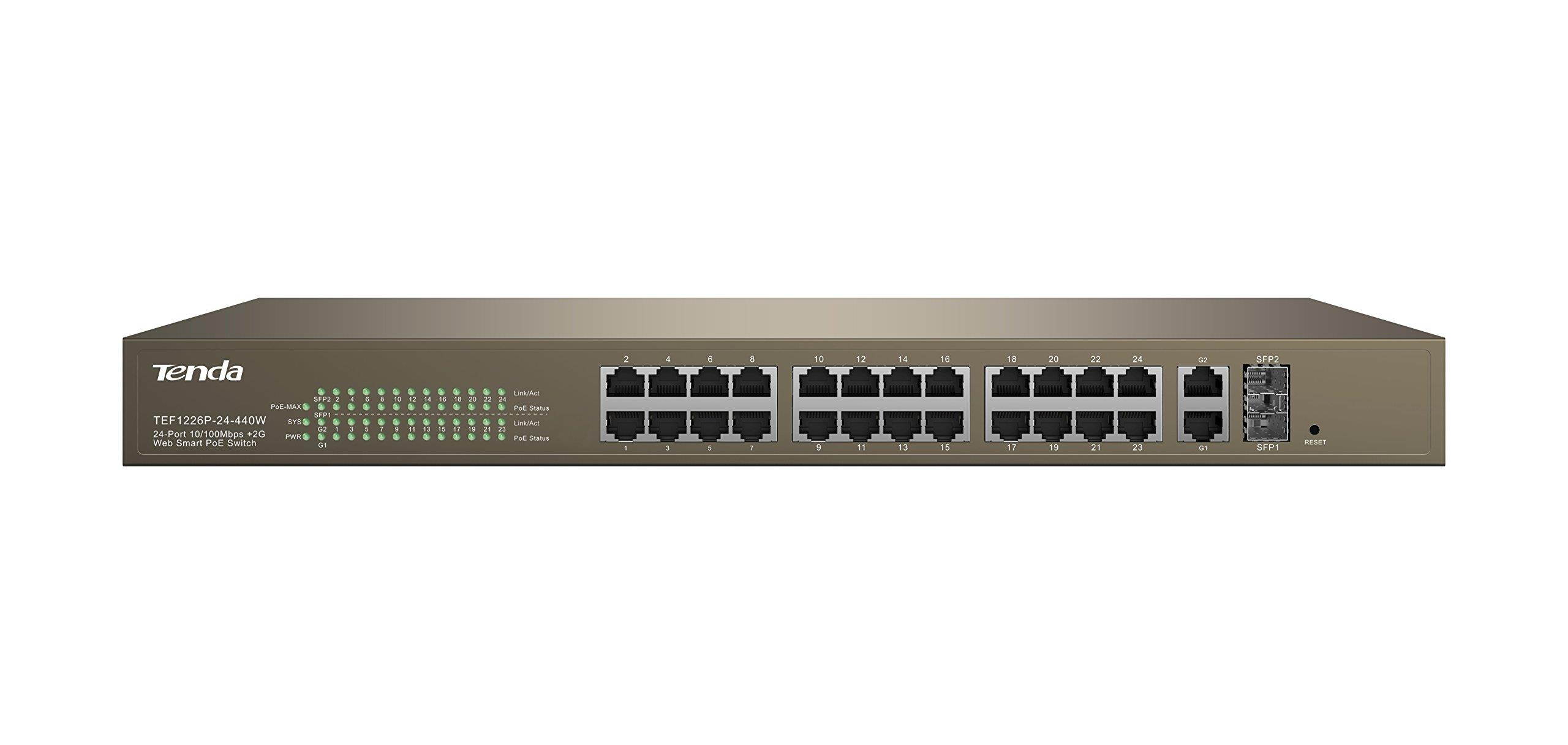

Tenda Technology TEF1226P 24-Port 10-100 Mbps, 2 Gigabit Web Smart PoE Switch

Tenda TEF1226P 24-Port 10/100 Mbps+2 Gigabit Web Smart POE Switch w/ 370W Output TEF1226P-24-440W is a 24-Port 10/100Mbps +2-Port Gigabit TP/SFP Combo Web Smart PoE Switch developed by Tenda. It provides 24 10/100Base-Ethernet ports, 2 10/100/1000Base-Ethernet ports and 2 1000Base-X SFP combos. Ports 1-24 support IEEE 802.3 af PoE ( 15.4W ) and IEEE 802.3 at PoE+ (30W) powering. The total PoE output is 370W. By using Cat 5 twisted pair, the device can provide data and power for APs, IP cameras, IP phones, and other PoE devices. Moreover, by using Cat 5e Ethernet and enabling extend mode, the transmission distance of data and power can be as long as 800 feets.

In addition, it supports QVLAN, link aggregation, QoS, MAC binding, etc, which is a very economical solution that is time and cost saving.
Product Type: Ethernet Switch
Power Source: Power Supply
Layer Supported: 2
Product Type: Ethernet Switch
Manufacturer Part Number: TEF1226P
Power Source: Power Supply
Limited Warranty: 3 Year
Layer Supported: 2
Weight (Approximate): 11.02 lb
Network Technology: 10/100Base-T
Network Technology: 10/100/1000Base-T
Network Technology: 1000Base-X
Manufacturer: Tenda
Technology Inc Product Model: TEF1226P
Product Name: TEF1226P 24-Port 10/100 Mbps+2 Gigabit Web Smart POE Switch w/ 370W
Output Network Technology: 10/100Base-T
Network Technology: 10/100/1000Base-T
Network Technology: 1000Base-X
Brand Name: Tenda
Brand Name: Tenda
Expansion Slot Type: SFP
Expansion Slot Type: SFP
Height: 1.7
Width: 17.3
Depth: 11.2
Ethernet Technology: Fast Ethernet
Ethernet Technology: Gigabit Ethernet Number of Total
Expansion Slots: 2
Stack Port: No
Media Type Supported: Optical Fiber
Media Type Supported: Twisted Pair Total Number of
Network Ports: 24
Port/Expansion Slot Details: Gigabit
Ethernet Port/Expansion Slot Details: Fast Ethernet
Environmentally Friendly: Yes
Environmental Certification: RoHS
Ethernet Technology: Fast Ethernet
Ethernet Technology: Gigabit Ethernet Number of Total
Expansion Slots: 2 Number of
SFP Slots: 2
Modular: Yes
Uplink Port: No
Stack Port: No
Media Type Supported: Optical Fiber
Media Type Supported: Twisted Pair Total Number of
Network Ports: 24
Shared SFP Slot: Yes
Port/Expansion Slot Details: 2 x Gigabit Ethernet Expansion Slot Port/Expansion Slot Details: 2 x Gigabit Ethernet Network Port/Expansion Slot Details: 24 x Fast Ethernet Network
