Planet Technology IGS-801M 8-Port 10/100/1000Mbps Managed Industrial Ethernet Switch

The PLANET IGS-801M is an 8-Port 10/100/1000Mbps Industrial Gigabit Ethernet Switch with non-blocking wire-speed performance and new slim type with IP-30 metal shape for easily deployment in Heavy Industrial demanding environments. High Gigabit Performance / Wire-Speed Switching With a 16Gbps internal switching fabric and featuring 9K jumbo packet support in each Gigabit port, the IGS-801M Industrial Gigabit Ethernet Switch can handle extremely large amounts of data in a secure topology linking to a backbone or high capacity servers. The IGS-801M has 8K MAC Address table and offers wire-speed packets transfer performance without risk of packet loss.

The high data throughput of the device makes it ideal for most Gigabit environments. Environmentally Hardened Design With IP-30 industrial case protection, the IGS-801M provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. The IGS-801M also provides a wide range of power supply options suitable for multiple industries and for worldwide operation. The feature of operating temperature ranges from -10 to 60 Degree C allowing the Managed Industrial Switch to be placed in almost any difficult environment.

Robust Layer 2 Features The IGS-801M supports robust advanced features including IEEE 802.1Q VLAN, Port link aggregation, QoS, broadcast storm control, IGMP snooping, and enhanced security to fit a variety of applications. Via aggregation of supporting port, the IGS-801M allows the operation of high-speed trunk combining multiple ports. Maximum up to 4 ports of the IGS-801M can be assigned for 8 trunk groups and support fail-over as well. In additional, its standard-compliant implementation ensures well interoperability with equipments from other vendors. Remote and Centralized Management For efficient management, the IGS-801M is built with Web-Based management design to offer a user-friendly configuration interface.

Affording the current network to grow and expand, the IGS-801M supports standard Simple Network Management Protocol ( SNMP ) and can be monitored via any standard-based management software. These features provide a cost-effective way to manage the devices from the Internet whenever you are at work or at home. Fast Recovery to a Redundant Ethernet Network The IGS-801M features strong and self-recovery capability to prevent interruptions and outside intrusions. It incorporates Rapid Spanning Protocol (IEEE 802.1 w RSTP) and redundant power supply system into customers’ industrial automation network to enhance system reliability and uptime in the harsh factory environments.

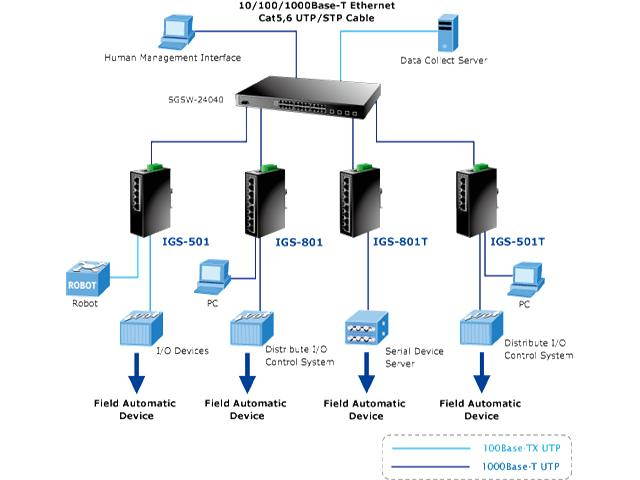

It also protects customer’s industrial network connectivity with switching recovery capability that is used for implementing fault tolerant ring and mesh network architectures. Industrial Area Manageable Switch for data collection and forwarding The IGS-801M offers high performance and high reliability to make sure the continuous industrial operation in harsh environments such as control cabinet of transportation, factory floors, outdoor space, and the places where are in extremely low or high temperatures. With a non-blocking design and desktop size, the PLANET IGS-801M 8-Port Gigabit Managed Industrial Ethernet Switch installation is as easy as that of a Fast Ethernet network and it is helpful to build up a Gigabit high-bandwidth switched network quickly.

To further expand the current network, the IGS-801M provides advanced WEB and SNMP management interface to fill this kind of demand. With its built-in web-based management, the IGS-801M offers an easy-to-use, platform-independent management and configuration facility. The IGS-801M supports standard Simple Network Management Protocol (SNMP) that makes the managed switch able to be monitored via any standard-based management software. With the IGS-801M, which complies with all the requirements of industrial applications, customers may enjoy high reliability, recovery capability, and safe Ethernet network operation.
