Brand |
Tenda |
Model |
TEH1600M |
Format |
Rackmount |
Standards |
IEEE802.3, IEEE802.3u, IEEE 802.3x |
Network Management Type |
Unmanaged |
Primary Ports |
16 x RJ45 |
Primary Port Speed |
10/100Mbps |
MAC Address Table |
4K |
Switching Method |
Store and Forward |
Power |
AC100-240V 50/60Hz 0.2A
DC 9V 1A |
Features |
MAC Address Learning: Yes
Backplane Bandwidth: 3.2Gbps
Supports Auto MDI/MDIX
Supports broadcast storm control and dynamic buffer area automatically allocating to realize network load balancing.
MAC address studying/renewing automatically
2M bit frame buffer
Standard 19-inch rack installation |
Weight |
4.05 |
Temperature |
0ºC to 40ºC (32ºF to 104ºF) |
Humidity |
0 - 90%, Non-condensing |
Package Contents |
One TEH1600M 16-Port 10/100Mbps Ethernet Switch
User Manual (Hard-copy)
One power cord
Two mounting ears
Screws and cushions |
Model |
TEH1600M |

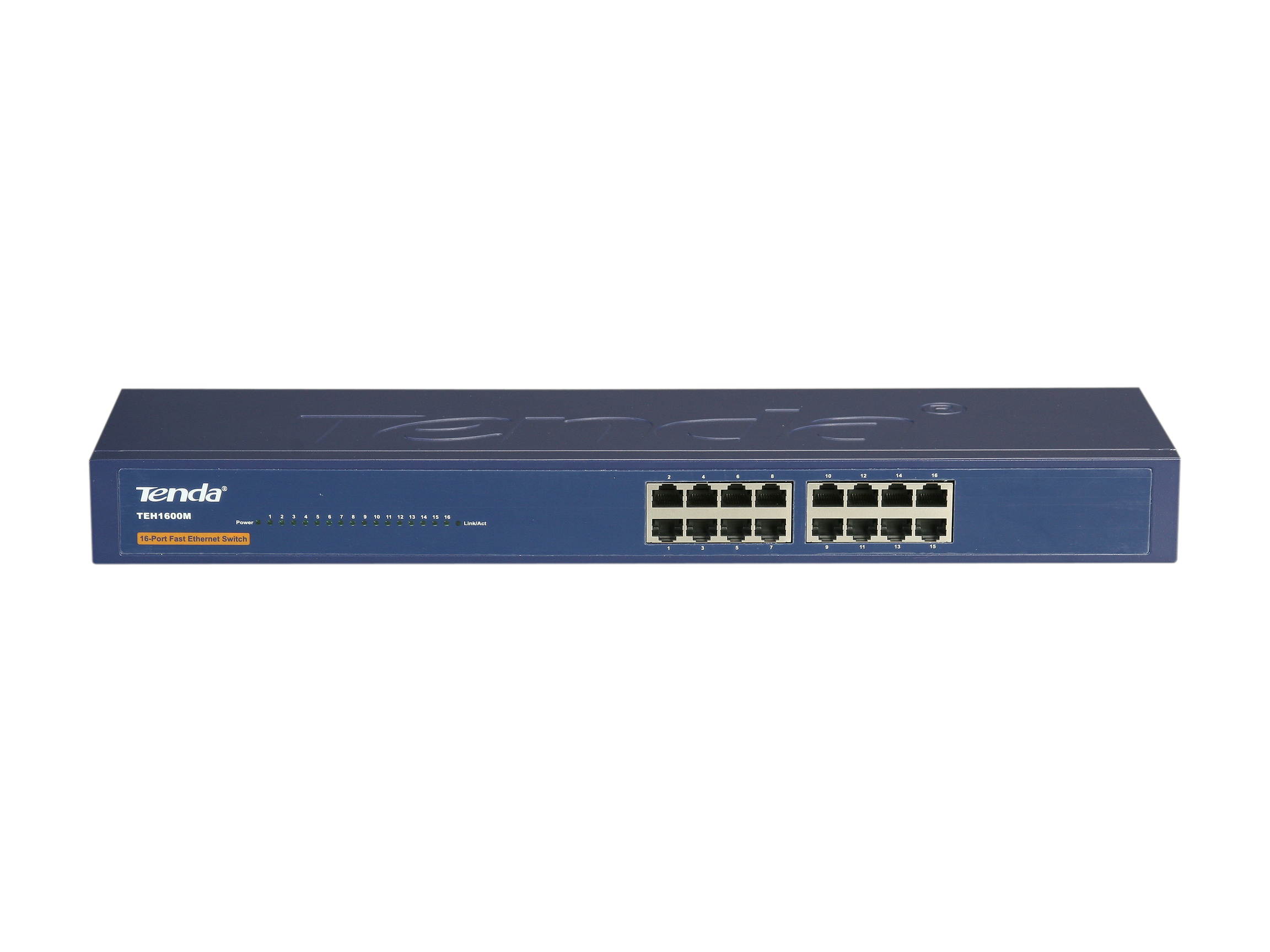

The Tenda TEH1600M 16-Port 10/100 Switch is specially engineered to provide simple solution to expand SMB networks and campus networks at the best possible cost. Connect this 16-port switch to a router and add up to fifteen more computers or other Ethernet-based devices such as a printer, Network-Attached Storage (NAS), or Internet camera to increase the functionality of your network. Housed in sturdy metal case, it is ideal for years of dependable use.Total Number of Network Ports: 16Uplink Port: NoModular: NoStack Port: NoPort/Expansion Slot Details: 26 x Fast Ethernet NetworkMedia Type Supported: Twisted PairEthernet Technology: Fast EthernetNetwork Technology: 10/100Base-TXLayer Supported: 2Manageable: NoPower Source: Power SupplyForm Factor: DesktopForm Factor: Rack-mountableHeight: 1.7Width: 4.8"Depth: 17.4"Weight (Approximate): 4.01 lbPackage Contents: 16-Port 10/100 SwitchUser ManualWarranty CardQA Certificate1 x Power Cord2 x Mounting Ears8 x Screws4 x Rubber FeetGreen Compliant: YesGreen Compliance Certificate/Authority: RoHSPackage Contents16-Port 10/100 SwitchUser ManualWarranty CardQA Certificate1 x Power Cord2 x Mounting Ears8 x Screws4 x Rubber Feet"
