Tycon Power Systems - TP-SW5G-24HP - 5 Port High Power (140W Total) PoE 10/100/1000BaseT Switch, 802.3at/af 48V PoE Out,

TP-SW5 Series - 5 Port PoE SwitchThe SW5 Series Power over Ethernet (PoE) switches offered by Tycon Power are fully automatic high speed 5 port Ethernet switches with up to 2A of PoE power per port. The switch comes in 5 models:
TP-SW5G-D: /at Compliant 48VDC 10/100/1000MB PoE Switch. Switch accepts 48VDC power via a wire terminal connector on the back of the Switch or via 48VDC PoE into the 802.3 af/at compliant uplink port (90W max).
35W per -SW5G-24 (HP): /at Compliant 48VDC 10/100/1000MB PoE Switch. Switch accepts 12-36VDC power via a wire terminal connector on the back of the Switch or via 48VDC PoE into the 802.3 af/at compliant uplink port (90W max). Perfect for remote solar/battery systems. 35W per port. 70W Max Total, HP

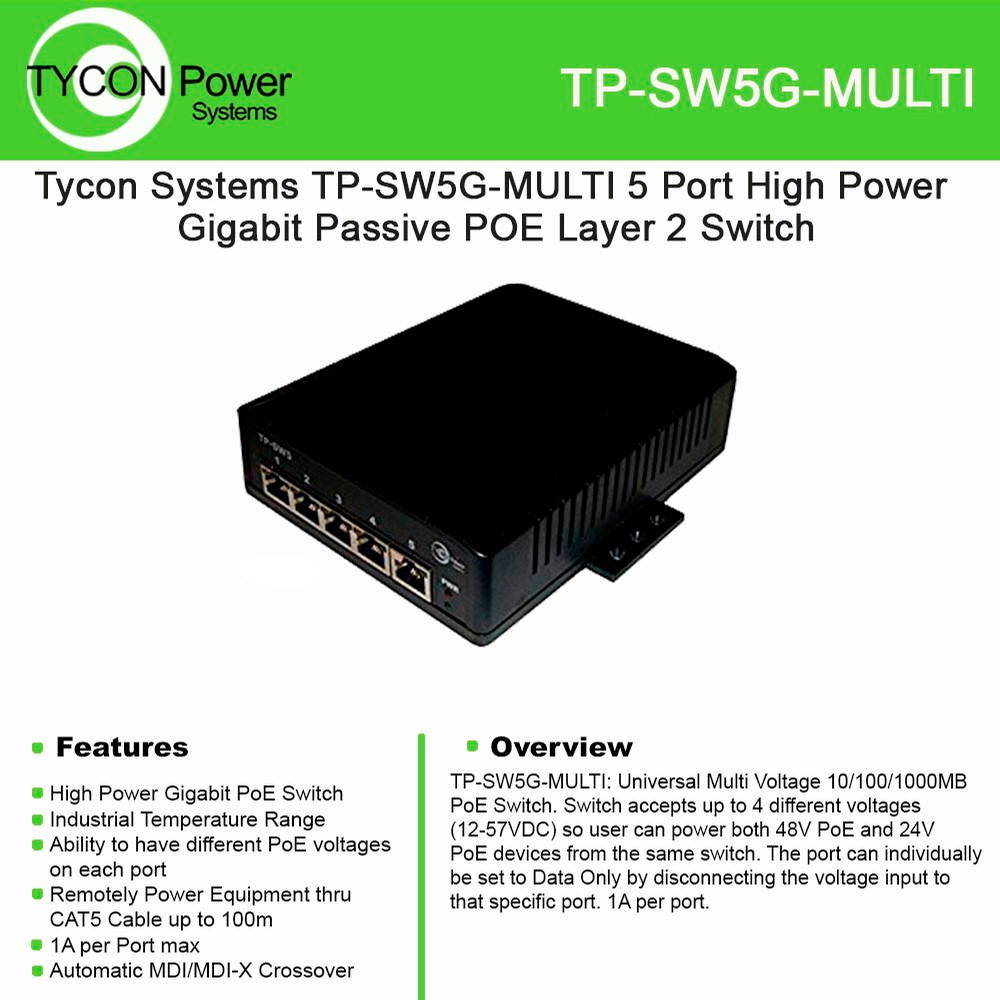

Ver 140W -SW5G-MULTI: Universal Multiple Voltage (MultiVolt[tm]) 10/100/1000MB PoE Switch. Switch accepts up to 4 different voltages (12-57VDC) so user can power both 48V PoE and 24V PoE devices from the same switch. The port can individually be set to Data Only by disconnecting the voltage input to that specific port.

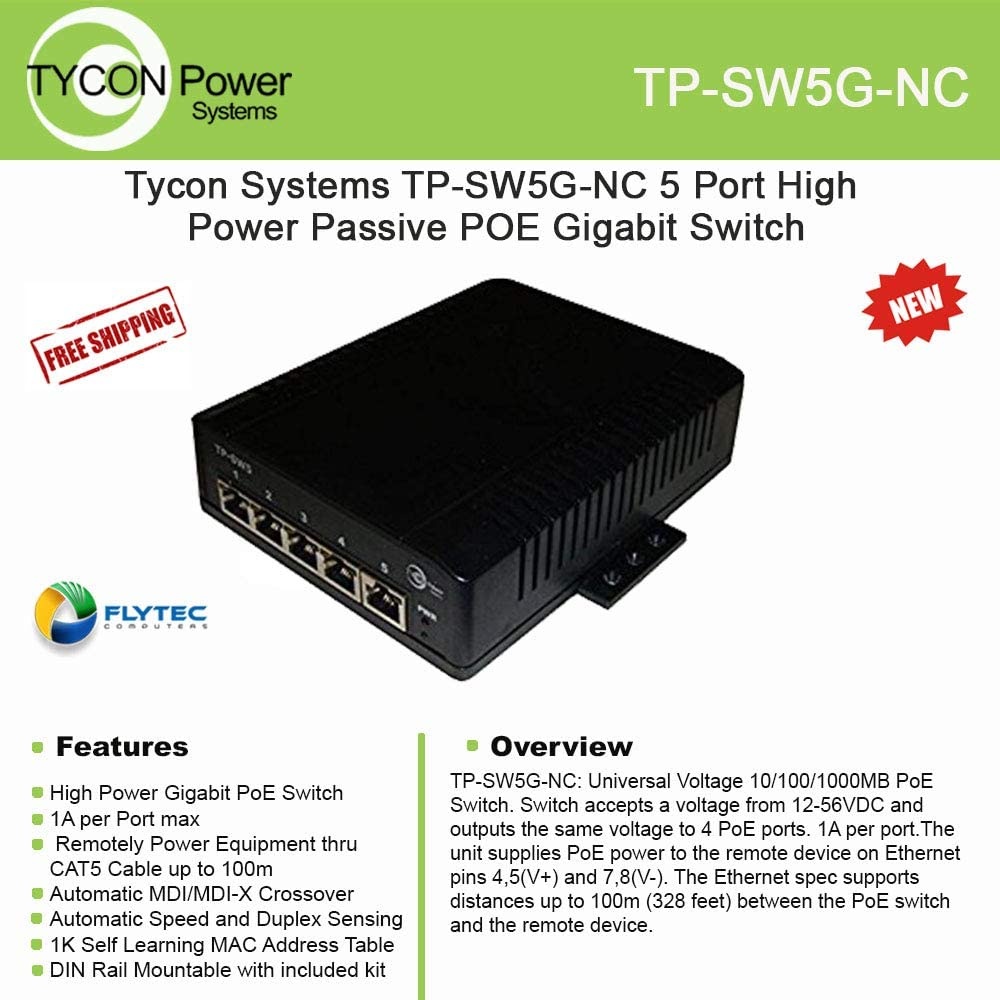

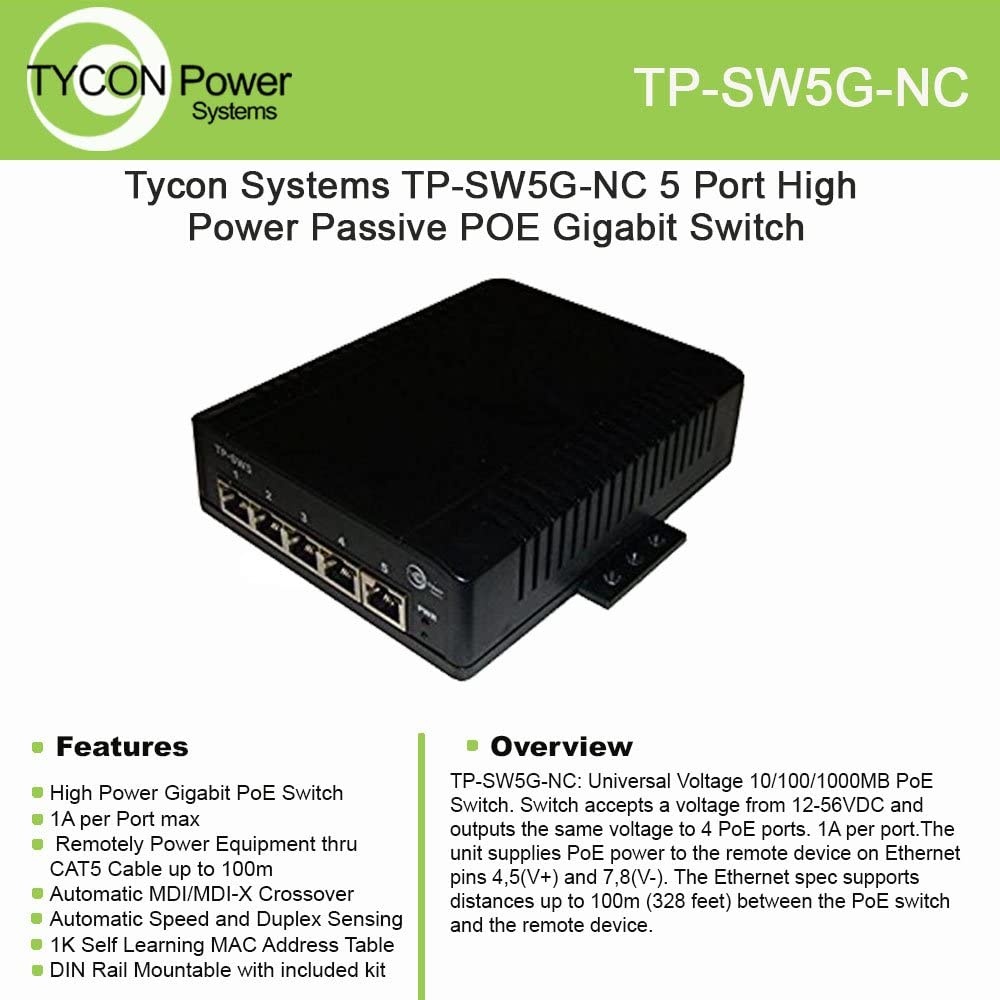

1A per -SW5G-NC: Universal Voltage 10/100/1000MB PoE Switch. Switch accepts universal voltage (12-57VDC) via the wire terminal connector on the back of the switch. Also accepts 12-57VDC (1A max) Passive PoE input on port 5.
1A per -SSW5-NC: Universal Voltage 10/100 PoE Switch. Switch accepts universal voltage (12-57VDC) via the wire terminal connector on the back of the Switch. This model is very compact at only 4''x5''x 1.5 ''. 2A per the universal voltage models (``-NC'') the PoE output voltage = the input voltage so it is universal in its application. The Ethernet spec supports distances up to 100m (328 feet) between the PoE switch and the remote Power sells a variety of power supplies in 60W, 120W and 180W sizes. 18VDC, 24VDC and 48VDC are available. All the Switches have DIN Rail mounts included for convenient DIN rail mounting. Ethernet Standard IEEE 802.3 /IEEE 802.3 u Ports 1 data/PoE input and 4 data/PoE, automatic crossover and polarity Transmission Speed 1000Mbps / 100 Mbps /10 Mbps Auto-negotiation Switch Technology Store and Forward Protocol CSMA/CD Flow Control IEEE 802.3 x(full-duplex), Back Pressure(half-duplex) Data Transmission Rate 1488000pps for 1000baseT, 148800pps for 100baseT, 14880pps for 10baseT Address Table 1K MAC, self-learning Connections Shielded RJ45 POE Output Ports Port 1-4, auto power management
Pin assignment: TX(1, 2), RX(3, 6), V+(4, 5), V-(7, 8) Maximum POE Power HP with 24V Input 140W Total HP with 12V Input 70W Total POE Auto Detection IEEE 802.3 af, 802.3 at POE Protection Over Temperature, Over Current, Over/Under Voltage Data Surge Protection IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC61000-4-4 (EFT) 40A (5/50ns) IEC61000-4-5 (Lightning) 20A (8/20? s) LED’s Link (Green On) Activity (Green Blinking ) PoE Detect (Yellow On) PoE Detect Error (Yellow Blinking) Power On (Green On) Power On Alarm (Red On) DC Power Input 24VDC (12V to 36V), Dual DC Inputs, Reverse Polarity Protected. Also Accepts PoE power input on Port 5 Self Consumption < 4 Watts Operating Temp -40 to +70°C (-40 to 158°F) Operating Humidity (RH) 5% - 90% (non condensing) Storage Temperature -55 to +85°C (-67 to +185°F) Dimensions (LxWxH) 159 x 118 x 40mm ( 6.3 x 4.6 x 1.6 ”) (metal housing) Weight 383g ( 13.5 oz) Warranty 3 Years
